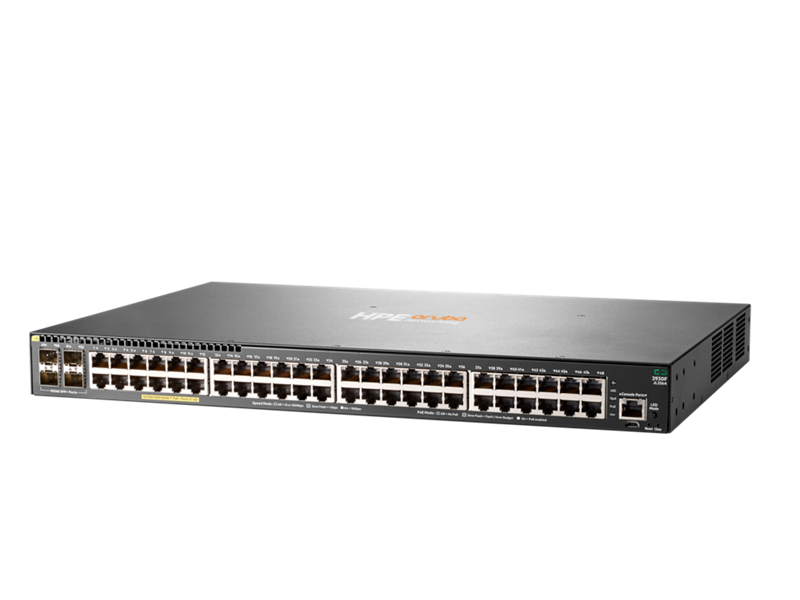

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch
The HPE Aruba Networking 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach
HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch
The HPE Aruba Networking 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach
HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch (JL256A-PROMO) Specifications | |
---|---|
Hardware Configuration | |
Form Factor | 1U Rack-mountable |
Dimensions (H × W × D) | 4.39 × 44.25 × 30.42 cm |
Weight | Approx. 4.6 kg |
Ports & Interfaces | |
Access Ports | 48× 10/100/1000BASE-T PoE+ (IEEE 802.3at) |
Uplink Ports | 4× SFP+ 1/10GbE |
Console Port | 1× RJ-45 or USB micro-B (dual personality) |
Performance | |
Switching Capacity | 176 Gbps |
Forwarding Rate | Up to 112 Mpps |
Latency | Low latency via Aruba ProVision ASIC |
Power & PoE | |
PoE Budget | 370 W |
Power Supply | Internal, fixed |
Power Consumption | Max 470 W (with full PoE load) |
Layer 3 Features | |
Routing Protocols | Static, RIP, Access OSPF |
IPv6 Support | Yes |
ACLs | Yes |
sFlow | Supported |
Management & Software | |
Operating System | ArubaOS Switch |
Management Options | Web GUI, CLI, SNMP, Aruba AirWave, Aruba Central |
Zero Touch Provisioning | Supported |
Stacking | Up to 8 members via Virtual Switching Framework (VSF) |
Environmental & Compliance | |
Operating Temperature | 0°C to 45°C |
Certifications | RoHS, CE, FCC, UL |
Warranty | |
Coverage | Limited Lifetime Warranty |
