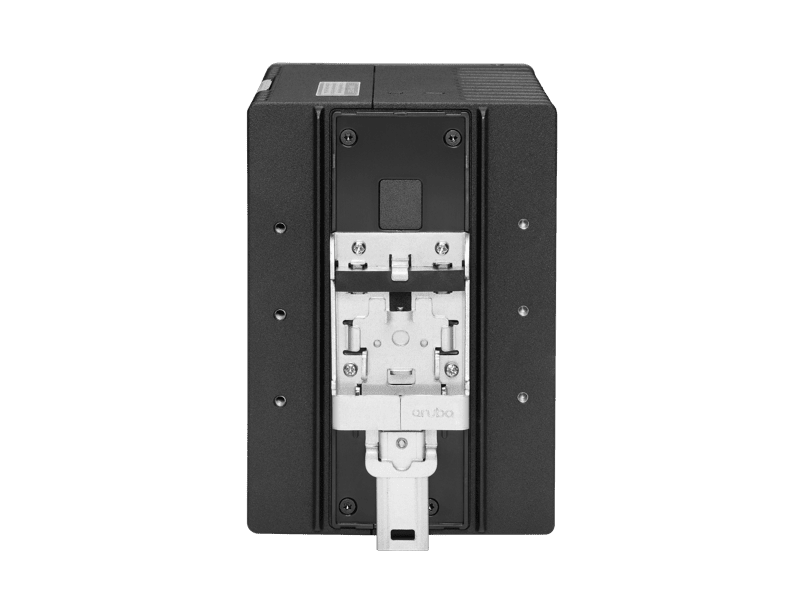

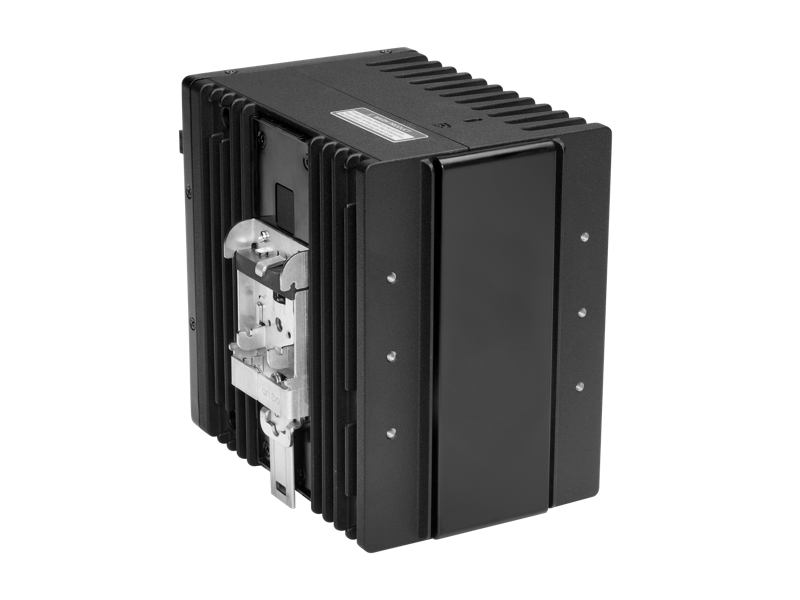

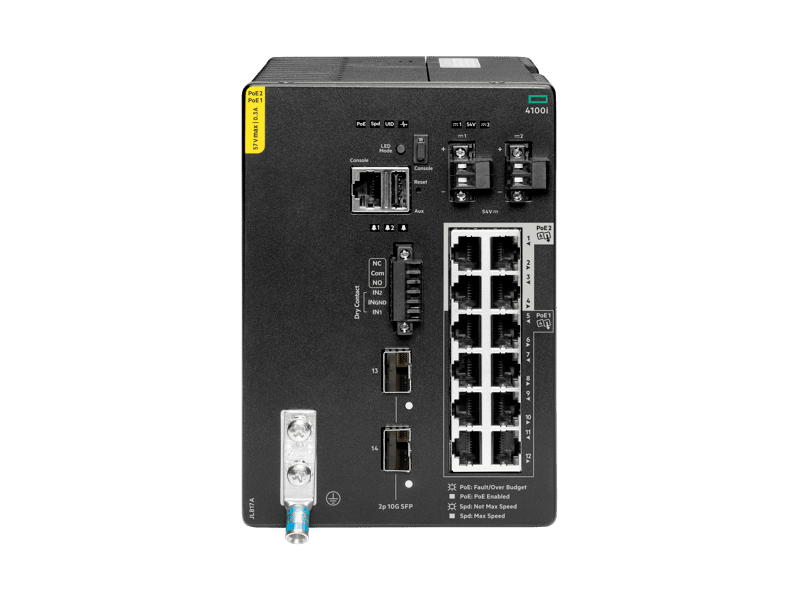

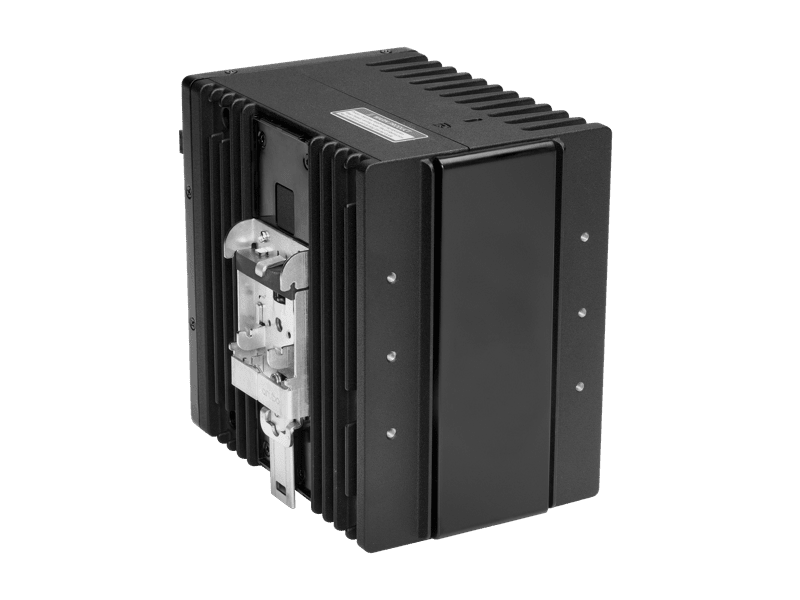

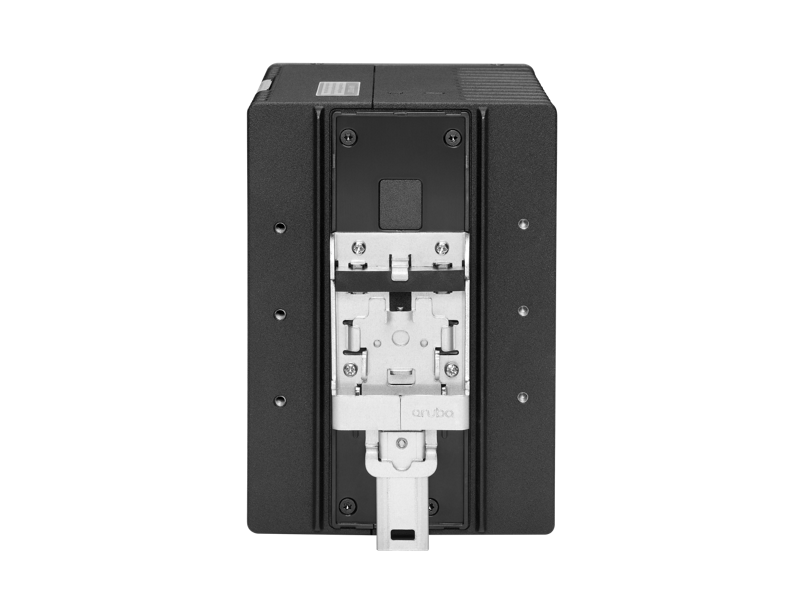

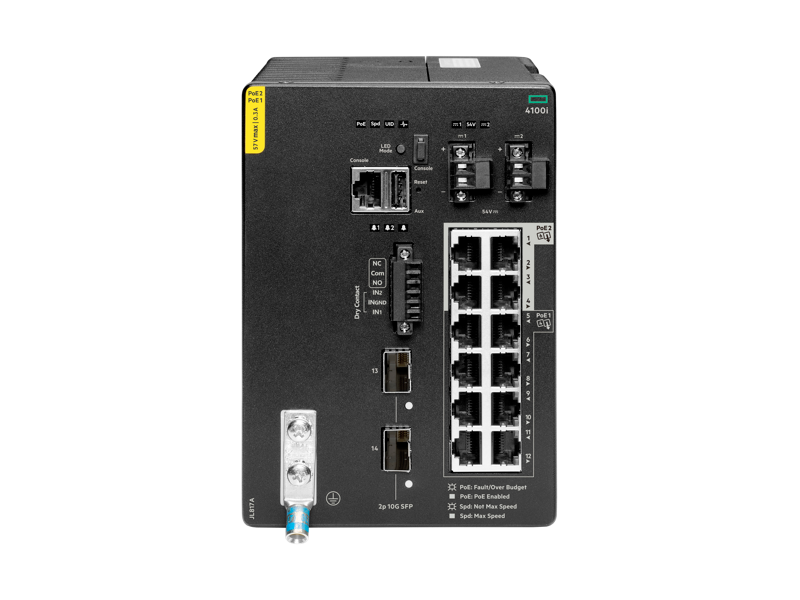

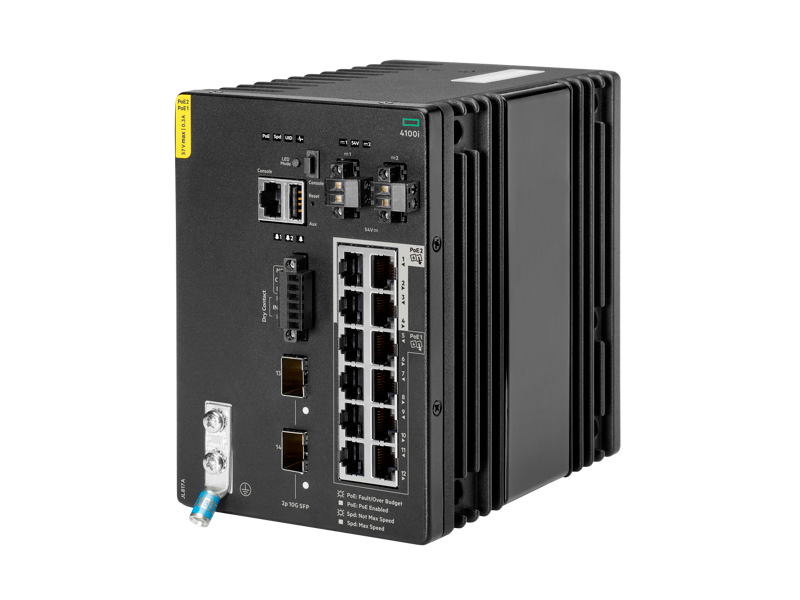

HPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE and 4p Class6 PoE 2p SFP+ DIN Mount Switch
The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments.
Features
Maximize your HPE Aruba Networking CX 4100i Switch Series
What's New
- Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
- Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
- Layer 2 feature set with static routing and no switch software licensing required.
- HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
- Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
HPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE and 4p Class6 PoE 2p SFP+ DIN Mount Switch
The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments.
Features
Maximize your HPE Aruba Networking CX 4100i Switch Series
What's New
- Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
- Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
- Layer 2 feature set with static routing and no switch software licensing required.
- HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
- Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
| HPE Aruba Networking CX 4100i (JL817A) Specifications | |
|---|---|
| Hardware Configuration | |
| Form Factor | DIN rail mount |
| Enclosure Rating | IP30 ruggedized |
| Cooling | Fanless (passive) |
| Mounting | DIN rail or wall mount |
| Ports & Interfaces | |
| Access Ports | 8× 1GBASE-T Class 4 PoE (30W), 4× 1GBASE-T Class 6 PoE (60W) |
| Uplink Ports | 2× 1/10G SFP+ |
| Console Ports | 1× USB-C, 1× RJ-45 |
| USB Host | 1× USB Type-A |
| Performance | |
| Switching Capacity | 64 Gbps |
| Forwarding Rate | Up to 47.6 Mpps |
| Latency | 2.39 µs |
| Power & PoE | |
| PoE Budget | Up to 360 W |
| Power Supply Options | JL819A, JL820A, JL821A (external DC) |
| Input Voltage | 54V DC |
| Environmental & Compliance | |
| Operating Temperature | -40°C to +70°C |
| Certifications | IEC 61850-3, IEEE 1613 (substation), EN 50121-4 (railway) |
| Humidity | 5% to 95% non-condensing |
| Software & Features | |
| Operating System | ArubaOS-CX |
| Layer Support | Layer 2 switching |
| Security | 802.1X, ACLs, DHCP snooping |
| Management | Aruba Central, CLI, Web GUI, REST API |
| Warranty | |
| Coverage | Limited Lifetime Warranty |
