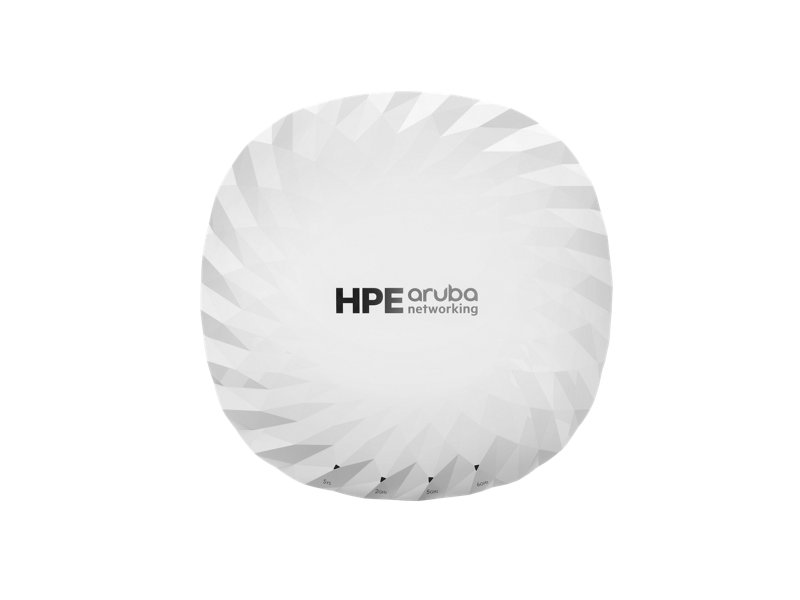

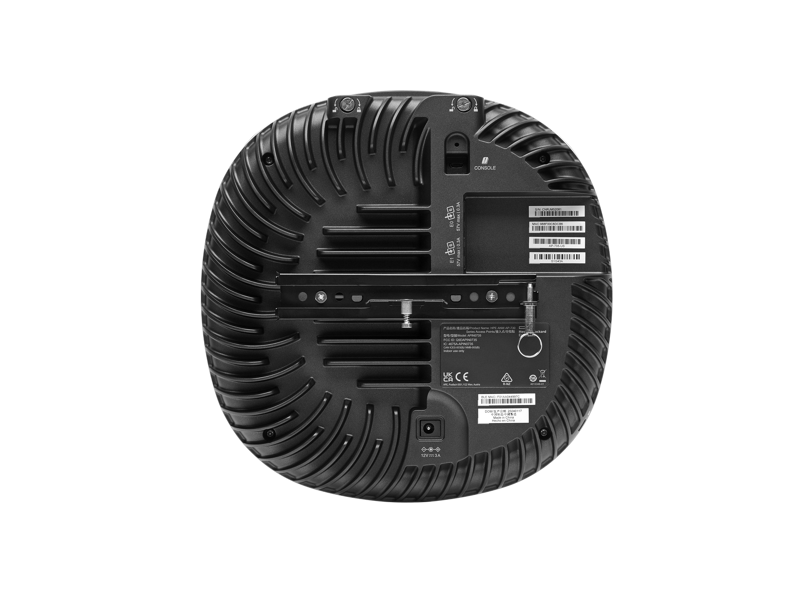

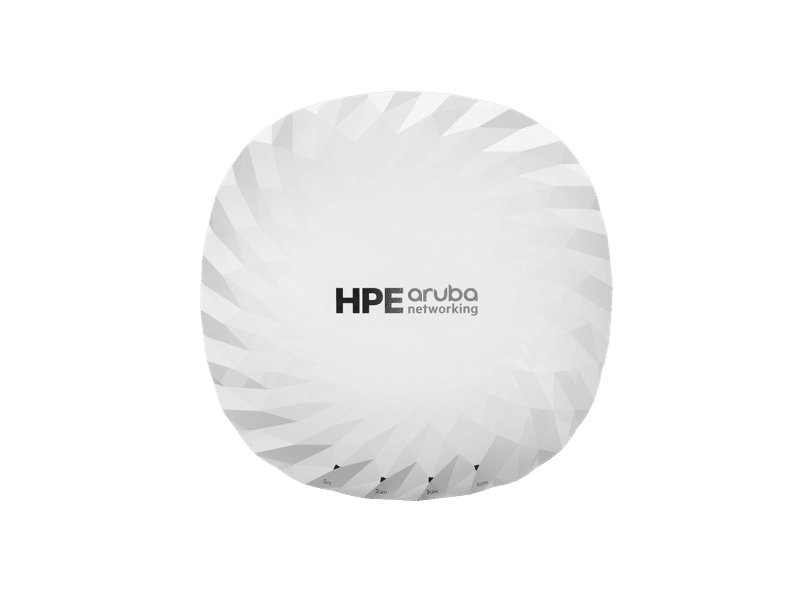

HPE Aruba Networking AP‑735 (RW) Tri Radio 2x2 Wi‑Fi 7 Internal Antennas Campus Access Point
The HPE Aruba Networking 730 Series Campus Access Points extend beyond the Wi‑Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2X the IoT devices, strengthen security across wired and wireless, and enable highly accurate location‑aware capabilities. The 730 Series includes Ultra Tri‑Band (UTB) filtering and dual 5 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.
Features
Maximize your HPE Aruba Networking 730 Series Campus Access Points
What's New
- Wi-Fi 7 access points ideal for enterprises, healthcare, LPV, education, retail, and industrial IoT deployments.
- Comprehensive tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers up to 9.3 Gbps maximum aggregate data rate.
- Patented Ultra Tri-band (UTB) filtering improves the use of 5 GHz and 6 GHz bands.
- High density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions.
- Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable Access Points to self locate and act as reference points for accurate indoor location measurements.
- High availability with dual 5 Gbps ports for redundant Ethernet and power.
HPE Aruba Networking AP‑735 (RW) Tri Radio 2x2 Wi‑Fi 7 Internal Antennas Campus Access Point
The HPE Aruba Networking 730 Series Campus Access Points extend beyond the Wi‑Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2X the IoT devices, strengthen security across wired and wireless, and enable highly accurate location‑aware capabilities. The 730 Series includes Ultra Tri‑Band (UTB) filtering and dual 5 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.
Features
Maximize your HPE Aruba Networking 730 Series Campus Access Points
What's New
- Wi-Fi 7 access points ideal for enterprises, healthcare, LPV, education, retail, and industrial IoT deployments.
- Comprehensive tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers up to 9.3 Gbps maximum aggregate data rate.
- Patented Ultra Tri-band (UTB) filtering improves the use of 5 GHz and 6 GHz bands.
- High density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions.
- Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable Access Points to self locate and act as reference points for accurate indoor location measurements.
- High availability with dual 5 Gbps ports for redundant Ethernet and power.
| HPE Aruba Networking AP-735 (S1G42A) Specifications | |
|---|---|
| Wireless & Radio | |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Radio Configuration | Tri-radio 2×2 MIMO (2.4 GHz, 5 GHz, 6 GHz) |
| Max Aggregate Data Rate | Up to 9.3 Gbps (tri-band); up to 14.4 Gbps (dual 5/6 GHz mode) |
| Modulation Support | Up to 4096-QAM |
| OFDMA & MU-MIMO | Supported on all radios (uplink & downlink) |
| Frequency Bands | |
| 2.4 GHz | 688 Mbps (2SS EHT40) |
| 5 GHz | 2.9 Gbps (2SS EHT160) |
| 6 GHz | 5.8 Gbps (2SS EHT320) |
| DFS Support | Yes (Dynamic Frequency Selection) |
| Wired Connectivity | |
| Ethernet Ports | 2× HPE Smart Rate ports (100 Mbps / 1 / 2.5 / 5 Gbps) |
| Failover & Aggregation | Hitless failover and power aggregation supported |
| IoT & Location Services | |
| Bluetooth & Zigbee | 2× integrated radios (Bluetooth 5.4, 802.15.4) |
| USB Ports | 2× USB extensions for IoT expansion |
| GNSS Receiver | Built-in for sub-meter location accuracy |
| Barometric Sensor | Included |
| Self-Locating | Yes |
| Management & Software | |
| Operating System | ArubaOS 10 (AOS-10) |
| Management Platform | HPE Aruba Networking Central |
| ClientMatch | Yes |
| Dynamic Segmentation | Yes |
| Environmental & Physical | |
| Deployment | Indoor campus environments |
| Mounting | Ceiling or wall mount (internal antenna model) |
| Capacity & BSSID | |
| Client Devices | Up to 512 per radio |
| BSSID Support | Up to 16 per radio |
| Warranty | |
| Coverage | Limited lifetime warranty |
