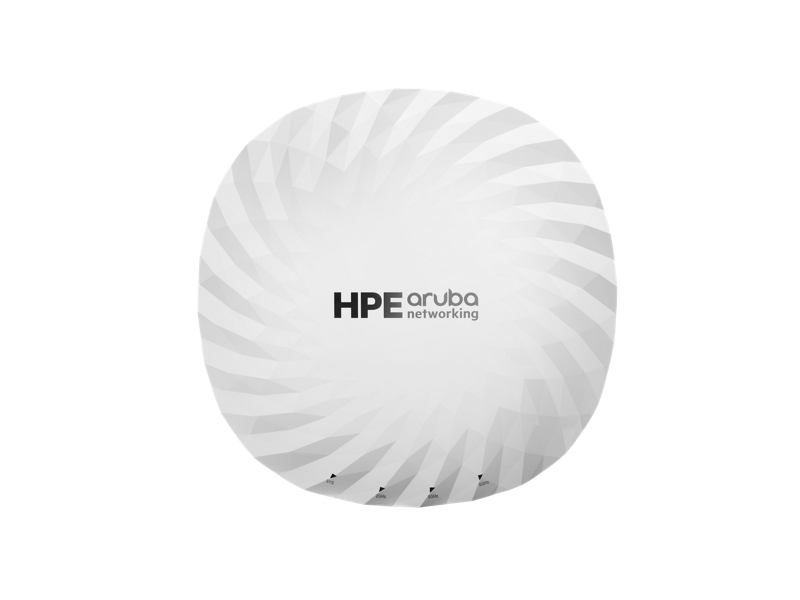

HPE Aruba Networking AP‑755 (RW) Tri Radio 4x4 Wi‑Fi 7 Internal Antennas Campus Access Point
High performance, high-end 802.11be Wi-Fi 7 enterprise access points for campus deployments.
Features
Maximize your HPE Aruba Networking 750 Series Campus Access Points
What's New
- AI-powered Wi-Fi 7 access points ideal for the most demanding enterprise, healthcare, LPV, education, retail, and industrial IoT deployments.
- Three 4x4 MIMO radios provide comprehensive tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz for up to 18.7 Gbps maximum aggregate data rate.
- High availability with dual 10 Gbps wired ports for redundant Ethernet and power, as well as the ability to combine (sum) power from both ports.
- High density IoT support with two integrated1 Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions.
- Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable Access Points to self locate and act as reference points for accurate indoor location measurements.
- Patented Ultra Tri-band (UTB) filtering enhances use of 5 GHz and 6 GHz bands.
HPE Aruba Networking AP‑755 (RW) Tri Radio 4x4 Wi‑Fi 7 Internal Antennas Campus Access Point
High performance, high-end 802.11be Wi-Fi 7 enterprise access points for campus deployments.
Features
Maximize your HPE Aruba Networking 750 Series Campus Access Points
What's New
- AI-powered Wi-Fi 7 access points ideal for the most demanding enterprise, healthcare, LPV, education, retail, and industrial IoT deployments.
- Three 4x4 MIMO radios provide comprehensive tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz for up to 18.7 Gbps maximum aggregate data rate.
- High availability with dual 10 Gbps wired ports for redundant Ethernet and power, as well as the ability to combine (sum) power from both ports.
- High density IoT support with two integrated1 Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions.
- Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable Access Points to self locate and act as reference points for accurate indoor location measurements.
- Patented Ultra Tri-band (UTB) filtering enhances use of 5 GHz and 6 GHz bands.
| HPE Aruba Networking AP-755 (S1G84A) Specifications | |
|---|---|
| Wireless & Radio | |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Radios | Three 4×4 MIMO radios (2.4 GHz, 5 GHz, 6 GHz) |
| Max Aggregate Data Rate | Up to 18.7 Gbps (tri-band); up to 28.8 Gbps (dual 5/6 GHz mode) |
| Ultra Tri-Band Filtering | Patented UTB filtering for enhanced 5 GHz and 6 GHz performance |
| Wired Connectivity | |
| Ethernet Ports | 2× 10 GbE ports (support 100 Mbps, 1/2.5/5/10 Gbps) |
| Failover Support | Hitless failover for data and power |
| Power Aggregation | Supports power combining from both ports |
| IoT & Location Services | |
| Bluetooth & Zigbee | 2× integrated radios (Bluetooth 5.4, 802.15.4) |
| USB Ports | 2× USB extensions for IoT expansion |
| GNSS Receiver | Built-in for sub-1 meter location precision |
| Barometric Sensor | Included for environmental awareness |
| Self-Locating | Yes, supports automated AP location mapping |
| Software & Management | |
| Operating System | ArubaOS 10 (AOS-10) |
| Management Platform | HPE Aruba Networking Central |
| ClientMatch | Yes, for optimal client steering |
| Dynamic Segmentation | Role-based access across wired and wireless |
| MACsec Support | Yes, for wired encryption |
| Environmental & Physical | |
| Deployment | Indoor campus environments |
| Mounting | Ceiling or wall mount (internal antenna model) |
| Color | White |
| Warranty & Support | |
| Warranty | Limited lifetime warranty |
| Support Tools | Aruba Central, ArubaOS 10, Client Insights |
