Description
Overview

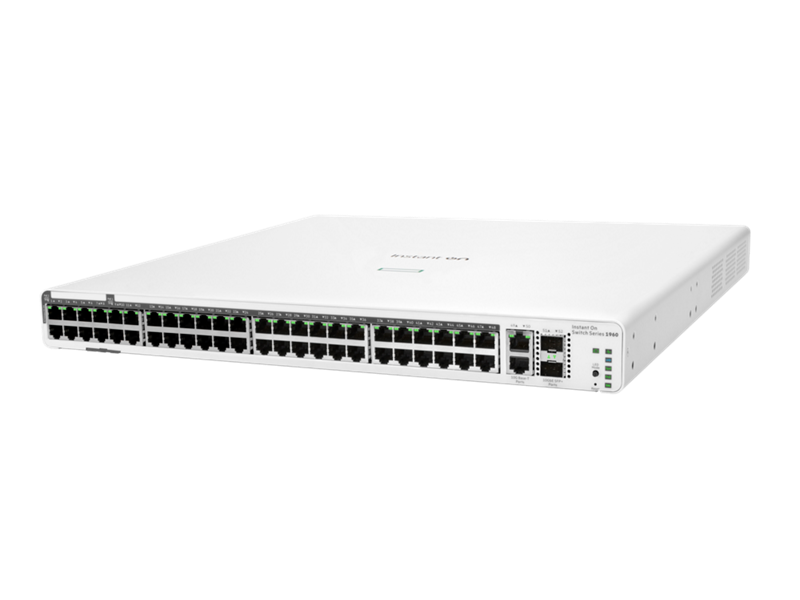

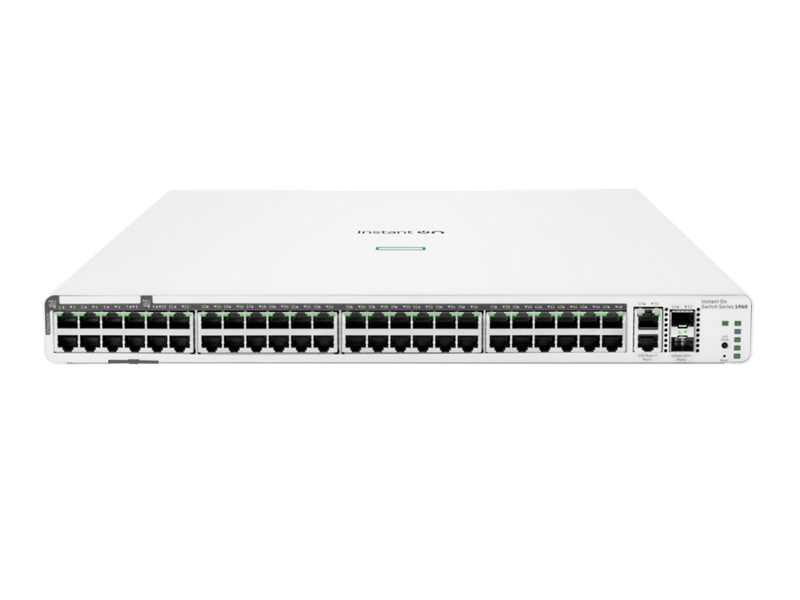

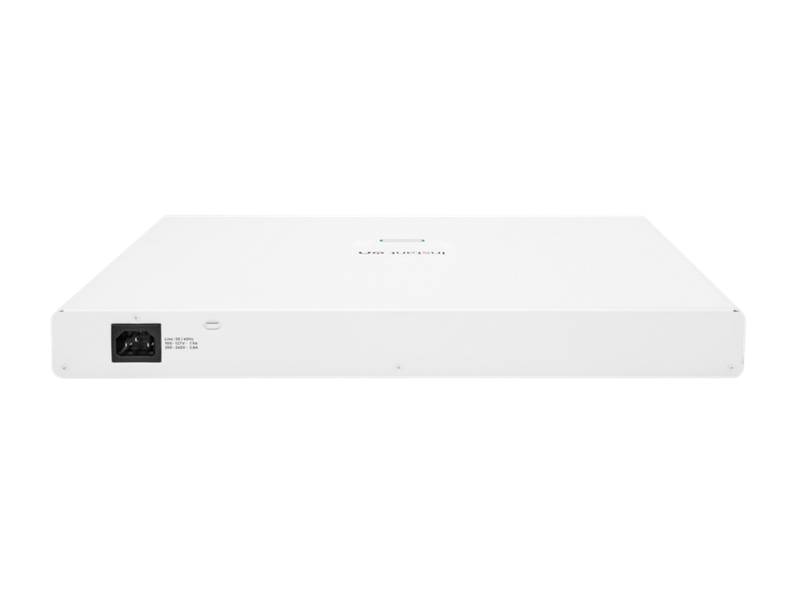

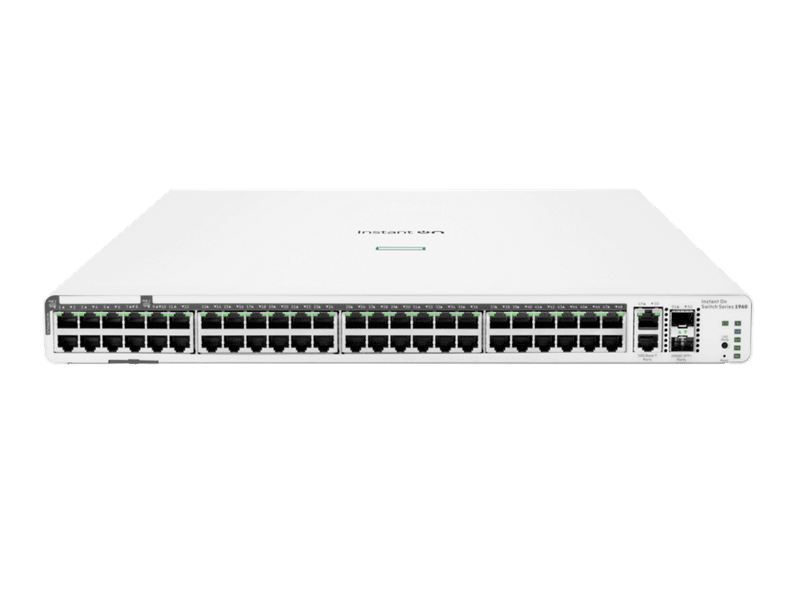

HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960
The HPE Networking Instant On Switch Series 1960 is a scalable solution for growing businesses with heavy bandwidth requirements and empowers your network to meet your business growing needs. With increased bandwidth, simplified network management, and the ability to handle multiple devices, it provides the ideal solution for your business.
HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960
The HPE Networking Instant On Switch Series 1960 is a scalable solution for growing businesses with heavy bandwidth requirements and empowers your network to meet your business growing needs. With increased bandwidth, simplified network management, and the ability to handle multiple devices, it provides the ideal solution for your business.
HPE Aruba Networking Instant On 1960 (JL809A-PROMO) Specifications | |
---|---|
Hardware Configuration | |
Form Factor | 1U Rack-mountable |
Enclosure | Metal chassis |
Mounting | Rack ears included |
Ports & Interfaces | |
Access Ports | 48× RJ-45 10/100/1000 Mbps (40× Class 4 PoE, 8× Class 6 PoE++) |
Uplink Ports | 2× 10GBASE-T, 2× SFP+ 10GbE |
Console Port | 1× USB-C |
USB Host | 1× USB Type-A |
Performance | |
Switching Capacity | 176 Gbps |
Forwarding Rate | 131 Mpps |
MAC Address Table | 16,000 entries |
Packet Buffer | 1.5 MB |
Latency | < 1.1 µs @ 10Gbps |
Power & PoE | |
PoE Budget | 600 W total (up to 480 W Class 6 or 600 W Class 4) |
Power Supply | Internal AC PSU |
Max Power Rating | 790 W @ 100–127V, 760 W @ 200–240V |
Idle Power | 60–100 W |
Processor & Memory | |
CPU | ARM Cortex-A9 @ 800 MHz |
RAM | 1 GB DDR3 |
Flash | 512 MB NAND |
Environmental | |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity | 15% to 95% (non-condensing) |
Altitude | Up to 3,000 m |
MTBF | 68 years |
Software & Features | |
Switch Type | Smart-managed Layer 2+ (static routing) |
Stacking | Up to 4 switches (local or cloud-managed) |
Management | Instant On mobile app, cloud portal, local web GUI |
Certifications | |
Safety | EN/IEC 60950-1, EN/IEC 62368-1, UL 62368-1, CSA C22.2 |
EMC | CE, FCC Class A, VCCI, BSMI |
Warranty | |
Coverage | Limited Lifetime Warranty |
