Description
Overview

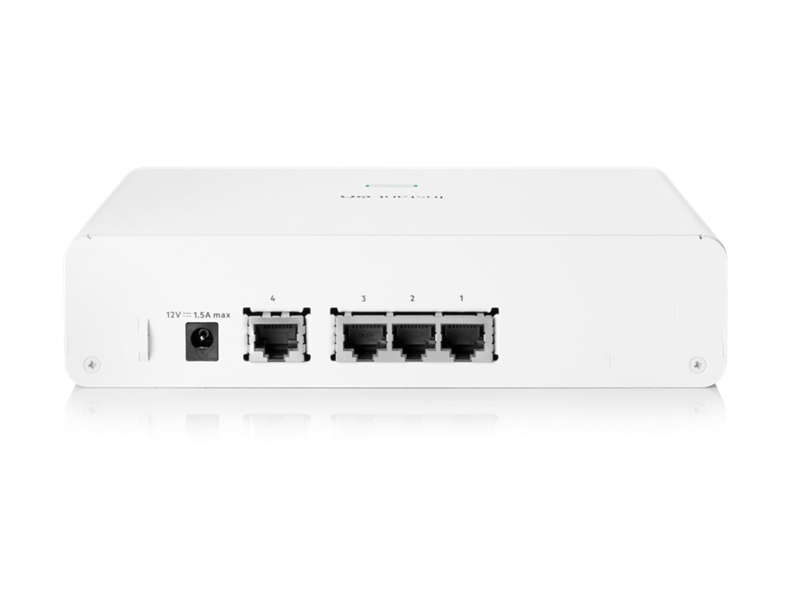

HPE Networking Instant On Secure Gateway 4‑port Gigabit SG1004
The HPE Networking Instant On Secure Gateway SG1004 is a 1 G secure gateway featuring one uplink (WAN) port, two downlink (LAN) ports, and one configurable uplink/ downlink port. With a stateful firewall throughput of 930 Mbps, it is ideal for protecting businesses with less than one Gigabit total throughput from their ISP. The compact design and external power supply make it perfect for branch offices or small businesses like accounting firms or retail shops.
Features
Maximize your HPE Networking Instant On Secure Gateway
What's New
- Cloud-based management: Seamless remote monitoring and management controls through centralized Instant On Cloud Portal/app; automated firmware updates delivered through the cloud.
- Secure the LAN: Implementation of Zero Trust model architecture and enhanced hardware-accelerated firewall features keep your business safe.
- WAN redundancy and load balancing: Automatically selects the most optimal WAN connection when multiple ISP connections are detected for uninterrupted internet access.
- Enhanced user experience: Improved and more intuitive design for simplified navigation and user experience.
- PoE+ support (SG2505P): Up to 60W of Power over Ethernet (PoE) budget for simplified device deployment.
- Multi-gigabit WAN support (SG2505P): New multi-gigabit WAN ports for faster and more reliable connectivity.
HPE Networking Instant On Secure Gateway 4‑port Gigabit SG1004
The HPE Networking Instant On Secure Gateway SG1004 is a 1 G secure gateway featuring one uplink (WAN) port, two downlink (LAN) ports, and one configurable uplink/ downlink port. With a stateful firewall throughput of 930 Mbps, it is ideal for protecting businesses with less than one Gigabit total throughput from their ISP. The compact design and external power supply make it perfect for branch offices or small businesses like accounting firms or retail shops.
Features
Maximize your HPE Networking Instant On Secure Gateway
What's New
- Cloud-based management: Seamless remote monitoring and management controls through centralized Instant On Cloud Portal/app; automated firmware updates delivered through the cloud.
- Secure the LAN: Implementation of Zero Trust model architecture and enhanced hardware-accelerated firewall features keep your business safe.
- WAN redundancy and load balancing: Automatically selects the most optimal WAN connection when multiple ISP connections are detected for uninterrupted internet access.
- Enhanced user experience: Improved and more intuitive design for simplified navigation and user experience.
- PoE+ support (SG2505P): Up to 60W of Power over Ethernet (PoE) budget for simplified device deployment.
- Multi-gigabit WAN support (SG2505P): New multi-gigabit WAN ports for faster and more reliable connectivity.
HPE Aruba Networking Instant On SG1004 (S0G33A) Specifications | |
---|---|
Hardware Configuration | |
Form Factor | Desktop or wall mountable |
Dimensions (H × W × D) | 4.39 × 16.41 × 19.00 cm |
Weight | 1.03 kg |
Interfaces | |
WAN Port | 1× 10/100/1000BASE-T Ethernet |
WAN/LAN Configurable | 1× 10/100/1000BASE-T Ethernet |
LAN Ports | 2× 10/100/1000BASE-T Ethernet |
USB Port | 1× USB-A 2.0 |
Performance | |
Firewall Throughput | 980 Mbps |
Routing Throughput | 980 Mbps |
IDS/IPS Throughput | 980 Mbps |
VPN Throughput (IPSec) | 930 Mbps |
Max TCP Sessions | 16,384 |
Max VLANs | 22 |
Max Users | Up to 100 |
Power & Electrical | |
Power Supply | External power adapter (included) |
Input Voltage | 100–240 VAC |
Frequency | 50/60 Hz |
Current | 0.3 A (12VDC – 1A) |
Max Power Rating | 12 W |
Idle Power | 2.3 W |
PoE Support | None |
Environmental | |
Operating Temperature | 0°C to 40°C |
Humidity | 15% to 95% (non-condensing) |
Security & Features | |
Firewall Type | Stateful |
IDS/IPS | Enabled |
VPN | Site-to-site IPSec VPN |
Policy Assistant | AI-powered firewall rule creation |
Management | Instant On Cloud Portal |
Regulatory & Compliance | |
Safety | EN/IEC 62368-1 (Europe & Worldwide) |
EMC | EN 55032, CISPR 32, VCCI, FCC Class B |
Immunity | IEC 61000 series |
RoHS | IEC/EN 63000:2018 |
Package Contents | |

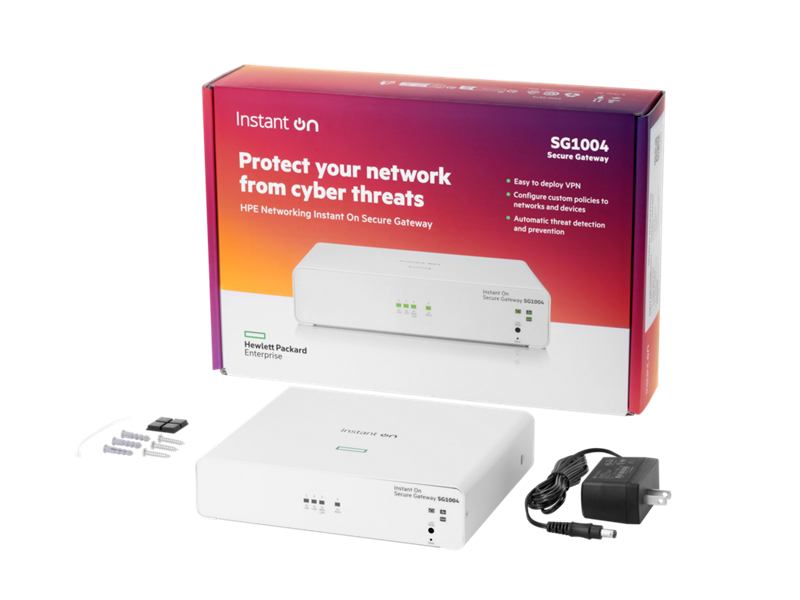

SG1004 Gateway, Power Adapter, Rubber Feet (×4), M4 Screws (×3), Screw Anchors (×3), Tie Strap, Documentation Kit | |
Warranty | |
Coverage | Limited Lifetime Warranty |
