HPE Networking Instant On Secure Gateway 5‑port SmartRate 2.5G PoE+ 64W SG2505P
The HPE Networking Instant On Secure Gateway SG2505P offers five ports, two of them providing multigigabit support. One multi-gig uplink (WAN) port, one multi-gig configurable port (WAN/LAN), one gig configurable port (WAN/LAN), and two one-gig ports (LAN). The 2505P has PoE support with a total power budget of 64W to power network devices such as Instant On access points. With a stateful firewall throughput of 2.3 Gbps, this gateway is ideal for
businesses requiring over 1 Gigabit of total throughput from their ISP. Whether you’re a small shop looking to keep the network simple or an AI startup needing to protect your large data workloads, the SG2505P will help you stay connected and more secure.
Features
Maximize your HPE Networking Instant On Secure Gateway
What's New
- Cloud-based management: Seamless remote monitoring and management controls through centralized Instant On Cloud Portal/app; automated firmware updates delivered through the cloud.
- Secure the LAN: Implementation of Zero Trust model architecture and enhanced hardware-accelerated firewall features keep your business safe.
- WAN redundancy and load balancing: Automatically selects the most optimal WAN connection when multiple ISP connections are detected for uninterrupted internet access.
- Enhanced user experience: Improved and more intuitive design for simplified navigation and user experience.
- PoE+ support (SG2505P): Up to 60W of Power over Ethernet (PoE) budget for simplified device deployment.
- Multi-gigabit WAN support (SG2505P): New multi-gigabit WAN ports for faster and more reliable connectivity.
HPE Networking Instant On Secure Gateway 5‑port SmartRate 2.5G PoE+ 64W SG2505P
The HPE Networking Instant On Secure Gateway SG2505P offers five ports, two of them providing multigigabit support. One multi-gig uplink (WAN) port, one multi-gig configurable port (WAN/LAN), one gig configurable port (WAN/LAN), and two one-gig ports (LAN). The 2505P has PoE support with a total power budget of 64W to power network devices such as Instant On access points. With a stateful firewall throughput of 2.3 Gbps, this gateway is ideal for
businesses requiring over 1 Gigabit of total throughput from their ISP. Whether you’re a small shop looking to keep the network simple or an AI startup needing to protect your large data workloads, the SG2505P will help you stay connected and more secure.
Features
Maximize your HPE Networking Instant On Secure Gateway
What's New
- Cloud-based management: Seamless remote monitoring and management controls through centralized Instant On Cloud Portal/app; automated firmware updates delivered through the cloud.
- Secure the LAN: Implementation of Zero Trust model architecture and enhanced hardware-accelerated firewall features keep your business safe.
- WAN redundancy and load balancing: Automatically selects the most optimal WAN connection when multiple ISP connections are detected for uninterrupted internet access.
- Enhanced user experience: Improved and more intuitive design for simplified navigation and user experience.
- PoE+ support (SG2505P): Up to 60W of Power over Ethernet (PoE) budget for simplified device deployment.
- Multi-gigabit WAN support (SG2505P): New multi-gigabit WAN ports for faster and more reliable connectivity.
HPE Aruba Networking Instant On SG2505P Secure Gateway (S0G34A) Specifications | |
---|---|
Hardware Configuration | |
Form Factor | Desktop, wall, or telco rack mountable |
Dimensions (H × W × D) | 4.39 × 30.96 × 23.42 cm |
Weight | 2.40 kg |
Interfaces | |
WAN Interface | 1× 100/1000/2500BASE-T Ethernet |
LAN/WAN Configurable | 1× 100/1000/2500BASE-T Ethernet |
LAN Ports | 2× 10/100/1000BASE-T Ethernet |
Additional Ports | 1× USB-A 2.0 |
Performance | |
Firewall Throughput | 2.4 Gbps |
Routing Throughput | 2.4 Gbps |
IDS/IPS Throughput | 2.4 Gbps |
VPN Throughput (IPSec) | 2.3 Gbps |
Max TCP Sessions | 16,384 |
Max VLANs | 22 |
Max Users | Up to 300 |
Power & PoE | |
PoE Ports | 4× Class 4 PoE |
PoE Budget | 64 W |
Max Power Rating | 79.5 W |
Idle Power | 5.6 W |
Power Supply | Internal AC PSU |
Input Voltage | 100–127 / 200–240 VAC |
Frequency | 50/60 Hz |
Current | 0.8 A |
Environmental | |
Operating Temperature | 0°C to 40°C |
Humidity | 15% to 95% (non-condensing) |
Security & Features | |
Firewall Type | Stateful |
IDS/IPS | Intrusion Detection & Prevention System |
VPN | Site-to-site IPSec VPN |
Cloud Management | Instant On Cloud Portal |
Firmware Updates | Automated via cloud |
Regulatory & Compliance | |
Safety | EN/IEC 62368-1 (Europe & Worldwide) |
EMC | EN 55032, CISPR 32, VCCI, FCC Class B |
Immunity | IEC 61000 series |
RoHS | IEC/EN 63000:2018 |

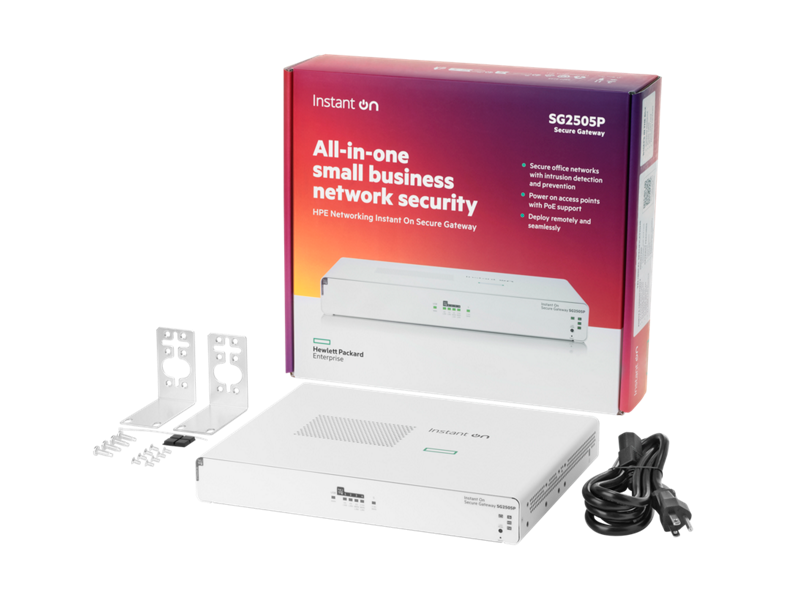

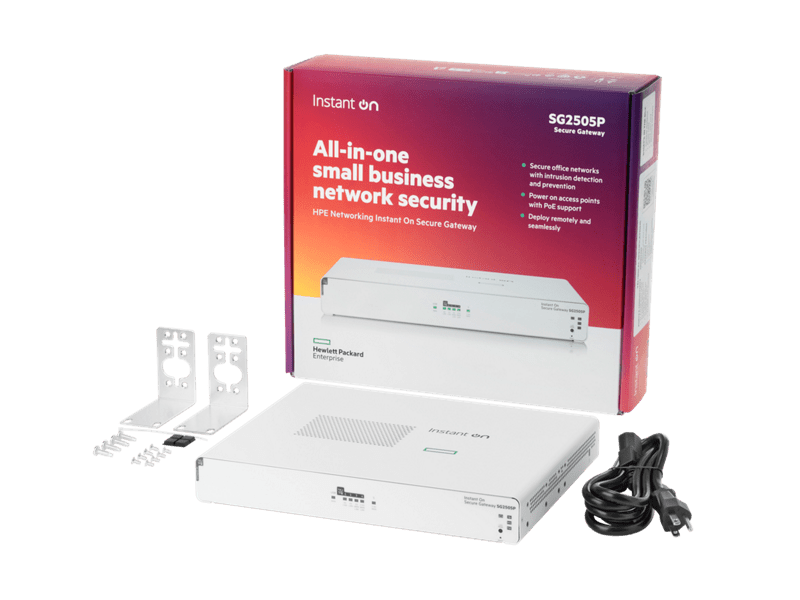

Package Contents | |
SG2505P Gateway, Power Cable, Rubber Feet (×4), Mounting Brackets (×2), M4 Screws (×8), #12 Screws (×4), Tie Strap, Documentation Kit | |
Warranty | |
Coverage | Limited Lifetime Warranty |
