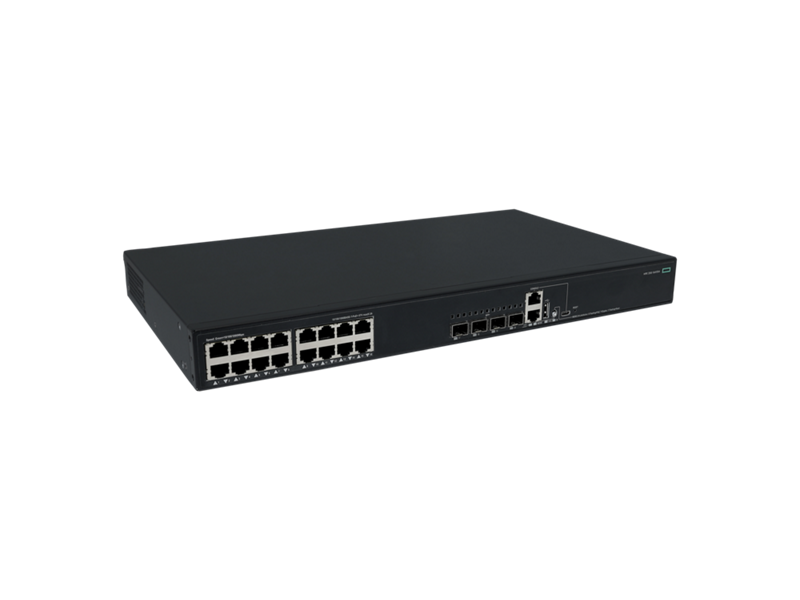

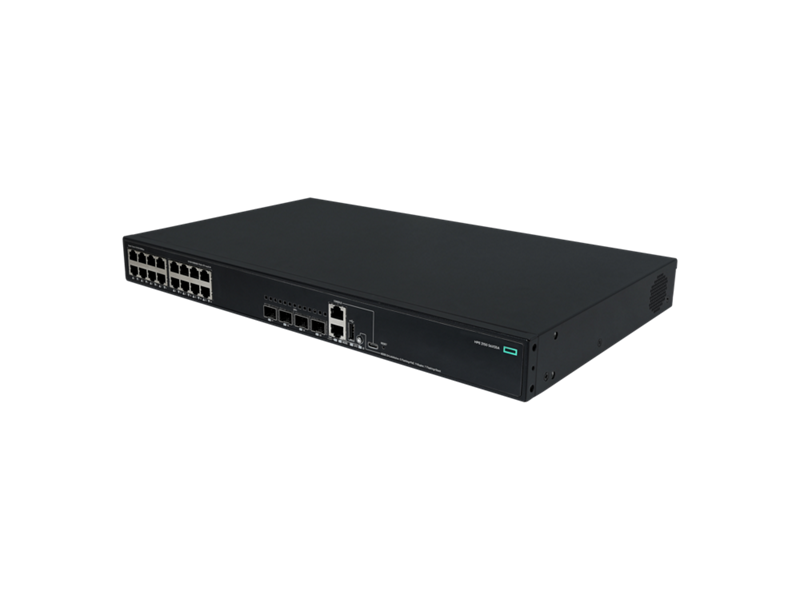

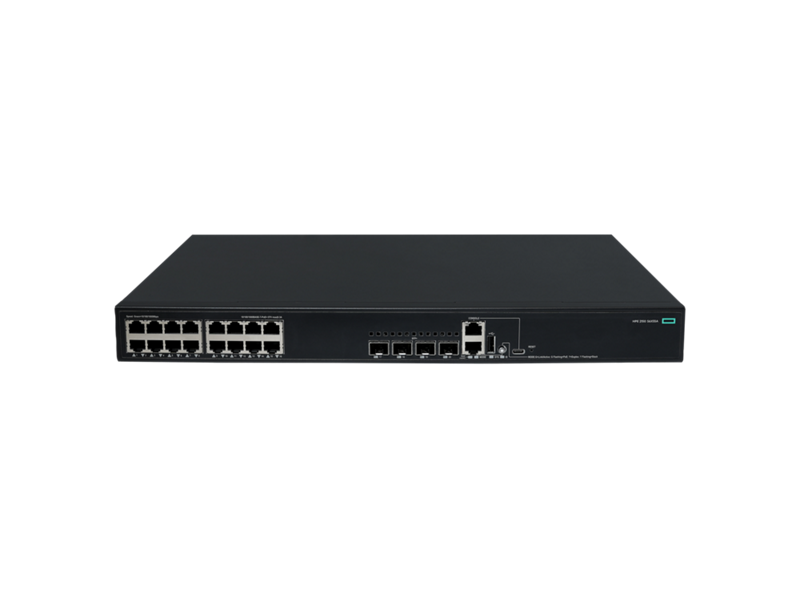

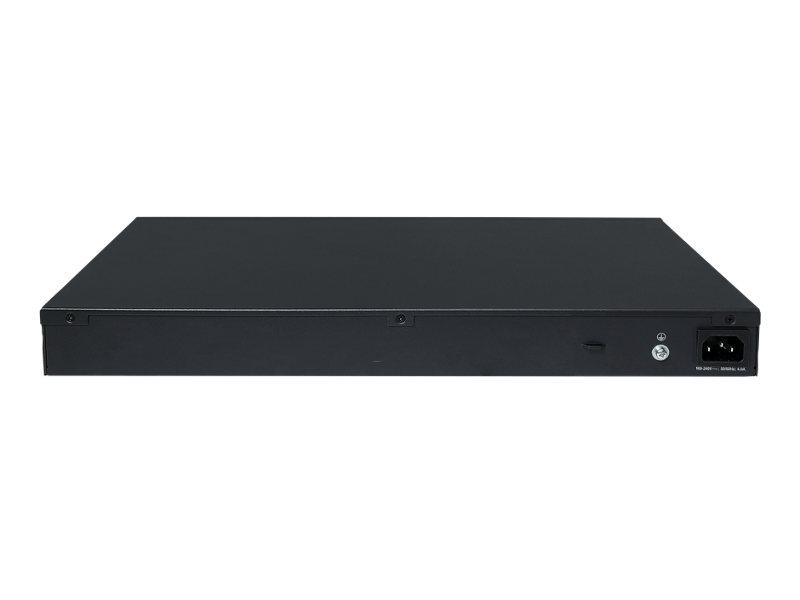

HPE Networking S6X55A CW 2150 16 Port Gigabit PoE+ Switch 248W, 4xSFP+ 1G/10G

HPESKU: S6X55A

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$955.00
1

Estimate shipping

Description

Maximize your HPE Networking CW 2150 Switch Series

What's New

  • Enterprise-class, fully managed, stackable Layer 3 switch series with 8-, 16-, 24-, and 48-port Class 4 PoE and non-PoE models, four 1G/10G SFP+ uplinks, and up to 770W of Class 4 PoE.
  • Up to 176 Gbps in nonblocking bandwidth, 130 Mpps in forwarding, and up to 9-switch IRF stack.
  • Flexible connectivity options with four 1G/10G SFP+ uplinks in the 16-, 24-, and 48-port models and two 1G SFP and two 1G/10G SFP+ uplinks in the 8-port model.
  • Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity.
  • Fanless design in the 8-port and 24-/48-port non-PoE models. Supports IEEE 802.3az standard for Energy Efficient Ethernet (EEE).
  • Managed by Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP, and REST APIs.
Enterprise-class secure and reliable connectivity
  • The HPE Networking CW 2150 Switch Series delivers up to 176 Gbps of nonblocking bandwidth and up to 131 Mpps forwarding, with nine unit IRF stacking for resilient availability and link redundancy.
  • The CW 2150 series offers flexible connectivity with four 1G/10G SFP+ uplinks on the 16-, 24-, and 48-port models, and two 1G SFP plus two 1G/10G SFP+ uplinks on the 8-port model. The 24-port model adds four SFP combo ports.
  • Advanced Quality of Service (QoS), Internet Protocol version 6 (IPv6), and dynamic L3 protocols (RIP and OSPF) provide reliable connectivity.
  • It supports IEEE 802.3az Energy Efficient Ethernet and offers a fanless design on the 8-, 24-, and 48-port non-PoE models.
  • Built-in 6kV service-port surge protection helps reduce the risk of power strikes in demanding environments such as construction sites.
Powerful PoE capabilities
  • The HPE Networking CW 2150 Switch Series provides 125W, 248W, 405W, 390W, and 770W Class 4 PoE across the 8-, 16-, 24-, and 48-port models.
  • It supports advanced PoE features, including fast PoE that delivers power within seconds of system startup.
  • Perpetual PoE supports end-device state monitoring to help maintain power during a power-source reboot.
  • The PoE Watchdog function automatically removes power from a port when the connected device is no longer active.
Comprehensive security control
  • The HPE Networking CW 2150 Switch Series provides security features and network management for modern SMB environments. Secure boot verifies digital signatures to help prevent unauthorized or malicious software from loading at startup.
  • With HPE IMC, the CW 2150 series supports EAD by integrating terminal-security policies, network-access control, and access-rights enforcement into a unified security framework.
  • It delivers multi-layer access protection with granular ACLs (IPv4/IPv6, VLAN, port-based), identity-driven policies, and authentication options including 802.1X, MAC, Web, RADIUS, TACACS+, Guest VLAN detection, and dual-NIC detection with IMC.
  • The CW 2150 series provides encrypted access using SSHv2, SSL, SNMPv3, and TLS, along with role-based privileges and audit logging.
  • Threat-prevention features include Control Plane Policing, ARP and DHCP protection, ICMP throttling, port security, and source-port filtering.
Simple and flexible management
  • The HPE Networking CW 2150 Switch Series offers Web GUI, industry-standard CLI management and can be managed with other CW switches through a built-in dashboard for simplified deployment and centralized management.
  • Advanced management options include HPE Intelligent Management Center (IMC), HPE Networking Management Software (AirWave), SNMP managers, and REST APIs for integration with existing customer dashboards.
HPE Networking CW 2150 Switch Series

Specifications

Specification Details
Differentiator 16 × 10/100/1000 ports, 4 × SFP+ ports, 248W PoE+
Ports 16 × 10/100/1000BASE-T PoE+ ports
4 × 1/10GBASE-X SFP+ ports
1 × RJ-45 Console
1 × USB Type-C Console
1 × USB port
1 × OOBM Management port
Switching Capacity 112 Gbps
Throughput 83 Mpps
Latency 1 GE: < 5 µs
10 GE: < 3 µs (64-byte packets)
Stacking Up to 9-member IRF stack
PoE Capability 248W PoE+
Processor Dual-core Arm® CPU at 1.2 GHz
Memory 1 GB SDRAM
Flash Memory 512 MB
Power Supply Fixed single AC power supply, 90–264V AC
Input Voltage Rated: 100–240V AC, 50/60 Hz
Maximum: 90–264V AC, 47–63 Hz
Power Consumption Idle: 25W
Typical: 38W
Full Load: 317W (including 248W PoE)
Heat Dissipation 85–1982 BTU/hr, depending on configuration
Operating Temperature -5°C to 50°C (23°F to 122°F)
Fans 1
Management Web GUI
Command Line Interface (CLI)
Smart Management Center (SmartMC)
HPE Intelligent Management Center (IMC)
HPE AirWave
REST API
SNMP
Warranty Limited Lifetime Hardware Warranty
Shipping Weight 4.6 kg (10.141 lb)
Shipping Dimensions 38 × 54.99 × 13.31 cm (14.96 × 21.65 × 5.24 in)
