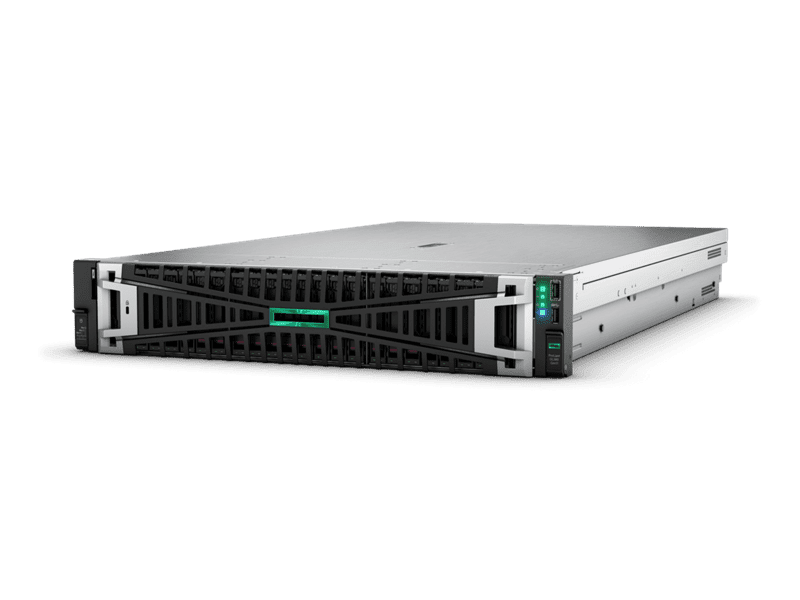

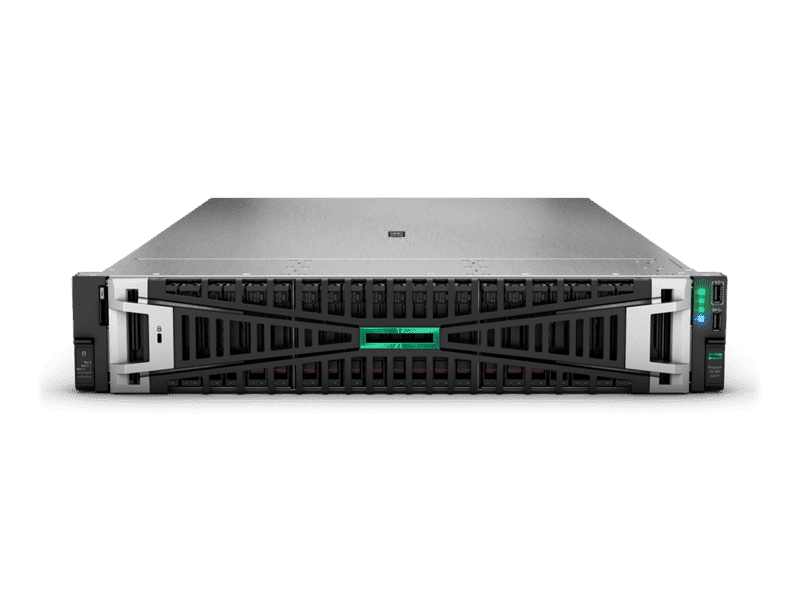

SKU: P58417-B21 | HPE ProLiant DL380 Gen11 6430 32GB-R MR408i-o 800W PS Server. Online with upgrade options, fast shipping and deliver Australia wide.
Quick Spec
- Intel Xeon Gold 6430 2.1Ghz 32-Cores 64-Threads (1/2)
- HPE 64GB DDR5 Reg ECC (2/32)
- 8-Bay 2.5" SFF Hot Plug (0/8)
- Intel VROC
- HPE iLO Management Port
- HPE 1000W Hot Plug PSU (1/2)
- Rail Kit
- HPE 3 Year Onsite NBD Warranty
What's New
- Powered by the 4th Generation Intel® Xeon® Scalable Processors with next-generation technology that support up to 60 cores at 350W and 16 DIMMs for DDR5 memory at speeds up to 4800 MHz.
- Support for up to 8 TB total DDR5 memory with 16 DIMM channels per processor delivers increased performance, lower power requirements, and High Bandwidth Memory (HBM) support.
- Support for PCIe Gen5, resulting in improved bandwidth, advanced data transfer rates, and higher network speeds from the PCIe Gen5 serial expansion bus.
- Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
- Supports hot-pluggable, high-availability RAID M.2 boot options.
- Supports up to 8 single wide (SW) or 3 double wide (DW) GPUs to accelerate graphic intense workloads.
Specification
SKU Description
Detailed product descriptionHPE ProLiant DL380 Gen11 8 SFF server with one Intel® Xeon® Gold Processor 6430, 32 GB DDR5 RDIMM memory, Intel® Virtual RAID on CPU (Intel® VROC) SATA storage controller, and one HPE 1000W Flex Slot Platinum Hot Plug Low Halogen Power Supply
Processor
Processor name Intel® Xeon® Gold 6430 (32 core, 2.10 GHz, 60 MB L3, 270W)
Processor number 1 processor included
Processor core available 32 core
Processor speed 2.10 GHz
Processor cache 60 MB L3
Server Memory
Memory type HPE DDR5 Smart Memory
Included memory 64 GB (2x32 GB, 4800 MT/s)
Server Cooling
System fan features 6x High Performance Fan
Server Expansions
Expansion slots Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs
Server Form Factor
Form factor 2U Rack
Server Controllers
Network controller Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE
Storage controller Embedded SATA controller (AHCI or Intel SATA software RAID controller)
Server Drives
Included hard drives None ship standard, 8 SFF supported
Optical drive type Optional DVD-ROM Optional via Universal Media Bay External support only
Server Power
Power supply type 1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Management Software
Infrastructure management HPE iLO Standard with intelligent provisioning (embedded), and HPE GreenLake Compute Ops Management
Security
Security HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit.
Warranty
Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit https://www.hpe.com/support.
