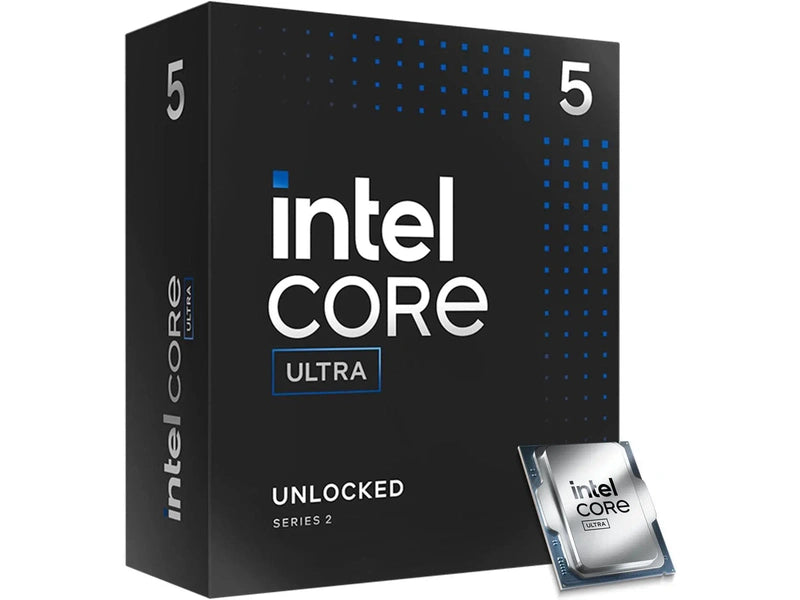

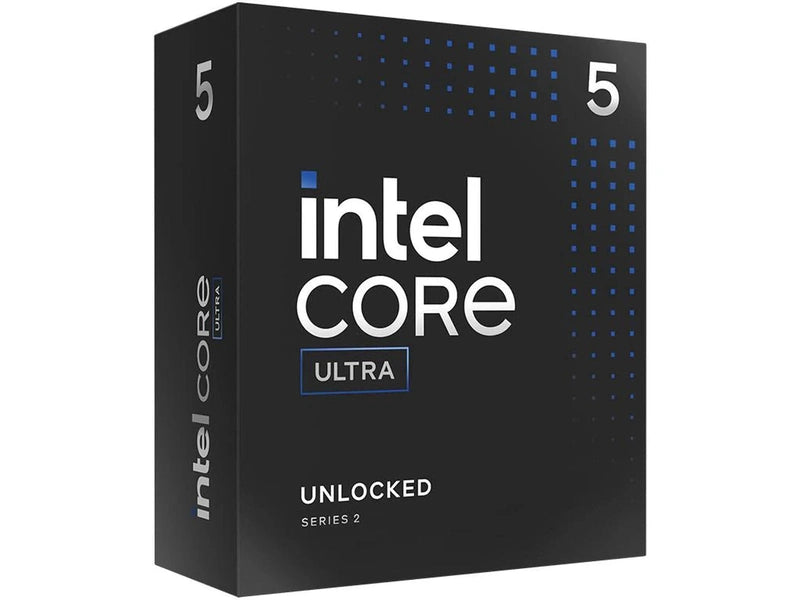

Intel® Core™ Ultra Desktop Processors (Series 2)
Intel® Core™ Ultra desktop processors (series 2) are the ultimate desktop and entry workstation platform, engineered to unlock new levels of intelligent performance for the most demanding daily tasks.
Intel® Core™ Ultra Desktop Processors (Series 2)
Intel® Core™ Ultra desktop processors (series 2) are the ultimate desktop and entry workstation platform, engineered to unlock new levels of intelligent performance for the most demanding daily tasks.
| Intel Core Ultra 5 245K (BX80768245K) Specifications | |
|---|---|
| Core & Architecture | |
| Architecture | Intel Arrow Lake |
| Process Node | TSMC N3B (3nm) |
| Total Cores | 14 (6 Performance + 8 Efficient) |
| Total Threads | 14 |
| Base Frequency | 3.6 GHz |
| Max Turbo Frequency | 5.2 GHz |
| Unlocked Multiplier | Yes |
| Socket | LGA1851 |
| Cache | |
| L1 Cache | 1.5 MB |
| L2 Cache | 26 MB |
| L3 Cache | 24 MB |
| Memory Support | |
| Memory Types | DDR5-6400 |
| Max Memory Size | 192 GB |
| Memory Channels | 2 (Dual Channel) |
| ECC Support | Yes |
| PCIe & Expansion | |
| PCIe Revision | PCIe 5.0 & 4.0 |
| Max PCIe Lanes | 24 |
| DMI Revision | 4.0 |
| DMI Lanes | 8 |
| Thermal & Power | |
| Base Power (TDP) | 125 W |
| Max Turbo Power | 159 W |
| Max Operating Temperature | 105°C |
| Thermal Solution | Not included |
| Integrated Graphics | |
| GPU | Intel Arc Xe2 (64 Execution Units) |
| Base Frequency | 300 MHz |
| Max Dynamic Frequency | 1.9 GHz |
| Max Displays Supported | 4 |
| Max Resolution (HDMI) | Up to 8K @ 60Hz |
| Max Resolution (DP) | Up to 8K @ 60Hz |
| Max Resolution (eDP) | 4K @ 60Hz |
| AI & NPU | |
| NPU Name | Intel AI Boost |
| Peak AI Performance | 13 TOPS (Int8) |
| Supported Frameworks | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| Technologies | |
| Intel Thread Director | Yes |
| Intel Turbo Boost | 2.0 |
| Intel Deep Learning Boost | Yes |
| Intel Control-Flow Enforcement | Yes |
| Intel Total Memory Encryption | Yes |
| Intel Trusted Execution Technology | Yes |
| Virtualization | VT-x, VT-d, VT-rp, EPT |
| Security Features | Boot Guard, AES-NI, OS Guard, MBEC, TDT, TXT |
