Description

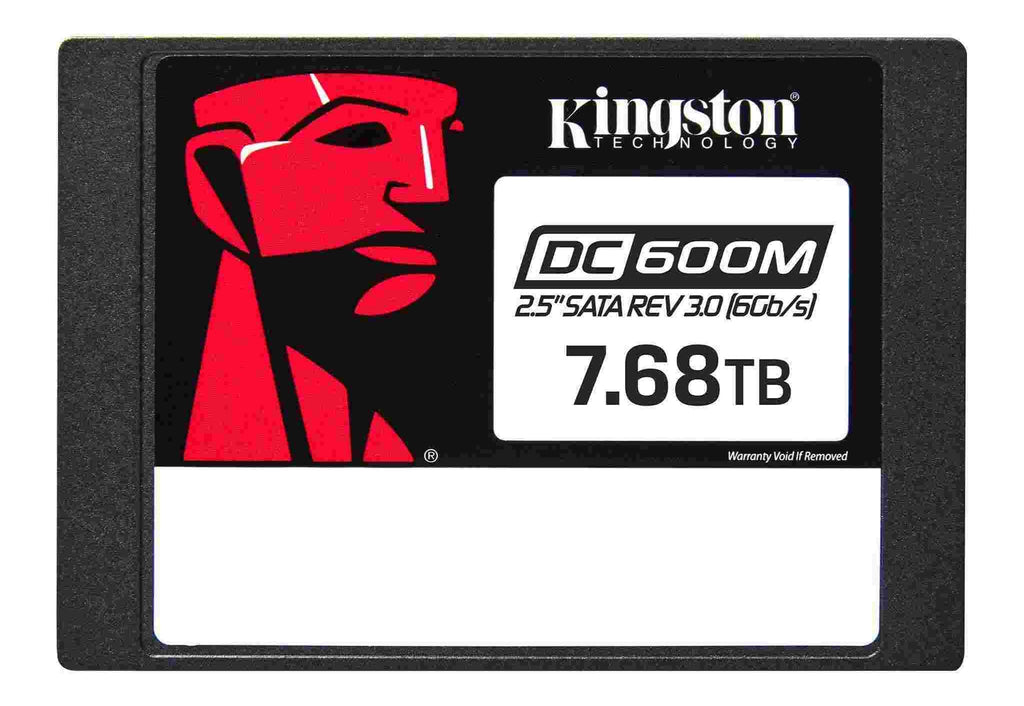

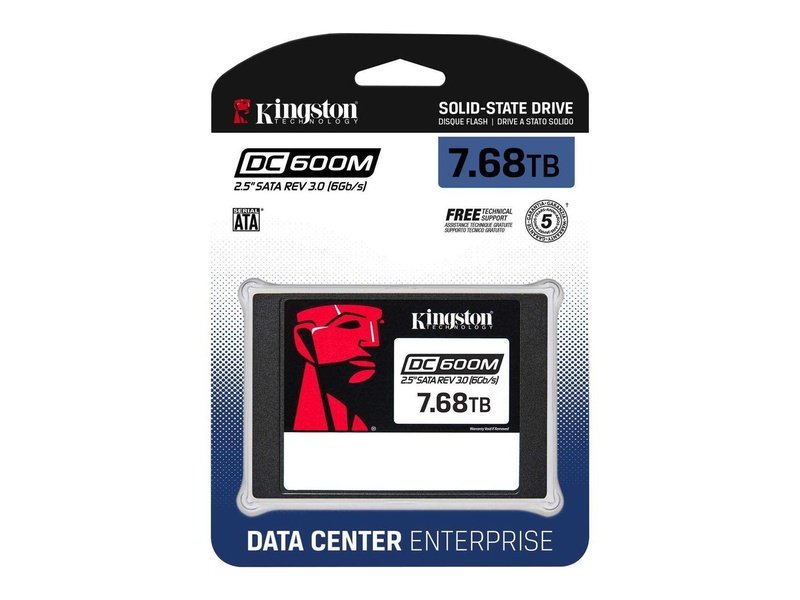

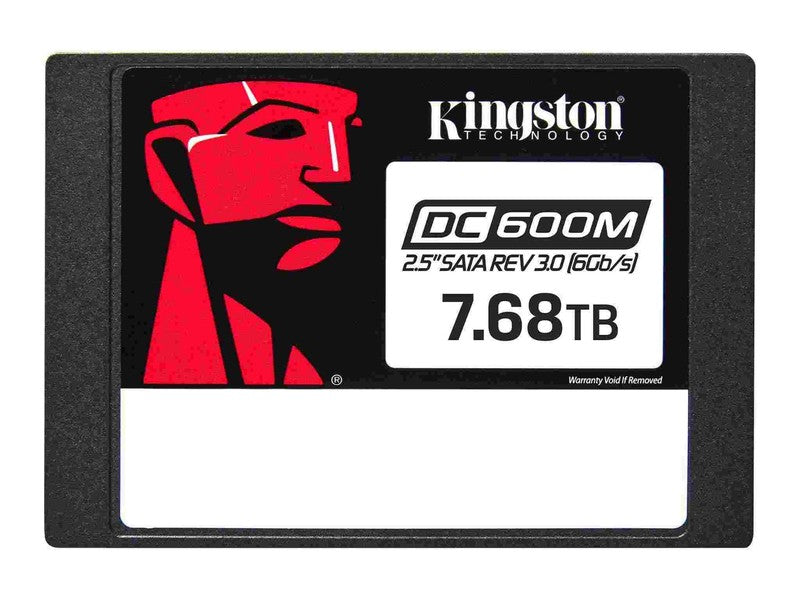

Kingston 7.68TB DC600M MU 2.5” Enterprise SATA SSD - SEDC600M/7680G
DC600M 2.5” SATA Enterprise SSD 6Gbps SATA 3.0 storage for mixed-use workloads
Kingston’s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for “mixed use” workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.
Form factor | 2.5" |
Interface | SATA Rev. 3.0 (6Gb/s) — with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
Capacities1 | 7680G |
NAND | 3D TLC |
Sequential Read/Write | 7680GB – 560MBs/530MBs |
Steady-state 4k random read/write | 7680GB – 94,000/34,000 IOPS |
Quality of service (latency)3,4,5(99.999) | Read/Write 7680GB – 240/170 uSec |
Typical latency - read/write | <200 µs / <30 us3,4,5 |
Hot-plug capable | |
Static and dynamic wear levelling | |
Enterprise SMART tools | Reliability tracking, usage statistics, life remaining, wear levelling, temperature |
Hardware-based power loss protection | |
Endurance | 7680GB – 14016TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7 |
Power consumption | Idle: 1.30W Average: 1.45W Max read: 1.6W Max write: 3.6W |
Storage temperature | -40℃ ~ 85℃ |
Operating temperature | 0℃ ~ 70℃ |
Dimensions | 69.9mm x 100mm x 7mm |
Weight | 92.34g |
Vibration operating | 2.17G Peak (7–800Hz) |
Vibration non-operating | 20G peak (10–2000Hz) |
MTBF | 2 million hours |
Warranty/support | Limited 5-year warranty with free technical support8 |
We provide replacement AFTER the original defective product retuned to PC LAN PTY LTD
We provide SSD replacement of same / similar model at same grade in advance, customer need to return the original defective product to PC LAN PTY LTD within 14 days from the date replacement product was received.
