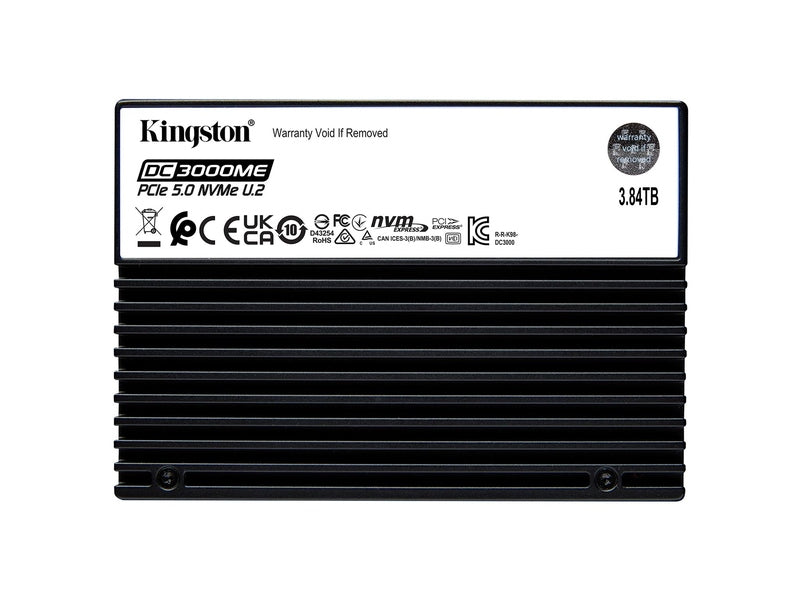

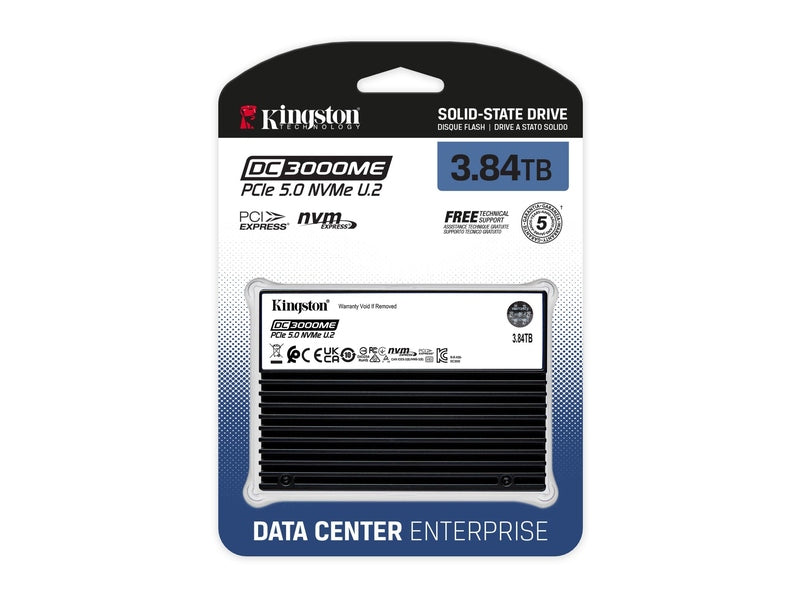

Kingston 3.84TB DC3000ME PCIe 5.0 NVMe U.2 SSD 14,000/5,800MB/s
Kingston 3.84TB DC3000ME PCIe 5.0 NVMe U.2 SSD 14,000/5,800MB/s
Kingston 3.84TB DC3000ME PCIe 5.0 NVMe U.2 SSD 14,000/5,800MB/s

Kingston 3.84TB DC3000ME PCIe 5.0 NVMe U.2 SSD 14,000/5,800MB/s

KingstonSKU: SEDC3000ME/3T8

Availability:

❌ Back Order - Contact Us for ETA

Price:
$4,121.00
1
Contact Us for ETA

Description

DC3000ME PCIe 5.0 NVMe U.2 SSDEnterprise Class Gen5 NVMe U.2 SSD with Power Loss Protection for Server Applications

Kingston’s DC3000ME U.2 data center SSD features a high-speed PCIe 5.0 NVMe interface and utilizes 3D eTLC NAND, making it well suited for a wide range of server applications such as AI, HPC, OLTP, databases, cloud infrastructure and edge computing. DC3000ME includes on-board power loss protection to safeguard data in the event of sudden power loss and AES 256-bit encryption for ultimate data security. DC3000ME utilizes the latest high-speed PCIe 5.0 interface and is backward-compatible with PCIe 4.0 servers and backplanes. Like all of Kingston’s data center SSDs, DC3000ME is designed to deliver I/O consistency and low latency as the key design criteria that system integrators, hyperscale data centers and cloud service providers can depend on. DC3000ME is offered in 3.84TB, 7.68TB and 15.36TB1 capacities and is backed by Kingston's legendary technical support and a 5-year limited warranty.
  • Enterprise PCIe 5.0 performance
  • Optimal storage and efficiency
  • On-board power loss protection (PLP)
  • AES 256-bit encryption

Applications and workloads

DC3000ME is ideal for running a wide range of server applications and workloads including:

  • AI
  • HPC
  • Cloud services
  • Edge computing
  • Software defined storage
  • RAID
  • General server use

Key Features

DC3000ME SSD sitting on a surface

Enterprise PCIe 5.0 performance

Delivers I/O consistency and low latency with sustained speeds of up to 14,000MB/s read and 2,800,000 read IOPS2.

DC3000ME SSD flying trhough space surrounded by blue streaks

Optimal storage and efficiency

High capacity options available offering an exceptional balance of consistent I/O delivery and ultra-high performance. Optimized to handle a wide range of server workloads efficiently.

DC3000ME SSD is being mounted into a server drive bay

On-board Power Loss Protection (PLP)

Enterprise-class protection to reduce possibility of data loss or corruption on ungraceful power fails including NVMe-MI 1.2b out-of-band management, end-to-end data protection, TCG Opal 2.0.

A padlock icon against a blue background

Specifications

Form factor U.2, 2.5” x 15mm
Interface PCIe NVMe Gen5 x4 (backward-compatible with Gen4)
Capacities1 3.84TB, 7.68TB, 15.36TB
NAND 3D eTLC
Sequential read/write2 3.84TB – 14,000MB/s / 5,800MB/s
7.68TB – 14,000MB/s / 10,000MBs
15.36TB – 14,000MB/s / 9,700MB/s
4k random read/write (IOPS)2 3.84TB – 2,700,000 / 300,000
7.68TB – 2,800,000 / 500,000
15.36TB – 2,700,000 / 400,000
Latency quality of service (QoS)2, 3, 4 99% - Read/Write: <10 µs / < 70 µs
Static and dynamic wear leveling Yes
Power loss protection (Power Caps) Yes
Encryption Yes - TCG Opal 2.0, AES 256-bit encryption
Namespace management support Yes - 128 namespaces supported
Enterprise diagnostics Telemetry, media wear, temperature, health, etc.
Endurance (TBW/DWPD)5 3.84TB – 7,008TB, 1DWPD (5 Years)
7.68TB – 14,016TB, 1DWPD (5 Years)
15.36TB – 28,032TB, 1DWPD (5 Years)
Power consumption Idle: 8W
Max Read: 8.2W
Max Write: 24W
Operating temperature 0°C ~ 70°C
Dimensions 100.50mm x 69.8mm x 14.8mm
Weight 3.84TB – 146.2g
7.68TB – 151.3g
15.36TB – 152.3g
Vibration non-operating 10G Peak (10–1000Hz)
MTBF 2 million hours
