Kingston Server Premier 64GB DDR5-5600MHz 2Rx4 RDIMM Registered ECC Memory

KingstonSKU: KSM56R46BD4PMI-64HAI

Availability:

✅ In Stock at PC LAN Store

Price:
Sale price$607.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

Overview

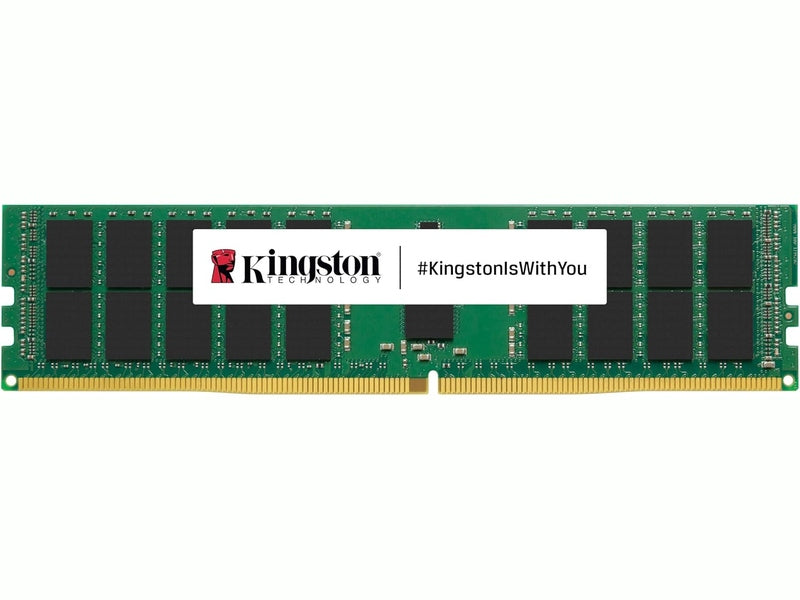

Kingston's KSM56R46BD4PMI-64HAI is a 8G x 80-bit (64GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• x80 ECC (x40, 2 independent I/O sub channels)
• 32 internal banks
• Hard/Soft Post Package Repair
• Sideband access with I3C/I2C
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

SPECIFICATIONS

Capacity
64GB

CL
46 cycles

Row Cycle Time (tRCmin)
48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)

Row Active Time (tRASmin)
32ns(min.)

Row Precharge Time (tRPmin)
16ns(min.)

UL Rating
94 V - 0

Operating Temperature
0o C to +95o C

Storage Temperature
-55o C to +100o C
