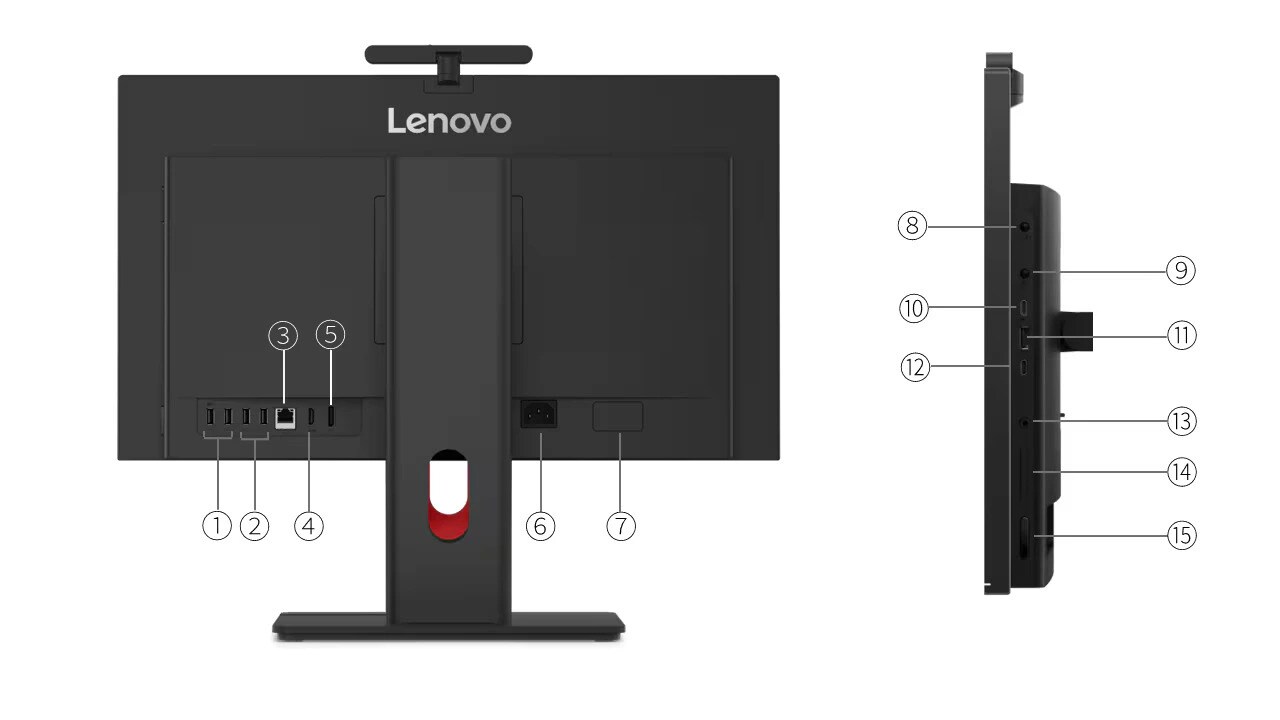

- 2 x USB-A (USB 5Gbps)
- 2 x USB-A (USB 10Gbps)
- Ethernet (RJ-45)
- HDMI® (HDMI® in 1.4 / HDMI® out 2.1 TMDS combo)
- DisplayPort™ 1.4
- Power connector
- Serial (only available on selected models)
- PC / monitor mode switch
Estimate shipping
Description

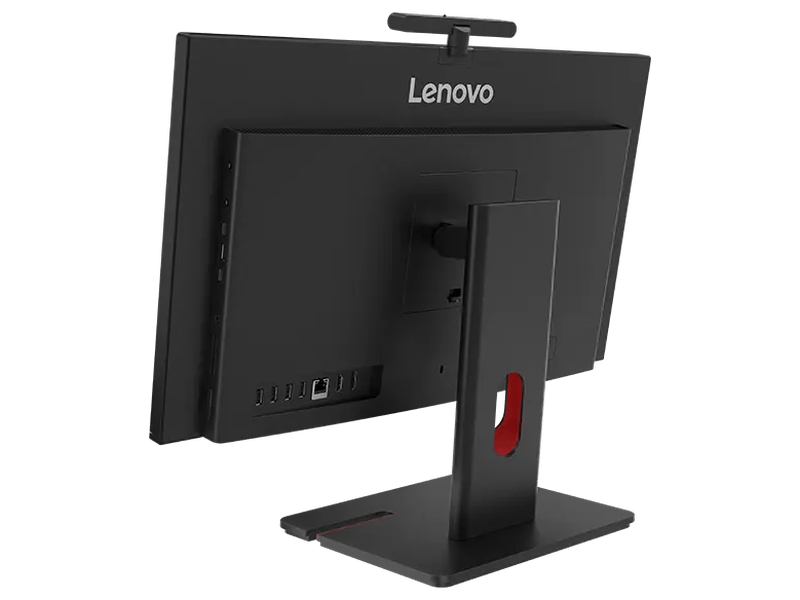

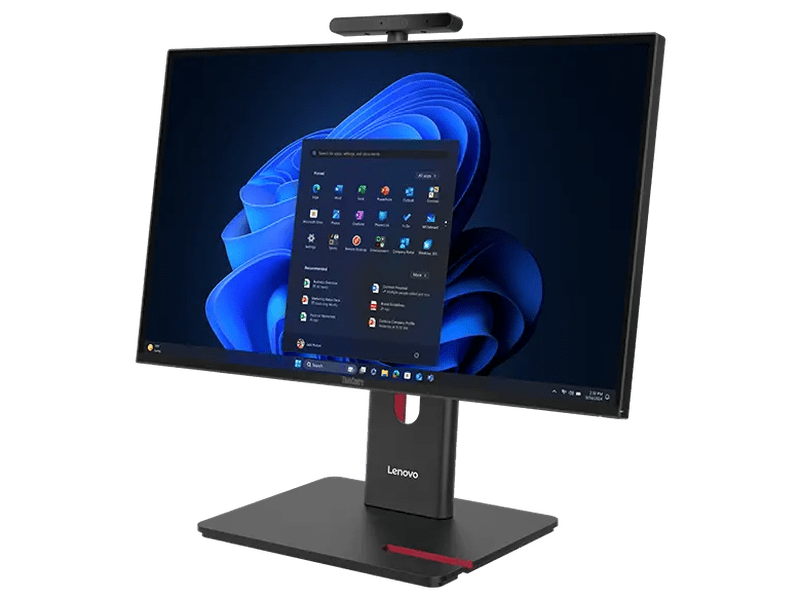

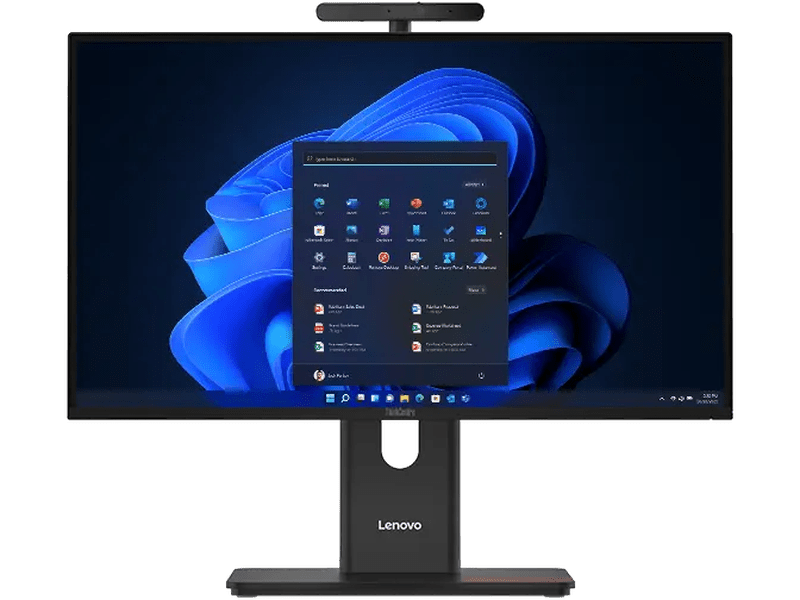

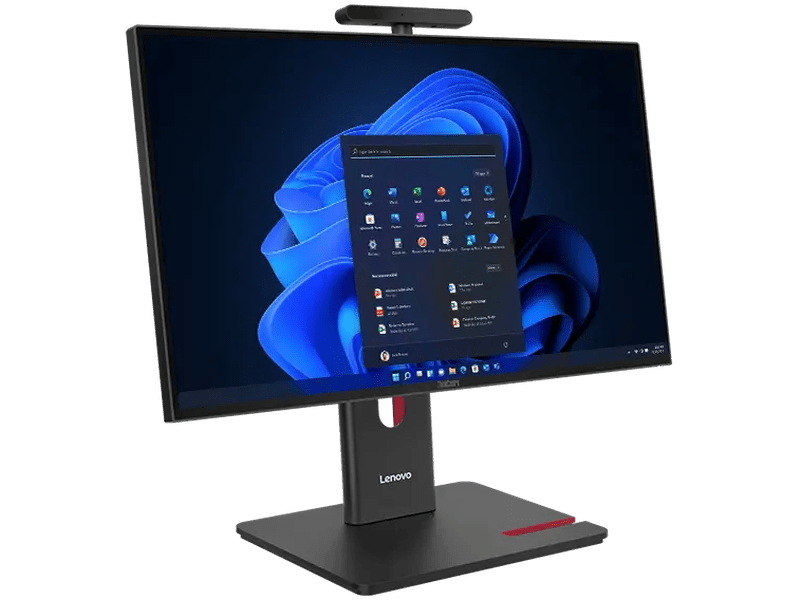

Lenovo ThinkCentre M90a Gen 6 24" AlO - 13AT000MAU
Introducing Lenovo ThinkCentre M Series AIO (2025) — All-in-one solution in the era of AI
AI-POWERED PERFORMANCE
Your All-in-One Solution for Smarter, Safer Work
Boost your productivity with the 23.8″ ThinkCentre M90a Gen 6 all-in-one PC. Intel® Core™ Ultra processors and Intel® AI Boost optimise system performance. The Lenovo AI Turbo Engine combined with the industry-first discrete neural processing unit (dNPU) enhance audio, video, and security capabilities to elevate efficiency.
CLEARER VIEWS, RICHER SOUNDS, HAPPIER EYES
Audiovisual Brilliance for Every Moment
Enjoy stunning visuals on the 23.8” AIO display with narrow bezels for an expansive viewing experience. Enjoy rich soundscapes by Dolby Atmos®, while integrated Intel® graphics and optional NVIDIA® GeForce RTX® graphics ensure flawless visuals with AI efficiency and power. Plus, TÜV Eyesafe® and TÜV Low Blue Light technology help reduce eye strain.


ADAPTABLE & CUSTOMISABLE
Your Workspace, Just the Way You Like It
Customise your workspace with flexible stand options, including full-functional, ultra-flex, and tilt-only designs, ensuring ergonomic perfection and boosted productivity. Effortlessly adjust to find your ideal viewing angle for all-day comfort. Built to last, its IP55* certification ensures durability, even in demanding environments.
CONNECTIVITY PERFECTED
One Device, Endless Efficiency
The ThinkCentre M90a Gen 6 AIO PC boasts flexible port options, including Thunderbolt™ 4 with Thunderbolt™ Share for fast data transfers, and high-speed Wi-Fi for stable connectivity. Effortlessly link to monitors, smartphones, or laptops for PC-to-PC access, sharing screens, keyboards, or storage. With everything synchronised, productivity is seamless.


SECURITY & RELIABILITY — REDEFINED
Your Data Safe, Your Tasks Unstoppable
Enjoy ultimate peace of mind with the ThinkCentre M90a Gen 6 all-in-one PC. ThinkShield’s advanced security suite offers robust protection via a discrete Trusted Platform Module (dTPM) and smart user recognition. Plus, optional human presence detection with radar sensor safeguards sensitive data and optional Intel vPro® ensures multilayer security for comprehensive protection.
Ports & Slots
- Microphone mute button
- USB-C® (Thunderbolt™ 4)
- USB-A (USB 10Gbps)
- USB-C® (USB 10Gbps), with 15W charging
- Headphone / mic combo jack (3.5mm)
- Card reader (only available on selected models)
- Power button
Specifications
Description | ThinkCentre M90a Gen 6, Intel® Core™ Ultra 5 235 vPro® (E-cores up to 4.40GHz, 24MB), W11P64 ENG, 16.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel® Graphics,BT 5.4,RTL8922AE, 180W, 3 Year On-site, USB, Traditional, Black-English (US), USB Calliope Mouse (Black) |
Series | ThinkCentre M AIO Series |
Model Name | ThinkCentre M90a Gen 6 |
Color | Eclipse Black |
Processor Clock Speed + Units | E-cores up to 4.40GHz |
Processor Type | Intel® Core™ Ultra 5 235 vPro® Processor |
Power Supply + Units | 180W |
Port Type | 1 Serial Port (optional) |
Port Type#1 | 2 High Speed USB 3.2 Gen2 type A(rear) |
Port Type#2 | 2 High Speed USB 3.2 Gen1 type A(rear) |
Port Type#3 | 1 High Speed USB 3.2 Gen2 type C(side) |
Port Type#4 | 1 High Speed USB 3.2 Gen2 type A(side) |
Port Type#5 | 1 x Type-C (Thunderbolt 4) |
Port Type#6 | 1 DP out connecter |
Port Type#7 | Headset and Microphone combo |
Port Type#8 | AC-IN |
Port Type#9 | 1 HDMI in/out |
Port Type#10 | Ethernet |
Port Type#11 | Cardreader |
Port Type#12 | 3-in-1 Media Card Reader |
Operating System Title | Windows 11 Pro 64 |
Long Abbreviation | 3 Year On-site |
Recommended Resolution | 1920 x 1080 |
Touch Screen | Non-Touch |
Maximum Resolution | 1920 x 1080 |
Display Type | FHD (1920 x 1080), IPS, Anti-Glare, Non-Touch, 99%sRGB, 250 nits, 120Hz |
Description#13 | 5MP IR/RGB with Dual Array Microphone |
Quantity | 2 |
Long Abbreviation#14 | 8 GB DDR5-5600 |
Description#15 | Integrated Intel® Graphics |
Keyboard Name | USB, Traditional, Black |
Interface | SSD M.2 2280 PCIe Gen4 TLC Opal |
Hard Drive Capacity | 512GB |
Description#16 | Realtek Wi-Fi 7 RTL8922AE 2x2 BE |
Description#17 | Bluetooth® 5.4 |
