Description

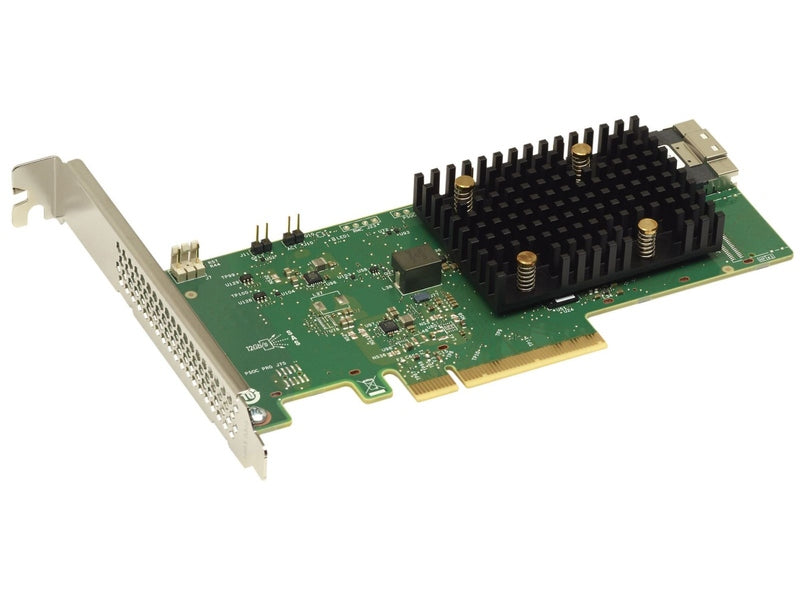

ThinkSystem RAID 545 PCIe Gen4 12Gb Adapters
The ThinkSystem RAID 545 PCIe Gen4 12Gb Adapters are an entry-level 12 Gb SAS/SATA family of internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0, 1 and 10, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the RAID 540 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Introduction
The ThinkSystem RAID 540/545 PCIe Gen4 12Gb Adapters are an entry-level 12 Gb SAS/SATA family of internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0, 1 and 10, and include an extensive list of RAS and management features.
These adapters leverage the MegaRAID iMR entry RAID firmware stack. The 540-8i and 540-16i implement Reserved Memory Region Reporting (RMRR) which uses server memory for the RAID functions and other background operations. The RAID 545-8i does not use RMRR functions for RAID operations, and instead uses on-chip memory (hostless iMR), thereby freeing up server memory for applications.
