Description

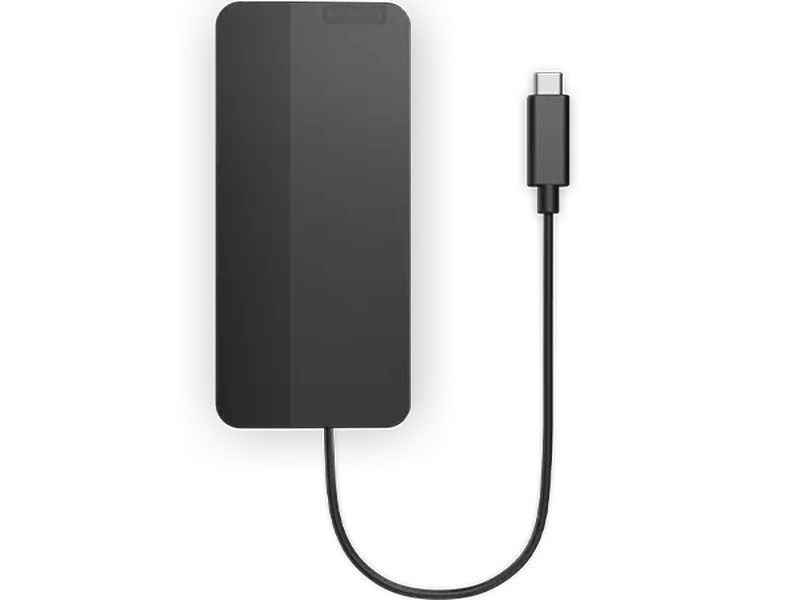

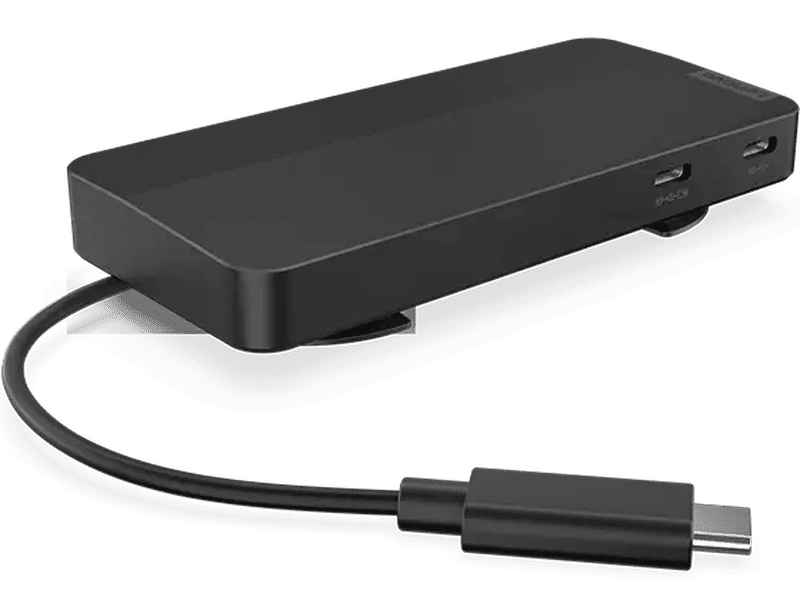

Lenovo USB-C Dual Display Travel Dock (w/ adapter) - 40B90100AU
Your ultimate productivity companion

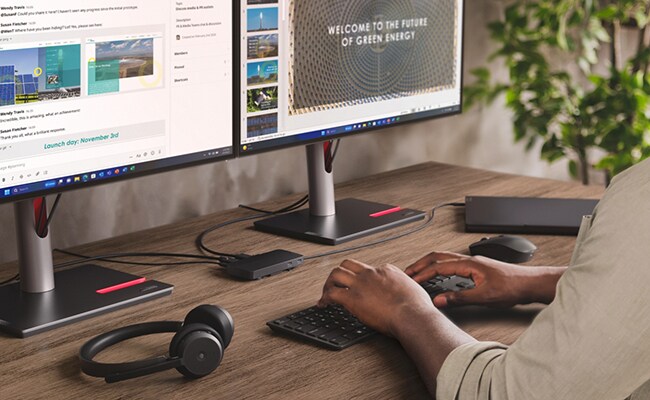

Designed for today’s remote professionals, this compact dynamo supports dual 4K displays and powers USB-C laptops with up to 100W. With a chassis made from 66% post-consumer recycled content and 100% plastic-free packaging, plus adjustable cable management, the Lenovo USB-C Dual Display Travel Dock is the perfect tool for on-the-go productivity.
* Lenovo USB-C & Thunderbolt™ Docks function with laptops that support industry standard USB-C Alt-Mode, DisplayLink or Thunderbolt™ protocols through their Type C™ port. Lenovo USB-C and Thunderbolt™ Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad laptops, but such features may not be available on certain other Lenovo laptops or non-Lenovo branded laptop systems.
Designed to go places

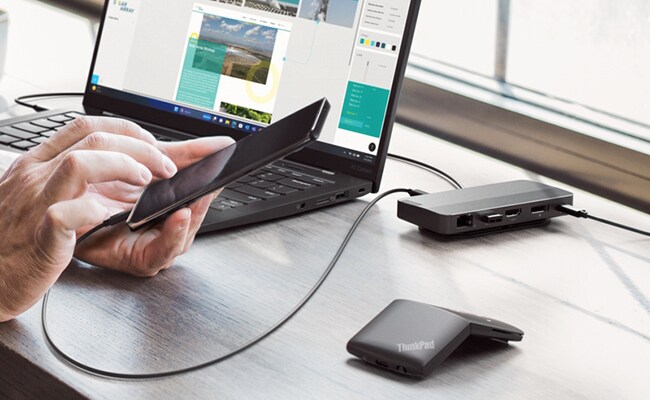

Compact and portable, the Lenovo USB-C Dual Display Travel Dock slips easily into your pocket and features adjustable built-in cable management, making it the ideal on-the-go productivity tool.
All the right connections

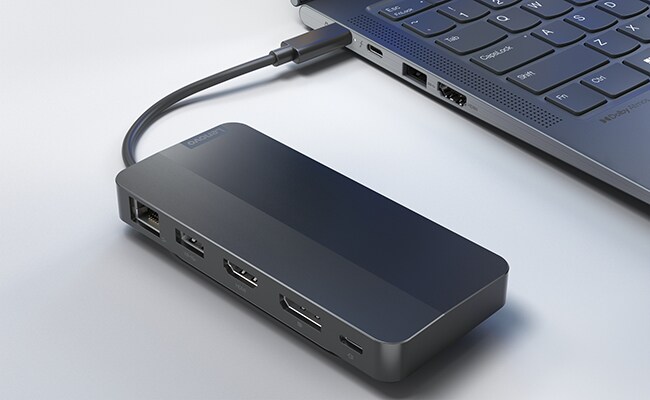

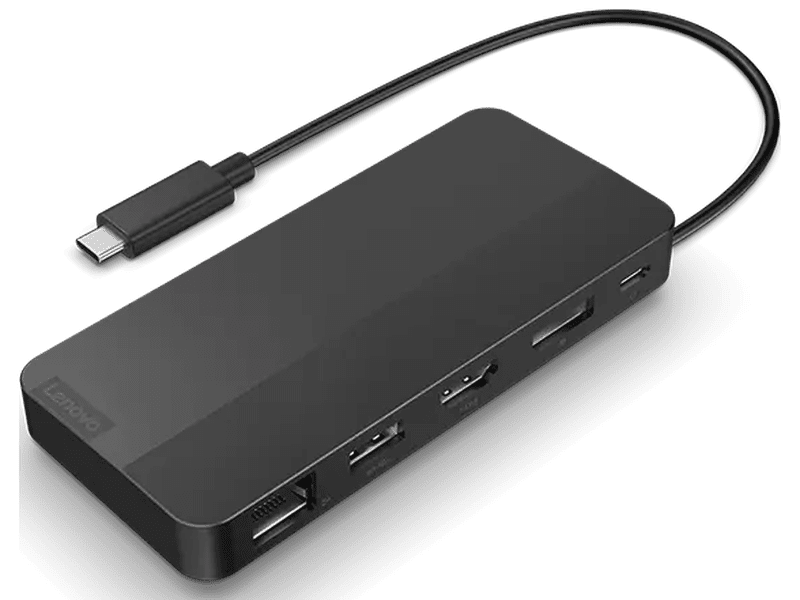

This travel dock gives you seven expertly engineered ports, including dual 4K display outputs at 60Hz, high-speed USB, and Ethernet connections—all in a pocket-sized design to maximize productivity wherever work takes you.
Powerful yet portable
Compatible with all standard USB-C laptops, this essential travel dock includes a 100W USB-C charger (65W power delivery) and an optional 135W charger for a full 100W boost—giving you versatile connectivity and power options.
Green is the new black
Featuring a stylish Eclipse Black finish, the chassis of this travel dock is crafted with 66% Post-Consumer Recycled Content (PCC) and comes in 100% plastic-free packaging. It’s also a pioneer in its field by providing TÜV-verified carbon footprint data.
Specifications
|
Color
|
Eclipse Black |
|---|---|
|
Max Number of External Monitors
|
2 |
|
Weight
|
137 g (0.3 lb) |
|
Refresh Rate
|
2 x 3840 x 2160 @60Hz |
|
AC Plug
|
Type-C |
|
Warranty Type
|
CRU |
|
Output Power
|
65W |
|
Brand
|
Lenovo |
|
OS Requirements
|
Win 10, Win 11 |
|
Packed Weight
|
635.5 g (1.4 lbs) |
|
Agency Approvals
|
FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, LoA, Ukraine DoC, NOM |
|
Audio Ports
|
No |
|
Charging Port
|
DC-IN |
|
USB Ports
|
1 x USB-A 10 Gbps, 2 x USB-C 10 Gbps (1 x AOU 12W Max) |
|
Video Ports
|
1 x HDMI 2.1, 1 x DP 1.4 |
|
Ethernet
|
1x Gigabit Ethernet |
|
Package Type
|
Brown Box |
|
Packed Dimensions (L x D x H)
|
150 mm x 140 mm x 50 mm / 5.91" x 5.51" x 1.97" |
|
Height
|
20 mm (0.79 in) |
|
Length
|
120 mm (4.72 in) |
|
Depth
|
55 mm (2.17 in) |
|
Warranty Period
|
3 Years |
|
Maximum Operating Temperature
|
40 ℃ (104 ℉) |
|
Minimum Operating Temperature
|
0 ℃ (32 ℉) |
|
Maximum Relative Humidity (%)
|
95% (no Condensation) |
|
Minimum Relative Humidity (%)
|
20% |
|
Driver Needed
|
No |
|
Input Power
|
100W |
|
Physical Security Feature
|
No |
|
Power Button
|
No |
|
Power Delivery
|
Yes |
