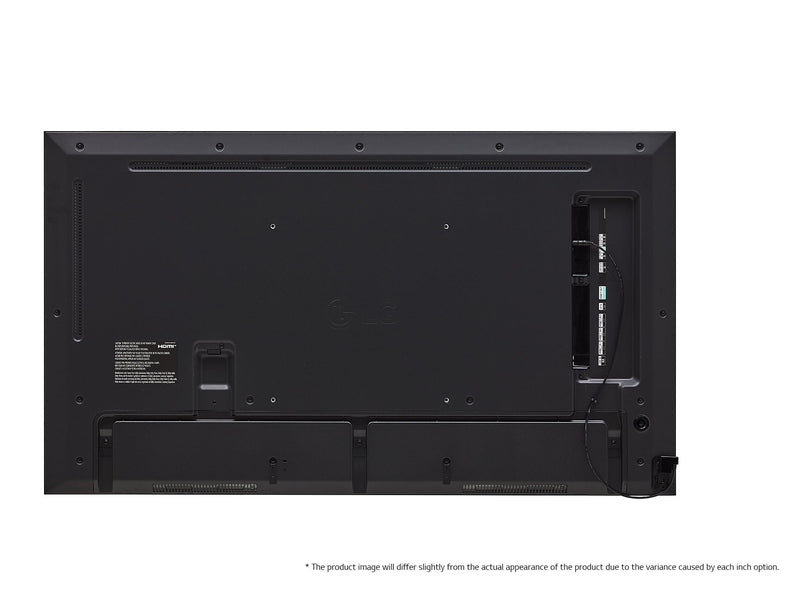

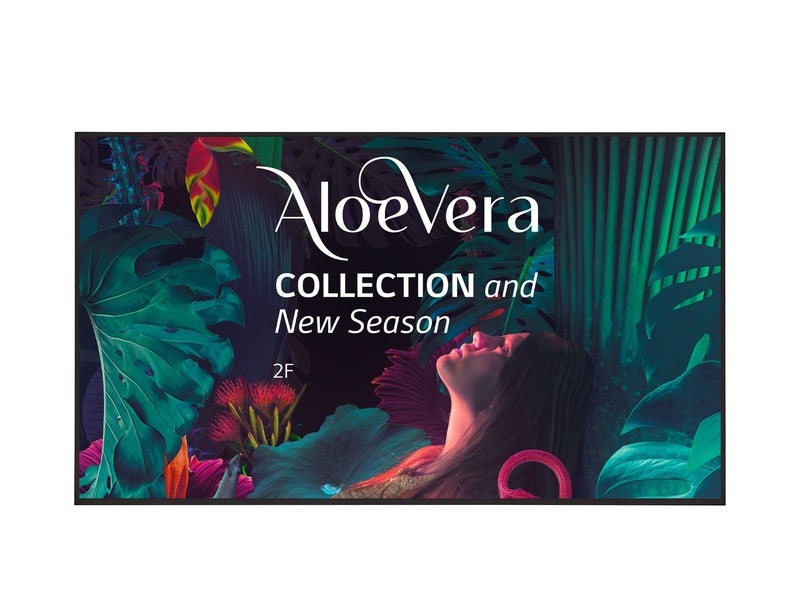

LG 49UH5N-E 49" 4K UHD IPS Digital Signage Display

LGSKU: 49UH5N-E

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,293.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

LG 49" 4K UHD IPS Digital Signage Display [49UH5N-E]

Key Features

  • Resolution: 3,840 x 2,160 (UHD)

  • Brightness (Typical): 500 nits

  • Surface Treatment (Haze): 28%

  • Bezel Thickness: 8.9 mm (Top/Right/Left), 12.9 mm (Bottom)

  • Interfaces: HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR

  • Smart Platform: webOS



Specifications

Category Specification
PANEL
Screen Size (Inch) 49
Panel Technology IPS
Back Light Type Edge
Aspect Ratio 16:9
Native Resolution 3840 x 2160 (UHD)
Refresh Rate 60Hz
Brightness 500 nit (Typ.)
Contrast Ratio 1,100:1
Dynamic CR 1,000,000:1
Color Gamut BT709 95%
Viewing Angle (H x V) 178º x 178º
Color Depth (Number of Colors) 1.07 Billion colors
Response Time Tr: 6ms / Tf: 9ms
Surface Treatment (Haze) Haze 28%
Lifetime 50,000 Hrs (Min.)
Operation Hours (Hours/Day) 24/7
Portrait / Landscape YES / YES
Transparency N/A
QWP (Quarter Wave Plate) N/A
CONNECTIVITY
HDMI In YES (3ea)
HDMI In (HDCP Ver.) 2.2/1.4
DP In YES (HDCP 2.2/1.3)
DVI-D In NO
RGB In NO
Audio In NO
RS232C In YES
RJ45(LAN) In YES (1ea)
IR In YES
USB In USB 2.0 Type A (1ea)
HDMI Out YES
DP Out NO
Audio Out YES
Touch USB NO
External Speaker Out NO
RS232C Out YES
RJ45(LAN) Out NO
IR Out YES (Sharing RS232C Out)
Daisy Chain Input: HDMI, DP / Output: HDMI
MECHANICAL SPECIFICATION
Bezel Color Black
Bezel Width T/R/L: 8.9mm, B: 12.9mm
Weight (Head) 13.6 Kg
Weight (Head+Stand) N/A
Packed Weight 16.1 Kg
Monitor Dimensions (W x H x D) 1095.6 x 630.8 x 29.7 mm (without IR)
Monitor Dimension with Stand (W x H x D) N/A
Carton Dimensions (W x H x D) 1215 x 736 x 152 mm
Handle NO
VESA Standard Mount Interface 300 x 300 mm
FEATURE - HARDWARE
Internal Memory (eMMC) 16GB
Wi-Fi/BT (Built-in) YES
Temperature Sensor YES
Auto Brightness Sensor YES
Pixel Sensor NO
Proximity Sensor NO
Current Sensor NO
BLU Sensor NO
Humidity Sensor NO
Acceleration (Gyro) Sensor YES
Power Indicator NO
Local Key Operation YES
FAN (Built-in) NO
FEATURE - SOFTWARE
OS Ver. (webOS) webOS 6.0
Local Contents Scheduling YES
Group Manager YES
USB Plug & Play YES
Fail over YES
Booting Logo Image YES
No Signal Image YES
RS232C Sync YES
Local Network Sync YES
Backlight Sync NO
PIP YES
PBP YES (4PBP)
Screen Share YES
Video Tag YES (4 Video Tag)
Play via URL YES
Screen Rotation YES
External Input Rotation YES
Gapless Playback YES
Tile Mode Setting YES
Setting Data Cloning YES
SNMP YES
ISM Method YES
Auto Set ID YES
Status Mailing YES
Control Manager YES
Cisco Certification YES
Crestron Connected YES
Smart Energy Saving YES
PM mode YES
Wake on LAN YES
Network Ready YES
Beacon YES
HDMI-CEC YES
SI Server Setting YES
webRTC YES
Pro

YES
Brightness Compensation NO
W/B Setting by Grey scale NO
Scan Inversion NO
ENVIRONMENT CONDITIONS
Operation Temperature 0 °C to 40 °C
Operation Humidity 10 % to 80 %
POWER
Power Supply AC 100-240V~, 50/60Hz
Power Type Built-in Power
POWER CONSUMPTION
Typ. 100W
Max. 140W
BTU (British Thermal Unit) 341 BTU/Hr (Typ.), 478 BTU/Hr (Max.)
Smart Energy Saving (70%) 70W
DPM 0.5W
Power off 0.5W
SOUND
Speaker (Built-in) YES (10W x 2)
CERTIFICATION
Safety CB / NRTL
EMC FCC Class "B" / CE / KC
ERP / Energy Star YES (NewErP) / YES
ePEAT (US only) YES
OPS COMPATIBILITY
OPS Type compatible NO
OPS Power Built-in NO
SOFTWARE COMPATIBILITY
SuperSign CMS YES
SuperSign Control+ YES
SuperSign WB YES
SuperSign Cloud YES
Promota YES (Not available for EU/CIS)
Mobile CMS YES
Connected Care YES
LANGUAGE
OSD English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic
ACCESSORY
Basic Remote Controller (include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder (2ea), AC Cord Holder (1ea)
Optional Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B), Wall Mount Adapter (AM-B330S)
SPECIAL FEATURE
Overlay Touch Compatibility N/A
Smart Calibration N/A
Tilt (Face up) N/A
Tilt (Face down) Max. 30 degree
IP Rating IP5X
Conformal Coating (Power Board) YES
Power Protection N/A
Direct Sunlight N/A
