Overview
MR60X
AX1500 WiFi 6 Router
- Upgrade Your Network with Wi-Fi 6 – MR60X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions.
- Faster 1.5 Gbps Speeds - Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
- Improved Network Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
- Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Overall Security Protection – The latest WPA3 provides improved WiFi security
- Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
- Smart Connect– Intelligently chooses the best available band for each device
MR60X
AX1500 WiFi 6 Router
- Upgrade Your Network with Wi-Fi 6 – MR60X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions.
- Faster 1.5 Gbps Speeds - Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
- Improved Network Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
- Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Overall Security Protection – The latest WPA3 provides improved WiFi security
- Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
- Smart Connect– Intelligently chooses the best available band for each device
| TP-Link MR60X AX1500 Wi-Fi 6 Router Specifications | |
|---|---|
| Wireless | |
| Wireless Standards | Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards |
| WiFi Speeds | 1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz) |
| Reception Sensitivity |
2.4 GHz: • 11g 6 Mbps: −97 dBm • 11g 54 Mbps: −79 dBm • 11n HT20 MCS7: −78 dBm • 11n HT40 MCS7: −74 dBm 5 GHz: • 11a 6 Mbps: −94 dBm • 11a 54 Mbps: −78 dBm • 11ac VHT20 MCS8: −74 dBm • 11ac VHT40 MCS8: −70 dBm • 11ac VHT80 MCS8: −65 dBm |
| Wireless Security | WPA/WPA2-Personal, WPA2/WPA3-Personal |
| Wireless Functions | Enable/Disable Wireless Radio, WMM |
| Hardware | |
| Dimensions (W × D × H) | 175.6 × 157.2 × 45 mm (6.9 × 6.2 × 1.8 in) |

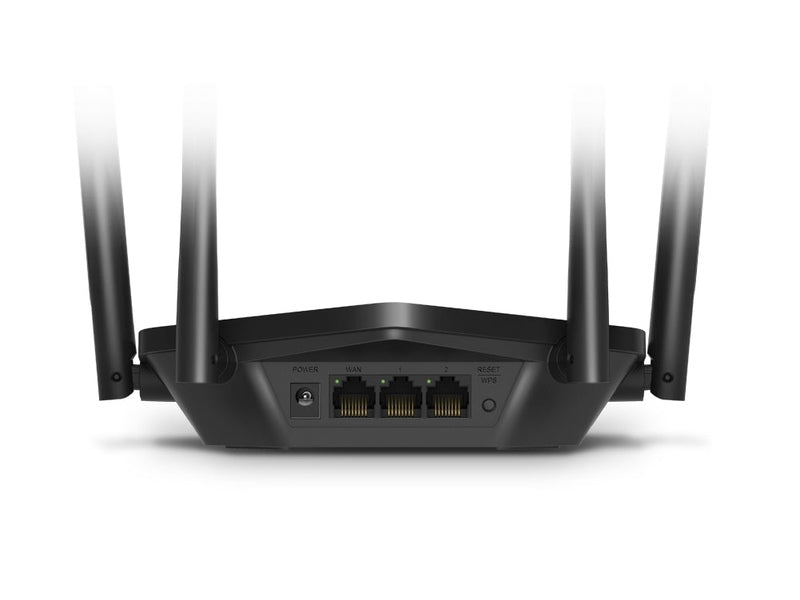

| Interfaces | 1× Gigabit WAN, 2× Gigabit LAN |
| Button | Reset / WPS |
| Antenna Type | 4× 5 dBi Fixed Omni-Directional Antennas |
| Software | |
| WAN Type | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Management | Access Control, Local Management, Remote Management |
| NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall Security | SPI Firewall, IP & MAC Address Binding |
| Guest Network | 2.4 GHz and 5 GHz |
| DHCP | Server, DHCP Client List |
| Others | |
| Network Services Enabled by Default | • Web Server (HTTP/HTTPS) – Port 80/443, TCP • DHCP Server – Port 67, UDP • DNS – Port 53, TCP & UDP • App Management – Port 20001 (TCP), 20002 (UDP) |
| Package Contents | • MR60X AX1500 Wi-Fi 6 Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| Environment | • Operating Temperature: 0–40°C (32–104°F) • Operating Humidity: 10%–90% RH (non-condensing) • Storage Humidity: 5%–90% RH (non-condensing) |
