Overview

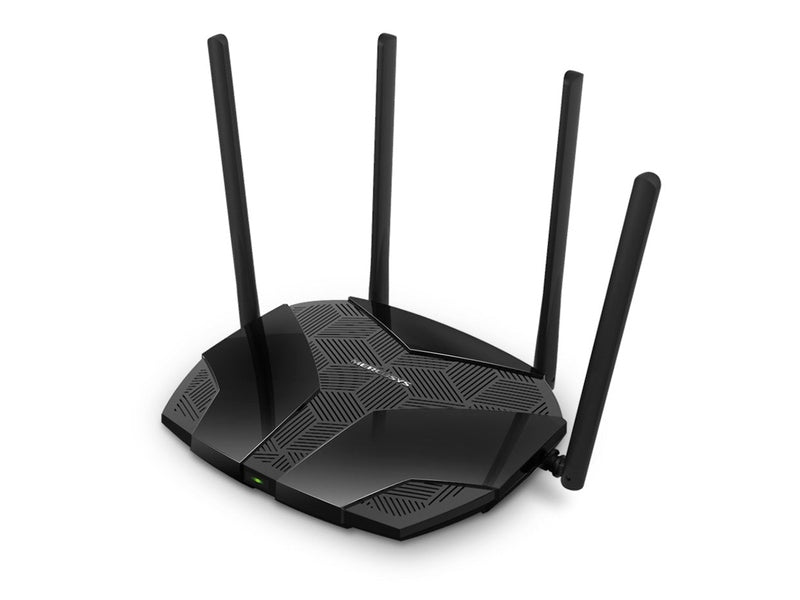

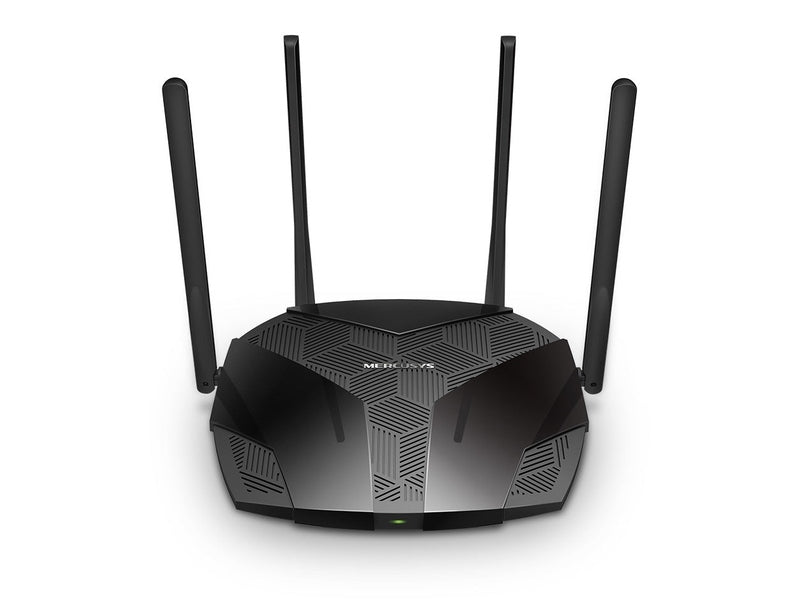

MR80X
AX3000 Dual-Band Wi-Fi 6 Router
- OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.
- MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi THAT GOES FARTHER – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
- GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
- SMART CONNECT – Intelligently chooses the best available band for each device
MR80X
AX3000 Dual-Band Wi-Fi 6 Router
- OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.
- MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi THAT GOES FARTHER – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
- GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
- SMART CONNECT – Intelligently chooses the best available band for each device
TP-Link MR80X AX3000 Wi-Fi 6 Router Specifications | |
---|---|
Wireless | |
Wireless Standards | Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards |
WiFi Speeds | 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz) |
Reception Sensitivity |
2.4 GHz: • 11g 6 Mbps: −97 dBm • 11g 54 Mbps: −79 dBm • 11n HT20 MCS7: −77 dBm • 11n HT40 MCS7: −74 dBm • 11ax HE20 MCS11: −67 dBm • 11ax HE40 MCS11: −64 dBm 5 GHz: • 11a 6 Mbps: −97 dBm • 11a 54 Mbps: −79 dBm • 11ac VHT20 MCS8: −75 dBm • 11ac VHT40 MCS9: −71 dBm • 11ac VHT80 MCS9: −67 dBm • 11ax HE80 MCS11: −61 dBm |
Transmission Power | • 2.4 GHz: < 20 dBm (EIRP) • 5 GHz Band 1/2: < 23 dBm • 5 GHz Band 3: < 30 dBm |
Wireless Security | • WPA / WPA2-Personal • WPA2 / WPA3-Personal • WPA2-Enterprise • WPA/WPA2-Enterprise |
Wireless Functions | Enable/Disable Wireless Radio, WMM |
Hardware | |
Dimensions (W × D × H) | 208.8 × 171.6 × 41.7 mm (8.2 × 6.8 × 1.6 in) |

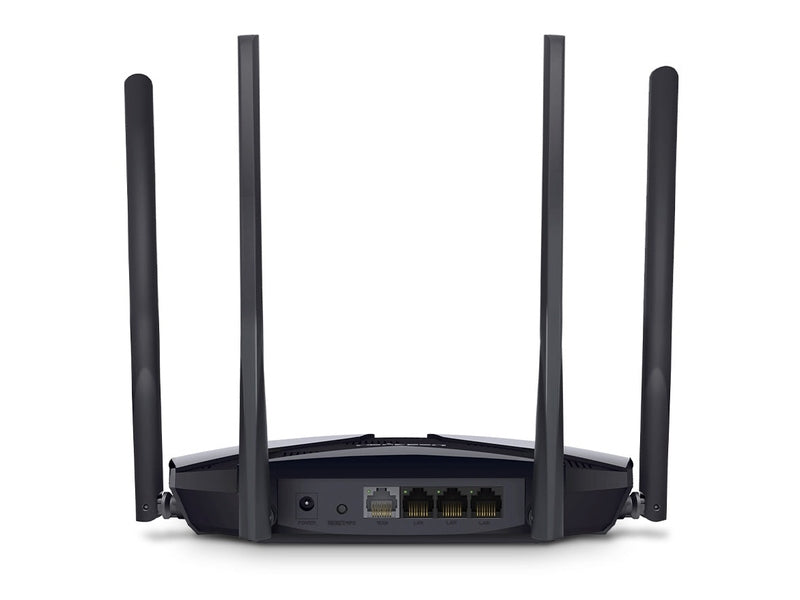

Interfaces | 1× Gigabit WAN, 3× Gigabit LAN |
Button | Reset / WPS |
Antenna Type | 4× 5 dBi Fixed Omni-Directional Antennas |
Software | |
WAN Type | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
Management | Access Control, Local Management, Remote Management |
NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
Firewall Security | SPI Firewall, IP & MAC Address Binding |
Guest Network | 2.4 GHz and 5 GHz |
DHCP | Server, DHCP Client List |
VPN Server | OpenVPN, PPTP, L2TP, IPSec (Server and Clients) |
Others | |
Network Services Enabled by Default | • Web Server (HTTP/HTTPS) – Port 80/443, TCP • DHCP Server – Port 67, UDP • DNS – Port 53, TCP & UDP • App Management – Port 20001 (TCP), 20002 (UDP) |
Package Contents | • MR80X AX3000 Wi-Fi 6 Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
Environment | • Operating Temperature: 0–40°C (32–104°F) • Operating Humidity: 10%–90% RH (non-condensing) • Storage Humidity: 5%–90% RH (non-condensing) |
