Overview

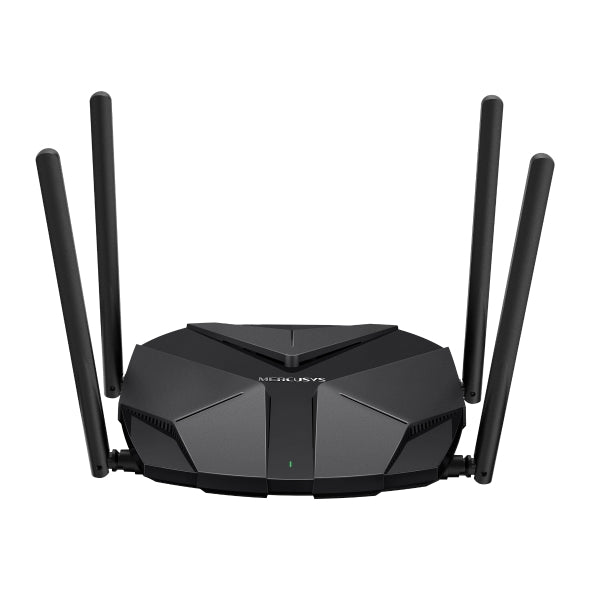

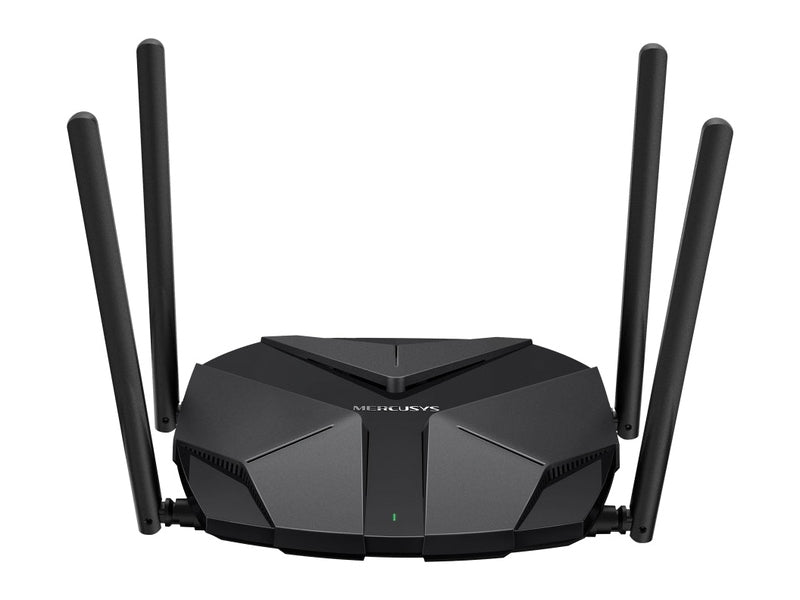

MR85X
AX3000 Dual-Band Wi-Fi 6 Router
- OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.
- 2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.
- MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi THAT GOES FARTHER – 4× multi-directional antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
- GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
- SMART CONNECT – Intelligently chooses the best available band for each device
MR85X
AX3000 Dual-Band Wi-Fi 6 Router
- OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.
- 2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.
- MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi THAT GOES FARTHER – 4× multi-directional antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
- GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
- SMART CONNECT – Intelligently chooses the best available band for each device
| MERCUSYS MR85X AX3000 Wi-Fi 6 Router Specifications | |
|---|---|
| Wireless | |
| Wi-Fi Class | AX3000 |
| Wi-Fi Speeds | 2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps |
| Wireless Standards | 802.11ax/ac/a/b/g/n |
| Max Channel Width | 160 MHz |
| Reception Sensitivity |
5 GHz: 11a 6 Mbps: −95 dBm 11a 54 Mbps: −76.5 dBm 11n HT20 MCS7: −76 dBm 11n HT40 MCS7: −73 dBm 11ac VHT20 MCS8: −71.5 dBm 11ac VHT40 MCS9: −67 dBm 11ac VHT80 MCS9: −63.5 dBm 11ax HE20 MCS11: −64.5 dBm 11ax HE40 MCS11: −63 dBm 11ax HE80 MCS11: −58.5 dBm 11ax HE160 MCS11: −56 dBm 2.4 GHz: 11g 6 Mbps: −97 dBm 11g 54 Mbps: −79 dBm 11n HT20 MCS7: −78 dBm 11n HT40 MCS7: −75 dBm 11ax HE20 MCS11: −66.5 dBm 11ax HE40 MCS11: −65.5 dBm |
| Max Wi-Fi Modulation | 1024 QAM |
| Wireless Security | WPA, WPA2, WPA3 |
| Wireless Functions | Guest Network, Smart Connect, Wireless Schedule, WPS, AP Isolation, Airtime Fairness |
| Hardware | |
| Dimensions | 209 × 171.7 × 42.4 mm (8.2 × 6.8 × 1.7 in) |

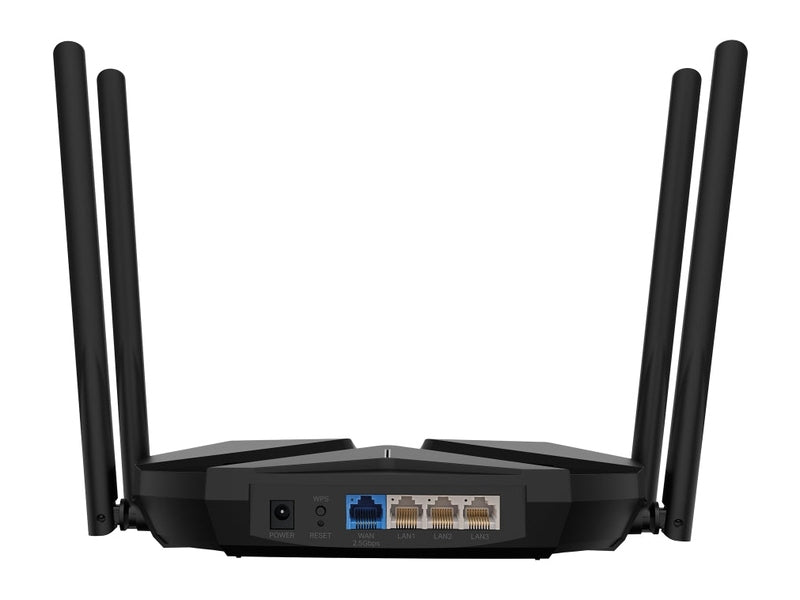

| Interfaces | 1× 2.5G WAN, 3× GE LAN |
| Antenna | • 2× 5G External Antennas (5 dBi) • 1× Dual-Band External Antenna (2.4G: 3 dBi, 5G: 5 dBi) • 1× 2.4G External Antenna (5 dBi) |
| Button | WPS, Reset |
| Installation | Desktop, Wall-Mount |
| LED | 1× SYS |
| Retail Package Dimension | 359 × 274 × 60 mm |
| Units per Carton | 10 |
| Carton Dimension | 560 × 370 × 310 mm |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| Power | Input: 100–240 V ~ 50/60 Hz; Output: 12 V / 1.5 A |
| Software | |
| Operation Mode | Router / AP Mode |
| WAN Mode | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4G and 5G Guest Networks |
| Parental Controls | Profile Settings, Time Control, Pause Internet, Website Filtering |
| DHCP | Address Reservation, Client List, Server |
| DDNS | MERCUSYS, NO-IP, DynDNS |
| VPN Server & Client | OpenVPN, PPTP, L2TP/IPSec, WireGuard |
| EasyMesh | Compatible |
| QoS | Time Settings, Priority Control |
| Security | SPI Firewall, Access Control, IP & MAC Binding |
| Kill Switch | Supported |
| ISP Features | CWMP, ISP Preset (Agile Config), Superadmin |
| System | Firmware Upgrade, Backup/Restore, Admin, Logs, Time & Language, Reboot |
| Diagnostics | Ping, Traceroute |
| LED Management | LED Control, Night Mode |
| Device Management | MERCUSYS App, Webpage |
| Cloud | MERCUSYS ID |
| Language Support | Bulgarian, Czech, Danish, German, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Portuguese, Portuguese-Brazil, Romanian, Russian, Slovak, Swedish, Turkish, Ukrainian, Vietnamese, Chinese-Taiwan |
| Advanced Features | OFDMA, MU-MIMO, BSS Color, Beamforming |
| Other Features | |
| Network Services Enabled by Default | |
| Web Server | Manage via HTTP/HTTPS – Port: 80/443, Protocol: TCP |
| DNS | DNS Service – Port: 53, Protocol: TCP & UDP |
| DHCP Server | IP Address Assignment – Port: 67, Protocol: UDP |
| App Management | • Port: 20001, Protocol: TCP • Port: 30001, Protocol: TCP • Port: 20002, Protocol: UDP |
| Package Contents | |
| Included Items | • AX3000 Wi-Fi 6 Router MR85X • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 90% RH (non-condensing) |
