Description
Overview

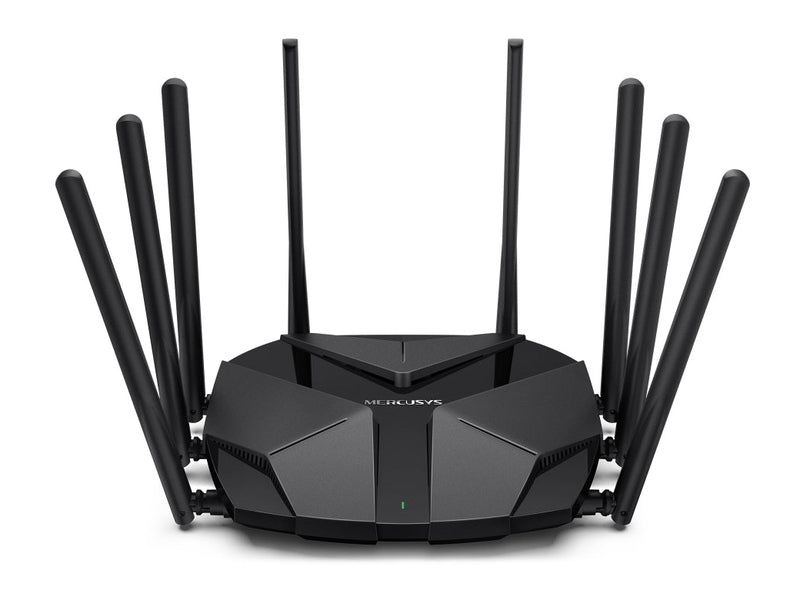

MR90X
AX6000 8-Stream Wi-Fi 6 Router
- OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 6 Gbps for faster browsing, streamings, and downloading, all at the same time.
- 2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.
- MORE DEVICES, MORE FUN – Supports 4×4 MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi THAT GOES FARTHER – 8× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
- GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
- SMART CONNECT – Intelligently chooses the best available band for each device
MR90X
AX6000 8-Stream Wi-Fi 6 Router
- OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 6 Gbps for faster browsing, streamings, and downloading, all at the same time.
- 2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.
- MORE DEVICES, MORE FUN – Supports 4×4 MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi THAT GOES FARTHER – 8× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
- GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
- ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
- SMART CONNECT – Intelligently chooses the best available band for each device
| TP-Link MR90X AX6000 Wi-Fi 6 Router Specifications | |
|---|---|
| Wireless | |
| Wireless Standards | Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards |
| WiFi Speeds | 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz) |
| Reception Sensitivity |
2.4 GHz: • 11g 6 Mbps: −97 dBm • 11g 54 Mbps: −79 dBm • 11n HT20 MCS7: −77 dBm • 11n HT40 MCS7: −74 dBm 5 GHz: • 11a 6 Mbps: −97 dBm • 11a 54 Mbps: −79 dBm • 11ac VHT20 MCS8: −75 dBm • 11ac VHT40 MCS9: −71 dBm • 11ac VHT80 MCS9: −67 dBm • 11ax VHT20 MCS11: −67 dBm • 11ax VHT40 MCS11: −64 dBm • 11ax VHT80 MCS11: −61 dBm |
| Transmission Power | • 2.4 GHz: < 20 dBm (EIRP) • 5 GHz Band 1/2: < 23 dBm • 5 GHz Band 3: < 30 dBm |
| Wireless Security | WPA/WPA2-Personal, WPA2/WPA3-Personal |
| Wireless Functions | Enable/Disable Wireless Radio, WMM |
| Hardware | |
| Dimensions (W × D × H) | 209 × 172.2 × 42.4 mm (8.2 × 6.8 × 1.6 in) |

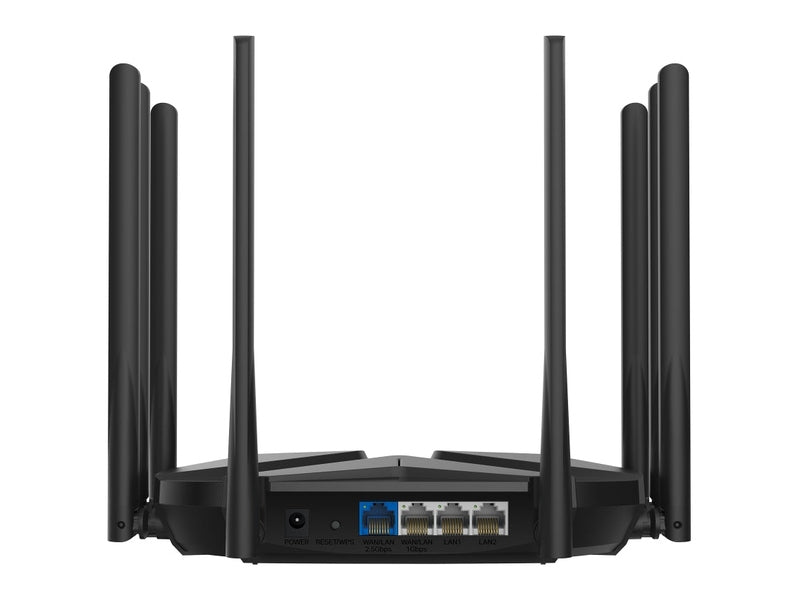

| Interfaces | • 1× 2.5 Gbps WAN/LAN Port • 1× Gigabit WAN/LAN Port • 2× Gigabit LAN Ports |
| Button | Reset / WPS |
| Antenna Type | 8× Fixed Omni-Directional Antennas |
| Software | |
| WAN Type | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Management | Access Control, Local Management, Remote Management |
| NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall Security | SPI Firewall, IP & MAC Address Binding |
| Guest Network | 2.4 GHz and 5 GHz |
| DHCP | Server, DHCP Client List |
| VPN Server | OpenVPN, PPTP |
| Others | |
| Network Services Enabled by Default | • Web Server (HTTP/HTTPS) – Port 80/443, TCP • DHCP Server – Port 67, UDP • DNS – Port 53, TCP & UDP • App Management – Port 20001 (TCP), 20002 (UDP) |
| Package Contents | • MR90X AX6000 Wi-Fi 6 Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| Environment | • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) • Operating Humidity: 10% ~ 90% RH (non-condensing) • Storage Humidity: 5% ~ 90% RH (non-condensing) |
