Description
Overview

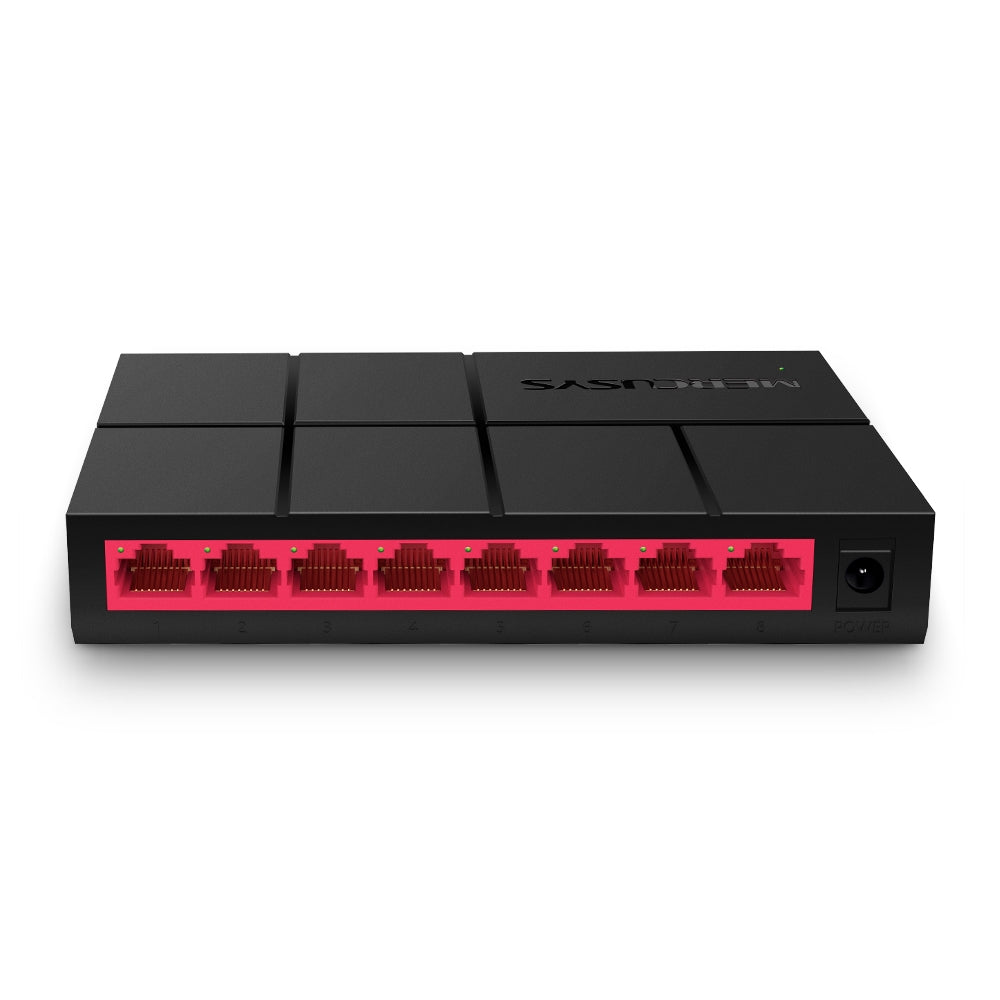

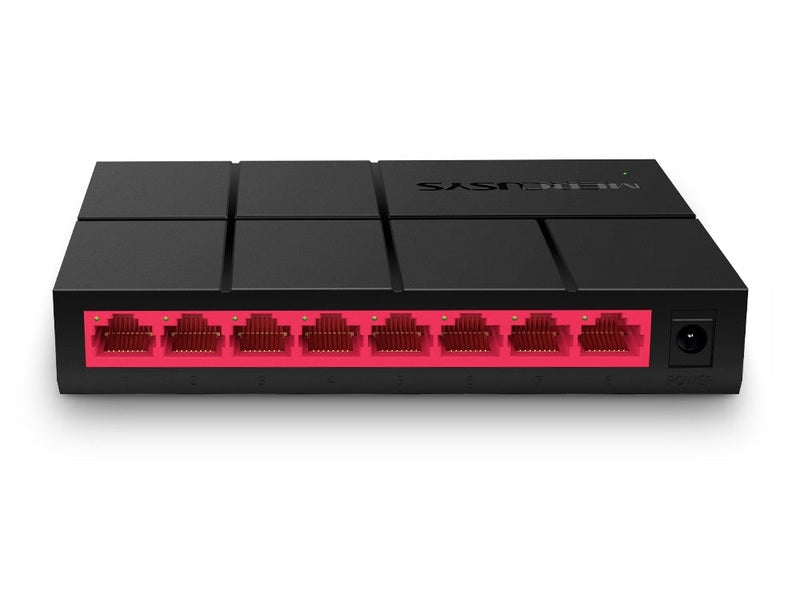

8-Port 10/100/1,000 Mbps Desktop Switch
- Eight 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
- Easily wired network expansion

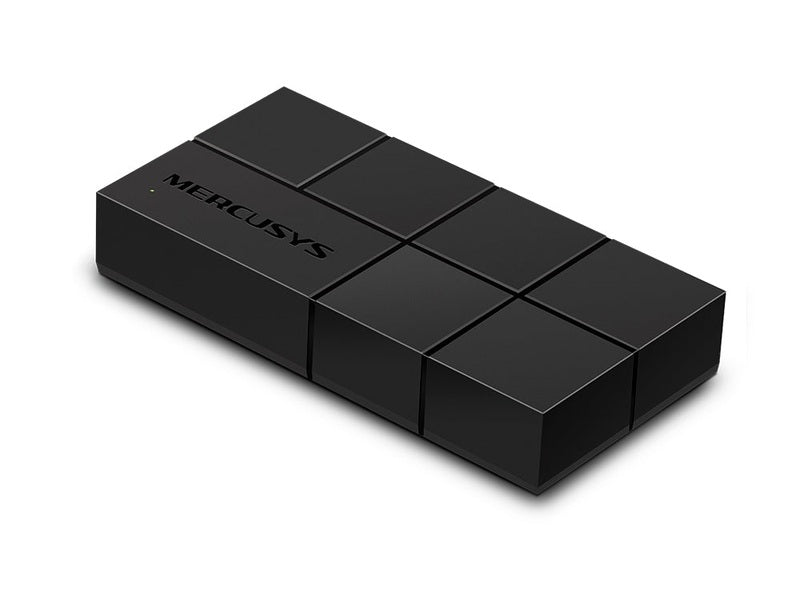

- Compact design for flexible arrangement

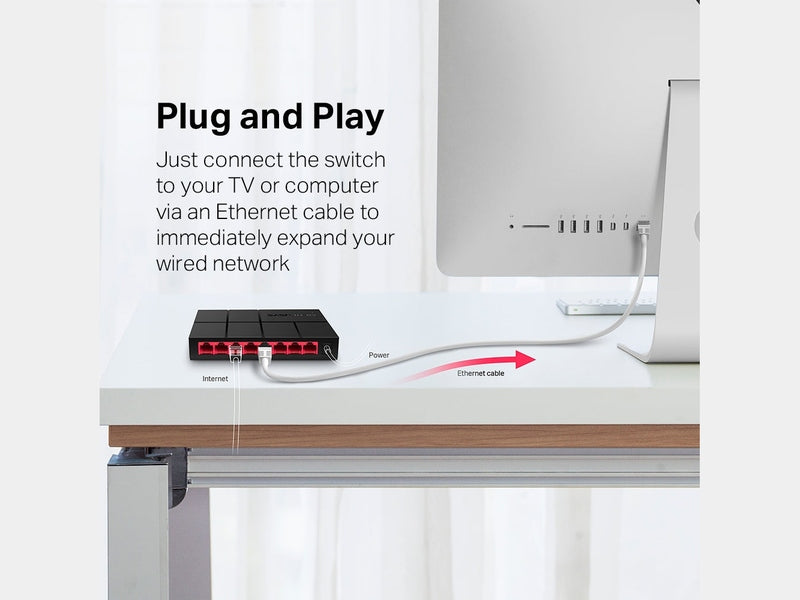

- Plug and play setup, no configuration required
- Green Ethernet technology saves power by up to 82%
8-Port 10/100/1,000 Mbps Desktop Switch
- Eight 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
- Easily wired network expansion
- Compact design for flexible arrangement
- Plug and play setup, no configuration required
- Green Ethernet technology saves power by up to 82%
| TP-Link MS108G Switch Specifications | |
|---|---|
| Hardware | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD |

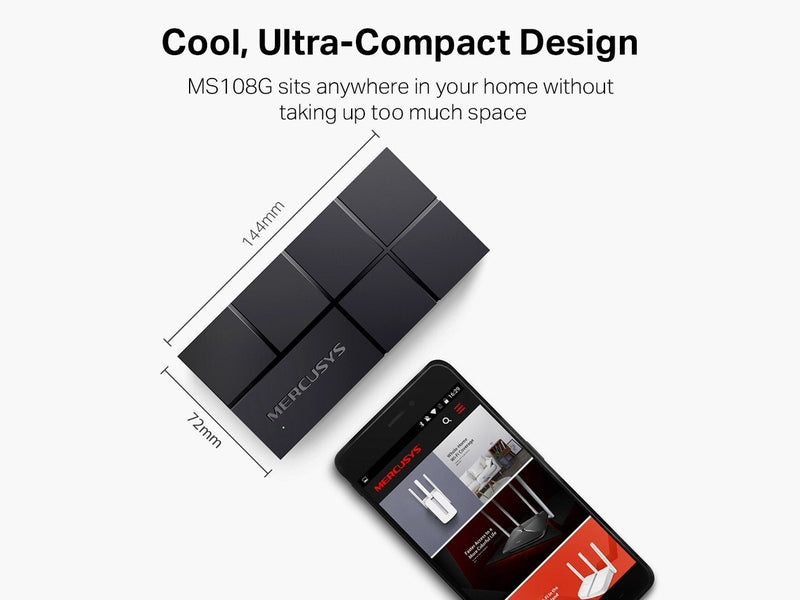

| Dimensions | 143.8 × 72.3 × 25 mm |
| Interfaces | 8× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation, Auto-MDI/MDIX) |
| External Power Supply | 9 V / 0.6 A |
| Data Rates | • 10/100/1000 Mbps (Half Duplex) • 20/200/2000 Mbps (Full Duplex) |
| Buffer Capacity | 64 KB |
| Jumbo Frame | 9 KB |
| LED Indicators | Ethernet (Ports 1–8), Power |
| Software | |
| Transfer Method | Store and Forward |
| Others | |
| Package Contents | • MS108G Switch • Power Adapter • Quick Installation Guide |
