Description
Overview

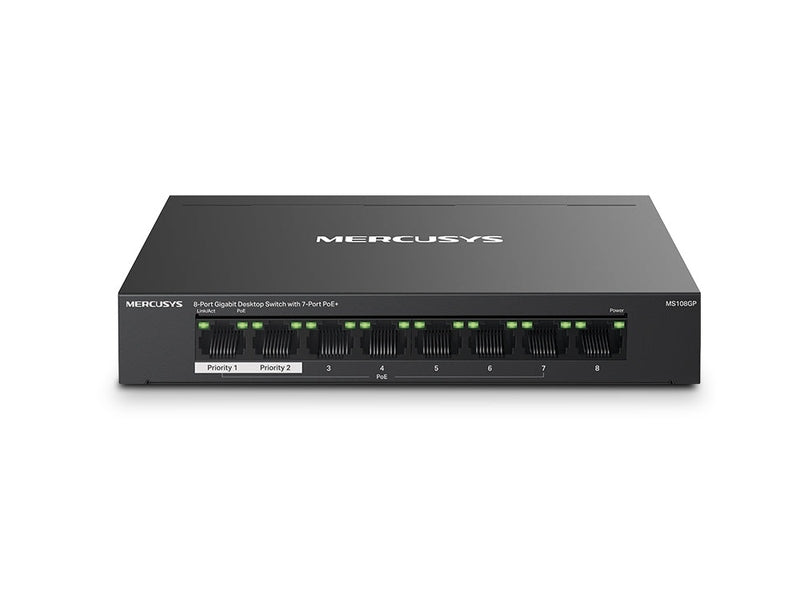

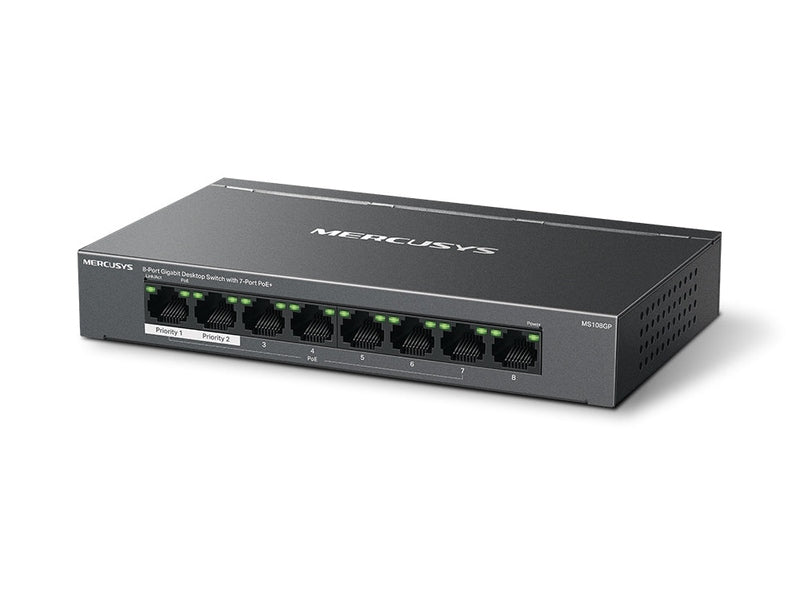

MS108GP
8-Port Gigabit Desktop Switch with 7-Port PoE+
- Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports
- Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
MS108GP
8-Port Gigabit Desktop Switch with 7-Port PoE+
- Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports
- Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
| Mercusys MS108GP Switch Specifications | |
|---|---|
| Hardware | |
| Standards and Protocols | IEEE 802.3x Flow Control |
| Dimensions | 171 × 98 × 27 mm |
| Interfaces | 8× Gigabit RJ45 Ports (Auto-Negotiation, Auto MDI/MDIX) |
| PoE Ports | • Port 1–7 • IEEE 802.3af/at compliant • PoE Power Budget: 65 W |
| External Power Supply | 53.5 V / 1.31 A (External Adapter) |
| Installation | Desktop / Wall Mount |
| Data Rates | • 10/100/1000 Mbps (Half Duplex) • 20/200/2000 Mbps (Full Duplex) |
| Jumbo Frame | 9 KB |
| MAC Address Table | 8K |
| Max Power Consumption | • 5.07 W (220 V / 50 Hz, no PD connected) • 77.33 W (220 V / 50 Hz, with 65 W PD connected) |
| Max Heat Dissipation | • 17.238 BTU/hr (no PD connected) • 262.922 BTU/hr (with 65 W PD connected) |
| Others | |
| Package Contents | • MS108GP Switch • Power Adapter • Quick Installation Guide |
| Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | −40°C to 70°C (−40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
