Overview

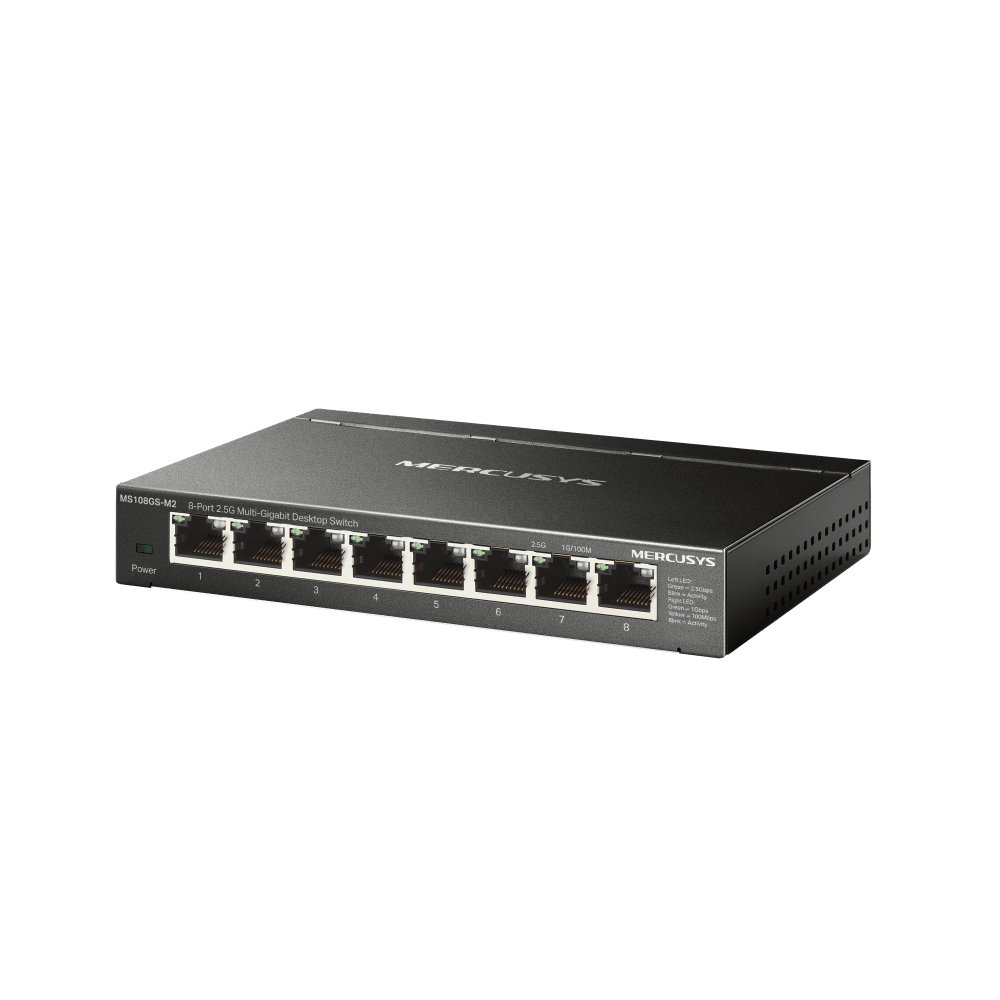

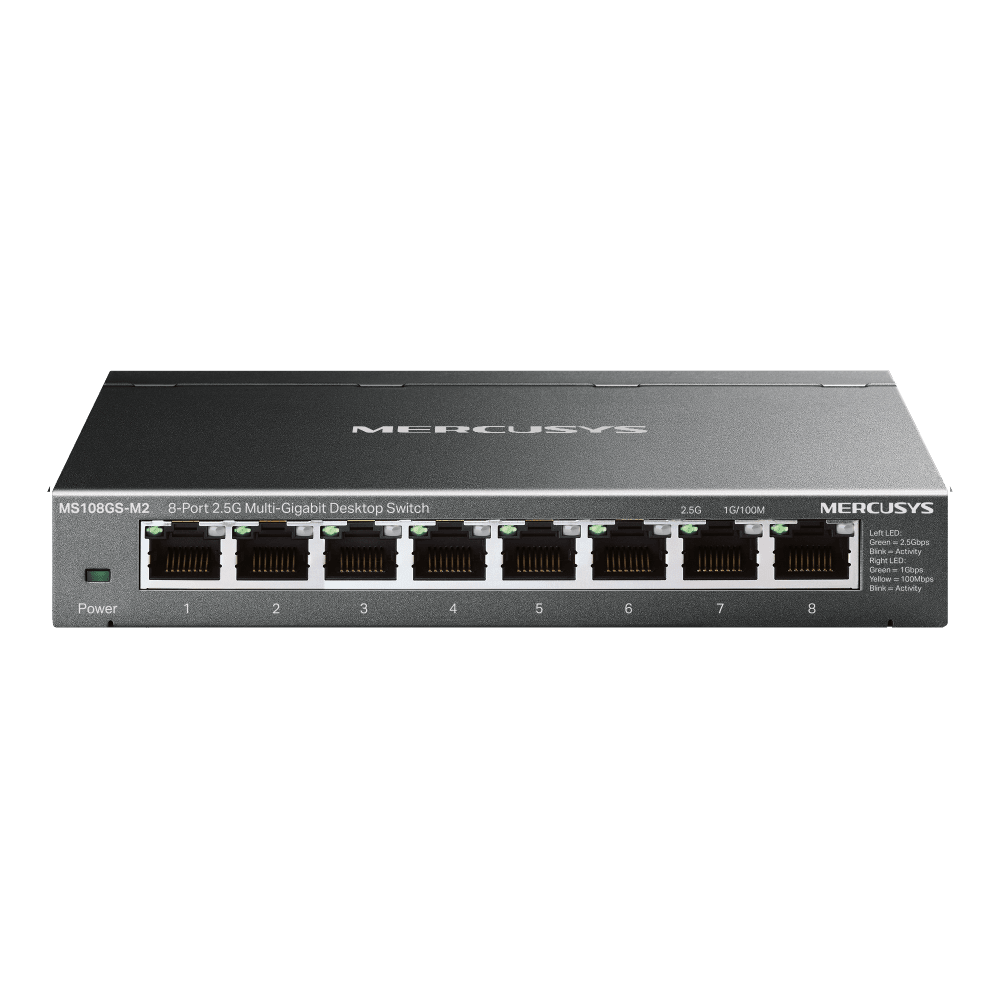

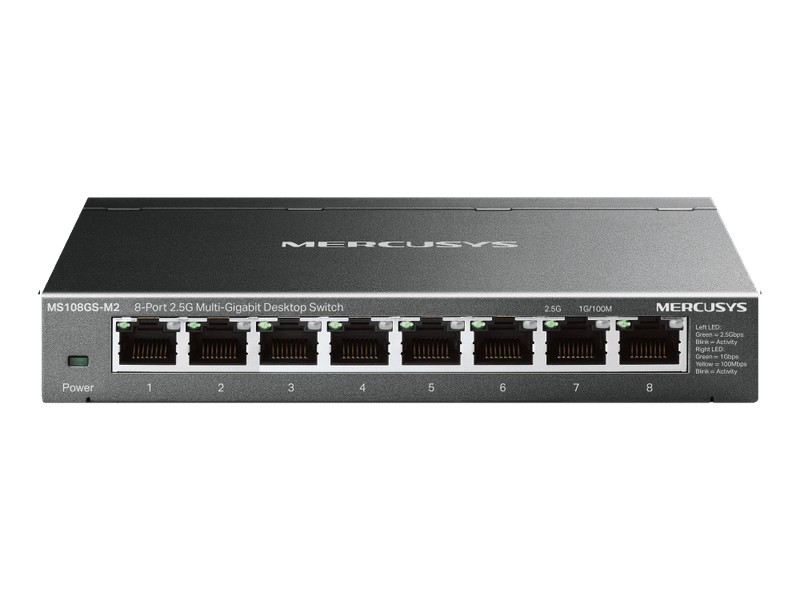

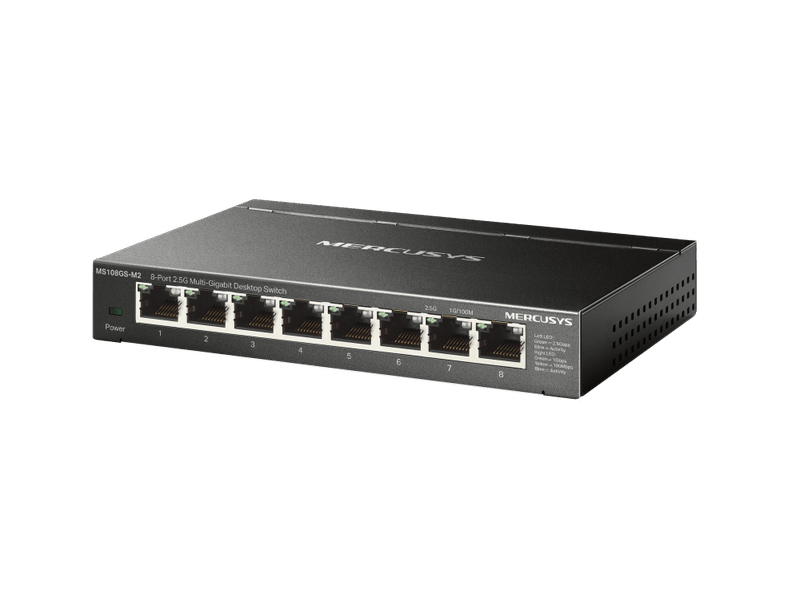

MS108GS-M2
8-Port 2.5G Multi-Gigabit Desktop Switch
- Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, providing up to 40 Gbps of switching capacity.

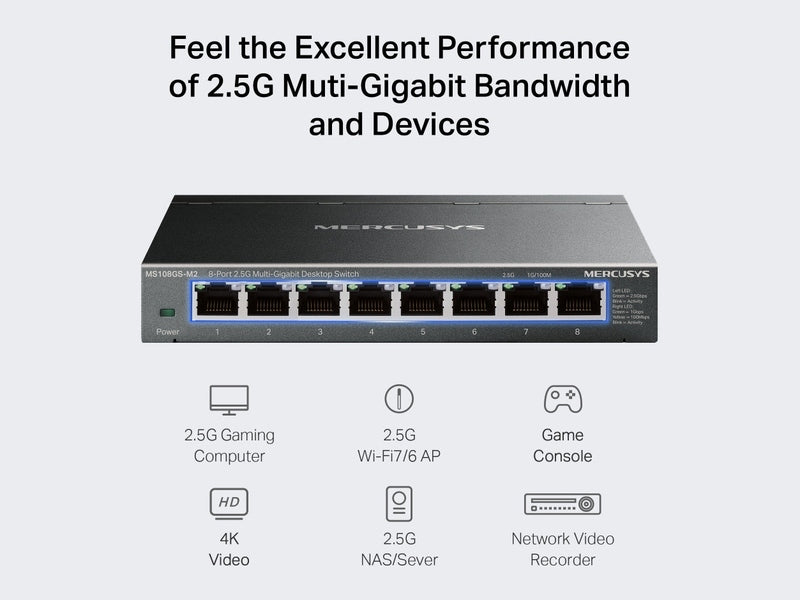

- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 7/6E/6 AP, 4K video, and more.

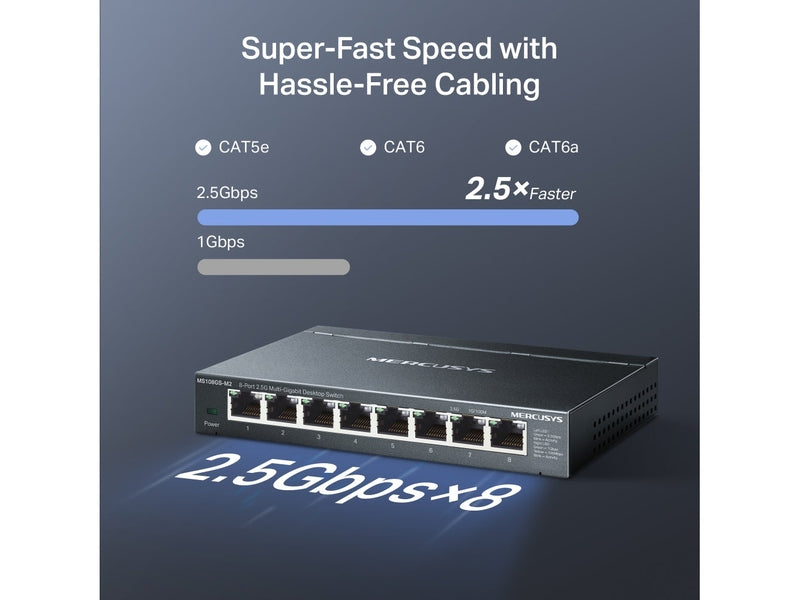

- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations.
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for noise-sensitive environments.

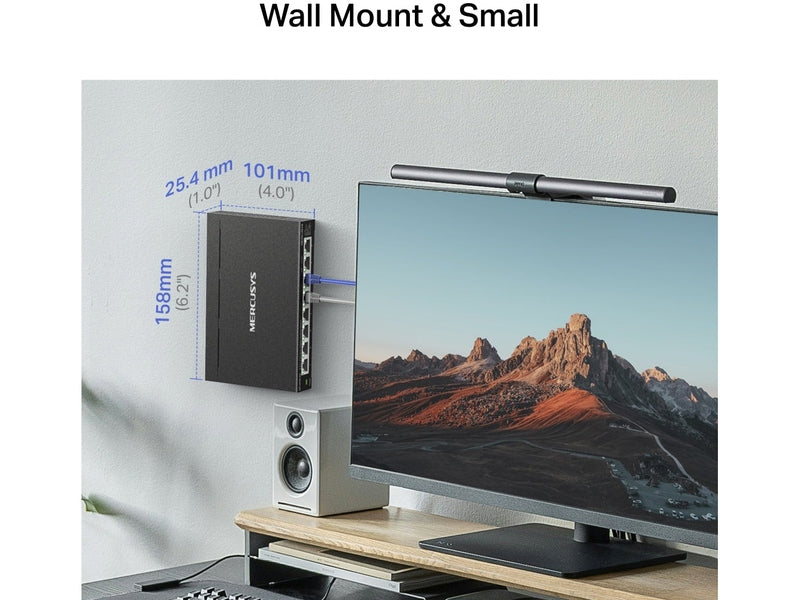

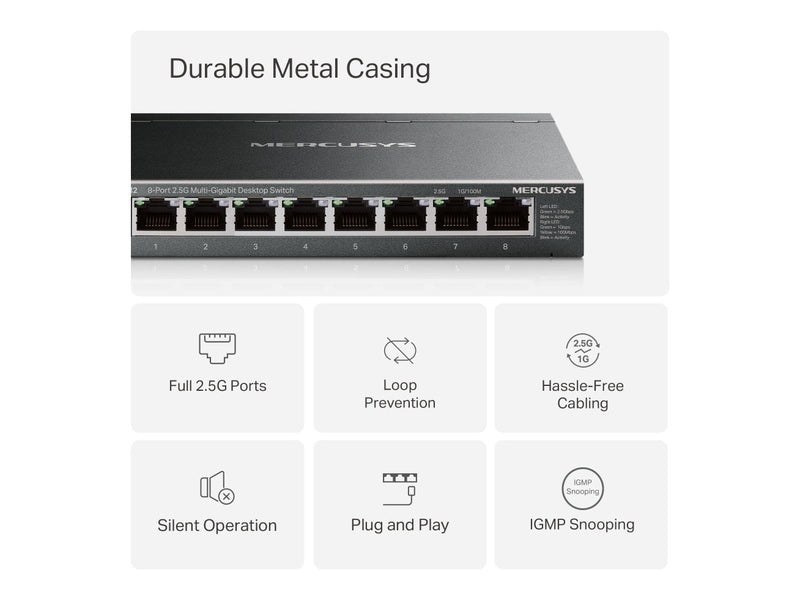

- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

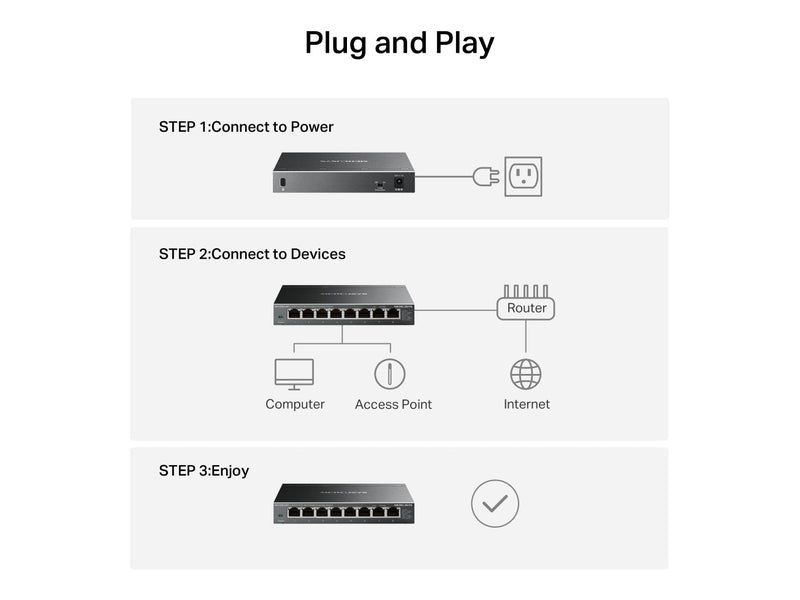

- Plug and Play. Easy installation, no configuration required.
MS108GS-M2
8-Port 2.5G Multi-Gigabit Desktop Switch
- Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, providing up to 40 Gbps of switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 7/6E/6 AP, 4K video, and more.
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations.
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for noise-sensitive environments.
- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Plug and Play. Easy installation, no configuration required.
| TP-Link MS108GS-M2 Switch Specifications | |
|---|---|
| Hardware | |
| Standards and Protocols | IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interfaces | 8× 100Mbps/1Gbps/2.5Gbps RJ45 Ports (Auto-Negotiation, Auto-MDI/MDIX) |
| External Power Supply | 12 VDC / 1.0 A (External Adapter) |
| Fan Quantity | Fanless |
| Jumbo Frame | 12 KB |
| Switching Capacity | 40 Gbps |
| LED Indicators | Power, Link/Act |
| MAC Address Table | 4K |
| Max Power Consumption | 8.87 W |
| Max Heat Dissipation | 30.158 BTU/hr |
| Software | |
| Transfer Method | Store and Forward |
| Advanced Features | • 802.3X Flow Control • 802.1p / DSCP QoS • IGMP Snooping |
| Performance | |
| Packet Forwarding Rate | 29.8 Mpps |
| General | |
| Dimensions (W × D × H) | 158 × 101 × 25.4 mm (6.2 × 4.0 × 1.0 in) |
| Others | |
| Certifications | CE, FCC, RoHS |
| Package Contents | • MS108GS-M2 Switch • Power Adapter • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0–40°C (32–104°F) • Storage Temperature: −40–70°C (−40–158°F) • Operating Humidity: 10% to 90% RH (non-condensing) • Storage Humidity: 5% to 90% RH (non-condensing) |
