Description
Overview

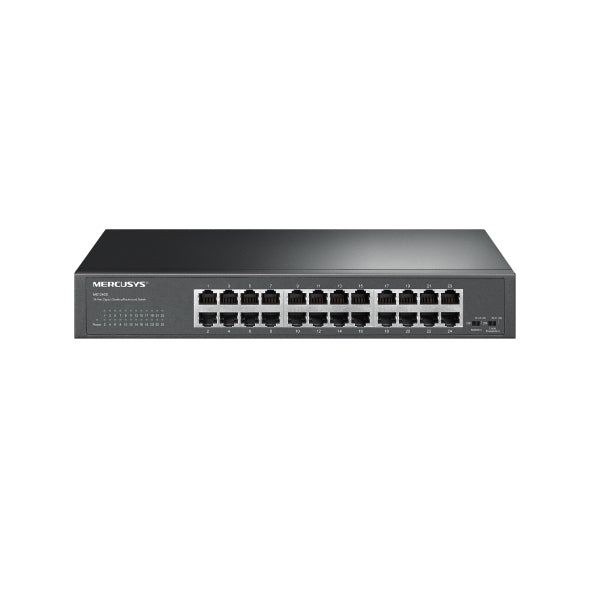

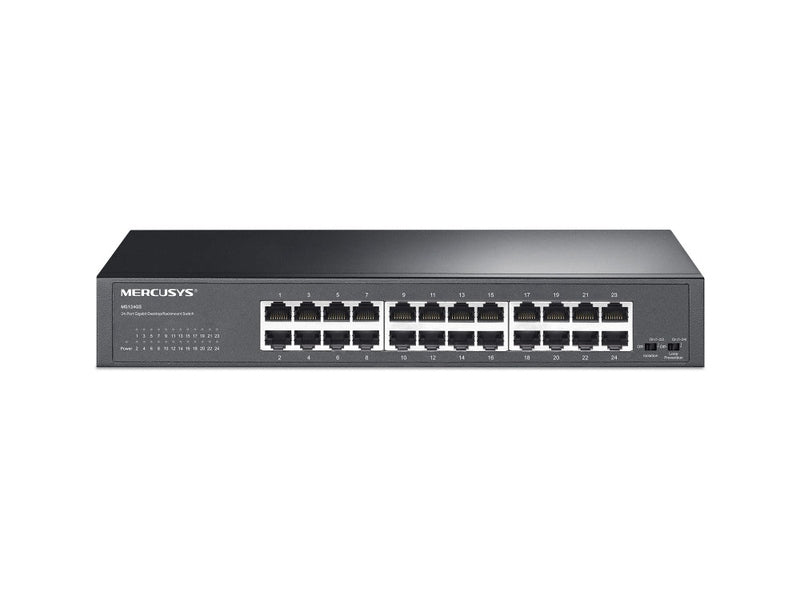

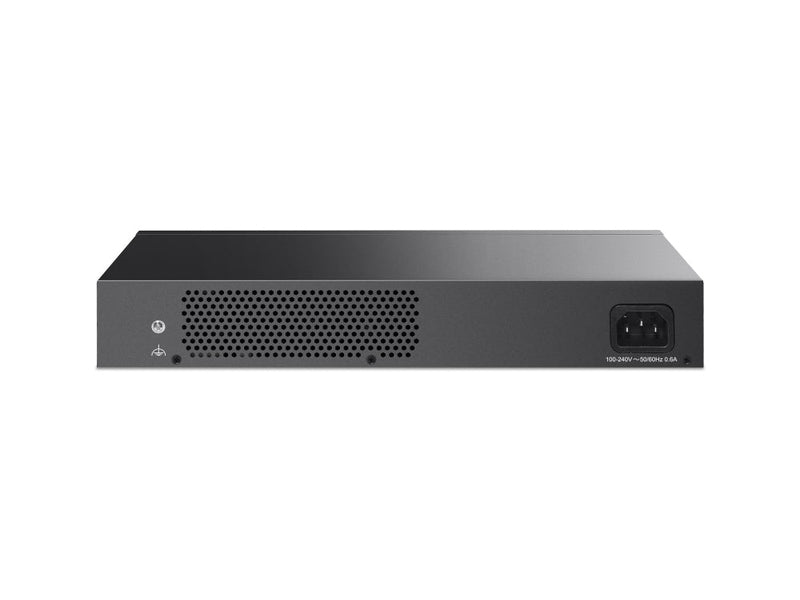

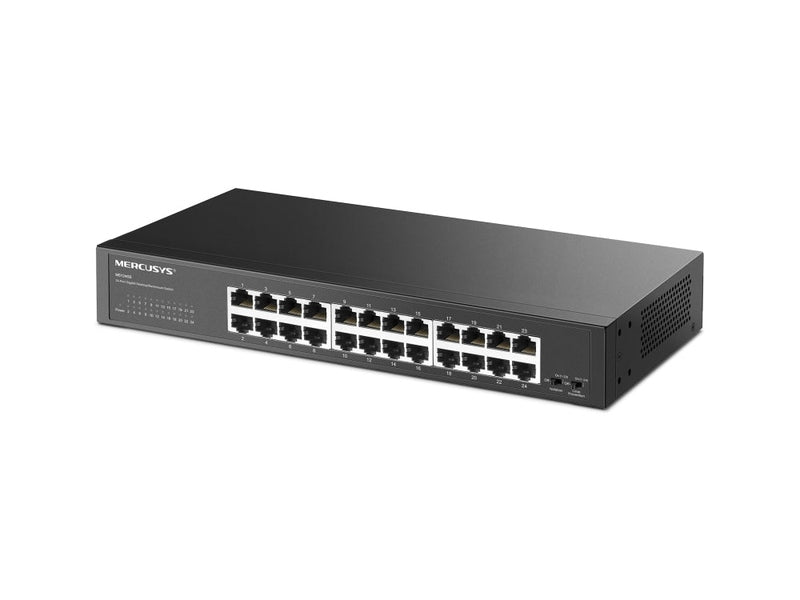

MS124GS
24-Port Gigabit Desktop/Rackmount Switch
- Full Gigabit Ports: 24× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Plug and Play: Simple to use, saving time and effort
- Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
- Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
Quickly expand your wired network with twenty-four 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS124GS offers flexible connectivity and is fully compatible with 4K UHD TVs, computers, printers, IP cameras, game consoles, and more.
MS124GS
24-Port Gigabit Desktop/Rackmount Switch
- Full Gigabit Ports: 24× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Plug and Play: Simple to use, saving time and effort
- Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
- Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
Quickly expand your wired network with twenty-four 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS124GS offers flexible connectivity and is fully compatible with 4K UHD TVs, computers, printers, IP cameras, game consoles, and more.
| 24-Port Gigabit Unmanaged Switch Specifications | |
|---|---|
| Hardware | |
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p |
| Dimensions | 294 × 140 × 44 mm (11.6 × 5.5 × 1.7 in) |
| Interfaces | 24× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation, Auto MDI/MDIX) |
| External Power Supply | 100–240 V AC, 50/60 Hz |
| Switching Capacity | 48 Gbps |
| LED Indicators | Power, Link/Act, 1000 Mbps |
| MAC Address Table | 8K |
| Software | |
| Transfer Method | Store and Forward |
| Advanced Features | 802.3X Flow Control, 802.1P / DSCP QoS, Loop Prevention, Isolation |
| Others | |
| Certifications | CE, RoHS |
| Environment | • Operating Temperature: 0°C to 40°C (32°F to 104°F) • Storage Temperature: −40°C to 70°C (−40°F to 158°F) • Operating Humidity: 10% to 90% RH (non-condensing) • Storage Humidity: 5% to 90% RH (non-condensing) |
