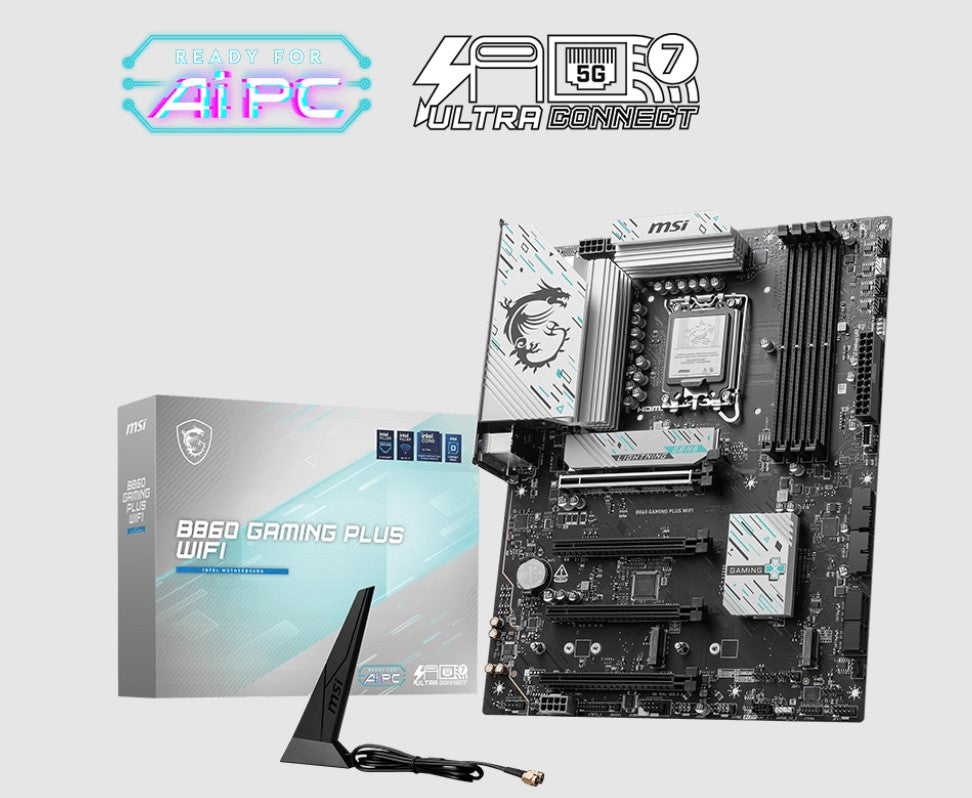

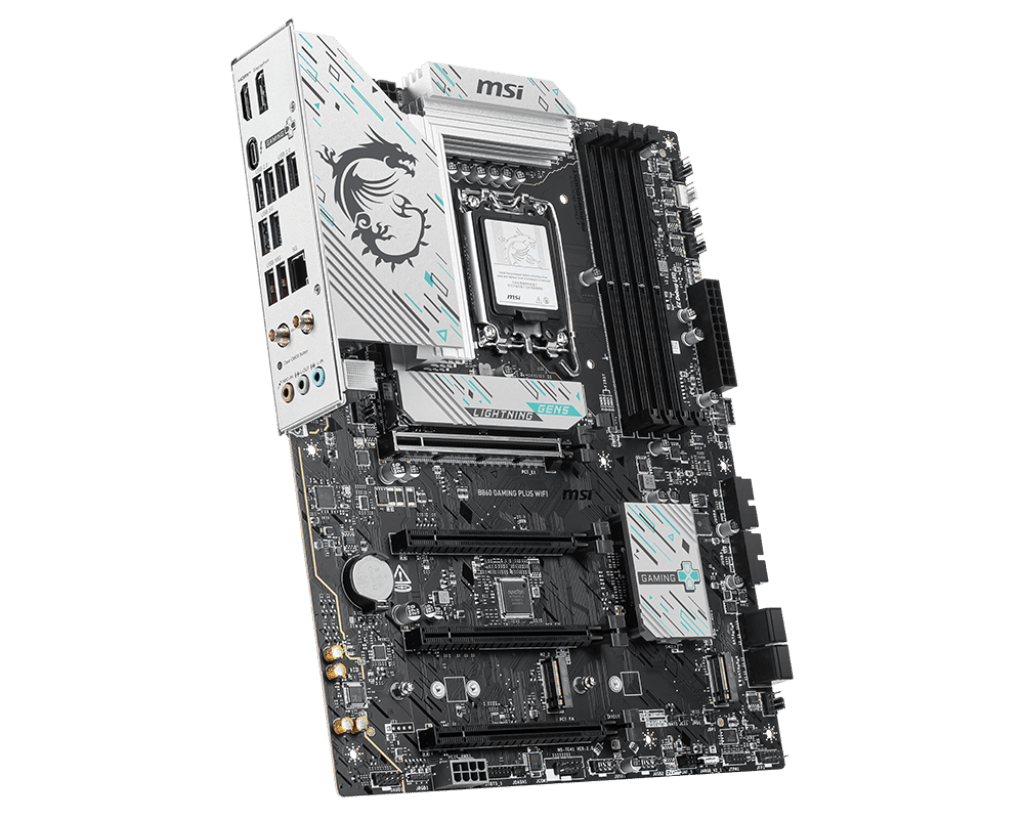

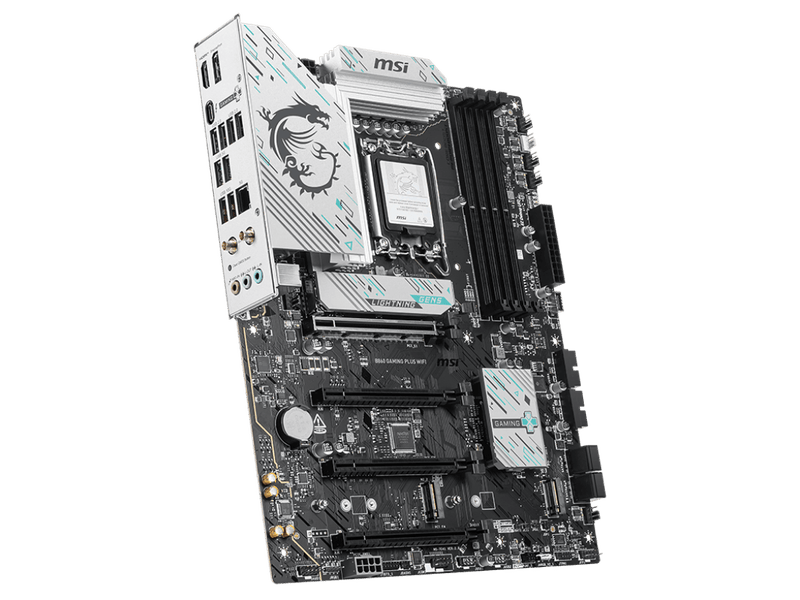

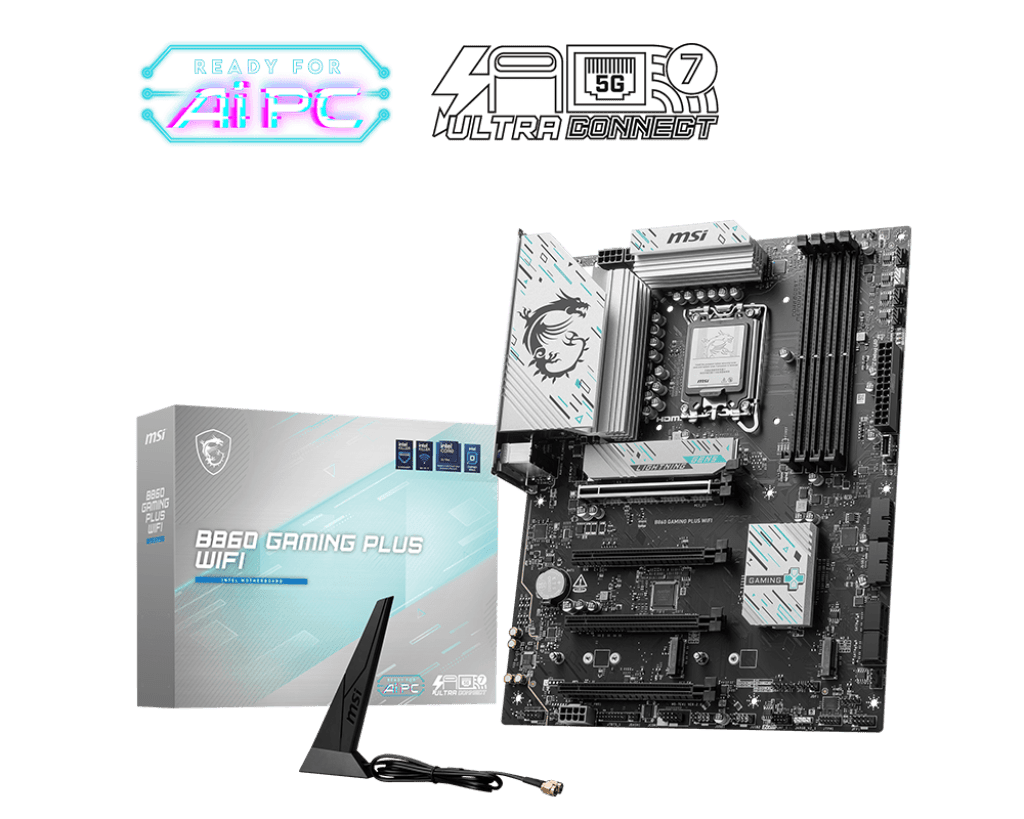

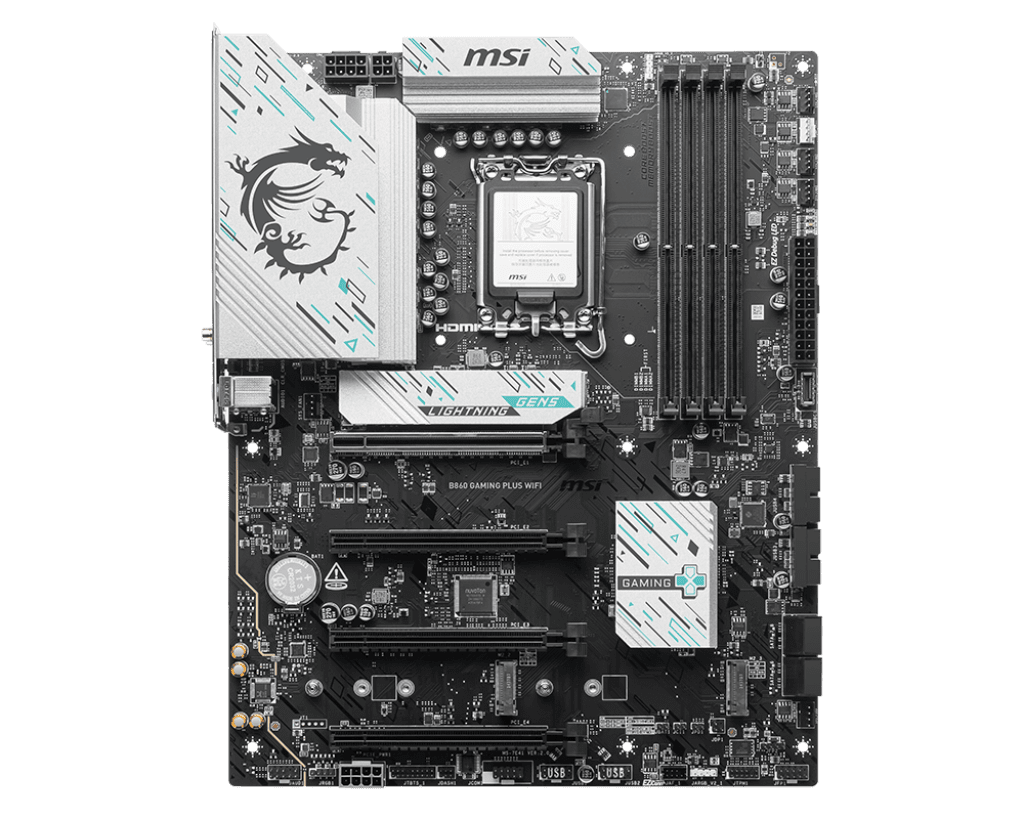

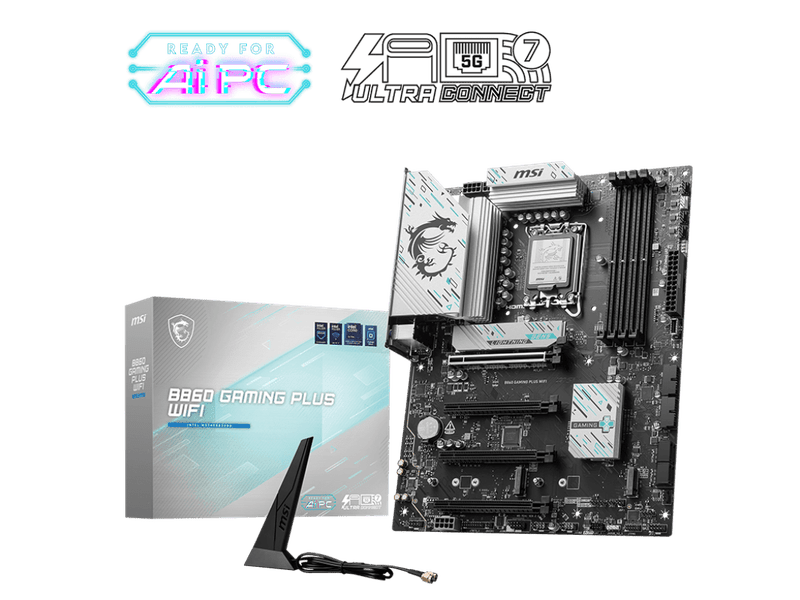

MSI B860 GAMING PLUS WIFI Motherboard

MSISKU: B860 GAMING PLUS WIFI

MSI B860 GAMING PLUS WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16, 3x M.2, 4x SATA, 8x USB 2.0, IntelKiller BE1750x Wi-Fi 7

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$384.00
Contact Us for ETA

Estimate shipping

Description

Overview

B860 GAMING PLUS WIFI
The B860 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.

One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

12+1+1+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 4-pin power connectors and exclusive Core Boost technology, the B860 GAMING PLUS WIFI is ready to sustain heavy gaming loadings.

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B860 GAMING PLUS WIFI is ready to deliver the world class memory performance.

Memory Extension Mode
Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.

Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

Solid Pin Design
The 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

Anti-corrosive Stainless Steel IO Shield
An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.

Over Current Protection
MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability.

The Grounding Structure of Power Phases
The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Combo Fan Header
The MSI Combo Fan Header is a versatile component, functioning as both a pump and or fan header. The header will automatically detects whether it is either pump or PWM/DC fan, with it's distinctive gray color ensuring easy identification

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

THE NEXT GEN WI-FI SOLUTION – WI-FI 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

*Windows 11 compatibility only

Intel KiLLER Performance Suite
Equipped with Intel Killer LAN / Killer Wi-Fi, you can use the Intel Killer Performance Suite. It not only prioritizes frequently used applications but also provides recommendations to optimize network quality.

FAST AND FUTURE-READY STORAGE
MSI Gaming series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

PCIe supplemental power
The exclusive Supplemental PCIe Power connector provides dedicated power for the high-power demands of GPUs used in AI computing and gaming, ensuring stable, efficient, and sustained performance.

Ready for the Future - Thunderbolt 5 Ready
Delivers up to 160 Gbps of total bandwidth transmission for the latest super-speed devices and drives. The ports can be employed for up to multiple external 8K displays, and support up to 27W of rapid power delivery charging.

The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

B860 GAMING PLUS WIFI
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Motherboard Specification
Chipset INTEL B860
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800–6400 (OC) MT/s / 6400–4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R: up to 8800+ MT/s
• 1DPC 2R: up to 7200+ MT/s
• 2DPC 1R: up to 6400+ MT/s
• 2DPC 2R: up to 5600+ MT/s

Supports Intel® POR Speed, JEDEC Speed, Overclocking, Intel® XMP 3.0
Dual-Controller Dual-Channel mode, Non-ECC, Un-buffered, CUDIMM
• DIMM slots have single-sided latches
• Compatibility varies by CPU/memory config – see MSI Support
Onboard Graphics 1x HDMI™ (2.1, 4K@60Hz)
1x DisplayPort (1.4, 4K@60Hz)
1x Type-C DisplayPort (Thunderbolt™ 4, DP 2.1 UHBR20, 4K@120Hz / 8K@60Hz)
* Only available with CPUs featuring integrated graphics
Slot 4x PCI-E x16:
• PCI_E1: Gen 5.0 x16 (CPU)
• PCI_E2: Gen 4.0 x1 (Chipset)
• PCI_E3: Gen 4.0 x4 (Chipset)
• PCI_E4: Gen 4.0 x1 (Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 3x M.2:
• M.2_1 (CPU): PCIe 5.0 x4, 2280/2260
• M.2_2 (Chipset): PCIe 4.0 x4, 2280/2260/2242
• M.2_3 (Chipset): PCIe 4.0 x2, 2280/2260
4x SATA 6G
* See manual for M.2 heatsink restrictions
RAID Supports RAID 0, 1, 5, 10 for SATA
Onboard Thunderbolt 1x Thunderbolt™ 4 (Rear)
• 40Gbps (Thunderbolt), 20Gbps (USB4), 10Gbps (USB 3.2)
• 5V/3A, 15W charging
• Daisy-chain: 3× TB4 or 5× TB3 devices
• Supports up to 8K display
USB Rear: 4× USB 2.0, 2× USB 5Gbps Type-A, 2× USB 10Gbps Type-A
Front: 4× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 10Gbps Type-C
LAN Intel® Killer™ E5000 5Gbps LAN
Internal IO Thunderbolt5 card connector (JTBT5)
Power: ATX_PWR, 2× CPU_PWR, PCIE_PWR (8-pin)
Cooling: CPU Fan, Combo Fan, 4× System Fan
Headers: EZ Conn (JAF_1), 2× Front Panel (JFP), Chassis Intrusion (JCI), Front Audio (JAUD), COM (JCOM), Tuning Controller (JDASH)
RGB: 2× Addressable V2 (JARGB_V2), 1× RGB (JRGB)
TPM 2.0 header
USB: 4× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 10Gbps Type-C
Wireless LAN & Bluetooth Intel® Killer™ BE1750x Wi-Fi 7 (M.2 Key-E)
MU-MIMO TX/RX, 2.4/5/6GHz (320MHz), up to 5.8Gbps
802.11 a/b/g/n/ac/ax/be
Bluetooth® 5.4, MLO, 4KQAM
* 6GHz support varies by region
** Bluetooth version may update – see vendor site
LED Feature 4× EZ Debug LED

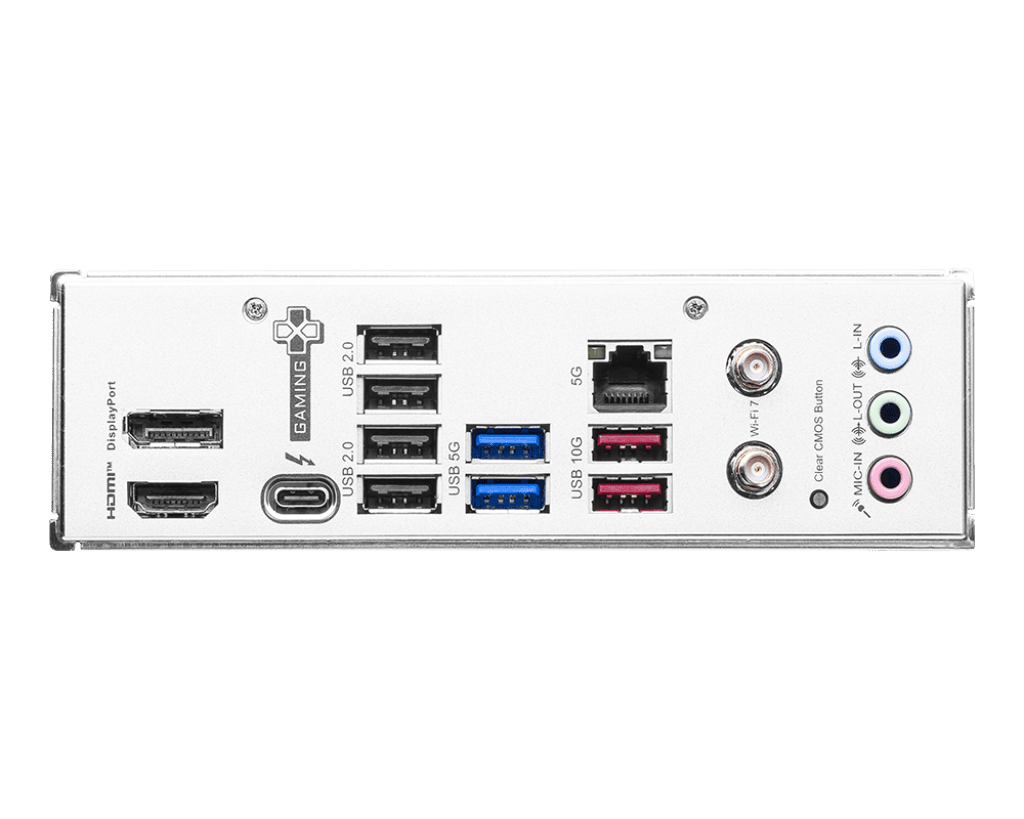

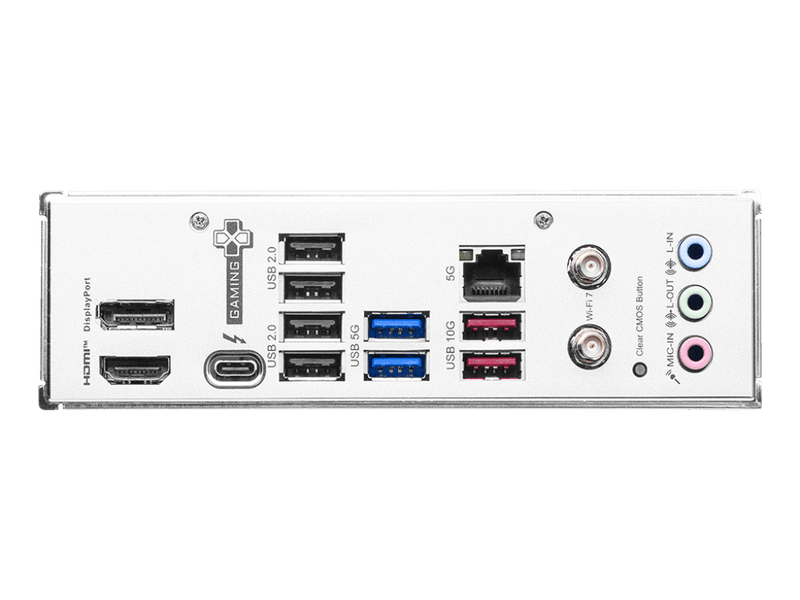

Back Panel Ports DisplayPort, HDMI™, USB 2.0, USB 5Gbps (Type-A), USB 10Gbps (Type-A), Thunderbolt™ 4 (Type-C)
5G LAN, Wi-Fi/Bluetooth, Audio Connectors, Clear CMOS Button
Operating System Support for Windows® 11 64-bit
