Description

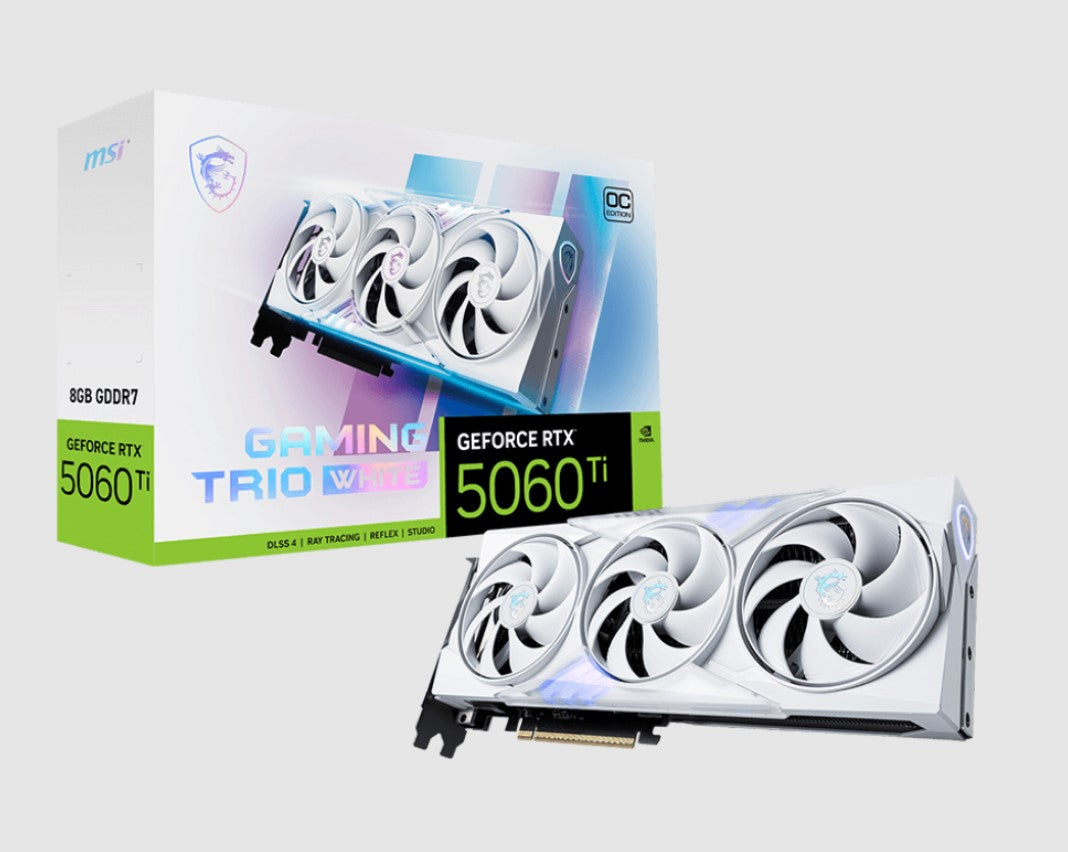

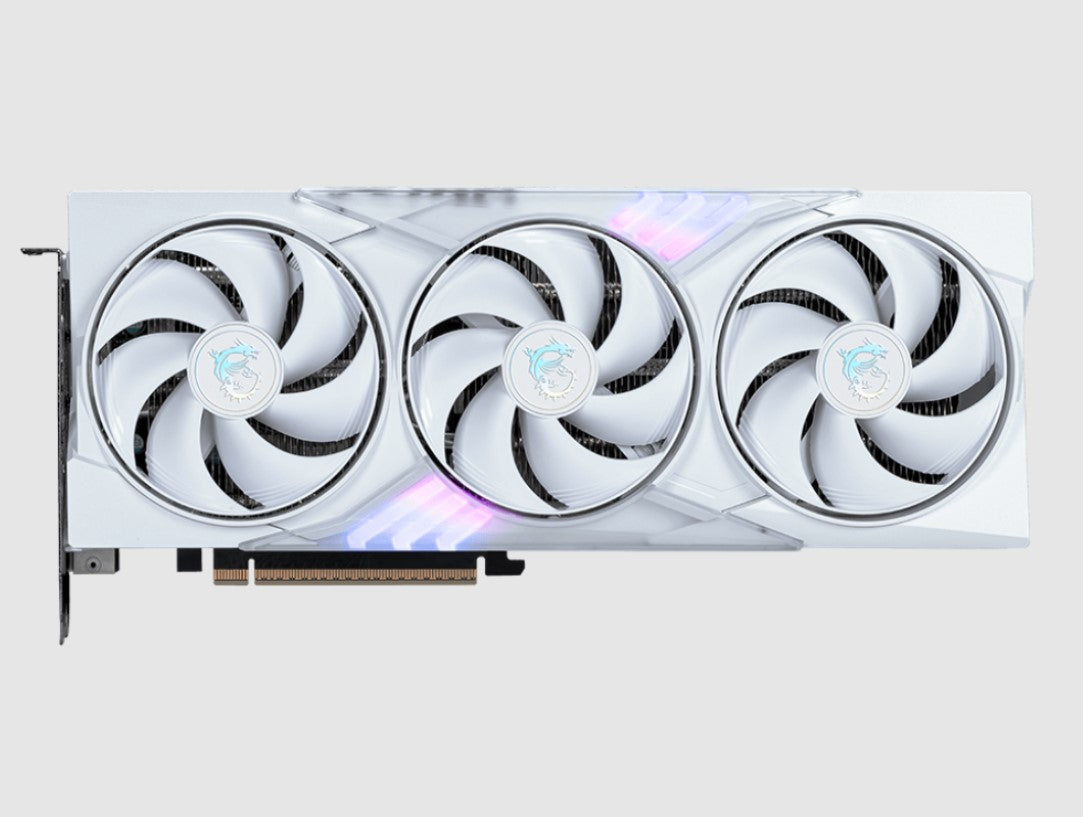

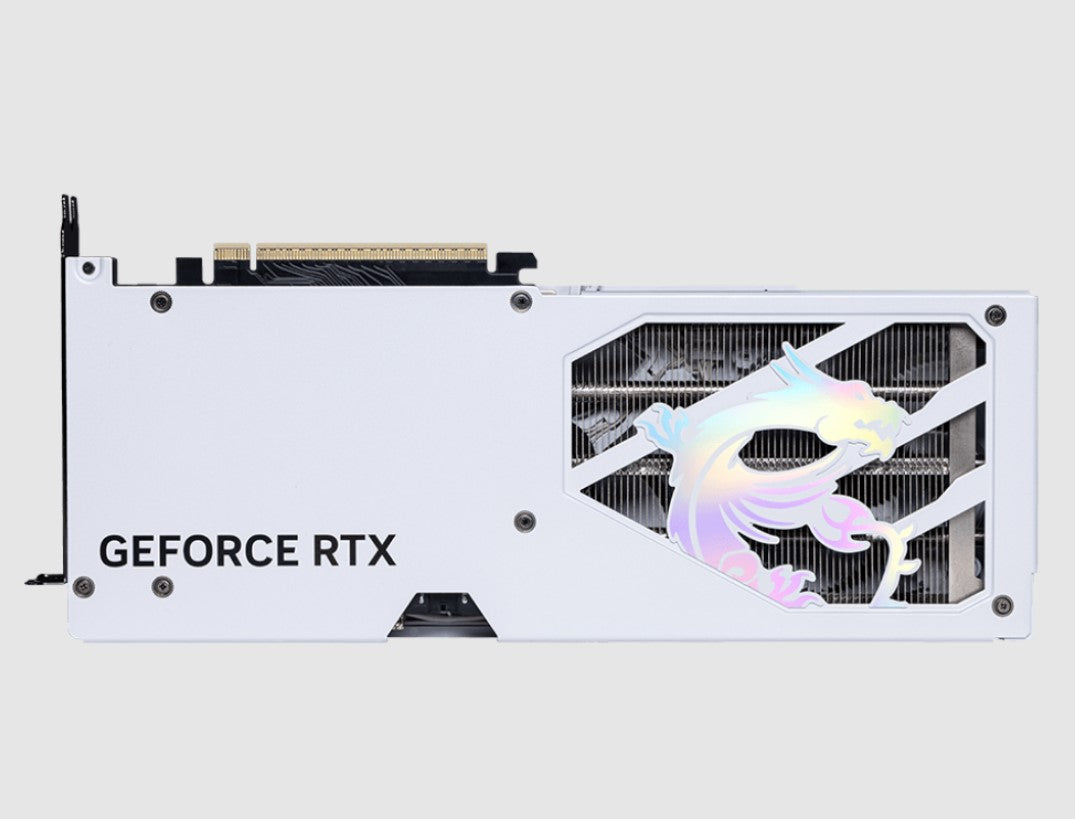

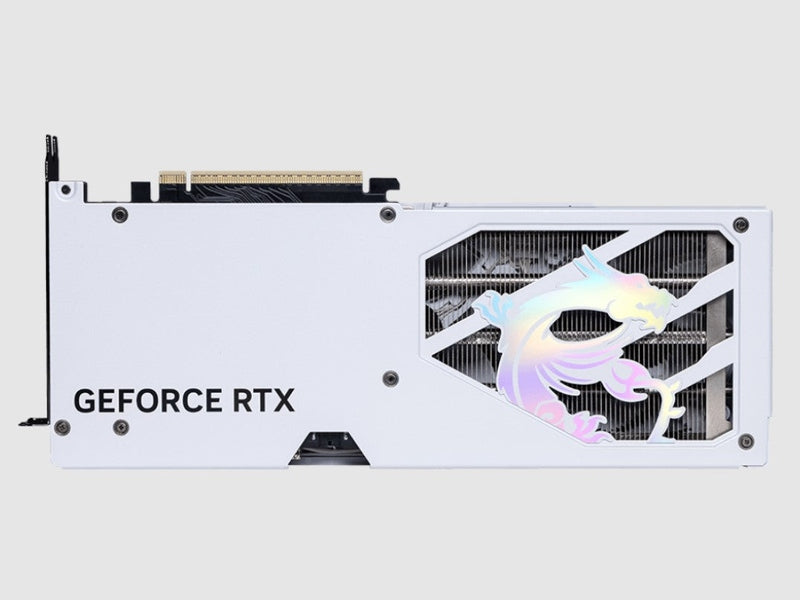

MSI GeForce RTX 5060 Ti 8G GAMING TRIO OC WHITE GDDR7 Graphic Card
Specification
|
Graphics Processing Unit |
NVIDIA® GeForce RTX™ 5060 Ti |
|
Interface |
PCI Express® Gen 5 x16 (uses x8) |
|
Core Clocks |
Extreme Performance: 2662 MHz (MSI Center) Boost: 2647 MHz |
|
CUDA® CORES |
4608 Units |
|
Memory Speed |
28 Gbps |
|
Memory |
8GB GDDR7 |
|
Memory Bus |
128-bit |
|
Output |
DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
|
HDCP Support |
Y |
|
Power consumption |
180 W |
|
Power connectors |
16-pin x 1 (ATX 3.1 PSU recommended) |
|
Recommended PSU |
600 W |
|
Card Dimension (mm) |
300 x 125 x 44 mm |
|
Weight (Card / Package) |
839 g / 1345 g |
|
DirectX Version Support |
12 Ultimate |
|
OpenGL Version Support |
4.6 |
|
Maximum Displays |
4 |
|
G-SYNC® technology |
Y |
|
Digital Maximum Resolution |
7680 x 4320 |
