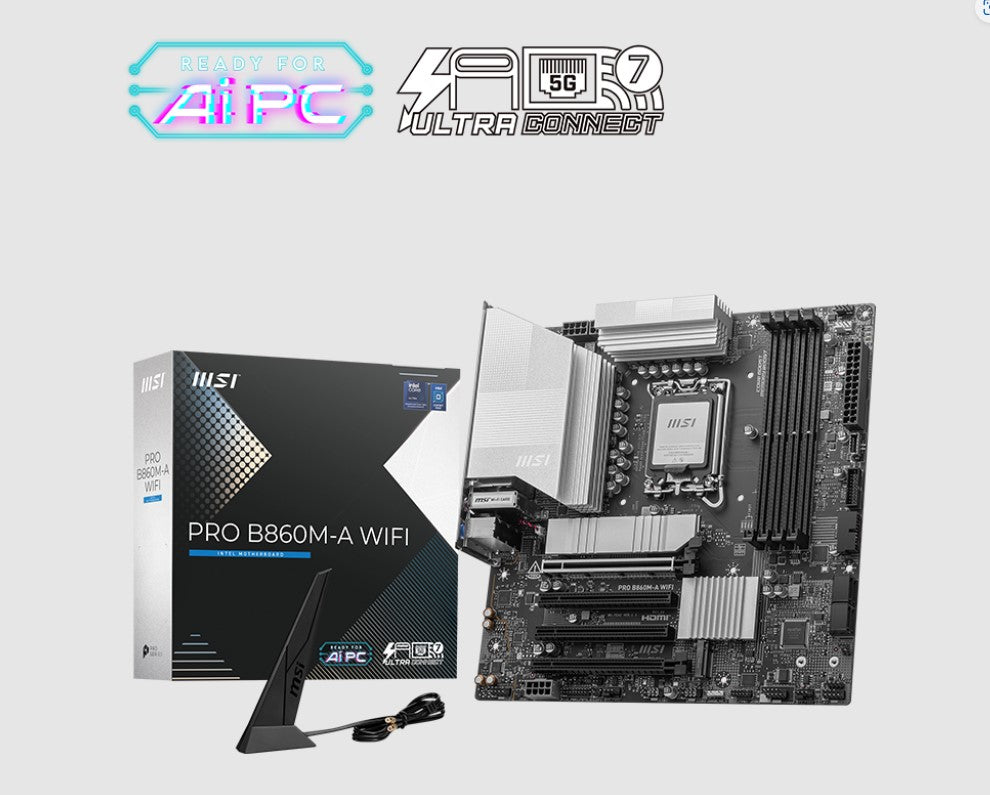

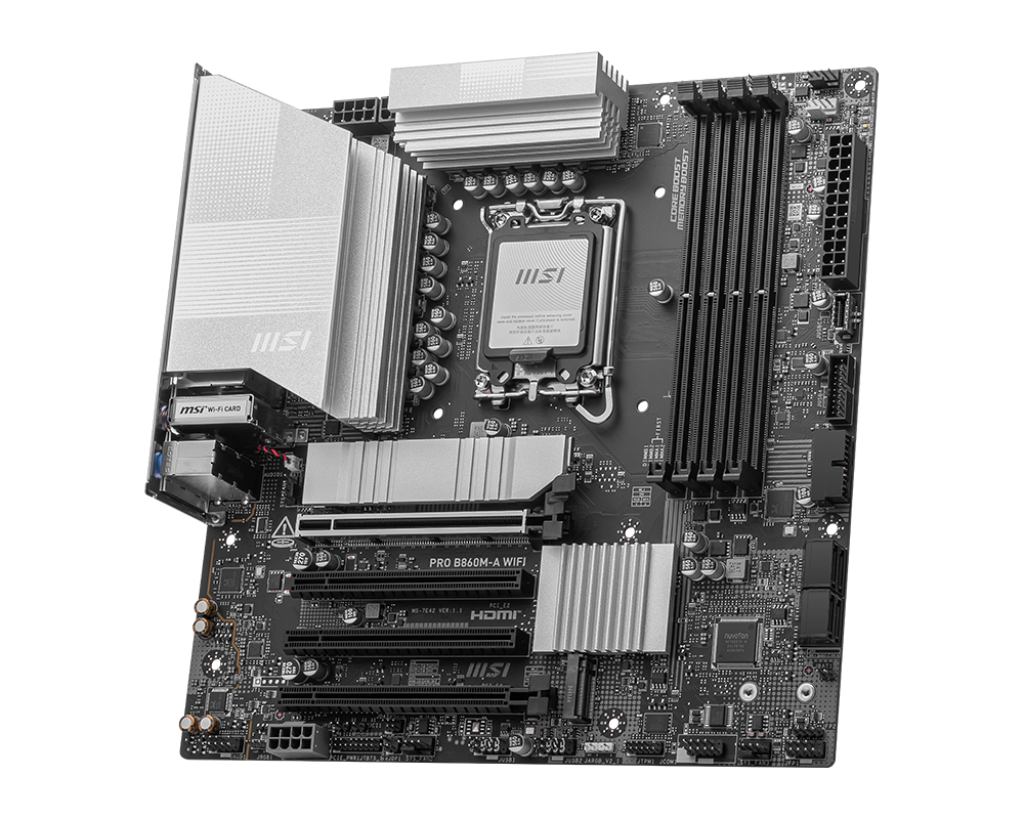

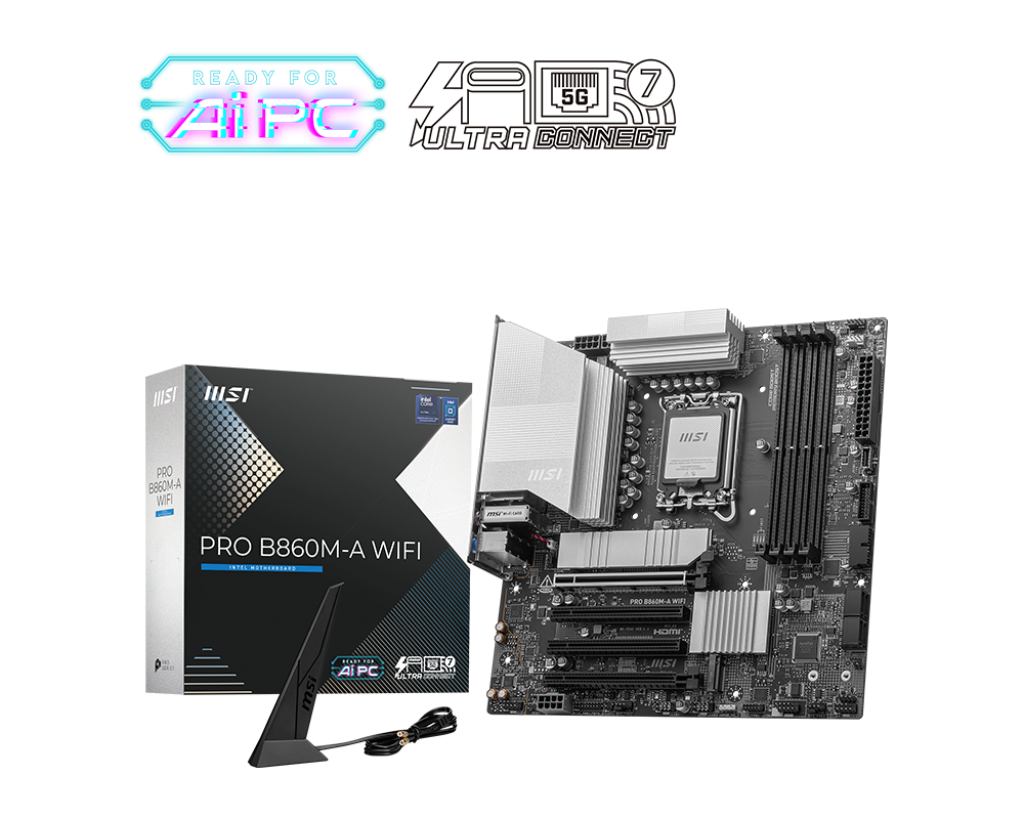

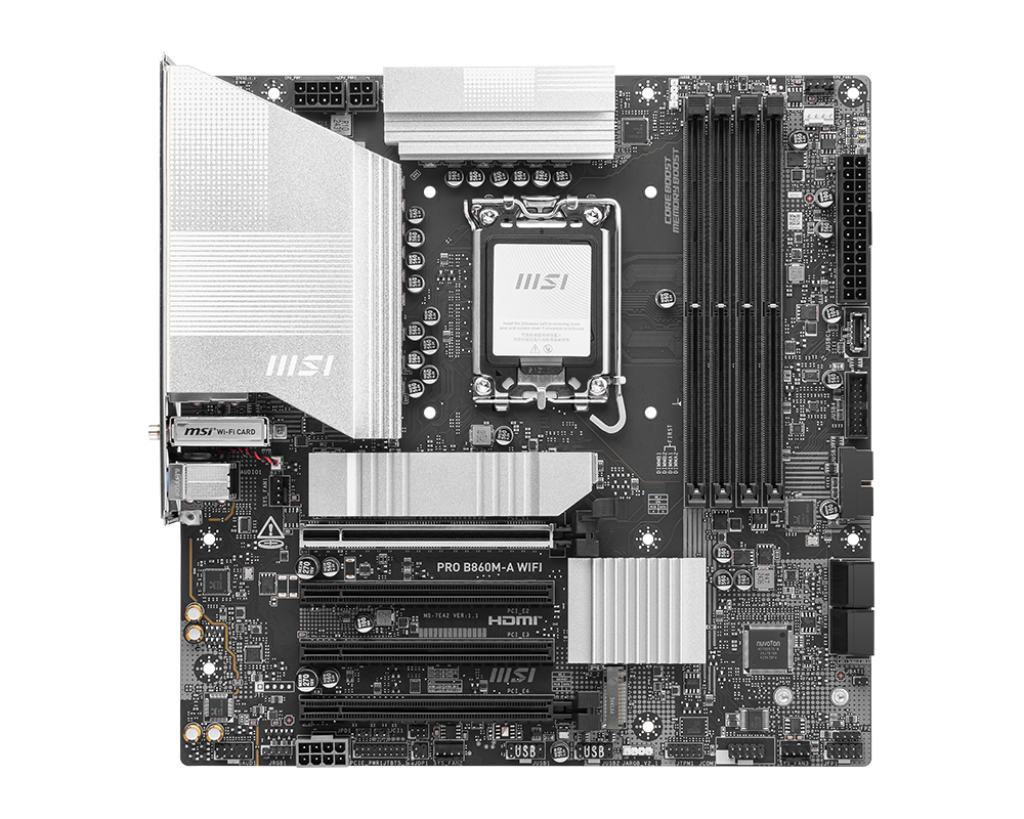

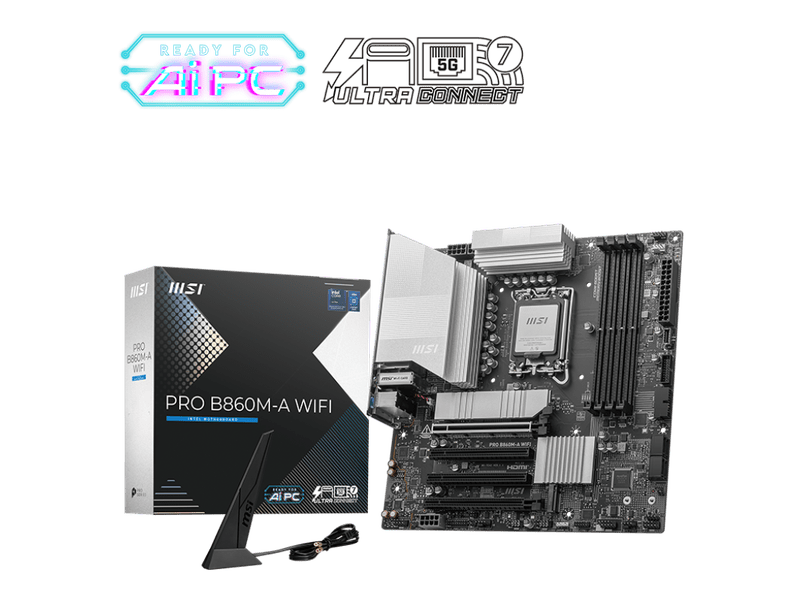

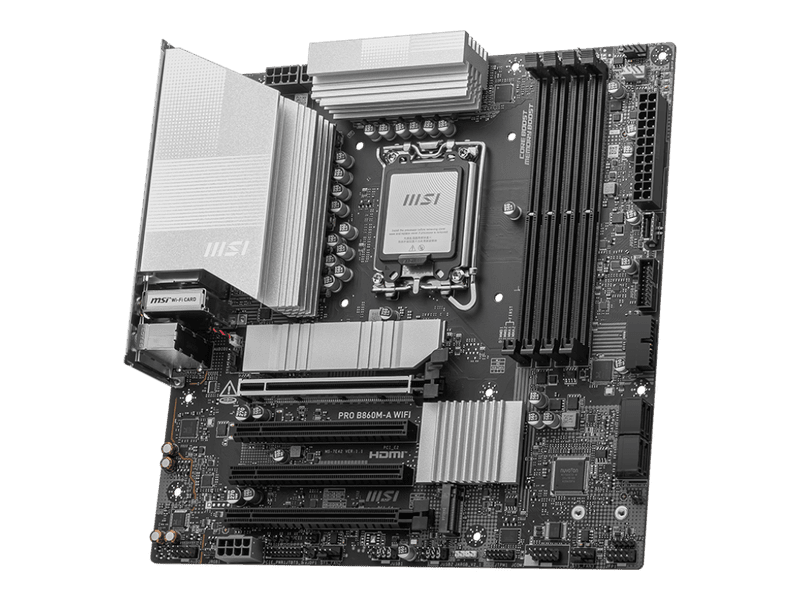

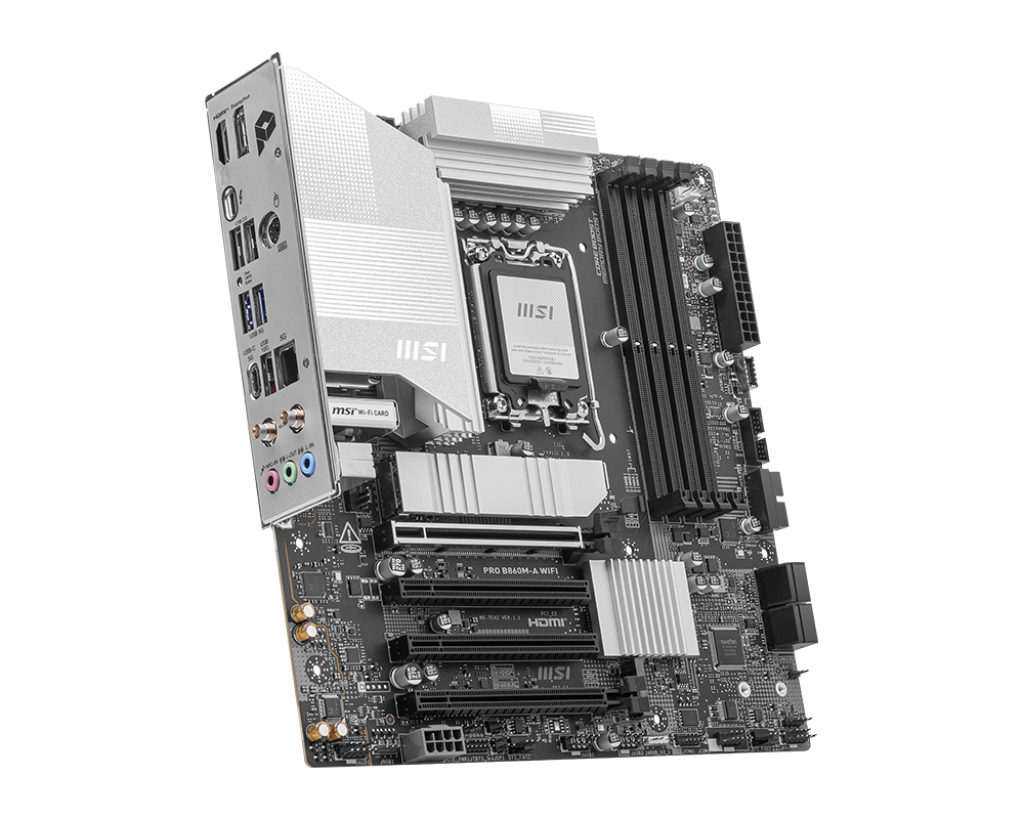

MSI PRO B860M-A WIFI Motherboard

MSISKU: PRO B860M-A WIFI

MSI PRO B860M-A WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16 slot, 3x M.2, 4x SATA, 6x USB 2.0, IntelWi-Fi 7

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$312.00

Estimate shipping

Description

Overview

PRO B860-A WIFI
PRO B860M-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

EZ Ooverclocking
While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings.

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.

This LED lights up when it detects faulty memory in slots, eliminating guesswork from troubleshooting.

12+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With 8+4 pin power connectors, PRO B860M-A WIFI is ready for the challenge of high-end processors.

Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B860M-A WIFI is ready to deliver the world-class memory performance.

Memory Extension Mode
Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.

Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Combo Fan Header
The MSI Combo Fan Header is a versatile component, functioning as both a pump and or fan header. The header will automatically detects whether it is either pump or PWM/DC fan, with it's distinctive gray color ensuring easy identification

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

PCIe supplemental power
The exclusive Supplemental PCIe Power connector provides dedicated power for the high-power demands of GPUs used in AI computing and gaming, ensuring stable, efficient, and sustained performance.

Ready for the Future - Thunderbolt 5 Ready
Delivers up to 160 Gbps of total bandwidth transmission for the latest super-speed devices and drives. The ports can be employed for up to multiple external 8K displays, and support up to 27W of rapid power delivery charging.

USB FRONT TYPE-C
MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.

MSI CENTER
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Exclusive UI of AIDA64 Extreme
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

MSI PRO B860M-A WIFI Motherboard – Specifications
Chipset INTEL B860
CPU Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Intel® Turbo Boost Technology 2.0 and Max Technology 3.0
* CPU support list
Memory 4× DDR5 UDIMM, up to 256GB
8800–6400 (OC) MT/s / 6400–4800 (JEDEC) MT/s
Max OC Frequency:
• 1DPC 1R: 8800+ MT/s
• 1DPC 2R: 7200+ MT/s
• 2DPC 1R: 6400+ MT/s
• 2DPC 2R: 5600+ MT/s

Supports Intel® POR Speed, JEDEC Speed, XMP 3.0
Dual-Controller Dual-Channel mode
Non-ECC, Un-buffered, CUDIMM
* Single-sided latches
** Compatibility varies by CPU/memory config
Onboard Graphics • 1× HDMI™ (2.1, 4K@60Hz)
• 1× DisplayPort (1.4, 4K@60Hz)
• 1× Type-C DisplayPort (Thunderbolt™ 4, DP 2.1 UHBR20, 4K@120Hz / 8K@60Hz)
* Only with CPUs featuring integrated graphics
Slot 4× PCI-E x16:
• PCI_E1: Gen 5.0 x16 (CPU)
• PCI_E2: Gen 4.0 x1 (Chipset)
• PCI_E3: Gen 4.0 x1 (Chipset)
• PCI_E4: Gen 4.0 x4 (Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 3× M.2:
• M.2_1 (CPU): PCIe 5.0 x4, 2280/2260/2242
• M.2_2 (Chipset): PCIe 4.0 x4, 2280/2260
• M.2_3 (Chipset): PCIe 4.0 x2, 2280
4× SATA 6G
* See manual for M.2 heatsink restrictions
RAID RAID 0/1/5/10 for SATA storage
Onboard Thunderbolt 1× Thunderbolt™ 4 (Rear)
• 40Gbps (Thunderbolt), 20Gbps (USB4), 10Gbps (USB 3.2)
• 5V/3A, 15W charging
• Daisy-chain: 3× TB4 or 5× TB3 devices
• Up to 8K display
USB Rear: 2× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 5Gbps Type-C, 1× USB 10Gbps Type-A
Front: 4× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 10Gbps Type-C
LAN Realtek® 8126 5Gbps LAN
Internal IO • Thunderbolt5 card connector (JTBT5)
• Power: ATX_PWR, 2× CPU_PWR, PCIE_PWR (8-pin)
• Cooling: CPU Fan, Combo Fan, 3× System Fan
• Headers: 2× Front Panel (JFP), Chassis Intrusion (JCI), Front Audio (JAUD), COM (JCOM), JDASH
• RGB: 2× ARGB Gen2 (JARGB_V2), 1× RGB (JRGB)
• TPM header (TPM 2.0)
• USB: 4× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 10Gbps Type-C
Wireless LAN & Bluetooth Intel® Wi-Fi 7 (M.2 Key-E)
• MU-MIMO TX/RX, 2.4/5/6GHz (320MHz), up to 5.8Gbps
• 802.11 a/b/g/n/ac/ax/be
• Bluetooth® 5.4, MLO, 4KQAM
* Wi-Fi 7 requires Windows 11 24H2
** Bluetooth 5.4 readiness depends on OS and vendor
LED Feature 4× EZ Debug LED, 1× EZ Memory Detection LED

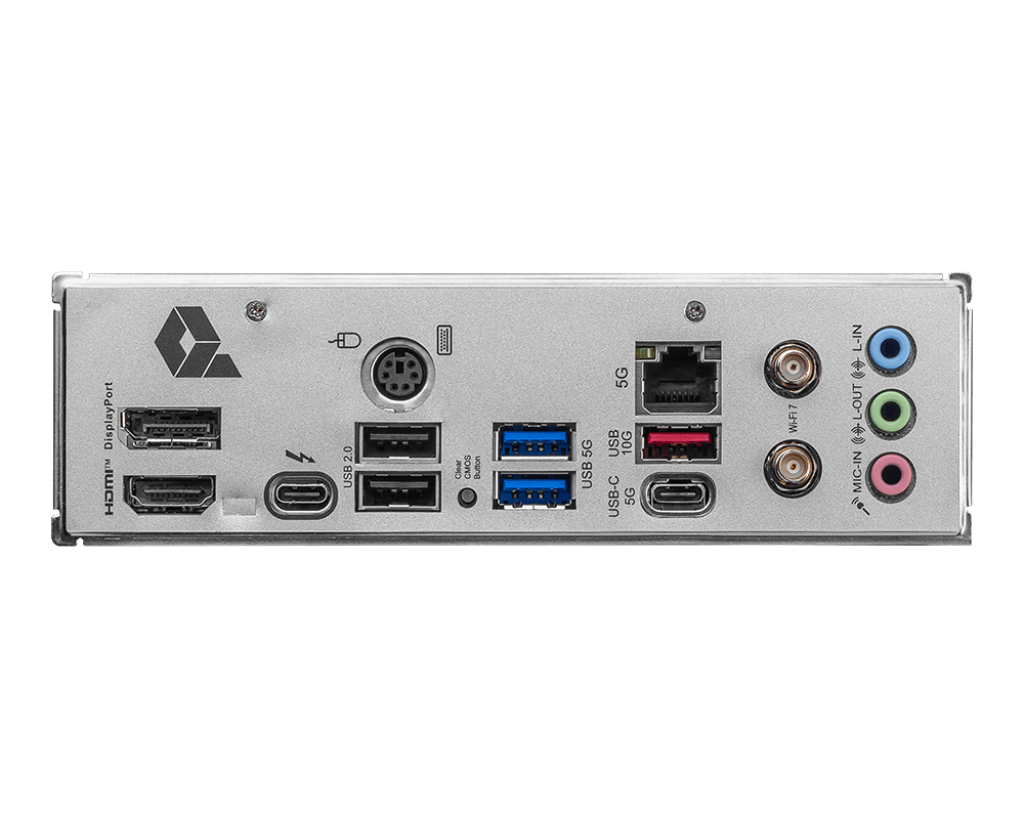

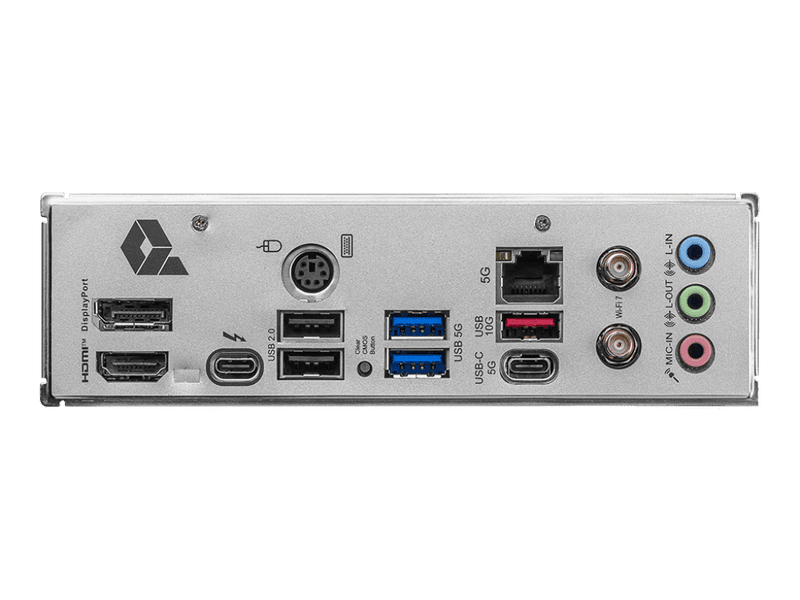

Back Panel Ports • DisplayPort
• Keyboard / Mouse
• USB 5Gbps Type-A
• 5G LAN
• Wi-Fi / Bluetooth
• Audio Connectors
• HDMI™
• Thunderbolt™ 4 (40Gbps Type-C)
• USB 2.0
• Clear CMOS Button
• USB 10Gbps Type-A
• USB 5Gbps Type-C
Operating System Support for Windows® 11 64-bit
