Description

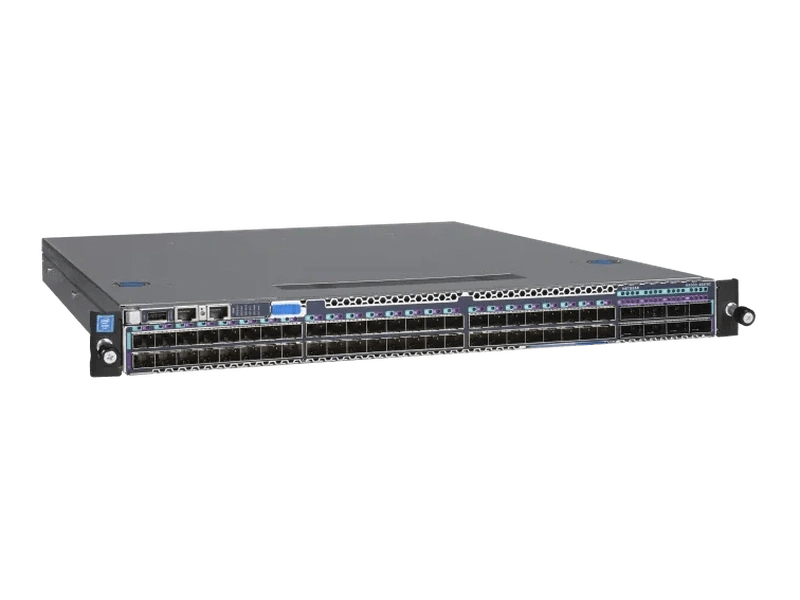

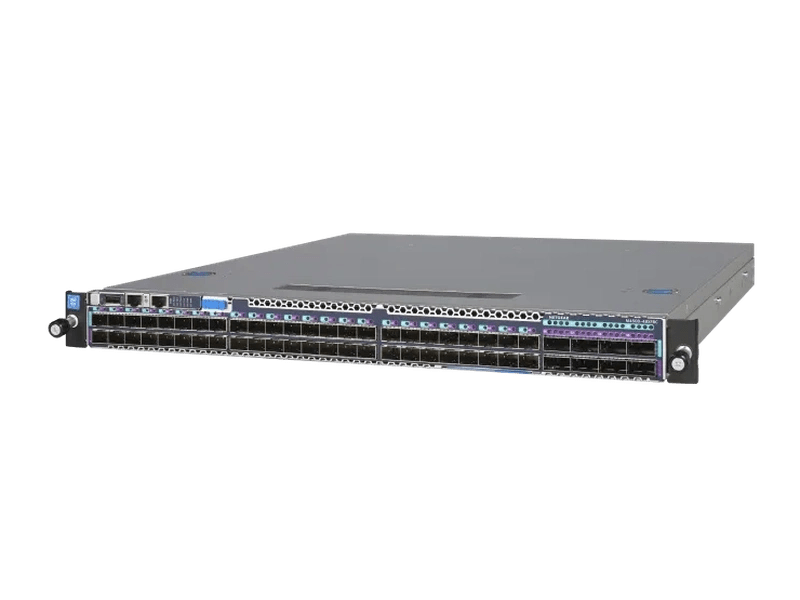

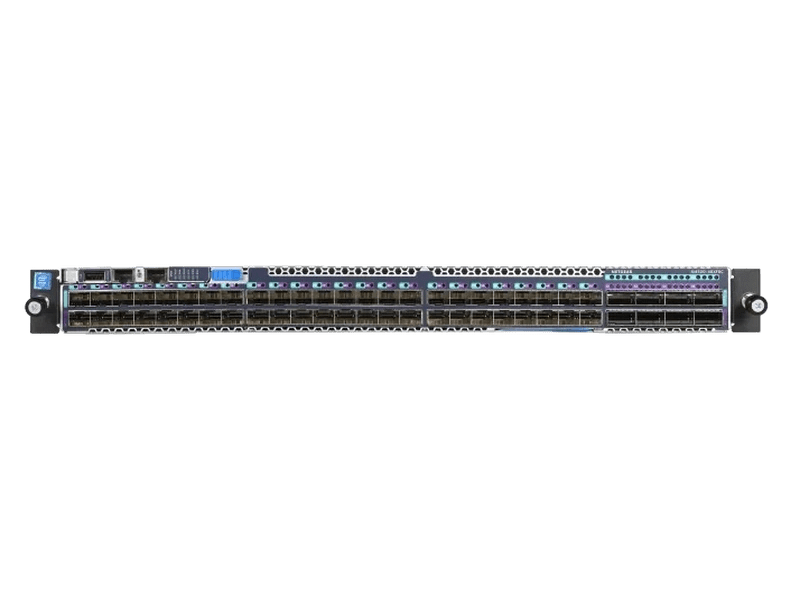

Netgear M4300-48XF8C 48-port 10/25G & 8 Port 40/50/100G Fully Managed Switch with 48 x 10 Gigabit SFP28 + 8 x 100 Gigabit QSFP28 - front to back airfl
48x10G/25G SFP28 and 8x100G QSFP28 Managed Switch
These switches combine the configurability of a matrix switcher with the power and scalability of Ethernet to support hundreds of AV over IP endpoints. M4300 and M4500 switches offer IGMP Plus and greatly simplify system architectures at a dramatically lower price point
Specification
|
Model Description : |
M4500 Managed Switch with 48x10G/25G SFP28 and 8x100G QSFP28 ports |
|
Ordering Number : |
XSM4556 |
|
Acoustics : |
68.0dB @ 25°C (77°F) - the noise is reduced when the two PSUs connect to a power source |
|
Power Consumption (Max) : |
394 Watts |
|
25G SFP28 Ports : |
48 SFP28 ports (1x10G default mode, other modes can be 1x25G and 1x10G) |
|
100G QSFP28 Ports : |
8 QSFP28 ports (1x100G default mode, other modes can be 1x50G, 1x40G) |
|
PSU and Fans : |

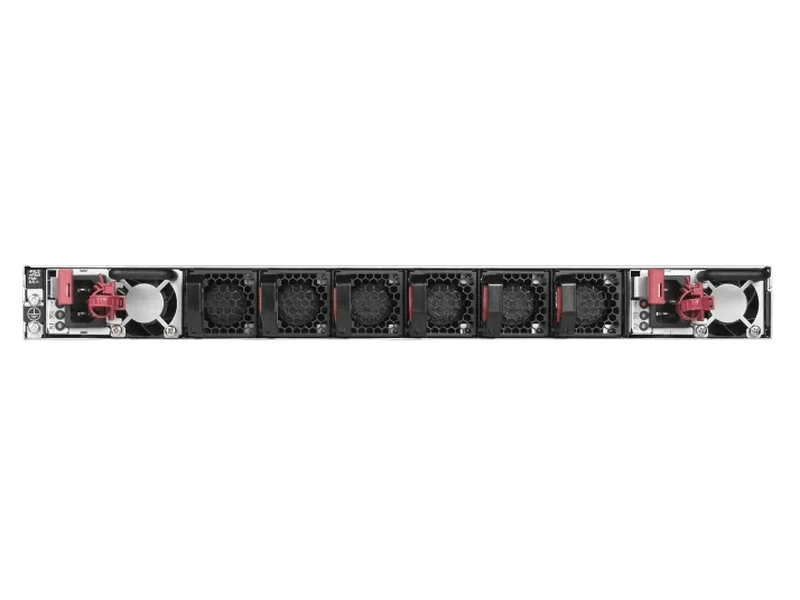

2 modular Power Supply Units and 6 modular Fan Trays come pre-installed |
|
Management : |
CLI only (local console, telnet port 1223 and SSH port 1234) |
|
Management Ports : |
1G Ethernet service port for out-of-band management (OOB, RJ45) |
| RS232 straight-through serial RJ45 for local management console | |
|
Form Factor : |
Full width 1U (508mm depth) with two mounting ears (front) and rail kits (back) |
