Overview

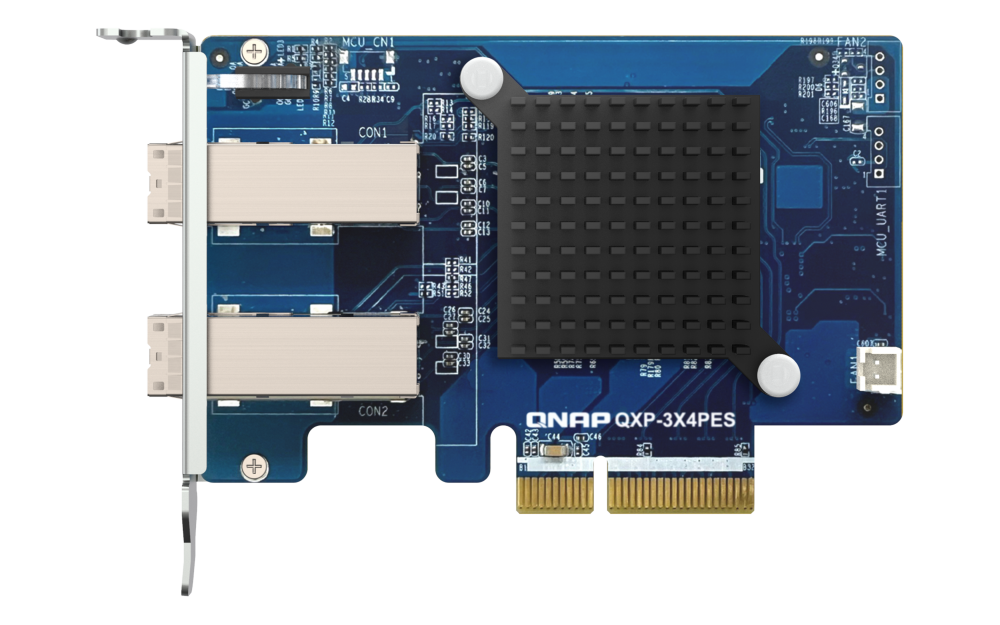

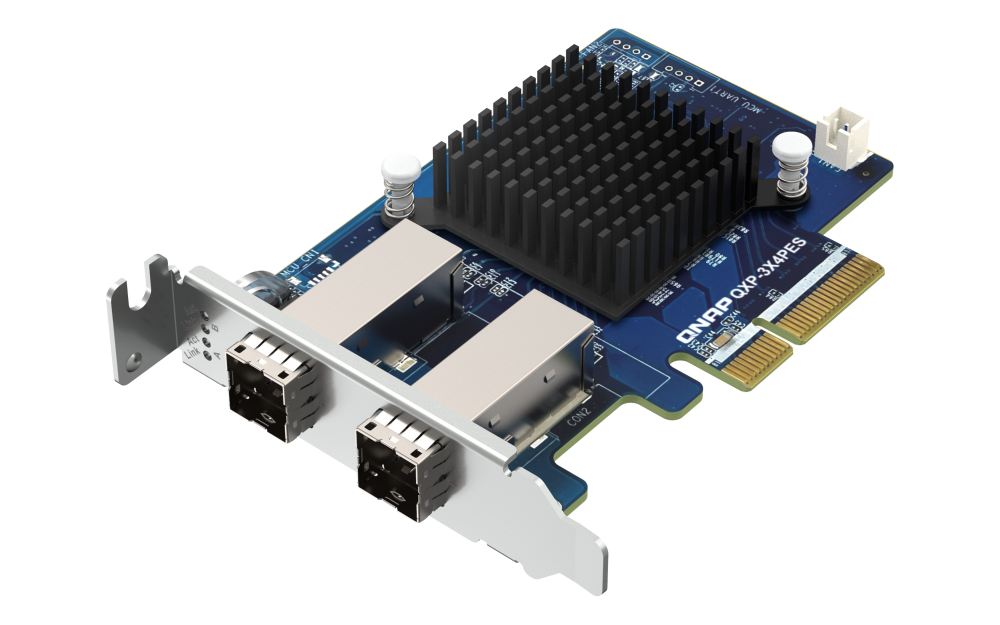

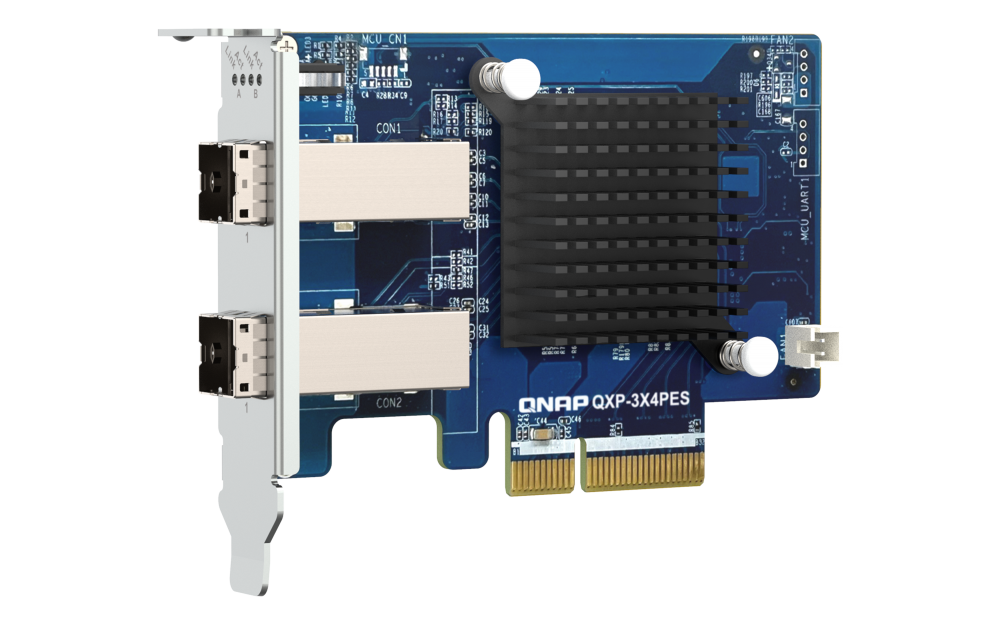

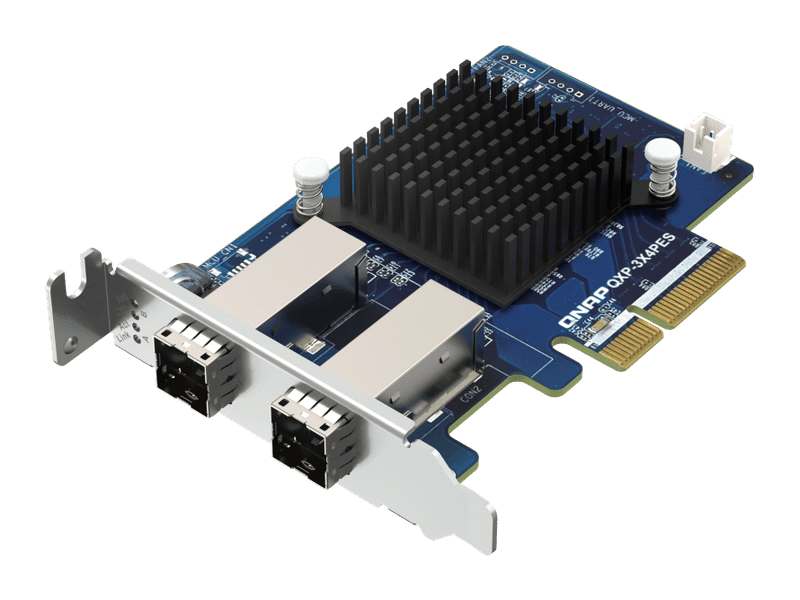

QXP-3X4PES
Use a PCIe Gen 3 x4 card to connect your NAS to TL PCIe Interface JBOD for storage expansion
The QXP-3X4PES PCIe card is designed for expanding the capacity of a QuTS hero or QTS NAS by connecting it to QNAP TL PCIe Interface JBOD. Multiple JBODs can be daisy-chained via high-speed cables to scale up to petabyte-level storage to handle exponential data growth caused by archiving/backing up surveillance recordings, RAW multimedia files, big data, and virtualization applications.
Petabyte-scale capacity with economy
Expand up to petabyte-scale capacity for QuTS hero NAS, by connecting multiple PCIe JBOD expansion enclosures. .
Up to 32 Gb/s
The QXP-3X4PES PCIe Gen 3 x4 expansion card provides up to 32 Gb/s data transfer speed.
Note: Actual transfer speeds depend on the host NAS's PCIe slot and the storage units used.
SFF-8644 special cables supported
Install a QXP-3X4PES for connecting the enclosures using SFF-8644 4X special cables.
QXP-3X4PES
Use a PCIe Gen 3 x4 card to connect your NAS to TL PCIe Interface JBOD for storage expansion
The QXP-3X4PES PCIe card is designed for expanding the capacity of a QuTS hero or QTS NAS by connecting it to QNAP TL PCIe Interface JBOD. Multiple JBODs can be daisy-chained via high-speed cables to scale up to petabyte-level storage to handle exponential data growth caused by archiving/backing up surveillance recordings, RAW multimedia files, big data, and virtualization applications.
Petabyte-scale capacity with economy
Expand up to petabyte-scale capacity for QuTS hero NAS, by connecting multiple PCIe JBOD expansion enclosures. .
Up to 32 Gb/s
The QXP-3X4PES PCIe Gen 3 x4 expansion card provides up to 32 Gb/s data transfer speed.
Note: Actual transfer speeds depend on the host NAS's PCIe slot and the storage units used.
SFF-8644 special cables supported
Install a QXP-3X4PES for connecting the enclosures using SFF-8644 4X special cables.
| General | |
|---|---|
| Model | QXP-3X4PES |
| Product Type | PCIe Expansion Card |
| Application | Expands PCIe connectivity for QNAP NAS and PCs |
| Form Factor | Half-height, half-length PCIe card |
| Bracket Options | Full-height and low-profile brackets included |
| Interface | |
| Host Interface | PCIe Gen3 x8 |
| Expansion Ports | 3 x PCIe Gen3 x4 slots |
| Slot Type | PCIe x4 (physical), supports Gen3 signals |
| Lane Distribution | Each slot supports up to 4 lanes |
| Supported Devices | PCIe-based expansion cards (e.g., SSDs, NICs) |
| Compatibility | |
| Supported NAS Models | QNAP NAS with available PCIe Gen3 x8 slot |
| Supported PC OS | Windows 10/11, Linux (kernel 3.10+) |
| Driver Requirement | No driver required for passive passthrough |
| Physical | |
| Dimensions (L x W x H) | Approx. 168 × 69 × 18 mm |
| Weight | Approx. 180 g |
| Cooling | Passive heatsink |
| Color | Black PCB with silver bracket |
| Environmental | |
| Operating Temperature | 0 ~ 70 °C |
| Storage Temperature | -40 ~ 85 °C |
| Humidity | 5 ~ 95% RH (non-condensing) |
| Package Contents | |
| Included Items | QXP-3X4PES card, low-profile bracket, quick installation guide |
| Certifications | |
| Compliance | CE, FCC, VCCI, BSMI, RoHS |
