Description
With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40°F ~ 158°F) while its 9V ~ 36V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments.
-
10GbE connectivity
Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks, high speed backup/recovery, file sharing, and video transmission.
-
4K HDMI output
Supports 4K playback and real-time transcoding.
-
Optimized SSD performance and lifespan
Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance.
-
Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications and microservices.
-
Data backup and recovery
Protect PC/Macs, virtual machines, software containers, and cloud data.
-
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.

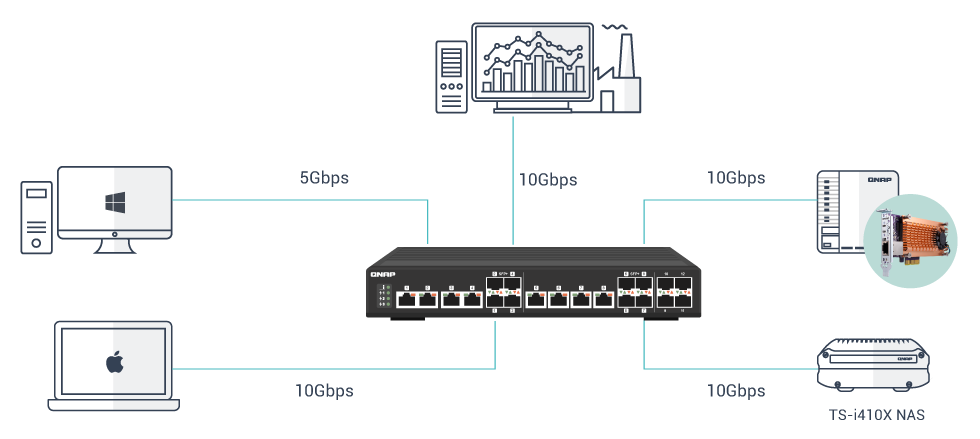

Paired with an industrial-grade 10GbE switch
Boost your entire network performance with 10GbE! QNAP’s QSW-IM1200-8C industrial-grade full 10GbE switch is a perfect match for the TS-i410X to accelerate high-speed and reliable network deployment in the rugged environments. The QSW-IM1200-8C switch features a robust industrial-grade hardware design, provides Layer 2 management functions with a user-friendly interface, and comes with redundant DC power for reliable operations, fulfilling bandwidth-demanding tasks for the variable industrial network environments.
Learn More: QSW-IM1200-8C industrial-grade full 10GbE switch
Specifications
Product Description | QNAP TS-i410X - NAS server |
Device Type | NAS server |
Host Connectivity | 10 Gigabit Ethernet |
Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
Dimensions (WxDxH) | 18 cm x 25.4 cm x 6.5 cm |
Weight | 2.54 kg () |
Processor | 1 x Intel Atom X6425E (Quad-Core) |
Storage Controller | RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, JBOD |
Networking | GigE, 10 GigE, 5 GigE, 2.5 GigE |
Performance | Concurrent connections (CIFS): 1500 - (with maximum memory) ? Maximum pool size: 308 TB ? Maximum number of storage pool: 128 ? Maximum volume size: 250 TB ? Maximum number of volume: 128 ? Maximum shared folder size: 250 TB ? Maximum number of shared folder: 512 ? Maximum LUN size: 250 TB ? Maximum number of targets LUN: 256 ? Minimum snapshot interval: 5 min ? Maximum FTP connection: 1024 ? Local user account: 4096 ? Local group account: 512 ? Domain user/group account: 200000 ? Log recording: 3000 events per second ? Virtual hosts: 32 |
RAM | 8 GB |
Power | AC 100-240 V |
Storage Operating System | QNAP QTS 5.0.0 |
System Requirements | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
Manufacturer Warranty | 3-year warranty |
