Description
Overview

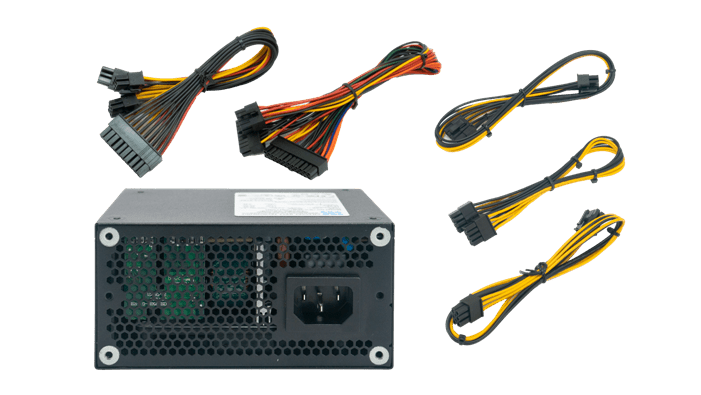

PWR-PSU-750W-CW01
750W power supply unit, CWT
Compatible with: TS-h1290FX
PWR-PSU-750W-CW01
750W power supply unit, CWT
Compatible with: TS-h1290FX
| General | |
|---|---|
| Model | PWR-PSU-750W-CW01 |
| Product Type | Internal Power Supply Unit |
| Application | Compatible with select QNAP NAS systems |
| Form Factor | Custom-fit chassis PSU |
| Electrical | |
| Rated Power Output | 750W |
| Input Voltage | 100–240V AC |
| Input Frequency | 50–60 Hz |
| Power Efficiency | Up to 90% (typical) |
| Power Connector | Standard internal ATX-style connectors |
| Cooling | Integrated fan with thermal control |
| Protection Features | Over Voltage, Over Current, Short Circuit, Over Temperature |
| Physical | |
| Dimensions | Approx. 200 x 100 x 40 mm |
| Weight | Approx. 1.2 kg |
| Color | Black |
| Mounting | Internal chassis mount |
| Environmental | |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -20 ~ 70 °C |
| Humidity | 5 ~ 95% RH (non-condensing) |
| Noise Level | < 35 dBA (typical) |
| Certifications | |
| Safety & Compliance | CE, FCC, RoHS |
