Overview
QXG-10G2SF-NXE
Dual-port, 10GbE SFP+ network expansion card
The QXG-10G2SF-NXE 10GbE network expansion card, featuring two 10GbE SFP+ ports (10G/1G), is energy-efficient and budget-friendly. It serves as an ideal solution for teams that need concurrent data access, for photographers/videographers seeking rapid and seamless data transmission capabilities, or for latency-sensitive virtualization applications.
NAS and PC
Install a QXG-10G2SF-NXE in a QNAP NAS or Windows® PC.
TS-x64 NAS series supported
Compatible with the popular TS-x64 and TS-x64U NAS series.
PCIe 3.0
Supports PCIe Gen 3 x8, compatible with PCIe Gen 4 slot.
SR-IOV
Improves the network performance of virtual machines.

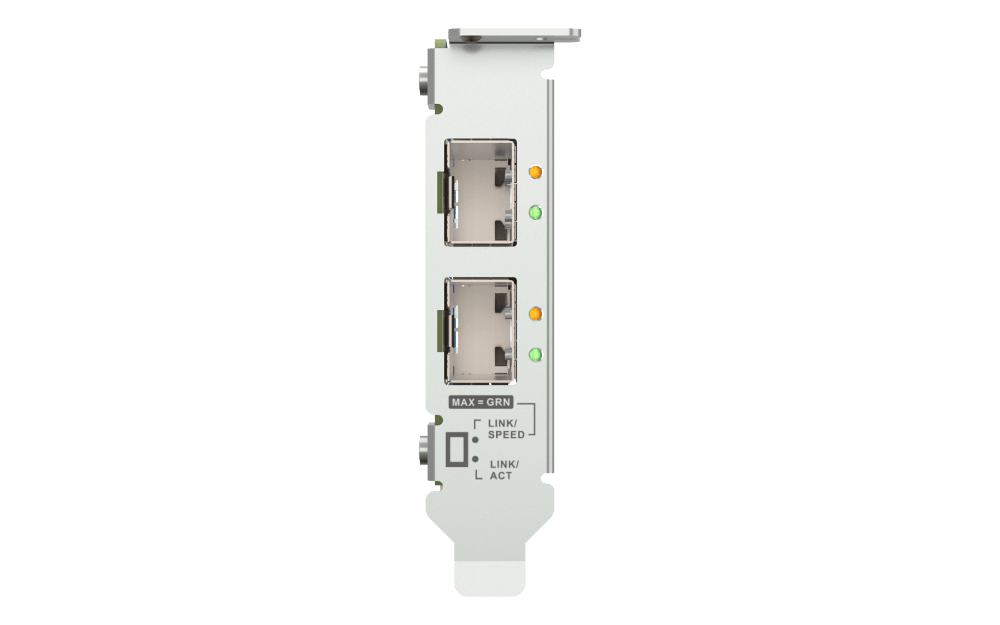

LED indicators
Monitor the real-time status of ports with handy LED indicators.

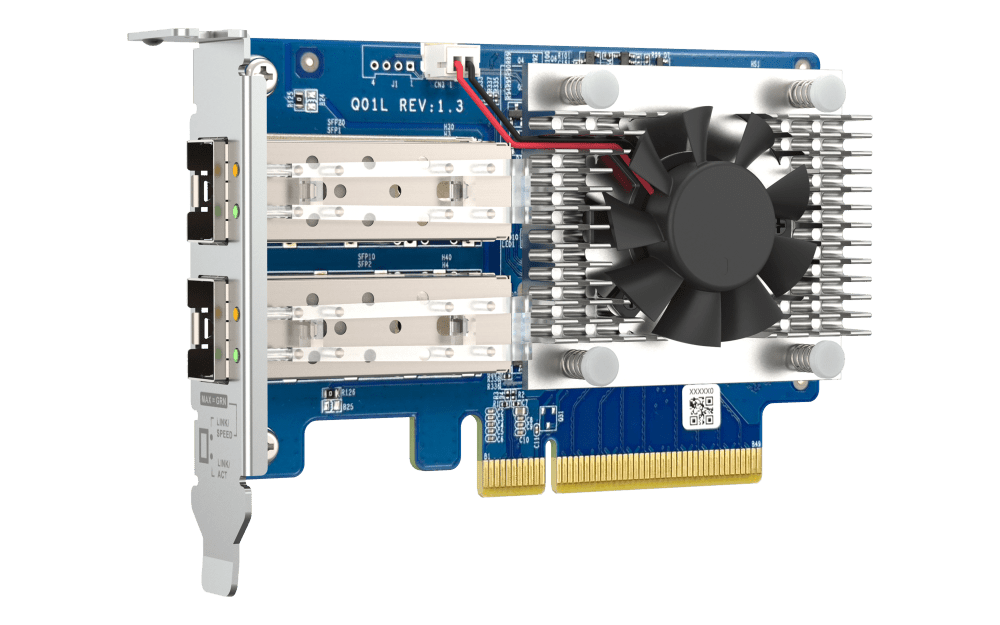

Cooling fan
The fan and heatsinks reduce operational temperature and maintain stable performance.
QXG-10G2SF-NXE
Dual-port, 10GbE SFP+ network expansion card
The QXG-10G2SF-NXE 10GbE network expansion card, featuring two 10GbE SFP+ ports (10G/1G), is energy-efficient and budget-friendly. It serves as an ideal solution for teams that need concurrent data access, for photographers/videographers seeking rapid and seamless data transmission capabilities, or for latency-sensitive virtualization applications.
NAS and PC
Install a QXG-10G2SF-NXE in a QNAP NAS or Windows® PC.
TS-x64 NAS series supported
Compatible with the popular TS-x64 and TS-x64U NAS series.
PCIe 3.0
Supports PCIe Gen 3 x8, compatible with PCIe Gen 4 slot.
SR-IOV
Improves the network performance of virtual machines.
LED indicators
Monitor the real-time status of ports with handy LED indicators.
Cooling fan
The fan and heatsinks reduce operational temperature and maintain stable performance.
| General | |
|---|---|
| Model | QXG-10G2SF-NXE |
| Product Type | Dual-Port 10GbE SFP+ Network Expansion Card |
| Application | Compatible with QNAP NAS and Windows/Linux PCs |

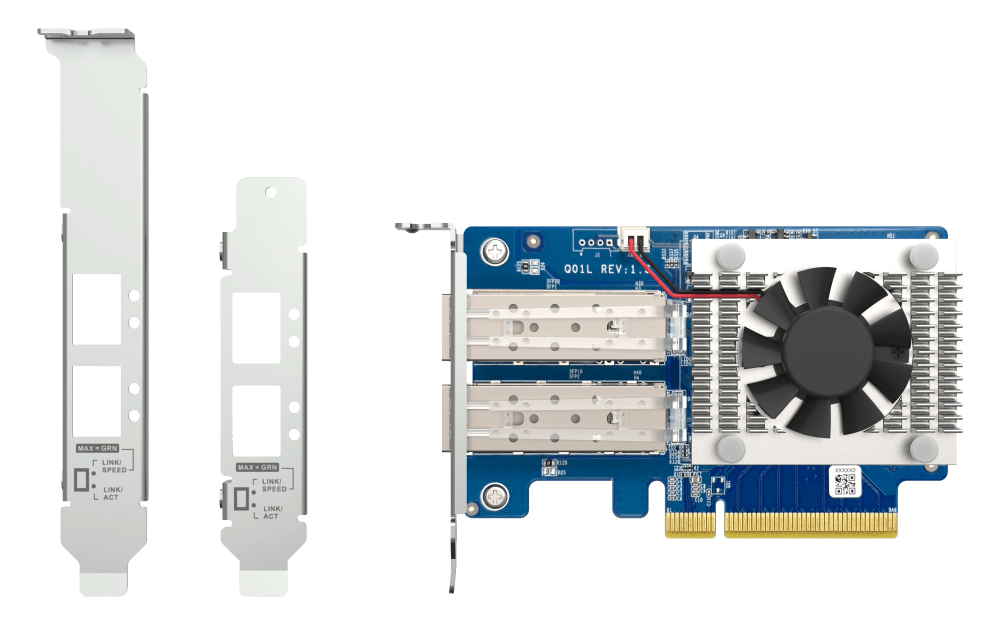

| Bracket Options | Low-profile (pre-installed), full-height, and specialized brackets included |
| Warranty | 3 Years |
| Interface | |
| Host Interface | PCIe Gen3 x8 |
| Network Ports | 2 x 10GbE SFP+ |

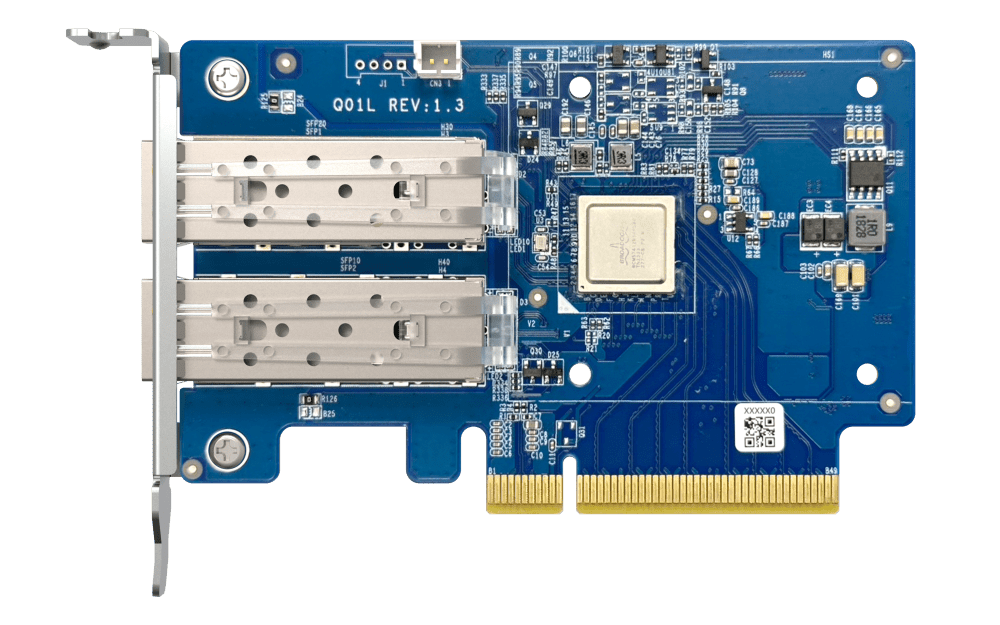

| Controller | Broadcom BCM57412 |
| Supported Speeds | 10Gbps / 1Gbps |
| Connector Type | SFP+ (supports DAC cables and optical transceivers) |
| Transmission Standards | IEEE 802.3ae (10GbE) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3ap, 802.3ad (Link Aggregation) IEEE 802.1Q, 802.1p (VLAN & Priority) IEEE 802.1Qaz (ETS), 802.1Qau (QCN) |
| Advanced Features | SR-IOV, iSER (iSCSI Extensions for RDMA) |
| Compatibility | |
| Supported NAS OS | QTS 5.2.1+, QuTS hero h5.2.1+ |
| Supported NAS Models | QNAP NAS with available PCIe slot |
| Supported PC OS | Windows 11, Windows Server 2022, Ubuntu 24.04 |
| Physical | |
| Dimensions (L x W x H) | 110 × 18.3 × 68.9 mm |
| Cooling | Passive heatsink |
| Environmental | |
| Operating Temperature | 0 ~ 70 °C |
| Storage Temperature | -40 ~ 85 °C |
| Humidity | 5 ~ 95% RH (non-condensing) |
| Package Contents | |
| Included Items | Network card, Quick Installation Guide, 3 brackets |
