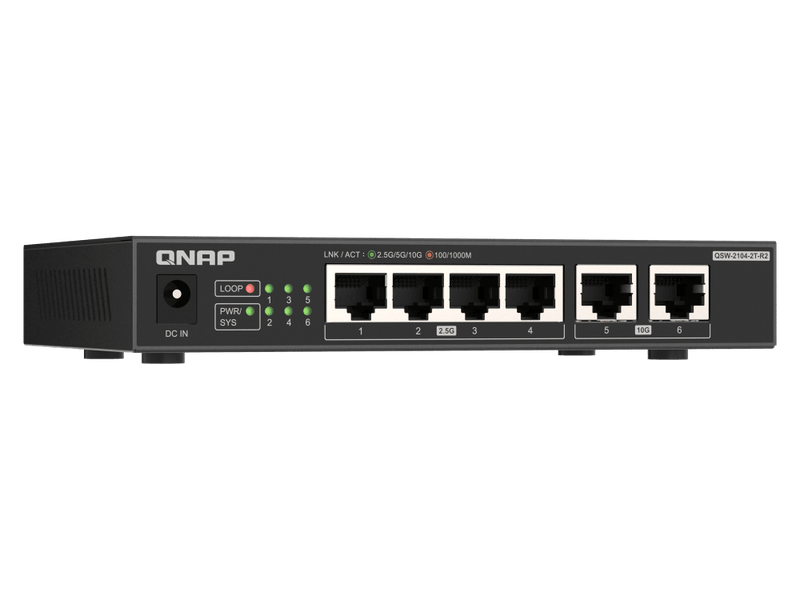

QNAP QSW-2104-2T-R2 2 ports 10GbE RJ45 5x 2.5GbE RJ45 unmanaged switch 2 Years WTY

QNAPSKU: QSW-2104-2T-R2

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$322.00
Contact Us for ETA

Estimate shipping

Description

Overview

QSW-2104-2T-R2
4-port 2.5GbE and 2-port 10GbE Multi-Gig unmanaged switch. Affordably upgrade to high-speed networking.

Upgrade now with our wallet-friendly compact 6-port high-speed switch! The QNAP QSW-2104-2T-R2 unmanaged switch with four 2.5GbE ports and two 10GbE ports allows you to upgrade to stable high-speed networking at an affordable price. Integrated seamlessly with Wi-Fi 6/6E/7 for optimal wireless network performance, the QSW-2104-2T-R2 is perfect for offices and multimedia teams, providing high-speed data transfer, large file sharing, and efficient collaborative workflows. The QSW-2104-2T-R2 is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

2.5G/10G Multi-Gig speeds
4x 2.5GBASE-T RJ45 ports supporting speeds: 2.5G, 1G, and 100Mb. 2x 10GBASE-T RJ45 ports supporting five speeds: 10G, 5G, 2.5G, 1G, and 100Mb. Provides 60Gbps switching capacity.

Plug and play
No complicated setup required. The QSW-2104-2T-R2 automatically sets the best transfer speeds based on connected devices. There’s no need to upgrade or replace older hardware immediately.

Desktop design
Light, compact, and compliant with EEE low-power energy-saving and EMC Class B, ideal for indoor environments.

Silent operation
Fanless, ultra-quiet design with efficient heat dissipation, ensuring a noise-free working environment.

Ensure stable network
Built-in loop detection and blocking automatically detects and blocks any network loops, ensuring smooth and uninterrupted network performance.

Jumbo Frame supported
Supports 12K jumbo frame transmission, improving large file transfer efficiency and reducing packet loss rates.

QNAP QSW-2104-2T-R2 Specifications
Management Type Unmanaged
Number of Ports 6
10GbE BASE-T (RJ45) 2
10G/5G/2.5G/1G/100M
2.5GbE (RJ45) 4
Power Supply Description Adapter
Max. Power Consumption 18W
Input Power Type DC
Input Voltage Range 12V/1.5A
MAC Address Table 4K
Total Non-Blocking Throughput 30Gbps
Switching Capacity 60Gbps
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fanless
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10GBASE-T
IEEE 802.3az EEE
IEEE 802.3x Full-Duplex Flow Control
Form Factor Desktop
LED Indicators Per Port: Speed/Link/Activity
Loop LED: Loop
Per System: Power/Status
Dimensions (HxWxD) 26 x 160 x110 mm
Weight (Net) 0.45 kg
Weight (Gross) 0.522 kg
Operating Temperature 0˚C to 40°C (32°F to 104°F)
Relative Humidity 10~95% Non-condensing
Certifications CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC
Electromagnetic Compliance CLASS B
Jumbo Frames 12K
