Description
Overview

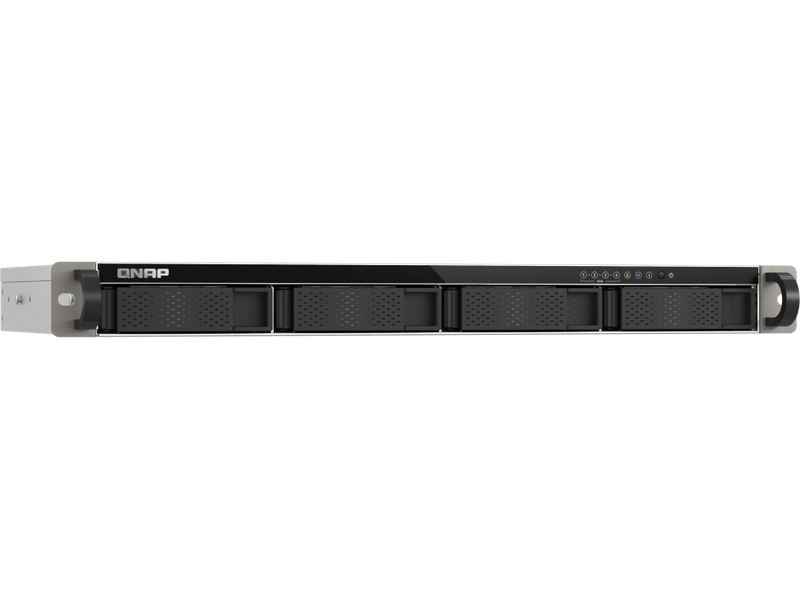

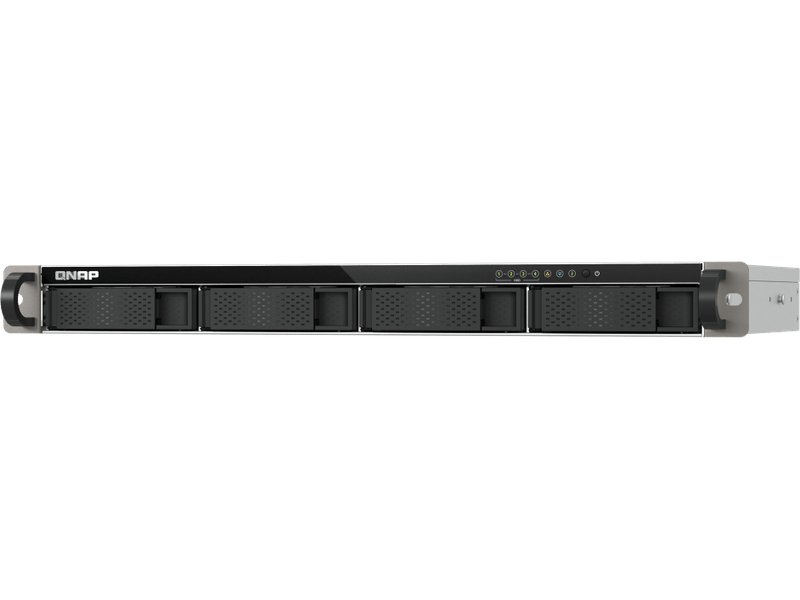

TS-433eU
Compact 1U short-depth rackmount 2.5GbE NAS – your affordable edge storage with NPU acceleration
The closer your data storage is, the faster you can access your data or applications! The TS-433eU with its sleek 1U short-depth rackmount design fits perfectly in tight spaces, making it ideal for flexible deployment. Deploy the TS-433eU closer to your operations to effortlessly create edge storage, and enjoy intelligent file management, secure backups, and seamless Docker container applications.
Space-saving
Flexible deployment for installation in small media cabinets or wall-mounted network racks.
Powerful yet energy-efficient
The ARM Cortex-A55 quad-core processor with 4GB RAM uses up to 80% less power than similar x86-based NAS.
AI image recognition with NPU acceleration
The built-in NPU enhances AI-powered face recognition and accelerates subject identification in QNAP’s QuMagie smart album.
Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
Easy storage expansion via USB
Connect a QNAP short-depth USB JBOD TR-004U to the TS-433eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
Backup and snapshot protection for peace of mind
Centralize all data backups to TS-433eU and regularly create snapshots to safeguard your data against ransomware threats.
The 1U short rackmount chassis saves space.
The TS-433eU has a shorter chassis depth of only 11.51 inches (292.3mm), making it easy to install in various space-limited environments, including factories, small offices, audiovisual rooms, or surveillance rooms, offering flexibility and maximized space utilization.
Efficient multitasking with an energy-efficient ARM Cortex-A55 quad-core processor
Processor
ARM 64-bit Cortex-A55 4-core 2.0 GHz processor
Memory
Built-in 4GB RAM (non-expandable) for efficient multitasking and stable operation
Built-in NPU
Boosts AI image recognition performance and reduces CPU workload
AES Encryption
AES hardware-accelerated encryption enhances data read/write performance while ensuring data security
2.5GbE as standard for enhanced performance
In modern business IT, a NAS with only 1GbE is a performance bottleneck. The TS-433eU comes with 2.5GbE connectivity as standard, enabling businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, and container applications.
Built-in 2.5GbE
The TS-433eU comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.
Enhance overall bandwidth
Obtain increased network speed and fault tolerance by configuring Port Trunking or SMB Multichannel.
NPU accelerates on-device AI performance. 6x faster face recognition
NPU (Neural-network Processing Unit), designed to speed up AI tasks, not only accelerates organization and classification in QuMagie smart album, but also reduces CPU workloads when fulfilling AI-driven requests. When uploading a large number of photos to the TS-433eU, you will enjoy high-speed AI performance of photo processing brought by NPU.
Back up your projects
Back up photos/videos from your computer or external hard drives to the high-capacity TS-433eU, enable Auto-upload with QuMagie Mobile App to free up space on your phone, and enjoy more efficient team collaboration and file sharing.
AI-powered smart albums
AI image recognition technology supports facial and subject identification, automatically categorizing photos on the TS-433eU by people, things, and places to create smart albums for efficient centralized management.
Fast photo search
Use Qsirch to quickly find photos based on photo colors, camera brands, or camera lens types.
All-in-one backup solution
The TS-433eU supports various apps that cover all business backup needs.
NAS/File server
Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.
Cloud
Back up NAS data to/from major cloud services, including QNAP’s myQNAPcloud One.
Mac
Set a QNAP NAS as Time Machine backup destination.
Google™ Workspace/Microsoft 365®
Use QNAP’s Boxafe to back up, recover, and manage the data of 10,000+ users over multiple Google™ Workspace and Microsoft 365®.
WordPress
Backup, restore or migrate your WordPress site. QNAP NAS can also host a website.
Secondary backup or restore
By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective.
NAS and file server
Use the same interface to configure and run backup, replication, and restore jobs.
Cloud
Supports advanced technologies to save backup time, spaces, and effort.
myQNAPcloud One
QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.
Real-time sync for seamless team collaboration
Whether you’re in the office or on the go, you can access the latest files synchronized to TS-433eU on multiple devices for efficient teamwork. Version Control keeps track of document changes, simplifying file management and restoration.
Cross-Device Sync
Sync NAS files across multiple devices, including desktops, laptops, tablets, and phones.
Custom Sync Rules
Set rules for automatic file sync and conflict resolution.
Team Folders
Share folders with specific teams for collaborative file management.
Access NAS data like from a local folder
Map your TS-433eU NAS folders as network drives on your computer, and access files like they were stored locally.
Cross-platform file sharing
Supporting SMB/CIFS, AFP, WebDAV, and NFS protocols, the TS-433eU enables seamless file sharing and transfer across Windows®, macOS® and Linux® computers, without compatibility concerns.
Secure remote access
Use QVPN to create a secure virtual private network to access to the TS-433eU. Businesses can further leverage QuWAN to swiftly set up Mesh VPNs, allowing employees to easily join VPN and systems on intranet.
Build a smart knowledge hub with RAG Search
TS-433eU integrates the Qsirch search engine with RAG technology, cloud-based large language models (LLMs), and generative AI. This enables precise natural language searches across vast NAS file content, while generating summaries and actionable insights.
Full-text search
Searches for files based on file name, content, title, metadata, email title and body text, file path, and more.
Document preview
Preview the content of unopened documents, view keyword-relevant paragraphs, and check out a few relevant sentences related to the file subject.
Image search
Search for images by color or object. AI OCR recognizes and enables capturing text from images.
At-a-glance file distribution
Stay informed of storage utilization and distribution of data and files stored on the TS-433eU via charts and analytics.
Multi-level security strategy for enterprises
Bolster business data security with resilience from all aspects
Enterprise private network connection
Build secure VPN connection using QVPN Service. Multi-site organizations can leverage QuWAN SD-WAN to quickly set up Mesh VPN for remote workers and branches.
Filtering unauthorized access
Implement QuFirewall to allow/deny specific IP addresses and regions, preventing unauthorized access and cyber threats.
Efficient NAS user management
The TS-433eU supports Windows® AD, Azure® AD, and LDAP; Admins can further improve management productivity and NAS security via delegated administration.
Strengthened NAS log-in security
Set up passwordless login or two-factor authentication (2FA) for your NAS accounts to prevent data breaches and unauthorized access.
SMB signing acceleration
Enable SMB signing to facilitate secure SMB file transfer, while QNAP’s exclusive algorithm greatly increases data signing efficiency and data transmission performance.
TS-433eU
Compact 1U short-depth rackmount 2.5GbE NAS – your affordable edge storage with NPU acceleration
The closer your data storage is, the faster you can access your data or applications! The TS-433eU with its sleek 1U short-depth rackmount design fits perfectly in tight spaces, making it ideal for flexible deployment. Deploy the TS-433eU closer to your operations to effortlessly create edge storage, and enjoy intelligent file management, secure backups, and seamless Docker container applications.
Space-saving
Flexible deployment for installation in small media cabinets or wall-mounted network racks.
Powerful yet energy-efficient
The ARM Cortex-A55 quad-core processor with 4GB RAM uses up to 80% less power than similar x86-based NAS.
AI image recognition with NPU acceleration
The built-in NPU enhances AI-powered face recognition and accelerates subject identification in QNAP’s QuMagie smart album.
Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
Easy storage expansion via USB
Connect a QNAP short-depth USB JBOD TR-004U to the TS-433eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
Backup and snapshot protection for peace of mind
Centralize all data backups to TS-433eU and regularly create snapshots to safeguard your data against ransomware threats.
The 1U short rackmount chassis saves space.
The TS-433eU has a shorter chassis depth of only 11.51 inches (292.3mm), making it easy to install in various space-limited environments, including factories, small offices, audiovisual rooms, or surveillance rooms, offering flexibility and maximized space utilization.
Efficient multitasking with an energy-efficient ARM Cortex-A55 quad-core processor
Processor
ARM 64-bit Cortex-A55 4-core 2.0 GHz processor
Memory
Built-in 4GB RAM (non-expandable) for efficient multitasking and stable operation
Built-in NPU
Boosts AI image recognition performance and reduces CPU workload
AES Encryption
AES hardware-accelerated encryption enhances data read/write performance while ensuring data security
2.5GbE as standard for enhanced performance
In modern business IT, a NAS with only 1GbE is a performance bottleneck. The TS-433eU comes with 2.5GbE connectivity as standard, enabling businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, and container applications.
Built-in 2.5GbE
The TS-433eU comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.
Enhance overall bandwidth
Obtain increased network speed and fault tolerance by configuring Port Trunking or SMB Multichannel.
NPU accelerates on-device AI performance. 6x faster face recognition
NPU (Neural-network Processing Unit), designed to speed up AI tasks, not only accelerates organization and classification in QuMagie smart album, but also reduces CPU workloads when fulfilling AI-driven requests. When uploading a large number of photos to the TS-433eU, you will enjoy high-speed AI performance of photo processing brought by NPU.
Back up your projects
Back up photos/videos from your computer or external hard drives to the high-capacity TS-433eU, enable Auto-upload with QuMagie Mobile App to free up space on your phone, and enjoy more efficient team collaboration and file sharing.
AI-powered smart albums
AI image recognition technology supports facial and subject identification, automatically categorizing photos on the TS-433eU by people, things, and places to create smart albums for efficient centralized management.
Fast photo search
Use Qsirch to quickly find photos based on photo colors, camera brands, or camera lens types.
All-in-one backup solution
The TS-433eU supports various apps that cover all business backup needs.
NAS/File server
Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.
Cloud
Back up NAS data to/from major cloud services, including QNAP’s myQNAPcloud One.
Mac
Set a QNAP NAS as Time Machine backup destination.
Google™ Workspace/Microsoft 365®
Use QNAP’s Boxafe to back up, recover, and manage the data of 10,000+ users over multiple Google™ Workspace and Microsoft 365®.
WordPress
Backup, restore or migrate your WordPress site. QNAP NAS can also host a website.
Secondary backup or restore
By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective.
NAS and file server
Use the same interface to configure and run backup, replication, and restore jobs.
Cloud
Supports advanced technologies to save backup time, spaces, and effort.
myQNAPcloud One
QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.
Real-time sync for seamless team collaboration
Whether you’re in the office or on the go, you can access the latest files synchronized to TS-433eU on multiple devices for efficient teamwork. Version Control keeps track of document changes, simplifying file management and restoration.
Cross-Device Sync
Sync NAS files across multiple devices, including desktops, laptops, tablets, and phones.
Custom Sync Rules
Set rules for automatic file sync and conflict resolution.
Team Folders
Share folders with specific teams for collaborative file management.
Access NAS data like from a local folder
Map your TS-433eU NAS folders as network drives on your computer, and access files like they were stored locally.
Cross-platform file sharing
Supporting SMB/CIFS, AFP, WebDAV, and NFS protocols, the TS-433eU enables seamless file sharing and transfer across Windows®, macOS® and Linux® computers, without compatibility concerns.
Secure remote access
Use QVPN to create a secure virtual private network to access to the TS-433eU. Businesses can further leverage QuWAN to swiftly set up Mesh VPNs, allowing employees to easily join VPN and systems on intranet.
Build a smart knowledge hub with RAG Search
TS-433eU integrates the Qsirch search engine with RAG technology, cloud-based large language models (LLMs), and generative AI. This enables precise natural language searches across vast NAS file content, while generating summaries and actionable insights.
Full-text search
Searches for files based on file name, content, title, metadata, email title and body text, file path, and more.
Document preview
Preview the content of unopened documents, view keyword-relevant paragraphs, and check out a few relevant sentences related to the file subject.
Image search
Search for images by color or object. AI OCR recognizes and enables capturing text from images.
At-a-glance file distribution
Stay informed of storage utilization and distribution of data and files stored on the TS-433eU via charts and analytics.
Multi-level security strategy for enterprises
Bolster business data security with resilience from all aspects
Enterprise private network connection
Build secure VPN connection using QVPN Service. Multi-site organizations can leverage QuWAN SD-WAN to quickly set up Mesh VPN for remote workers and branches.
Filtering unauthorized access
Implement QuFirewall to allow/deny specific IP addresses and regions, preventing unauthorized access and cyber threats.
Efficient NAS user management
The TS-433eU supports Windows® AD, Azure® AD, and LDAP; Admins can further improve management productivity and NAS security via delegated administration.
Strengthened NAS log-in security
Set up passwordless login or two-factor authentication (2FA) for your NAS accounts to prevent data breaches and unauthorized access.
SMB signing acceleration
Enable SMB signing to facilitate secure SMB file transfer, while QNAP’s exclusive algorithm greatly increases data signing efficiency and data transmission performance.
| QNAP TS-433eU Specifications | |
|---|---|
| CPU | ARM 4-core Cortex-A55 2.0GHz processor |
| CPU Architecture | 64-bit ARM |
| Graphic Processors | Mali-G52 |
| Floating Point Unit | |
| Encryption Engine | |
| Hardware-accelerated Transcoding | |
| Neural Processing Unit (NPU) | |
| System Memory | 4 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
|
| Maximum Memory | 4 GB on board (non-expandable) |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Drive Bay | 4x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 3.2 Gen 1 port | 2 |
| Form Factor | 1U Short Depth Rackmount |
| LED Indicators | System Status, LAN, USB, HDD1~4 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 430 × 292.3 mm |
| Weight (Net) | 4.01 kg |
| Weight (Gross) | 5.9 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 60W, 100-240VAC |
| Power Consumption: Disk Standby Mode | 9.32 W |
| Power Consumption: Operating Mode, Typical | 23.74 W
Tested with drives fully populated.
|
| Fan | 3 x 40mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 200 |
