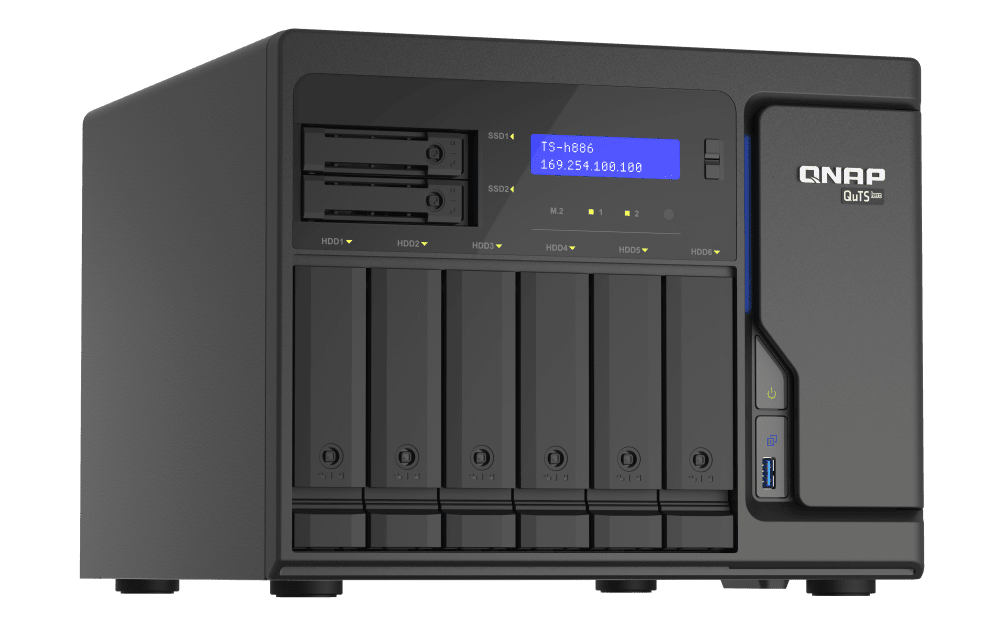

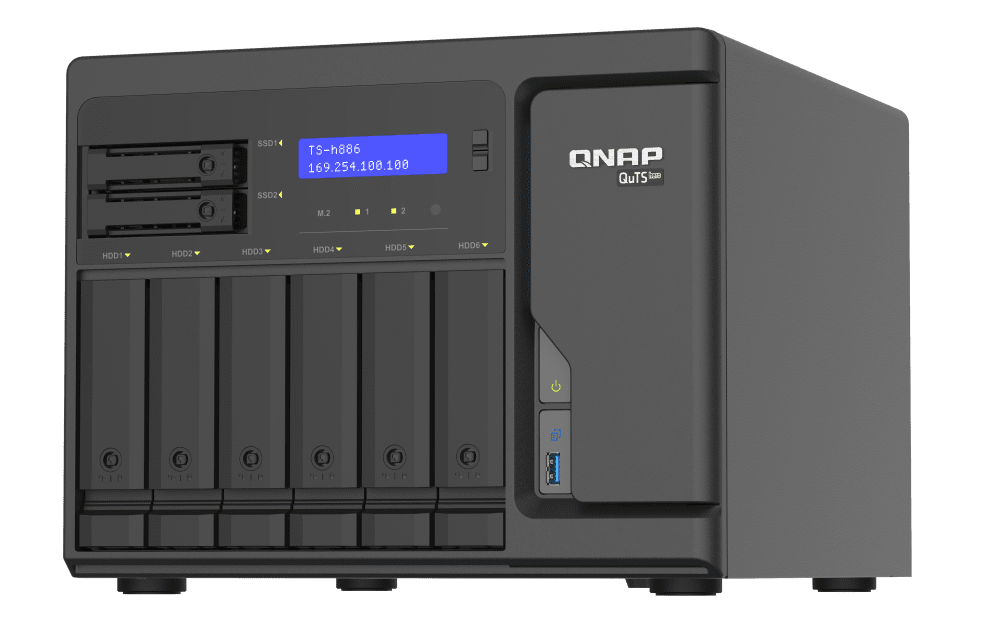

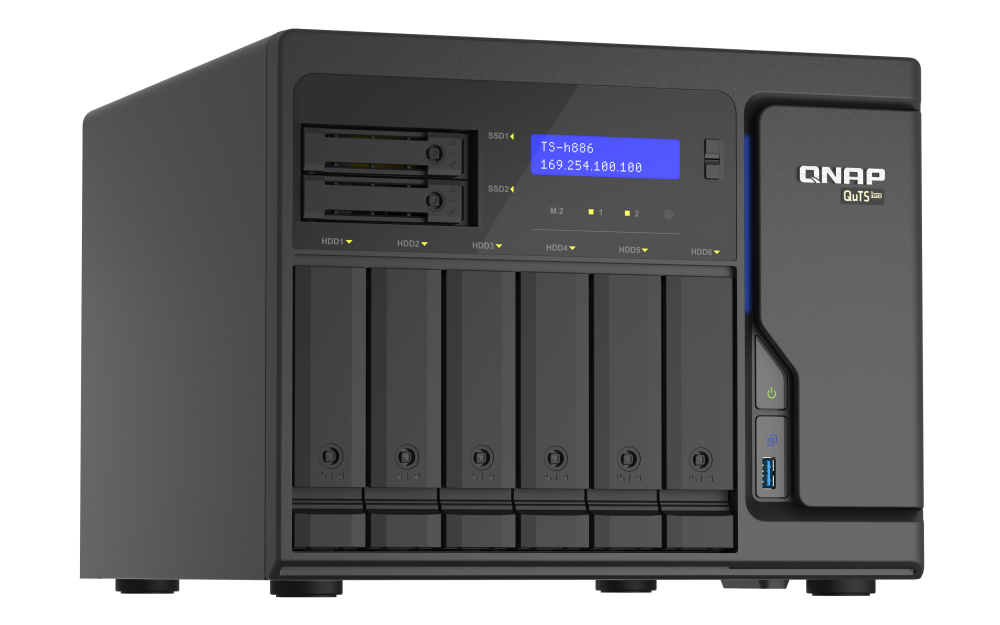

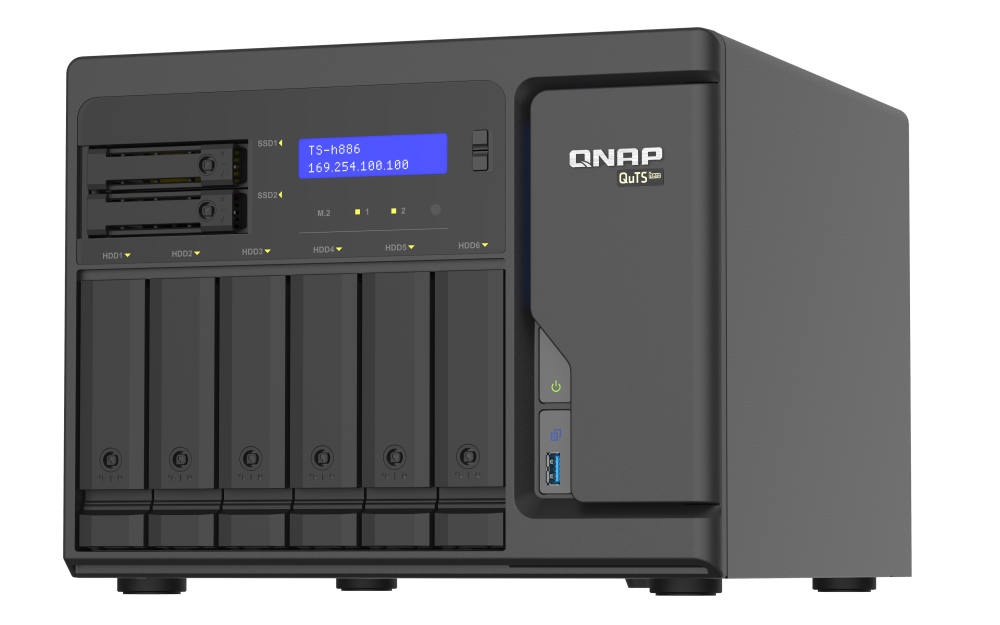

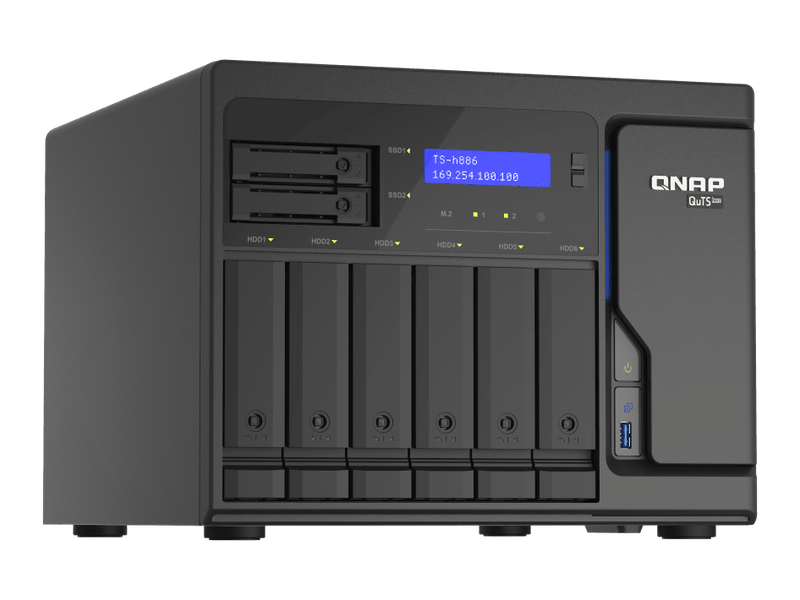

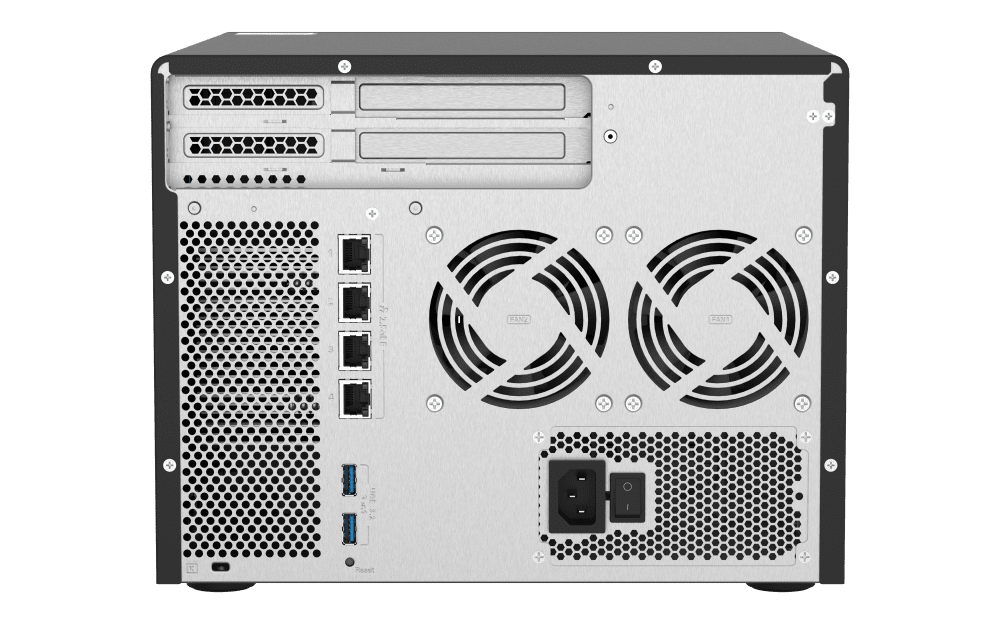

QNAP TS-h886-D1602-8G 8-Bay QuTS hero NAS

QNAPSKU: TS-h886-D1602-8G

built-in 2 M.2 NVMe Gen3 x4 port SATA 6G Xeon D-1602 2.5GHz 8GB ECC RAM 4 x 2.5GbE 3 Year WTY

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$3,325.00

Estimate shipping

Description

Overview

TS-h886
Intel® Xeon® D desktop QuTS hero NAS with four 2.5GbE ports, designed for real-time SnapSync data backup and virtual machine applications

Delivering enterprise performance at SMB prices, the TS-h886 features an Intel® Xeon® D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h886 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. The TS-h886 helps your business achieve reliable service-level agreement performance in various use cases, including mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications.

2.5GbE connectivity
Four 2.5GbE ports accelerate file sharing across teams and devices, virtual machine applications or multimedia transmission.

ECC memory
DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.

Dual M.2 PCIe slots
Two M.2 NVMe Gen 3 x4 SSD slots (each slot providing up to 3.2 GB/s bandwidth) enable SSD caching to boost random read/write performance.

Flexible PCIe expansion
Two PCIe slots allow for 5GbE/10GbE/25GbE/40GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.

Virtualization applications
Scalable storage supporting virtual machines, containerized apps, centralized storage, backup, sharing, and disaster recovery.

ZFS file system
QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.

QNAP TL-D1600S Specifications
CPU Intel® Xeon® D-1622 4-core/8-thread processor, up to 3.2 GHz
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe adapter
System Memory 8 GB UDIMM DDR4 ECC (2 x 4 GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x UDIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 6 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drives
Hot-swappable  (Not supported M.2 SSD)
M.2 Slot 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
SSD Cache Acceleration Support
GPU pass-through
SR-IOV
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via an adapter
25 Gigabit Ethernet Port Optional via an adapter
Wake on LAN (WOL)
Only the 2.5GbE port
Jumbo Frame

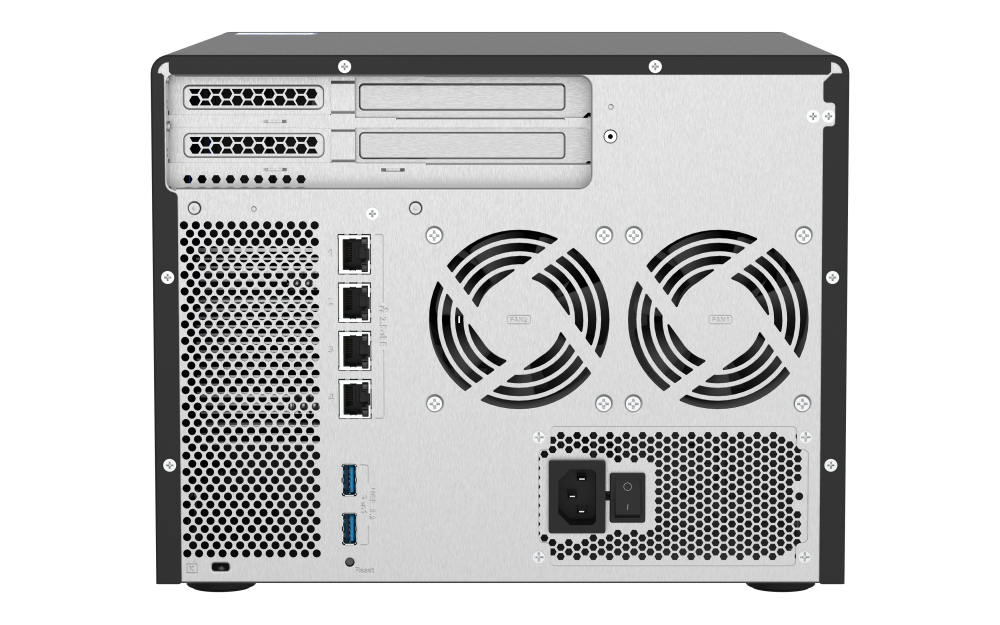

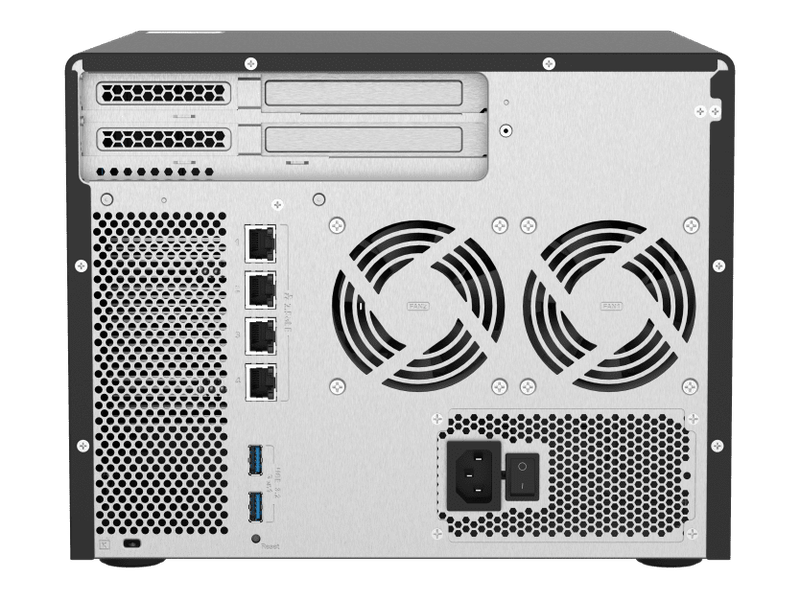

PCIe Slot 2
Slot 1: PCIe Gen3 x8
Slot 2: PCIe Gen3 x8
Card dimensions for PCIe slot 1:260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches.
Card dimensions for PCIe slot 2:150 x 68.9 x 37.52 mm / 5.90 x 2.71 x 1.48 inches.
USB 3.2 Gen 1 port 3
Form Factor Tower

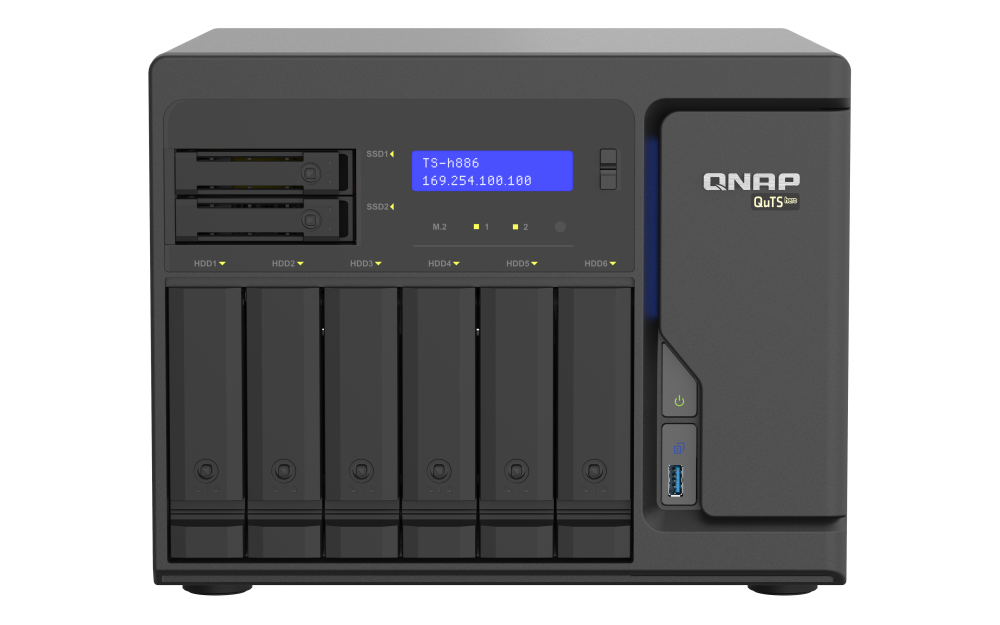

LED Indicators System status, LAN, USB, Disk 1~8, M.2 SSD 1~2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 225 × 292.9 × 319.8 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 10 kg
Weight (Gross) 10.3 kg
Operating Temperature 0 - 40°C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W PSU, 100~240V
Power Consumption: Operating Mode, Typical 75.79 W
Tested with drives fully populated.
Fan System fan: 2 x 80mm, 12VDC
CPU fan: 1 x 90mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Standard Warranty 3
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000
