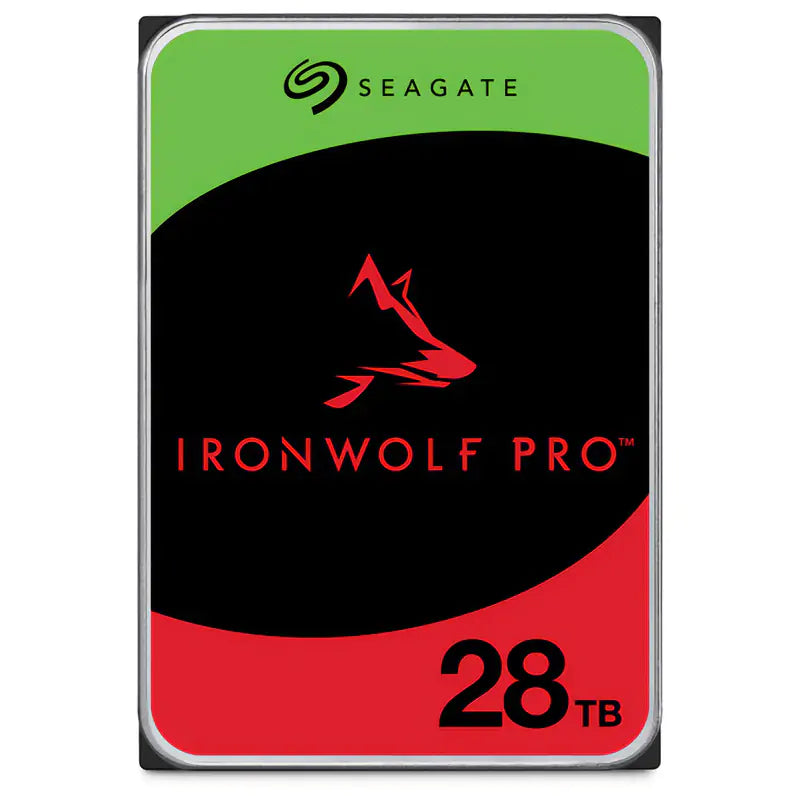

Seagate 28TB IronWolf Pro 3.5in SATA NAS Hard Drive 5YR WTY (ST28000NT000)
|
Capacity |
28TB |
|
Interface |
SATA 6Gb/s |
|
Drive Bays Supported |
Unlimited |
|
Recording Technology |
CMR |
|
Drive Design (Air or Helium) |
Helium |
|
Workload Rate Limit (WRL) |
550 |
|
Rotational Vibration (RV) Sensors |
Yes |
|
Cache (MB) |
512 MB |
|
MTBF (hours) |
2,500,000 hr |
|
Non-recoverable Read Errors per Bits Read |
1 per 10E15 |
|
Power-On Hours (per year) |
8,760 |
|
Sector Size (Bytes per Logical Sector) |
512E |
|
Rescue Data Recovery Services (years) |
3 |
|
Limited Warranty (years) |
5 |
|
Spindle Speed (RPM) |
7200 RPM |
|
Interface Access Speed (Gb/s) |
6.0, 3.0, 1.5 |
|
Max Sustained Transfer Rate OD (MB/s) |
270 |
|
Rotational Vibration @ 10-1500 Hz (rad/s) |
12.5 |
|
Startup Current, Typical (12V, A) |
2.0 A |
|
Idle Power, Average (W) |
6.8 W |
|
Average Operating Power (W) |
8.3 W |
|
Standby Mode, Typical (W) |
1.2 W |
|
Sleep Mode, Typical (W) |
1.2 W |
|
Power Supply Requirements |
+12 V and +5 V |
|
Operating Temperature (ambient, min °C) |
10°C |
|
Operating Temperature (drive reported, max °C) |
60°C |
|
Non-operating Temperature (ambient, min °C) |
-40°C |
|
Non-operating Temperature (ambient, max °C) |
70°C |
|
Vibration, Non-operating (Grms) |
2.27 |
|
Acoustics, Idle (dBA) |
28 |
|
Acoustics, Seek (dBA) |
32 |
|
Shock, Operating 2 ms (Read/Write) (Gs) |
30/30 Gs |
|
Shock, Non-operating, 1 ms and 2 ms (Gs) |
200 |
|
Height (mm/in) |
26.11 mm / 1.028 in |
|
Width (mm/in, max) |
101.85 mm / 4.01 in |
|
Depth (mm/in, max) |
146.99 mm / 5.787 in |
|
Weight (g/lb, typical) |
695 g / 1.53 lb |
