Description
Overview

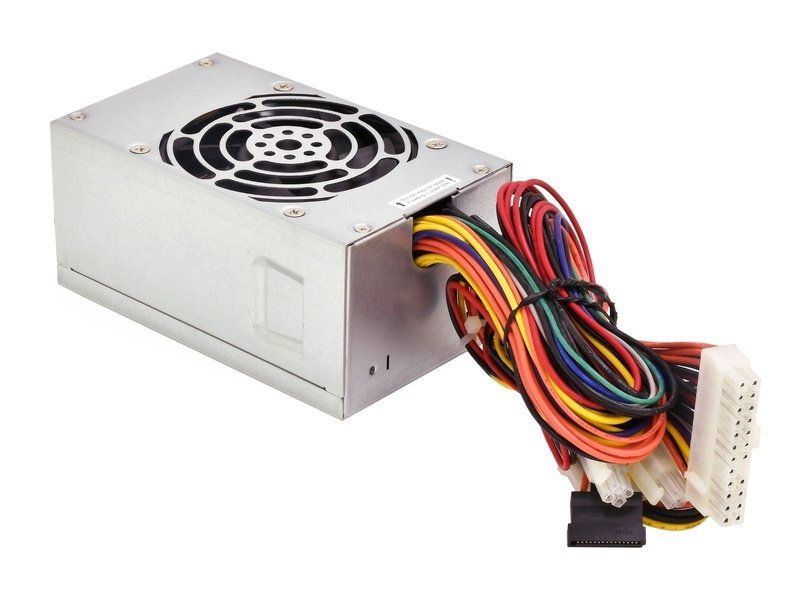

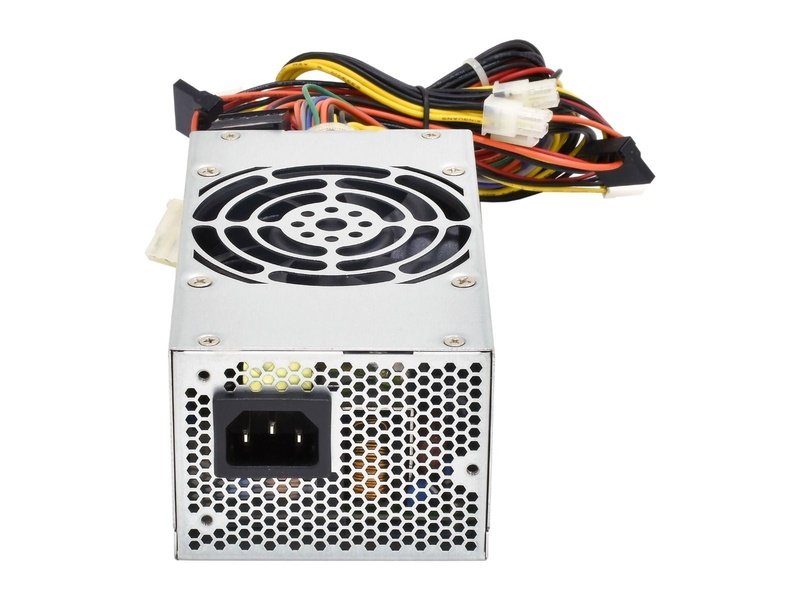

This Seasonic full input range, industrial level power supply offers a dependable source for a wide range of setups requiring the TFX form factor. It is TFX 12 V v.2.31 compliant and Pentium 4 processor ready. 80 PLUS® Bronze certified, therefore it is highly efficient.
Specifications
This Seasonic full input range, industrial level power supply offers a dependable source for a wide range of setups requiring the TFX form factor. It is TFX 12 V v.2.31 compliant and Pentium 4 processor ready. 80 PLUS® Bronze certified, therefore it is highly efficient.
Specifications
| Type | Intel TFX 12 V v2.31 |
|---|---|
| Maximum Power | 300 W |
| Fans | 1 x 80 mm double ball bearing fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 1 x 4+4-Pin |
| Max PSU Length | 140 mm |
| Efficiency | > 85% |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 100A max (Inrush current, cold start) |
| Output | +3.3V@20A, +5V@20A, +12V1@18A, +12V2@18A, -12V@0.8A, +5VSB@2A |
| MTBF | >100,000 Hours |
| Approvals | CB, UL/cUL, TUV, CCC, BSMI, EAC, CE, FCC, RCM |
