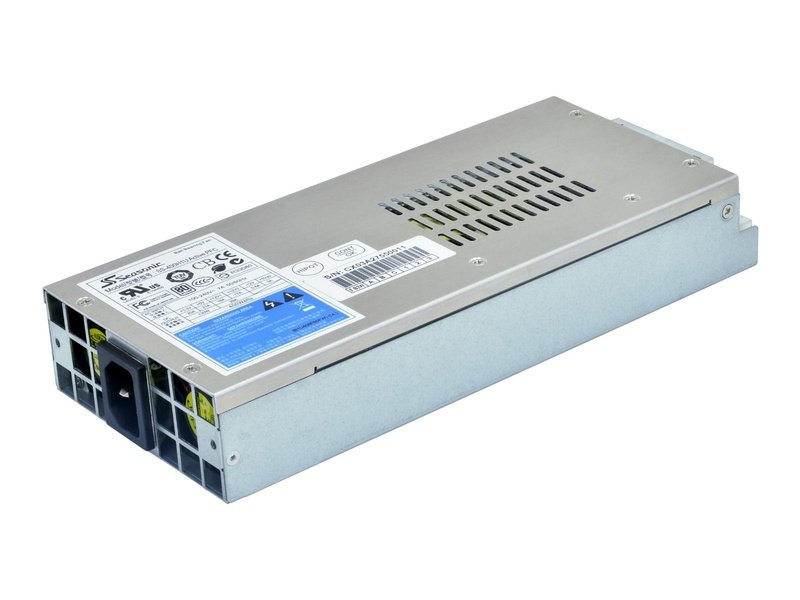

Seasonic 400W Active PFC F0 1U Server Power Supply (SS-400H1U)

SeasonicSKU: PSUSEA400H1U80P

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$194.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Overview

This Seasonic industrial power supply is 80 PLUS® efficiency rated and it features a high reliability ball bearing fan. Fully modular cables and easy-swap connectors add a new dimension to its versatility, while the Seasonic Smart and Silent Fan Control (S2FC) system make it a silent performer. These units comply with the latest PFC harmonics (IEC1000-3-2 and EN61000-3-2 standards) and are protected against short circuit, over voltage and over power. On the 3.3 V rail there is no minimum load requirement for this unit to work properly.

Specifications

Specifications
Input frequency 50 / 60 Hz
Efficiency (220 V AC - 240 V AC, full load) 83 % (typical)
Efficiency (100 V AC - 120 V AC, full load) 80 % (typical)
Dielectric withstand, input to frame/ground 1800 VAC, 1 sec
Dielectric withstand, input to output 1800 VAC, 1 sec
Line regulation ± 1 % (typical)
Load regulation ± 5 % (typical)
Cross regulation ± 5 % (typical)
MTBF, full load @ 25 °C ambient (excl. DC fan) > 100,000 hours
Active Power Factor Correction 99 % (typical)


DC Outputs
+3.3 V +5 V +12 Combined -12 V +5 Vsb Total continuous power Input Type
20 A 21 A 29 A 0.8 A 3 A 400 W 100–240 VAC
130 W (max.) 348 W 9.6 W 15 W
