USB C Multiport Adapter 4K 60Hz HDMI Video, 3 Port 5Gbps USB-A Hub, 100W USB Power Delivery Pass-Through/GbE/SD/MicroSD, 12"/30cm Cable, Travel Laptop Docking Station
Portable Docking Station | Mac & Windows® | 4K 60Hz | GbE | Thunderbolt™ 3 & 4 Compatible

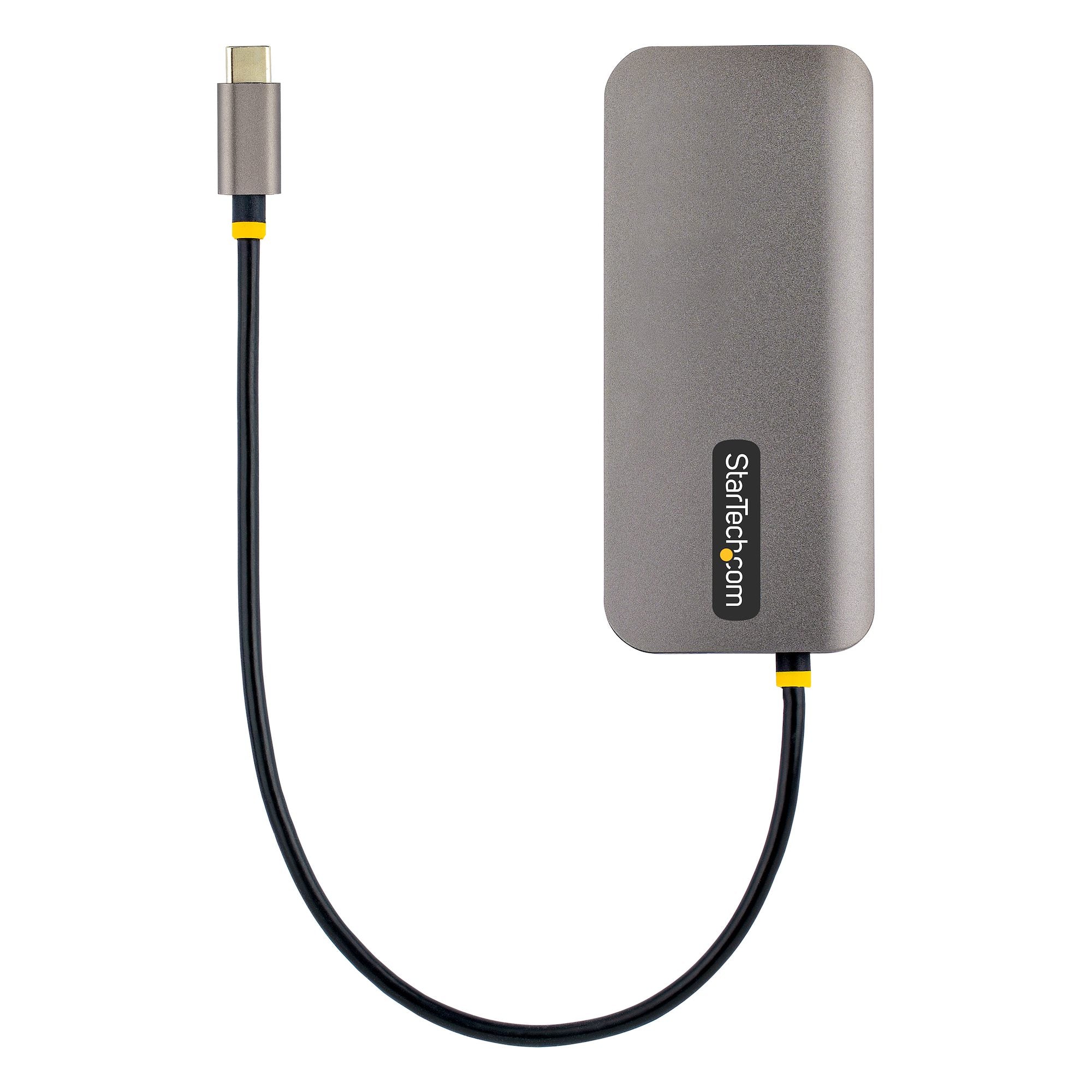

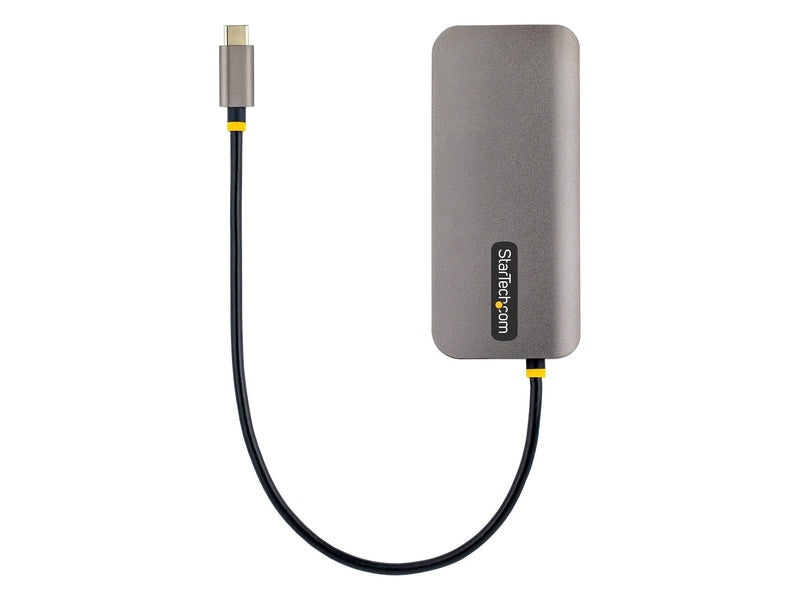

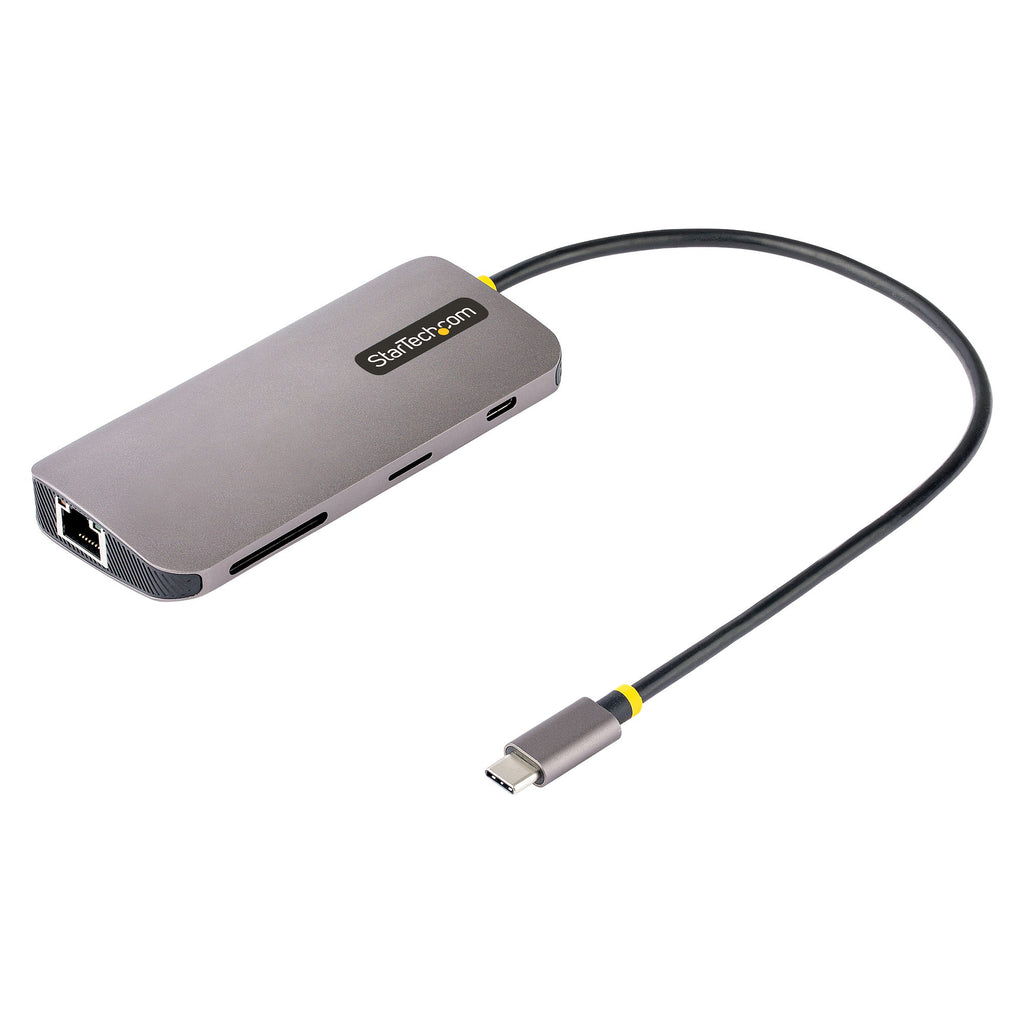

This USB-C™ Multiport Adapter with DP 1.4 Alt Mode supports 4K 60Hz HDMI® (HDR) and turns your MacBook, Dell XPS, or other USB-C laptop or tablet into a workstation, anywhere you go. The USB Type-C™ Multiport Adapter features a 4K HDMI video output, three USB 3.2 Gen 1 Type-A (5Gbps) ports, SD and MicroSD card readers and a Gigabit Ethernet port, all through one connection to your laptop's USB-C, USB4, or Thunderbolt 3/4™ port. Plus, it offers advanced charging and flexibility through a shared USB-C Power Delivery 3.0 and Data port which can be used to connect peripherals, with USB 2.0 transfer speeds (480Mbps), when a power source is not connected. The Multiport Adapter features an extra-long attached 12-inch (30 cm) host cable - for an extended reach, to offer more set up flexibility.
Enhance Productivity
The portable docking station enables you to connect a 4K 60Hz HDMI monitor (4096 x 2160p), or an ultrawide monitor, to your laptop, to create a powerful workstation.
Connect Your Devices

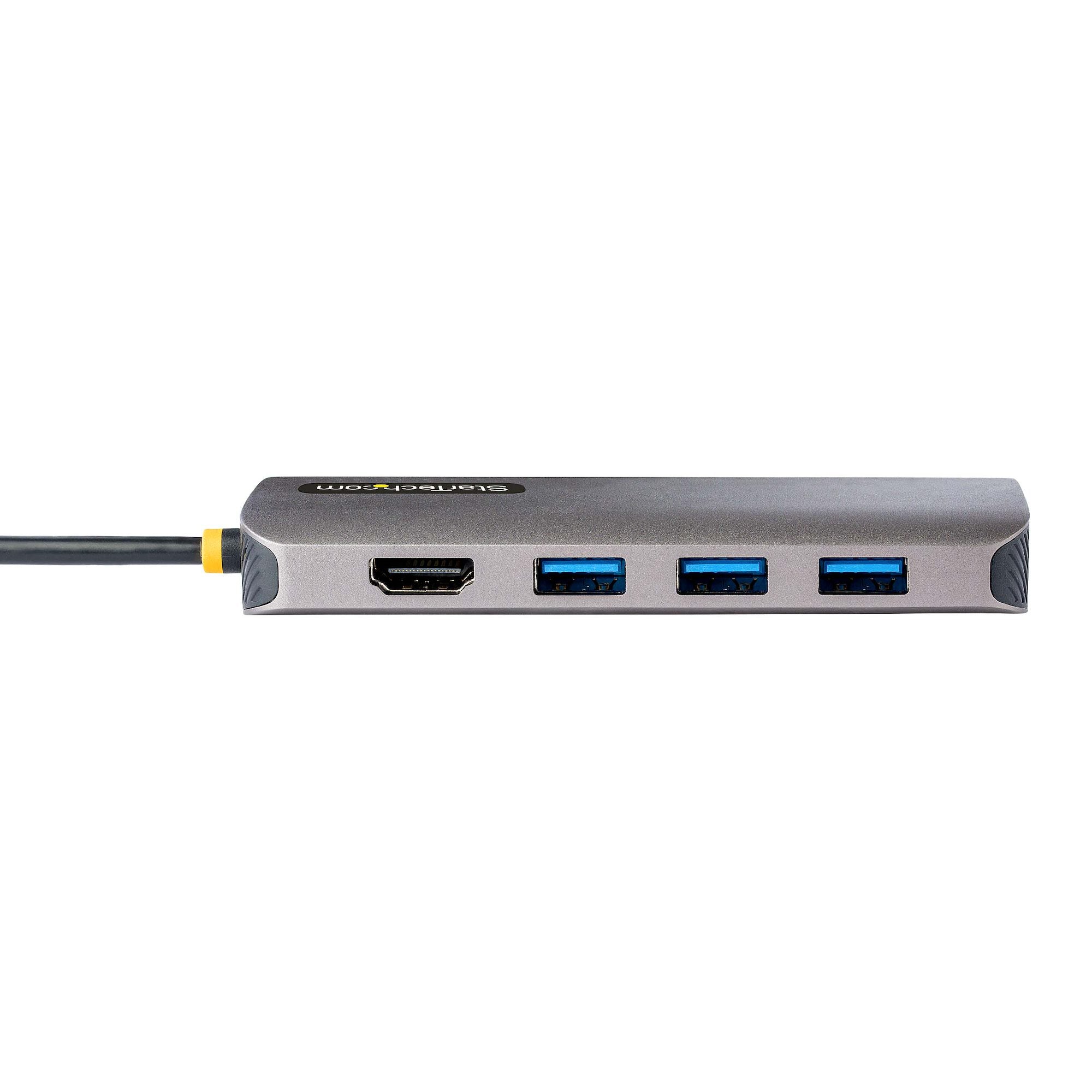

The USB-C to USB 3.2 Gen 1 hub features three USB-A (5Gbps) ports for connecting your USB devices.
Multiple Use Cases
A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom, and is portable enough to be carried in your bag or backpack for mobile use. This lightweight USB-C Adapter can operate with bus-power alone, or use the USB-C port to connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging. Alternatively, use the USB-C port to connect additional peripherals at USB 2.0 speeds.
Built-In SD and MicroSD Card Readers

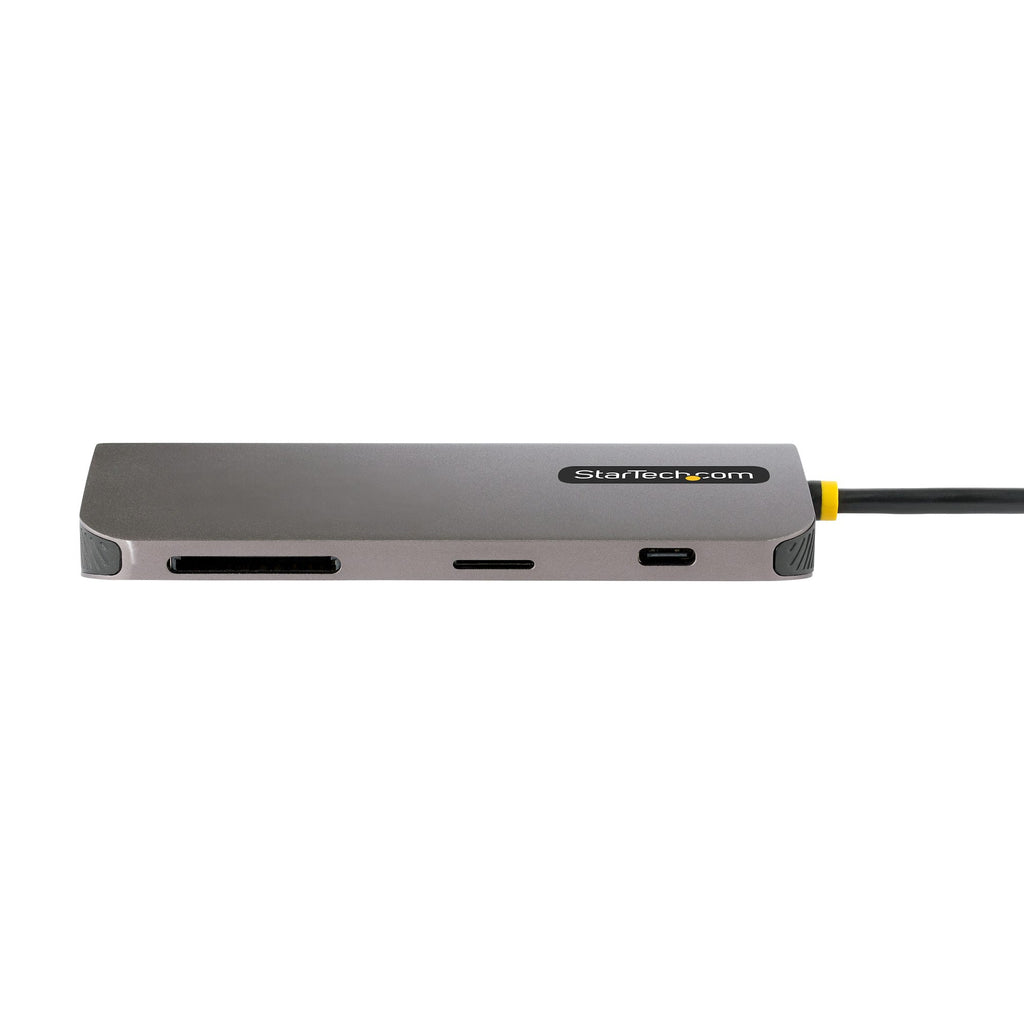

Access your multimedia content with ease. The Multiport Adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.
Charge Your Laptop
With support for USB Power Delivery 3.0 pass through (up to 100W), the USB Type-C Multiport Adapter allows you to power and charge your laptop, when connected to a USB-C power source. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
Reliable Network Connectivity

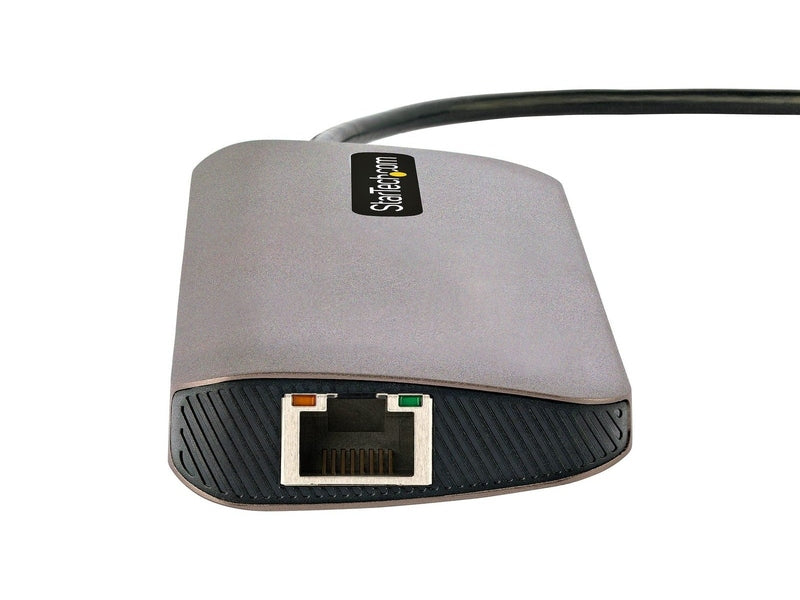

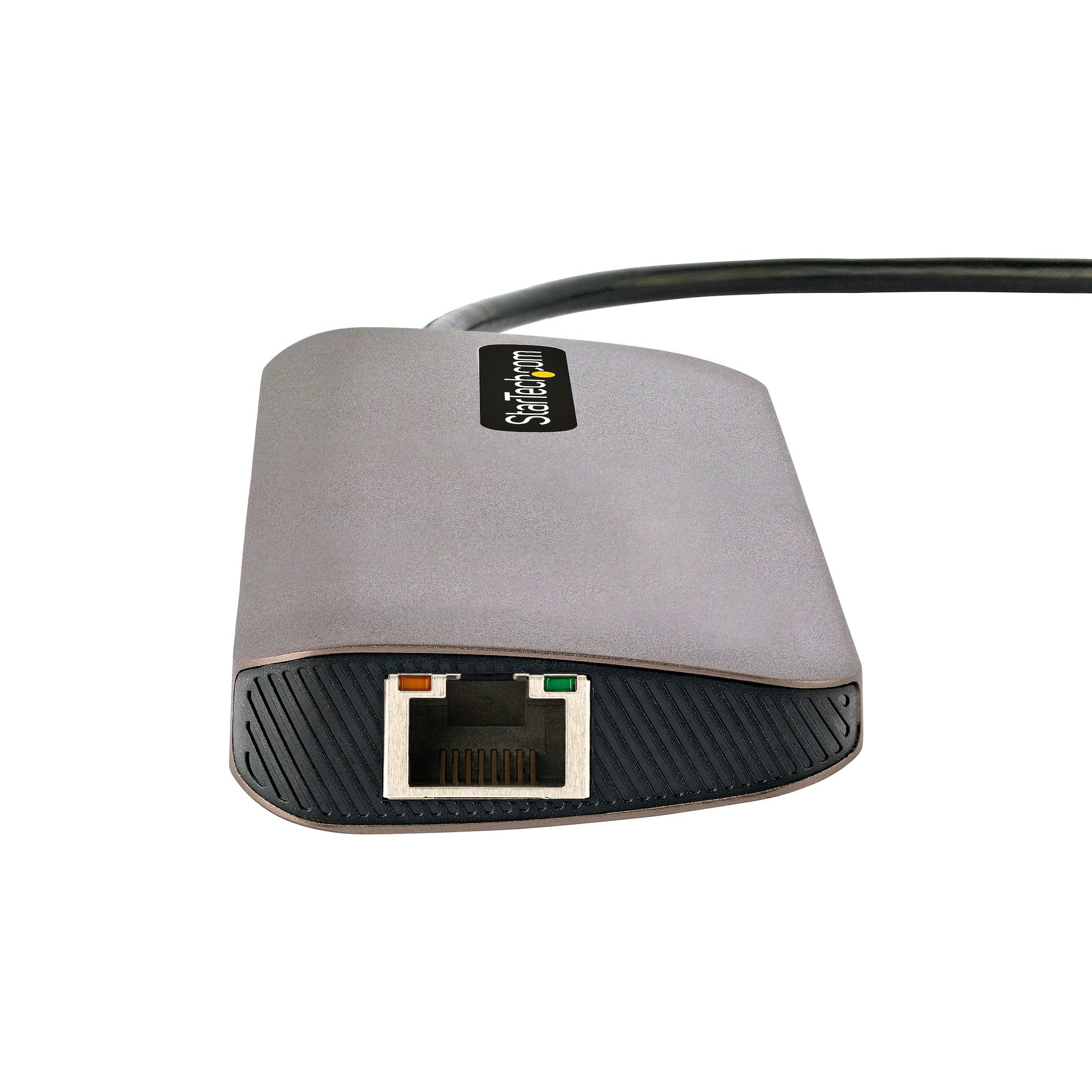

The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and WoL.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- MAC Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
USB C Multiport Adapter 4K 60Hz HDMI Video, 3 Port 5Gbps USB-A Hub, 100W USB Power Delivery Pass-Through/GbE/SD/MicroSD, 12"/30cm Cable, Travel Laptop Docking Station
Portable Docking Station | Mac & Windows® | 4K 60Hz | GbE | Thunderbolt™ 3 & 4 Compatible
This USB-C™ Multiport Adapter with DP 1.4 Alt Mode supports 4K 60Hz HDMI® (HDR) and turns your MacBook, Dell XPS, or other USB-C laptop or tablet into a workstation, anywhere you go. The USB Type-C™ Multiport Adapter features a 4K HDMI video output, three USB 3.2 Gen 1 Type-A (5Gbps) ports, SD and MicroSD card readers and a Gigabit Ethernet port, all through one connection to your laptop's USB-C, USB4, or Thunderbolt 3/4™ port. Plus, it offers advanced charging and flexibility through a shared USB-C Power Delivery 3.0 and Data port which can be used to connect peripherals, with USB 2.0 transfer speeds (480Mbps), when a power source is not connected. The Multiport Adapter features an extra-long attached 12-inch (30 cm) host cable - for an extended reach, to offer more set up flexibility.
Enhance Productivity
The portable docking station enables you to connect a 4K 60Hz HDMI monitor (4096 x 2160p), or an ultrawide monitor, to your laptop, to create a powerful workstation.
DP Alt Mode Required |
Maximum Resolution |
DP 1.2 Alternate Mode | Up to 4K 30Hz |
DP 1.4 Alternate Mode | Up to 4K 60Hz |
Connect Your Devices
The USB-C to USB 3.2 Gen 1 hub features three USB-A (5Gbps) ports for connecting your USB devices.
Multiple Use Cases
A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom, and is portable enough to be carried in your bag or backpack for mobile use. This lightweight USB-C Adapter can operate with bus-power alone, or use the USB-C port to connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging. Alternatively, use the USB-C port to connect additional peripherals at USB 2.0 speeds.
Built-In SD and MicroSD Card Readers
Access your multimedia content with ease. The Multiport Adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.
Charge Your Laptop
With support for USB Power Delivery 3.0 pass through (up to 100W), the USB Type-C Multiport Adapter allows you to power and charge your laptop, when connected to a USB-C power source. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and WoL.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- MAC Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
USB-C Multiport Adapter Specifications | |
---|---|
Package Information | |
Package Quantity | 1 |
Package Length | 5.9 in [14.9 cm] |
Package Width | 6.9 in [17.5 cm] |
Package Height | 1.2 in [3.1 cm] |
Shipping Weight | 4.5 oz [128.0 g] |
Connector(s) | |
External Ports | 1 × HDMI (19 pin) 3 × USB 3.2 Type-A (Gen 1, 5Gbps) 1 × SD Slot 1 × MicroSD Slot 1 × RJ-45 1 × USB Type-C (Power Delivery + Data, 480Mbps) |
Host Connectors | 1 × USB 3.2 Type-C (Gen 1, 5Gbps) |
Environmental | |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | -10°C to 70°C (14°F to 185°F) |
Humidity | 5% – 90% RH (Non-condensing) |
Hardware | |
4K Support | Yes |
Fast-Charge Port(s) | No |
Displays Supported | 1 |
Interface | USB 3.2 Gen 1 |
Bus Type | USB-C |
Industry Standards | HDMI 2.0 HDR10 DisplayPort 1.4 USB 3.2 Gen 1 (5Gbps) USB Power Delivery Specification Rev. 3.0 IEEE 802.3 / 802.3u / 802.3ab |
Chipset ID | VIA VL102 VIA VL817C0 Realtek RTL8153B Realtek RTD2172A Genesys Logic GL823K Terminus Tech FE1.1S |
Performance | |
Wake On LAN | Yes |
Maximum Data Transfer Rate | 5Gbps |
Maximum Digital Resolutions |
DisplayPort 1.4: 4096×2160 @ 60Hz (16:9) 3440×1440 @ 60Hz (21:9) DisplayPort 1.2: 4096×2160 @ 30Hz (16:9) 3440×1440 @ 30Hz (21:9) |
Type and Rate | USB 3.2 Gen 1 – 5 Gbit/s |
UASP Support | Yes |
Compatible Networks | 10/100/1000 Mbps |
PXE | Yes |
Full Duplex Support | Yes |
Physical Characteristics | |
Color | Space Gray |
Material | Aluminum |
Cable Length | 10.8 in [27.5 cm] |
Product Length | 16.8 in [42.7 cm] |
Product Width | 2.0 in [5 cm] |
Product Height | 0.6 in [1.5 cm] |
Product Weight | 2.5 oz [72 g] |
Power | |
Power Delivery | 100W |
Output Voltage | 5V DC |
Power Consumption | 15W |
Software | |
OS Compatibility | Windows® 7–11, 11 ARM macOS 10.11–15.0 iPadOS Android™ Linux® 3.5.x and up (LTS only) Chrome OS™ |
Special Notes / Requirements | |
System and Cable Requirements | Host device with USB-C port supporting Power Delivery 2.0 and DP Alt Mode Optional: USB-C power adapter |
Note | Not all USB-C ports support full functionality—verify PD and DP Alt Mode support PD passthrough disabled if host lacks Power Delivery support 4K-capable display and computer required for UHD resolution USB 3.2 Gen 1 (5Gbps) also known as USB 3.1 Gen 1 and USB 3.0 Charging behavior may vary—consult manufacturer for Power Delivery specs |
What's in the Box | |
Included Items | 1 × USB-C Multiport Adapter 1 × Quick-Start Guide |
