StarTech 0.55M USB-C Multiport Adapter,100W, USB(1), 4K HDMI(2), RJ45(1), SD/MMC, 3Yr

StarTechSKU: 102B-USBC-MULTIPORT

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$200.00

Estimate shipping

Description

Overview

USB C Docking Station, Dual 4K 60Hz HDMI compatible with MacBook Pro (M1/M2/M3/M4) and Windows, USB-A/USB-C 10Gbps Hub, 100W Power Delivery, GbE, SD, 22in/56cm Cable
USB-C Dock | 2-Port USB 3.2 Gen 2 10Gbps Hub (1x USB-A, 1x USB-C) | Dual 4K 60HZ HDMI | 100W PD Passthrough

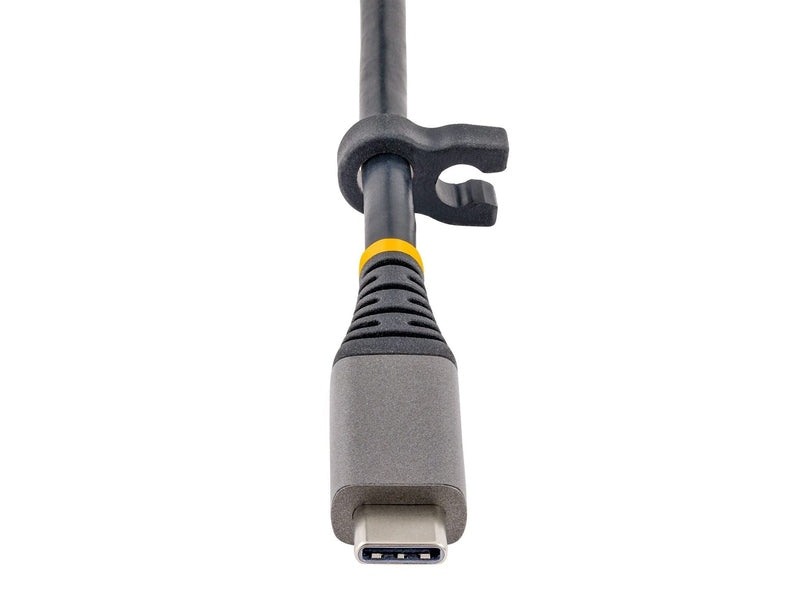

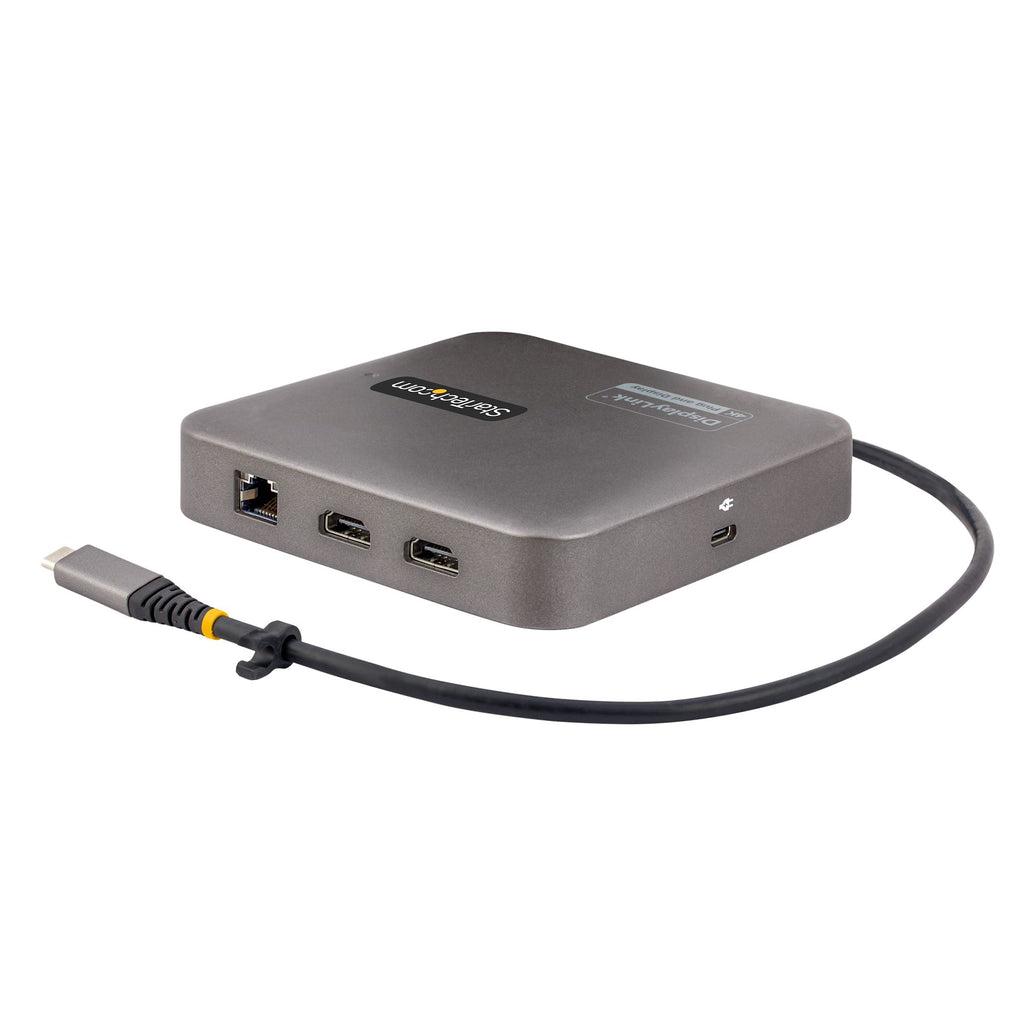

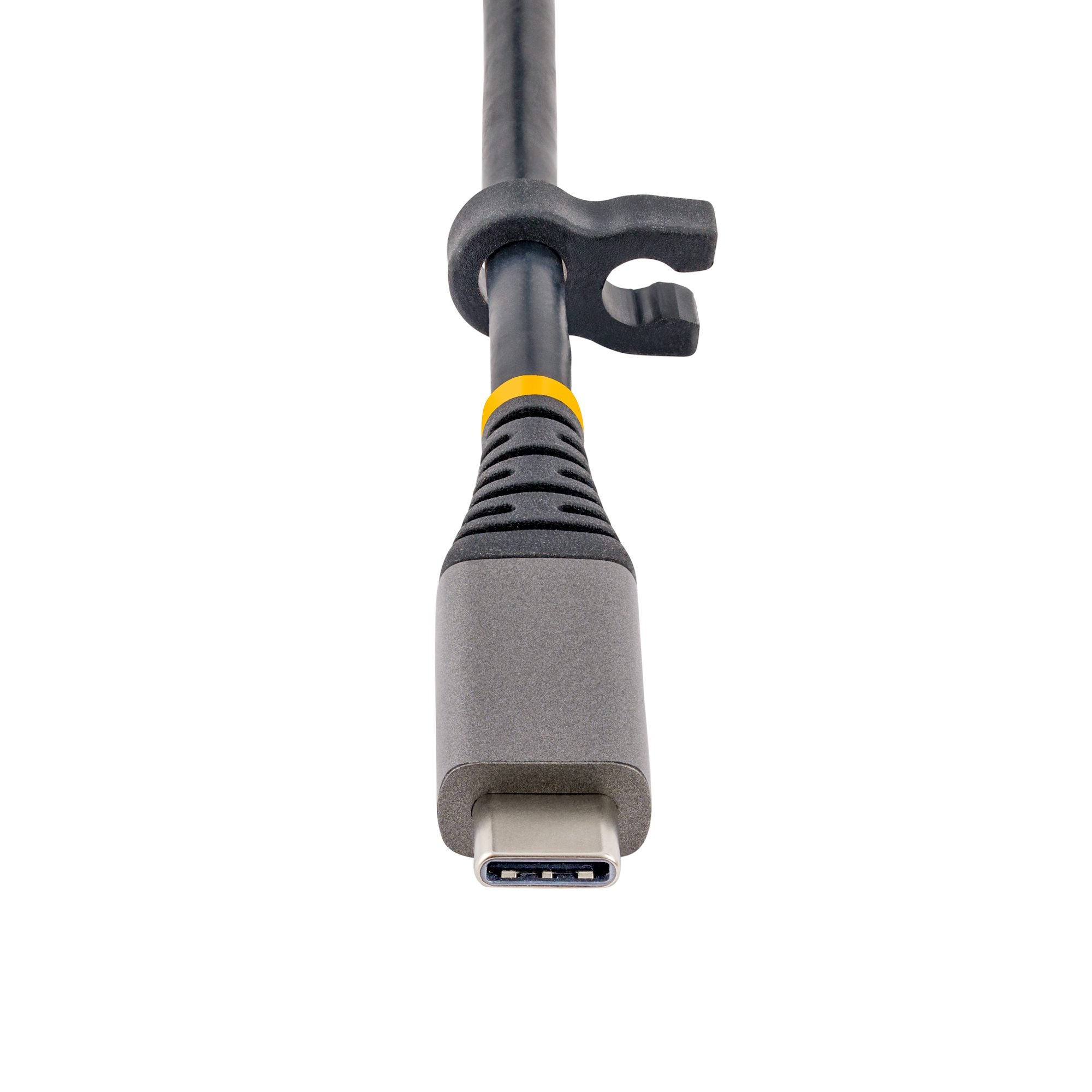

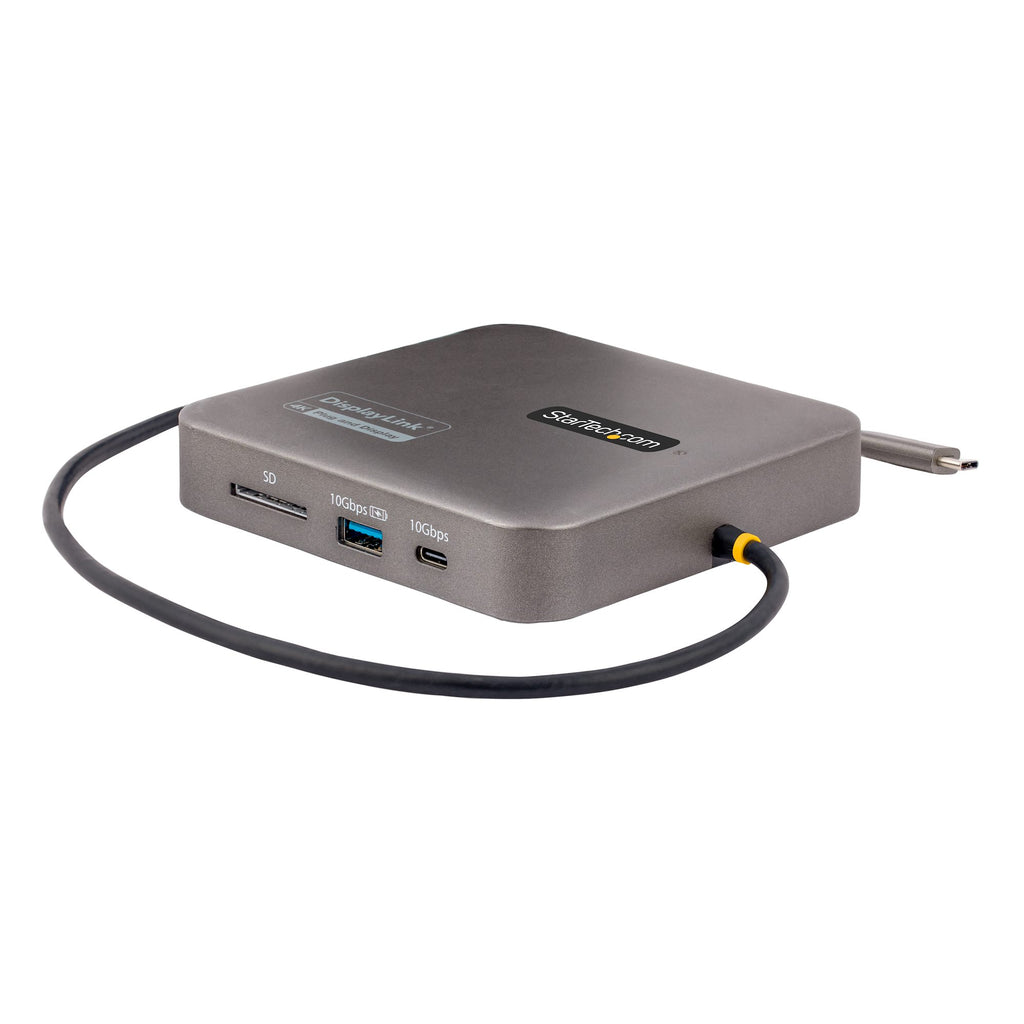

This USB-C Mini Dock / Multiport Adapter supports up to dual 4K 60Hz HDMI 2.0 converting your Dell XPS, MacBook or other USB-C laptop or tablet into a workstation, anywhere you go. The USB Type-C™ Multiport Adapter features 2x HDMI video outputs, a 2-Port USB 3.2 Gen 2 (10 Gbps) Hub (1x USB-A with B.C 1.2 charging, and 1x USB-C), an SD card reader, and Gigabit Ethernet. The adapter connects to your host computer's USB-C, USB4, or Thunderbolt 3/4™ port. Charge your host laptop and any attached USB peripherals by connecting the host laptop's power supply to the dedicated USB Power Delivery (PD) 3.0 port. The Multiport Adapter features an extra-long attached 22-inch (55 cm) host cable - for an extended reach, to offer more set up flexibility.

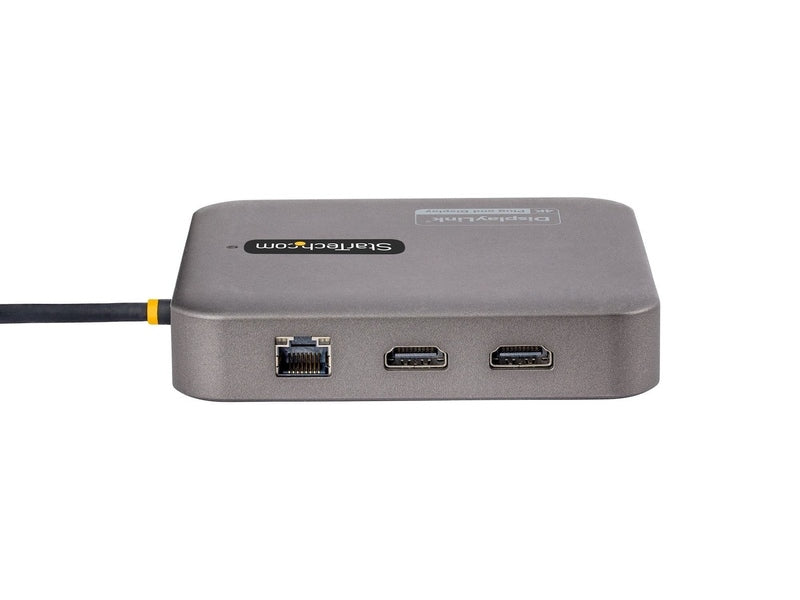

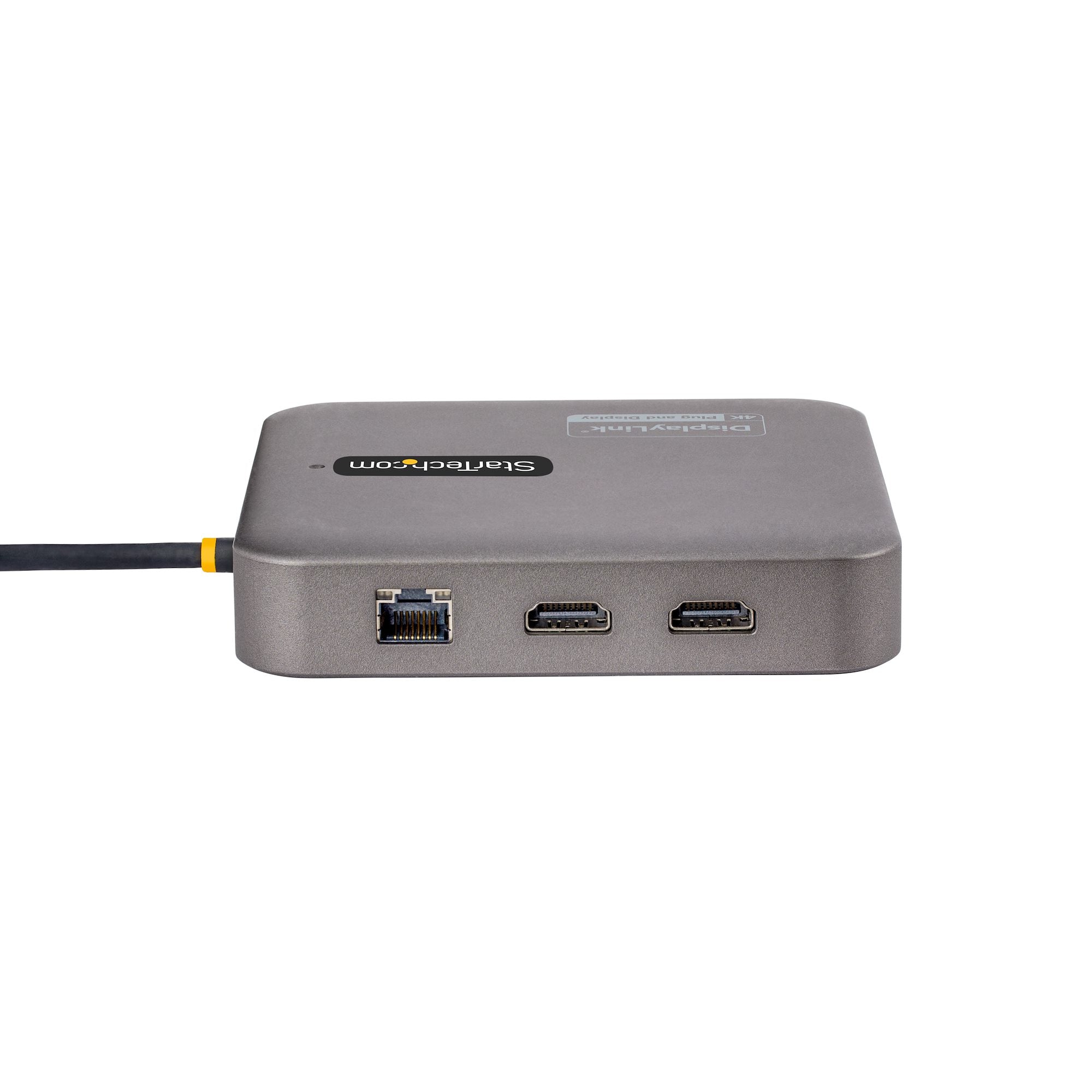

DisplayLink Certified Dual 4K 60Hz HDMI Video
The Mini Docking Station is DisplayLink Certified and supports high-performance dual-monitor 4K 60Hz video resolution with an integrated DisplayLink DL-6950 Controller. Multi-monitor performance makes this dock ideal for high-resolution applications such as video editing and graphic design. The Multiport Adapter supports ultrawide 21:9 aspect ratios, and lower resolutions like 1920x1200/1080p.

Connect Your Devices

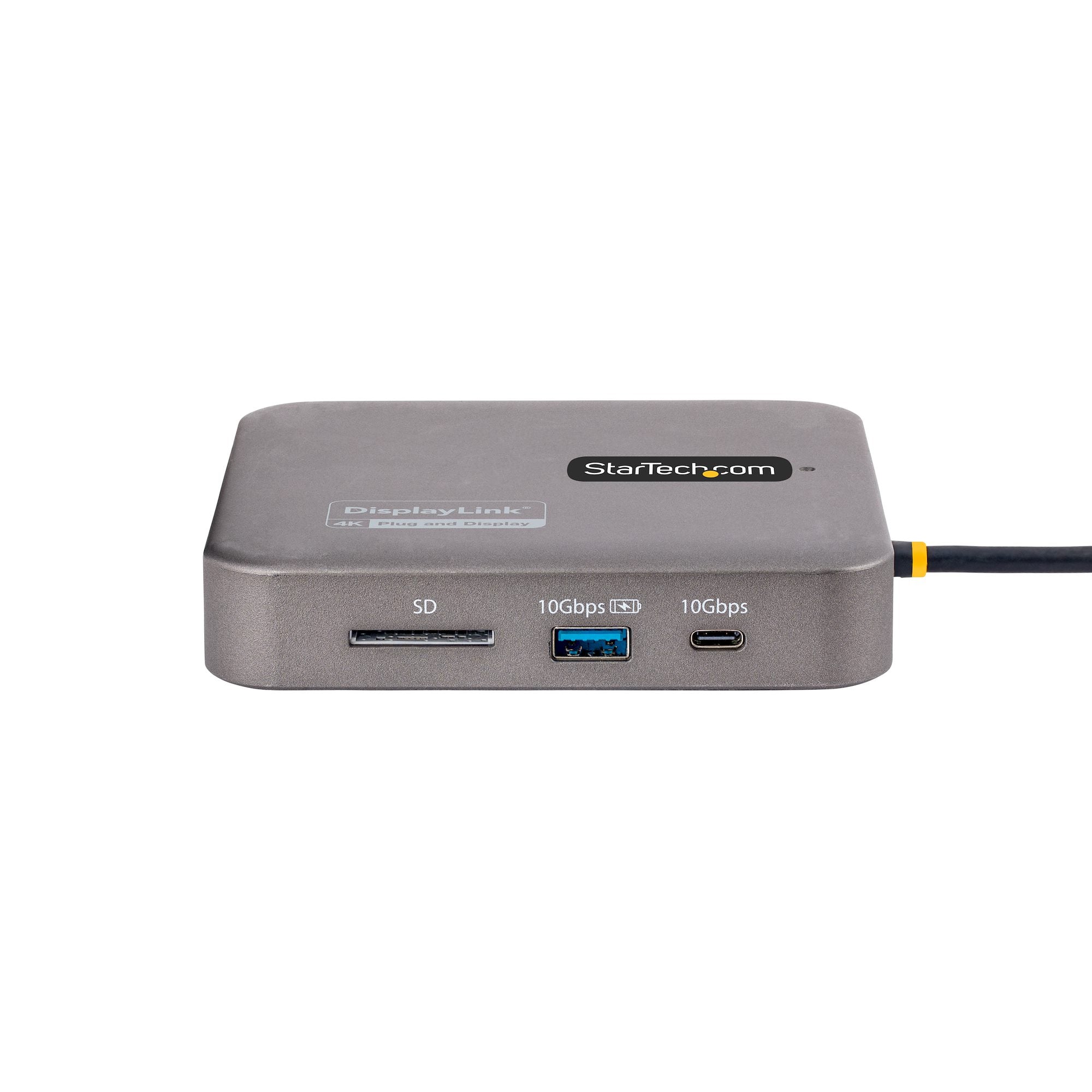

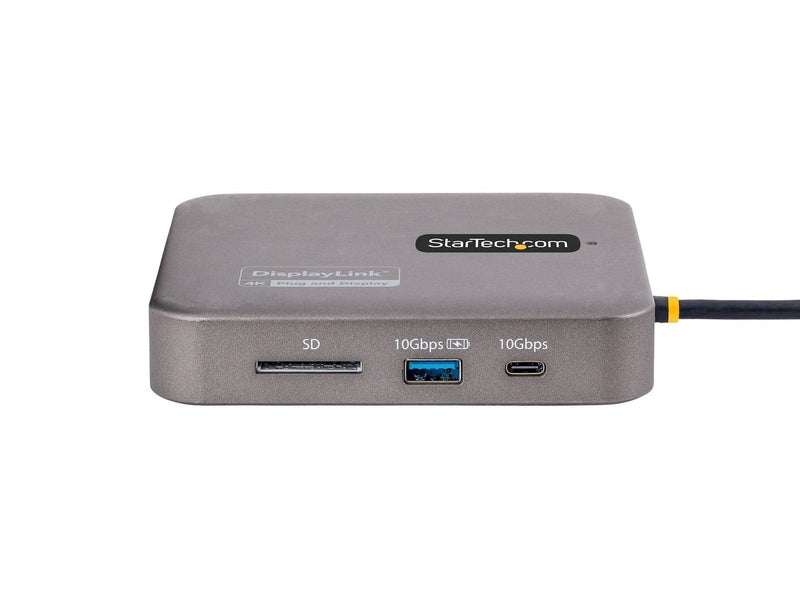

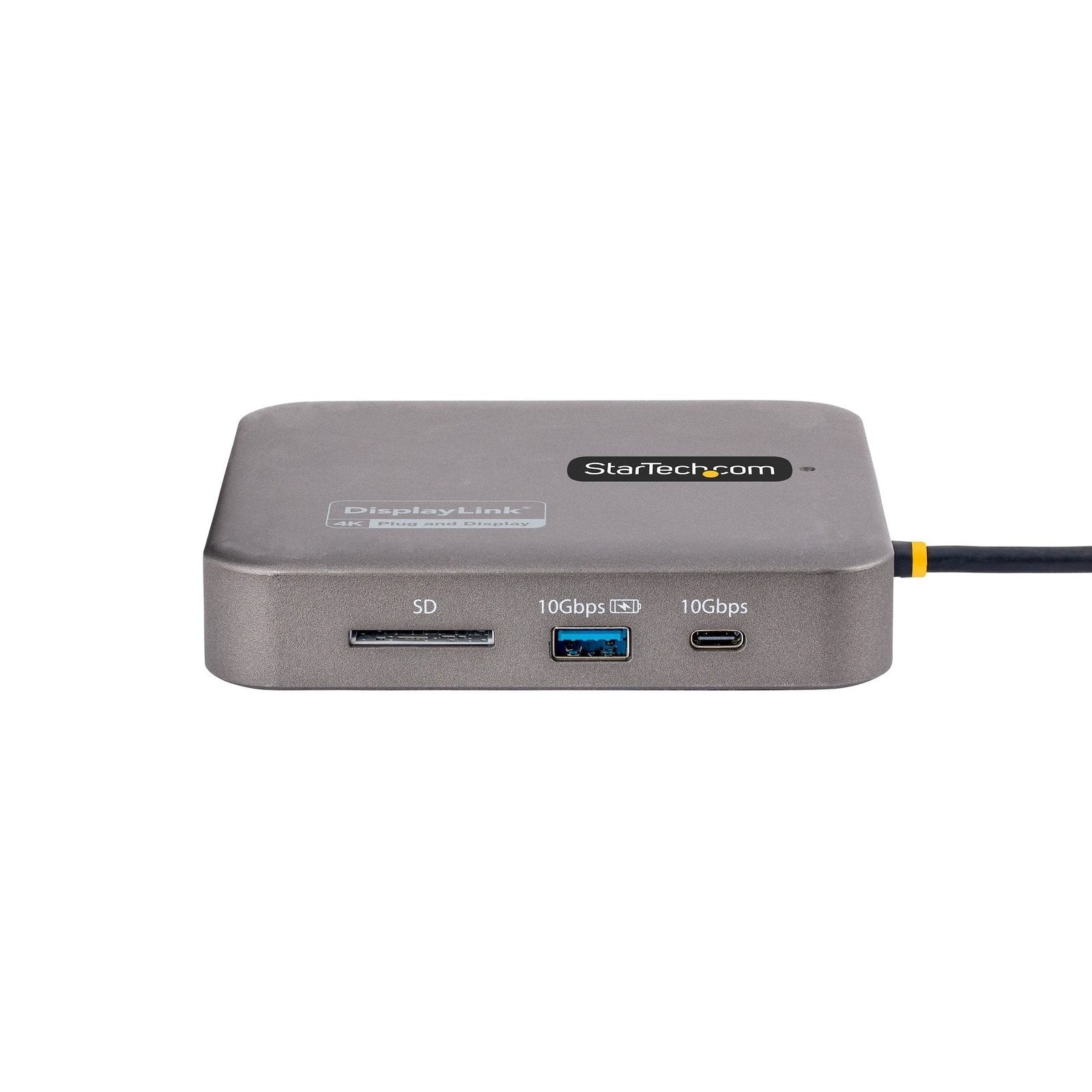

The USB-C to USB 3.2 Gen 2 hub features two downstream 10 Gbps USB ports, including 1x USB-C data port for connecting your USB-C peripherals, and 1x USB-A data + 7.5W BC 1.2 charging port for connecting and charging USB-A peripherals.

Multiple Use Cases
A versatile dock solution for use at your office, home office, hotel, or in the boardroom, and is portable enough to be carried in your bag or backpack for mobile use. This lightweight USB-C Adapter can operate with bus-power alone, or use the dedicated USB-C Power Delivery port to connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.

Built-In SD Card Readers
Access your multimedia content with ease. The Multiport Adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards.

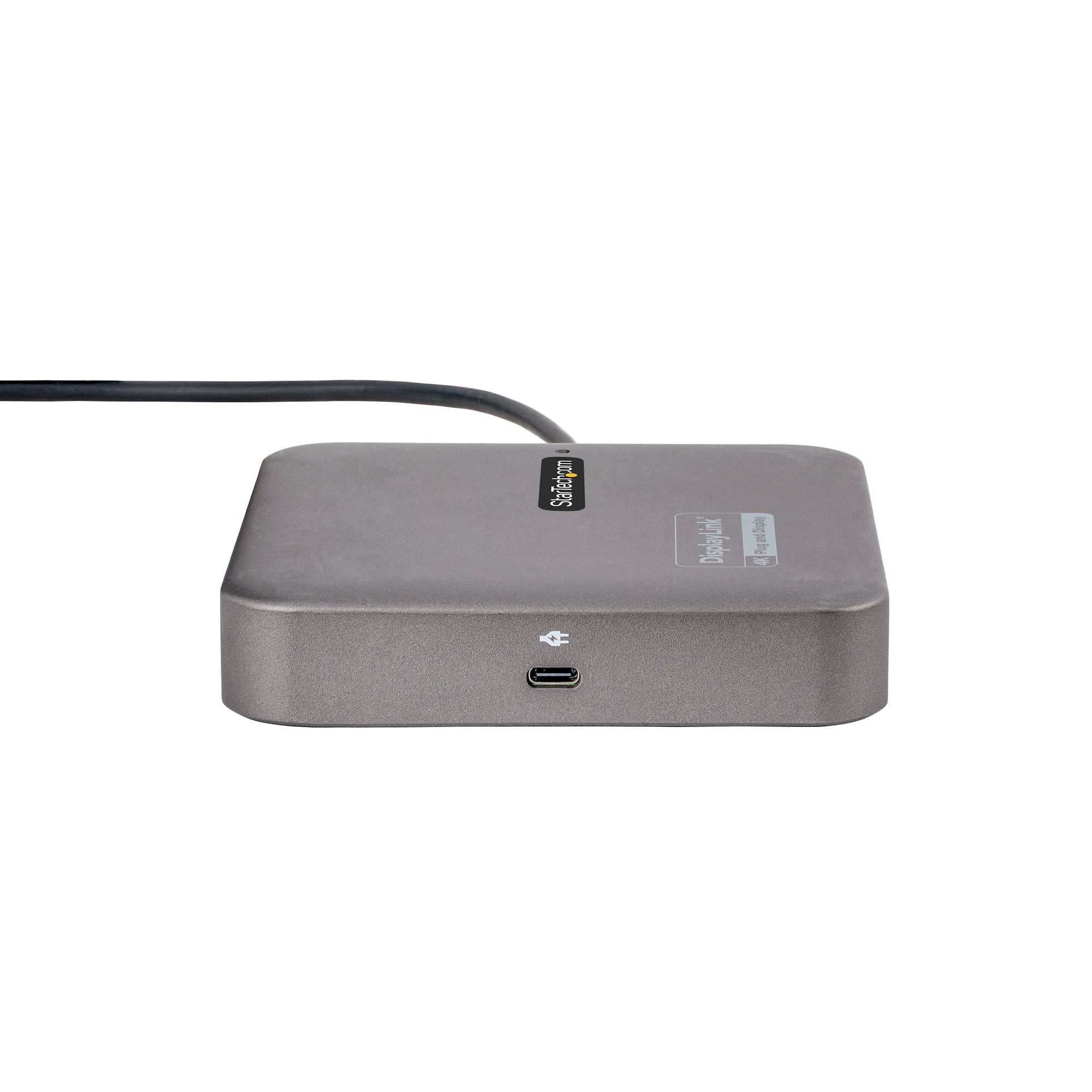

Charge Your Laptop

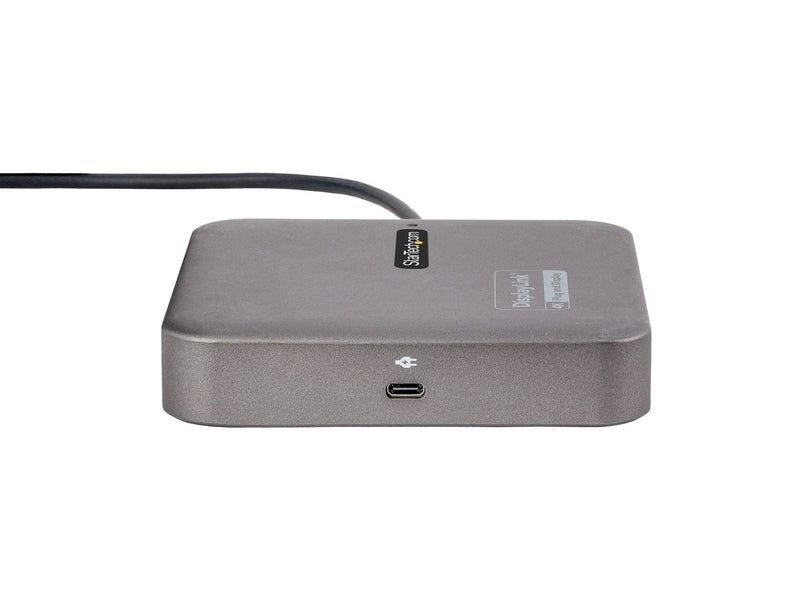

With support for USB Power Delivery 3.0 pass through (up to 82W for charging), the USB Type-C Multiport Adapter allows you to power and charge your laptop, when connected to a USB-C power source. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power). This allows you to charge the connected host device, as well as any devices connected to the USB-A BC 1.2 charging port.

Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and WoL.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

- Advanced Window Layout Utility: To set up and save custom window layouts.
- MAC Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

USB-C Multifunction Adapter Specifications
Package Information
Package Quantity 1
Package Height 1.8 in [4.6 cm]
Package Length 6.7 in [17.1 cm]
Package Width 5.4 in [13.8 cm]
Shipping Weight 11.2 oz [316.0 g]
Connector(s)
External Ports 2 × HDMI (19 pin)
1 × USB 3.2 Type-C (Gen 2, 10Gbps)
1 × USB 3.2 Type-A (Gen 2, 10Gbps, 7.5W Power)
1 × SD / MMC Slot
1 × RJ-45
1 × USB Type-C (Power Delivery Only)
Host Connectors 1 × USB 3.2 Type-C (Gen 2, 10Gbps)
Environmental
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -25°C to 65°C (-13°F to 149°F)
Humidity 0–95% RH (Non-condensing)
Hardware
4K Support Yes
Fast-Charge Port(s) No
Displays Supported 2
Interface USB 3.2 Gen 2 – 10 Gbit/s
Bus Type USB-C
Industry Standards HDMI 2.0
USB 3.2 Gen 2 (10Gbps)
USB Power Delivery Specification Rev. 3.0
Chipset ID VIA VL103R-Q4
VIA VL822-Q8
ASMedia ASM1541
Genesys Logic GL3232S
Realtek RTL8211F
DisplayLink DL-6950
Performance
Wake On LAN Yes
Maximum Data Transfer Rate 10Gbps
Maximum Digital Resolutions Dual 4K (4096×2160) @ 60Hz
Type and Rate USB 3.2 Gen 2 – 10 Gbit/s
UASP Support Yes
Compatible Networks 10/100/1000 Mbps
PXE Yes
Full Duplex Support Yes
Maximum Laptop Charging 82W
MTBF 184,713 hours
Physical Characteristics
Color Space Gray
Material Plastic
Cable Length 21.7 in [55 cm]
Product Length 4.7 in [12.0 cm]
Product Width 4.7 in [12.0 cm]
Product Height 1.0 in [2.5 cm]
Product Weight 8.8 oz [250.0 g]
Power
Power Source Bus Powered and Host USB-C Power Adapter
Power Delivery 100W
Output Voltage 5V DC
Power Consumption 18W
Software
OS Compatibility Windows® 7, 8, 8.1, 10, 11, 11 ARM
macOS 10.11–15.0
Android™
Linux® Ubuntu 18.04, 20.04
ChromeOS™
Special Notes / Requirements
System and Cable Requirements Host laptop with USB-C port supporting USB Power Delivery
Optional: USB-C power adapter
Note Not all USB-C ports support full USB Type-C functionality. Power passthrough may not work if host port lacks Power Delivery support.
4K-capable display required for 3840×2160p resolution.
USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2.
Laptop charging requirements may vary—consult your hardware manufacturer.
