Overview

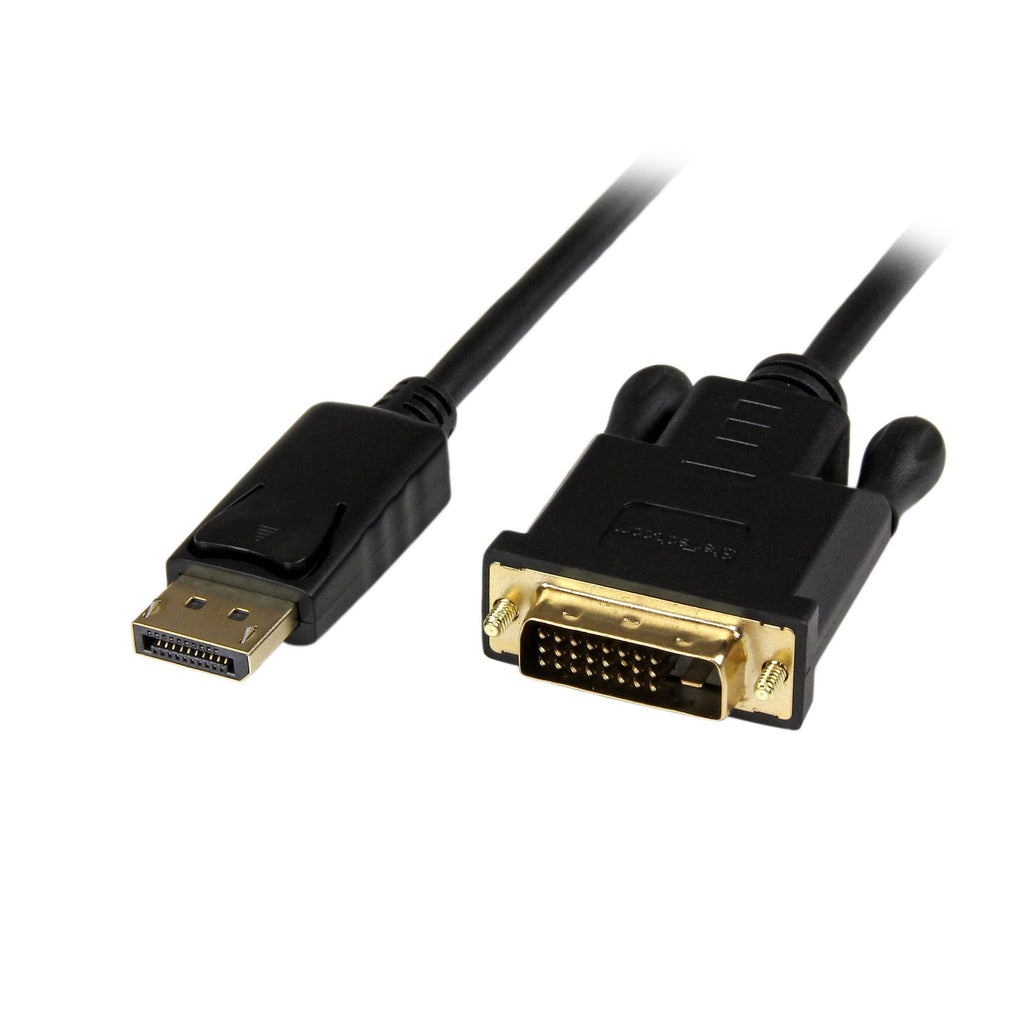

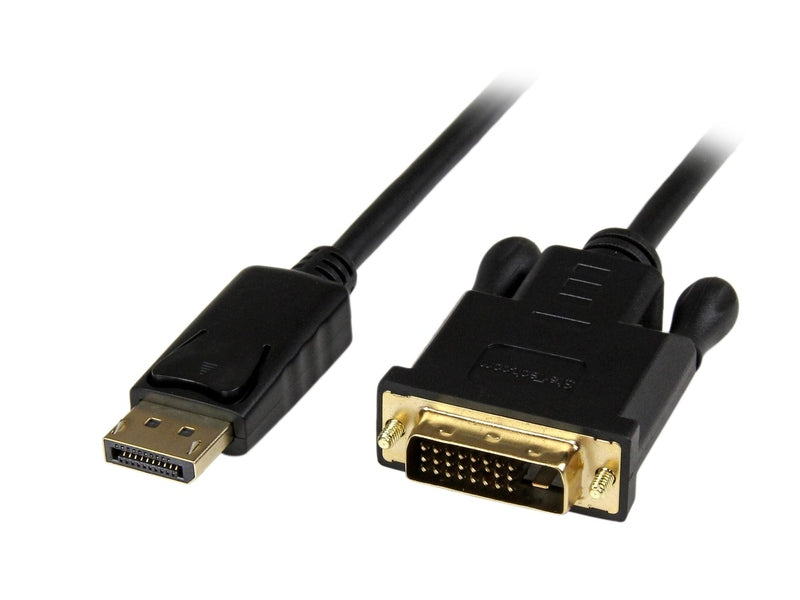

6ft (1.8m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to DVI Adapter Cable - DisplayPort to DVI-D Cable Single Link - DP 1.2 to DVI Monitor Cable Converter
Connect a DisplayPort-equipped PC to a DVI display, with an active 6ft cable
The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older DVI monitor or projector.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
6ft (1.8m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to DVI Adapter Cable - DisplayPort to DVI-D Cable Single Link - DP 1.2 to DVI Monitor Cable Converter
Connect a DisplayPort-equipped PC to a DVI display, with an active 6ft cable
The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older DVI monitor or projector.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
| Active DisplayPort to DVI Adapter Specifications | |
|---|---|
| Connector(s) | |

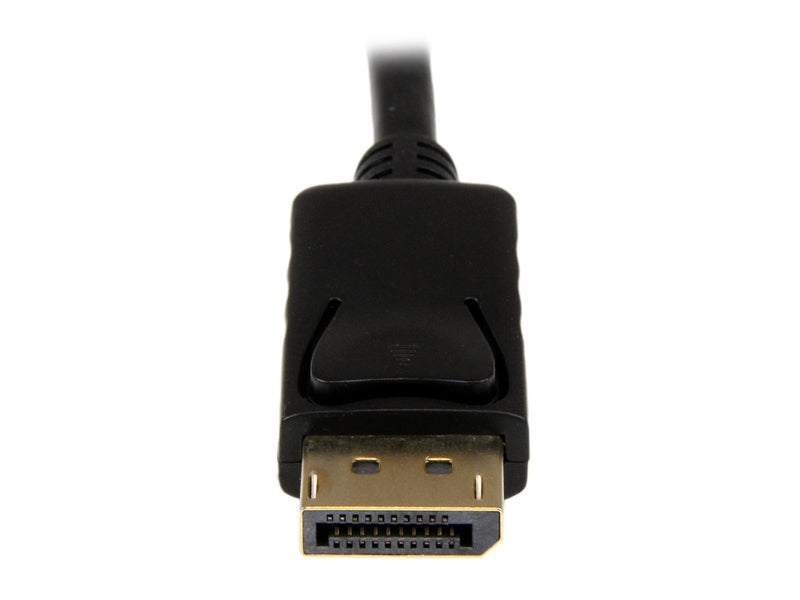

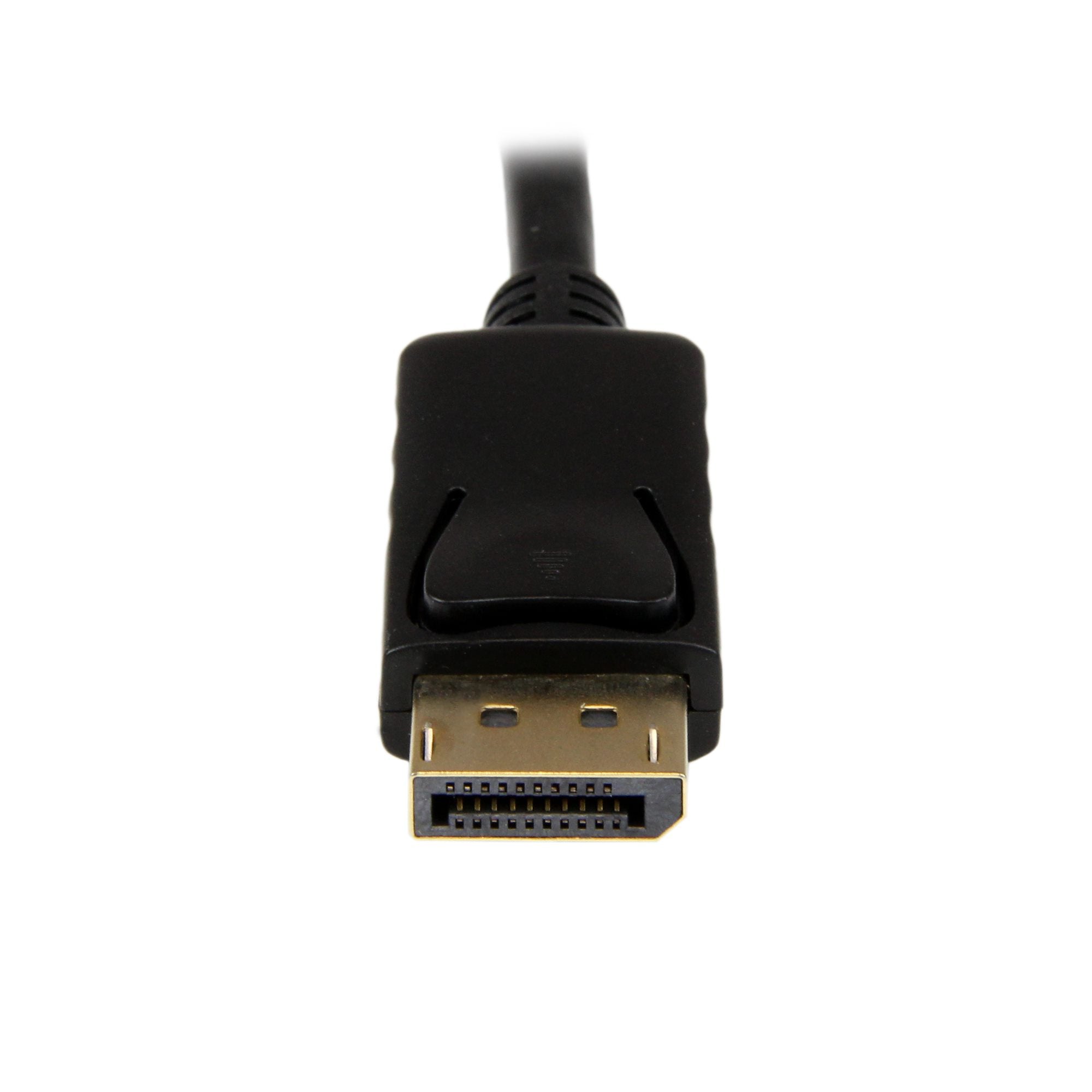

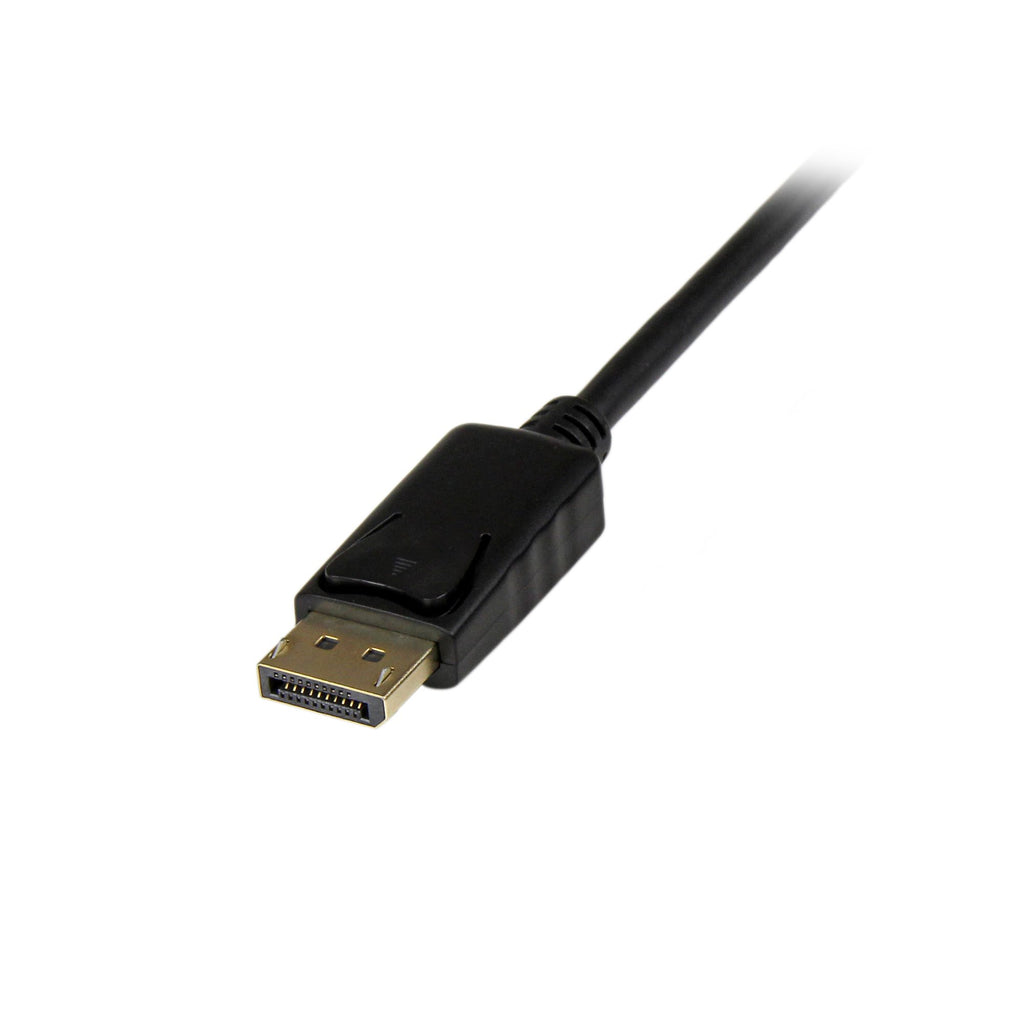

| Connector A | 1 x DisplayPort (20 pin) |

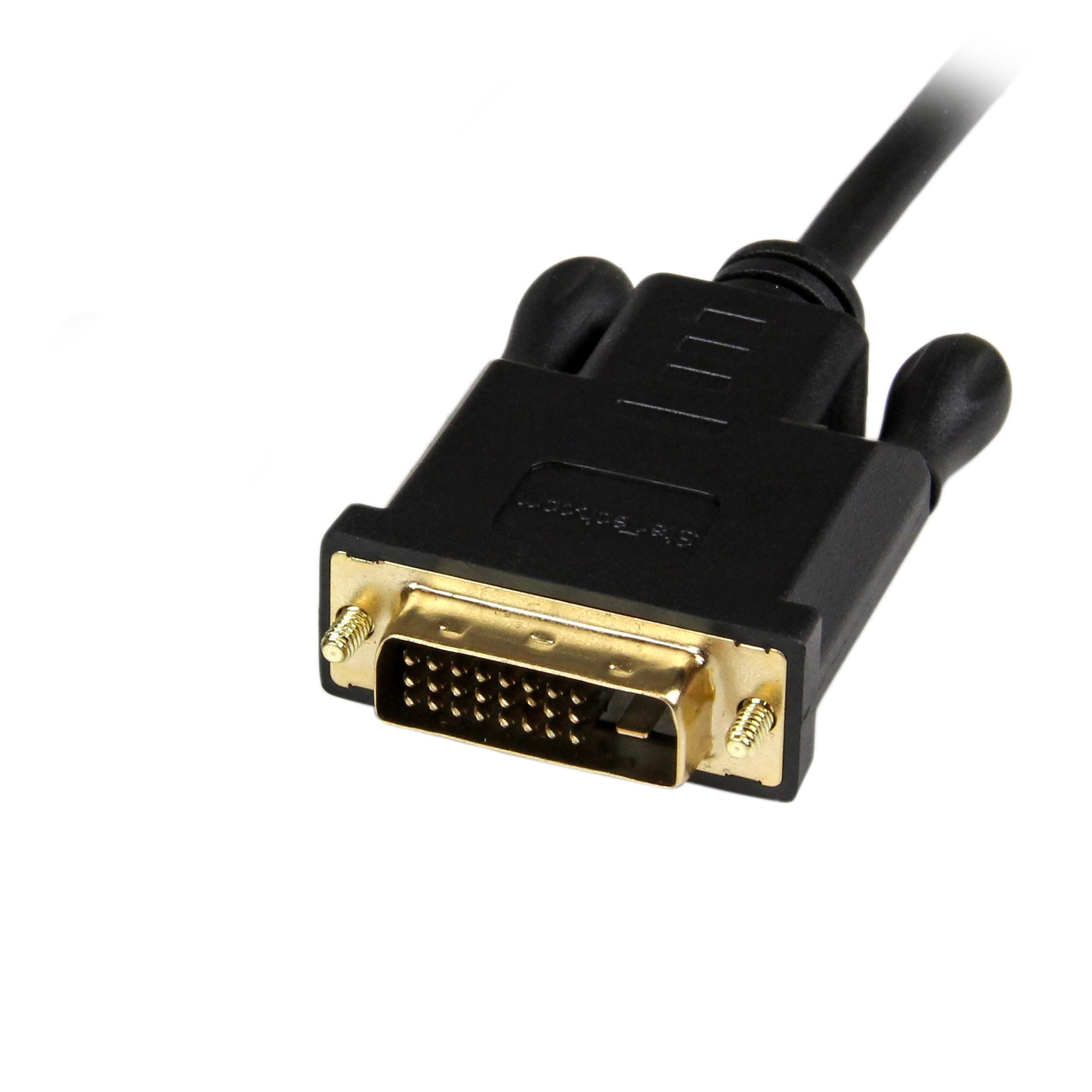

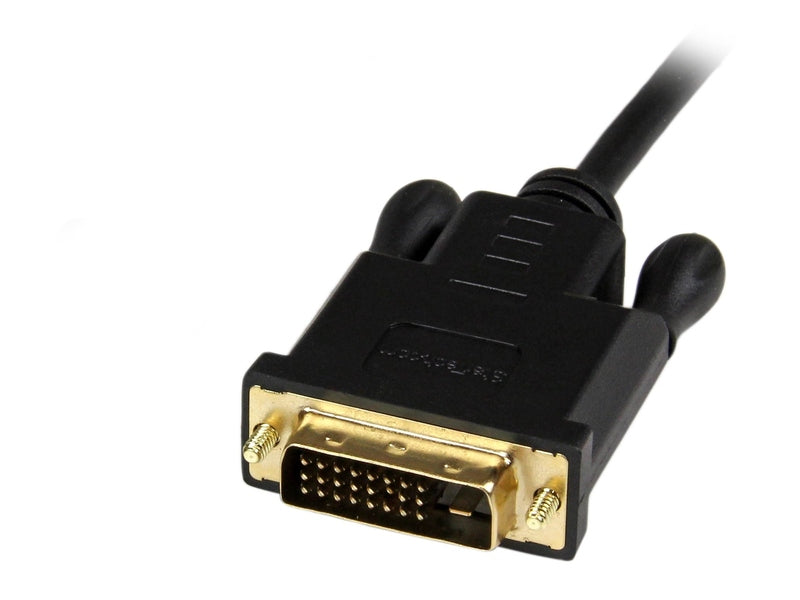

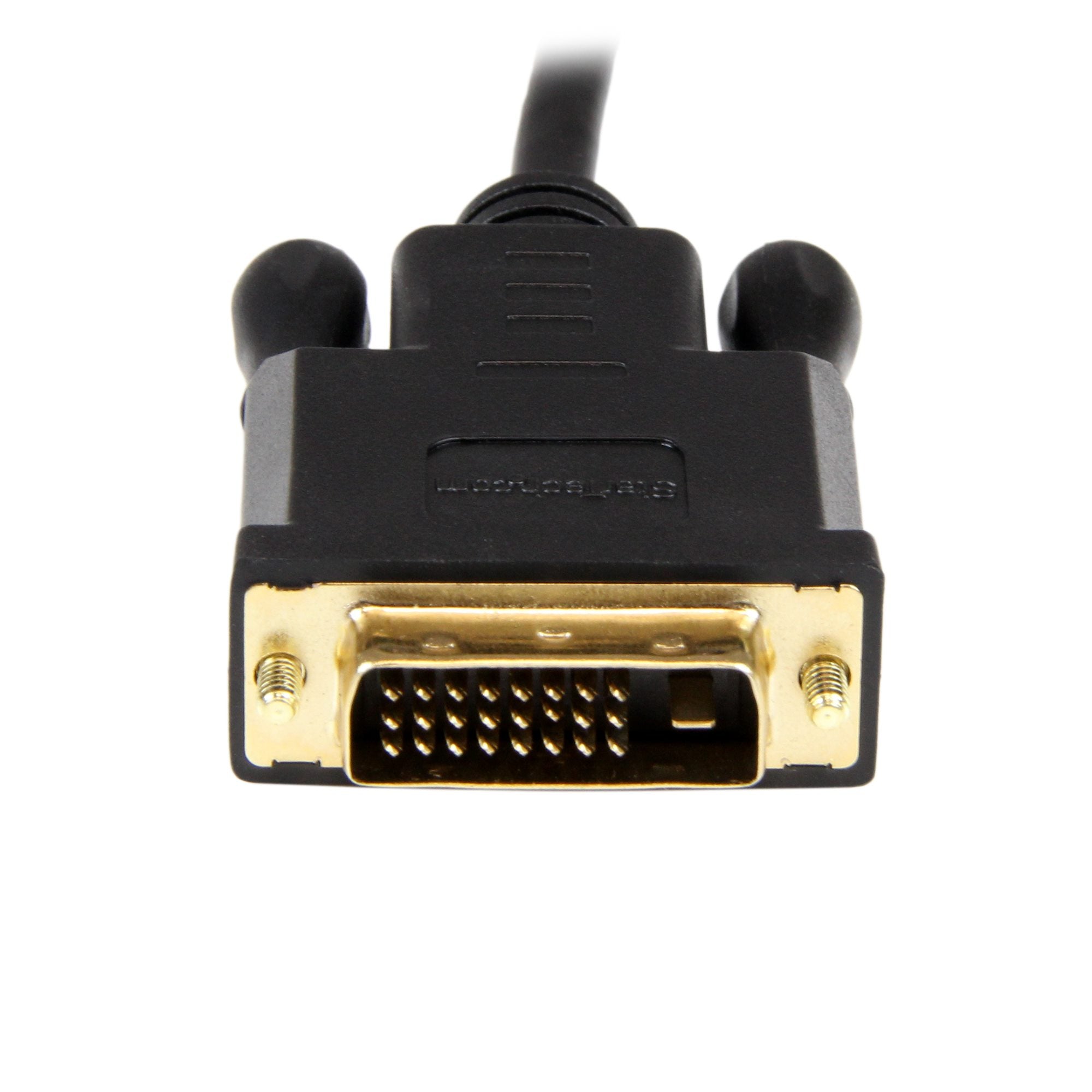

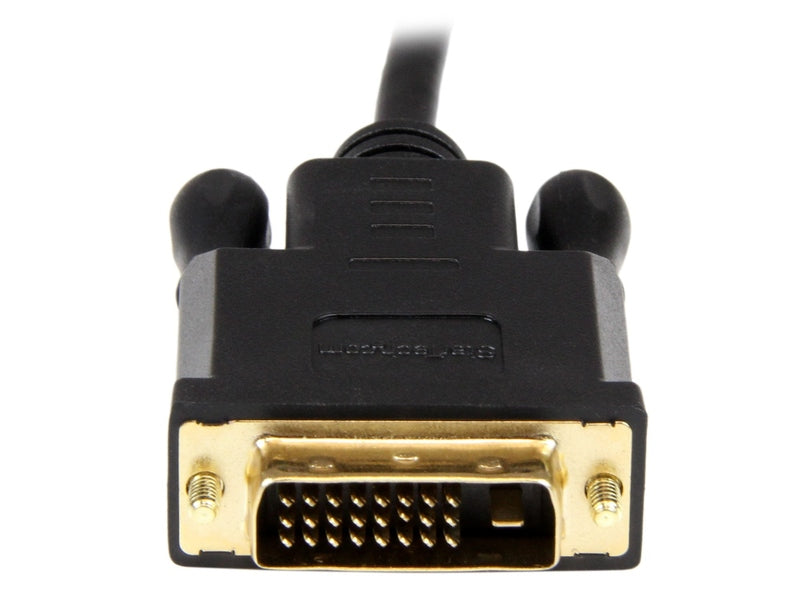

| Connector B | 1 x DVI-D (25 pin) |
| Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 40% to 85% RH |
| Hardware | |
| Adapter Type | Active |
| AV Input | DisplayPort 1.2 |
| AV Output | DVI-D Single-Link |
| Audio | No |
| Chipset ID | Parade - PS171 |
| Packaging Information | |
| Package Length | 5.1 in (13.0 cm) |
| Package Width | 7.8 in (19.9 cm) |
| Package Height | 0.9 in (2.4 cm) |
| Shipping Weight | 4.2 oz (120.0 g) |
| Package Quantity | 1 |
| Performance | |
| Audio Specifications | DVI - No Audio Support |
| Maximum Cable Length | 6.0 ft (1.8 m) |
| Maximum Digital Resolutions | 1920 x 1200 |
| Supported Resolutions | 1024 x 768 1280 x 720 1920 x 1080 1920 x 1200 |
| Wide Screen Supported | Yes |
| MTBF | 1,291,679 hours |
| Physical Characteristics | |
| Color | Black |
| Cable Length | 6.1 ft (1.9 m) |
| Product Length | 6.1 ft (1.9 m) |
| Product Width | 1.6 in (4.0 cm) |
| Product Height | 0.6 in (1.5 cm) |
| Weight of Product | 3.7 oz (105.2 g) |
| Special Notes / Requirements | |
| System Requirements | Some dual-link DVI monitors manufactured prior to 2014 may have limited resolution support Not compatible with Apple Cinema Display |
| What's in the Box | |
| Included in Package | 1 x Active DisplayPort to DVI Adapter |
