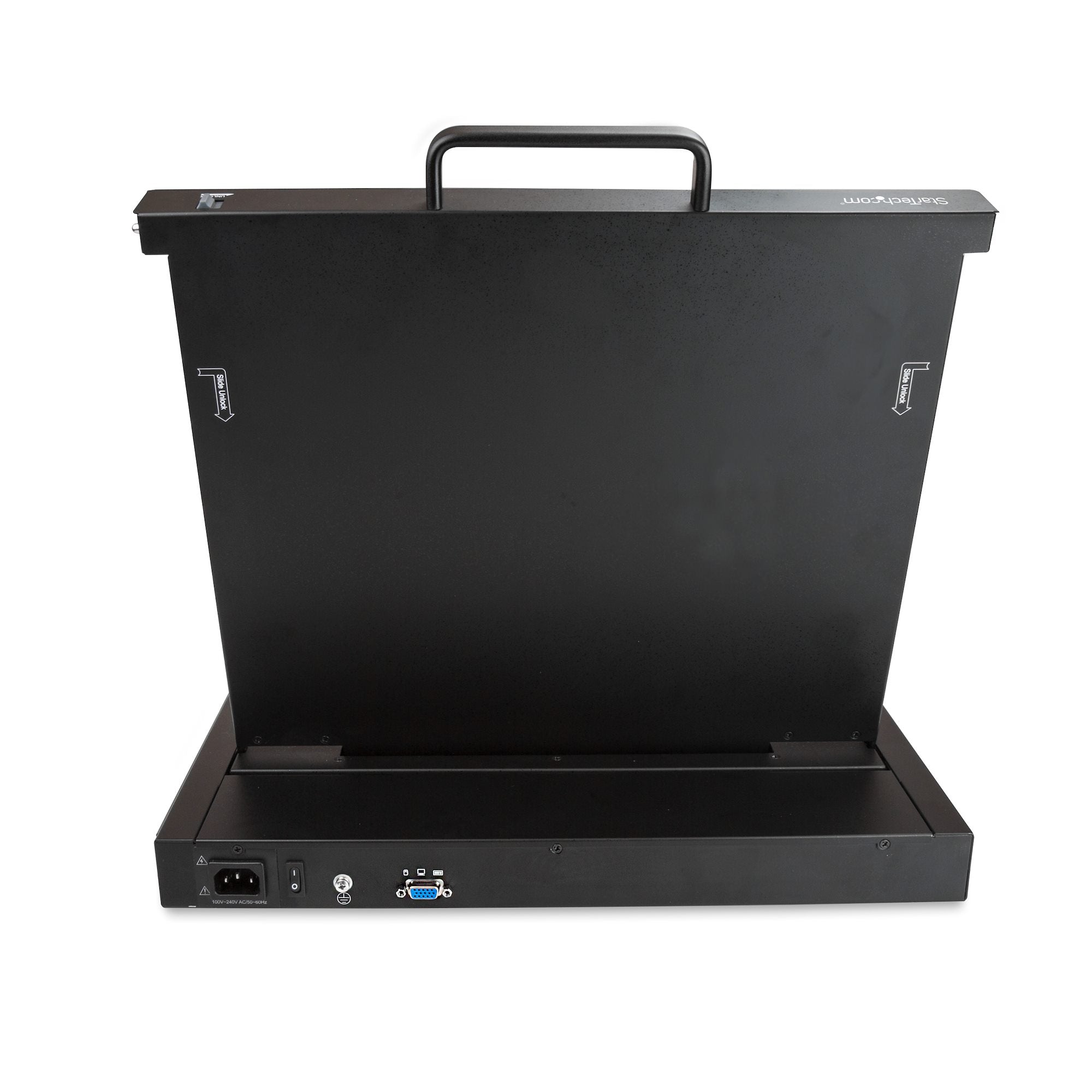

Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

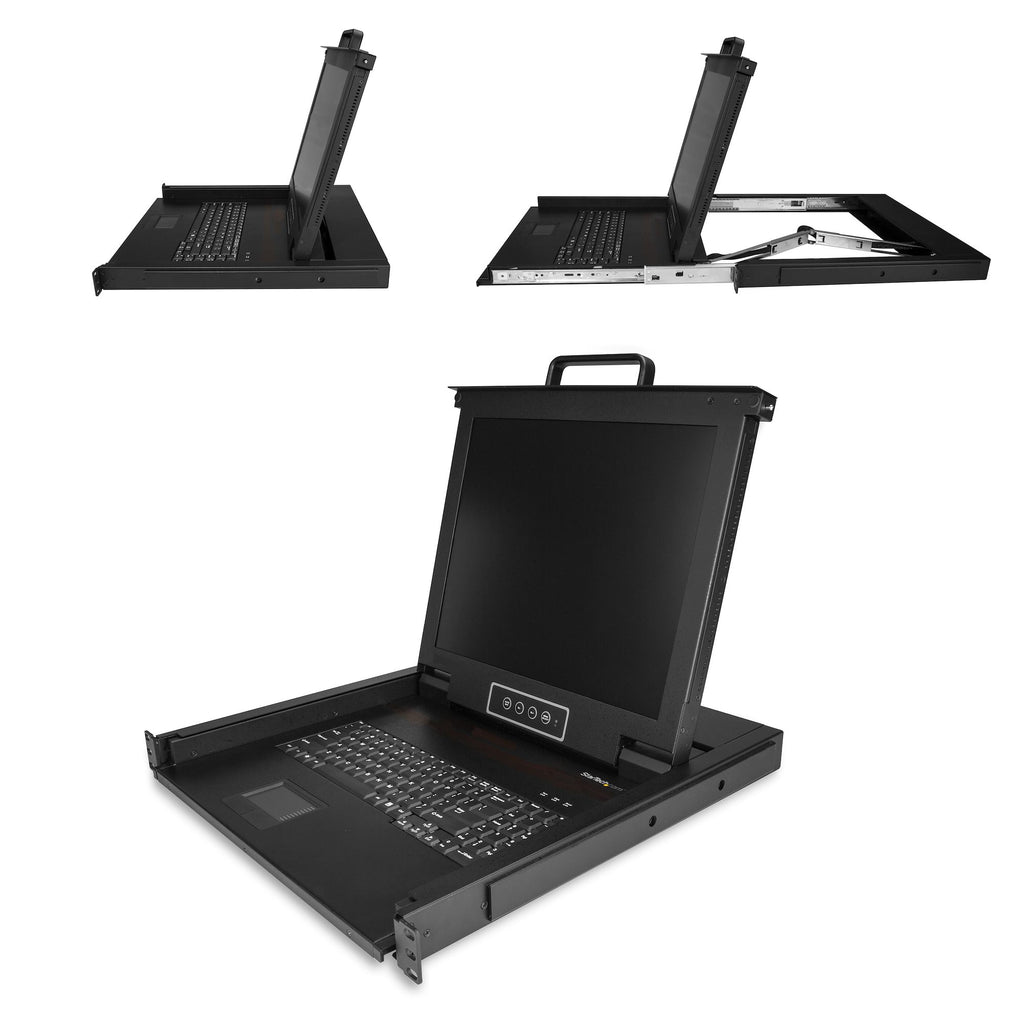

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

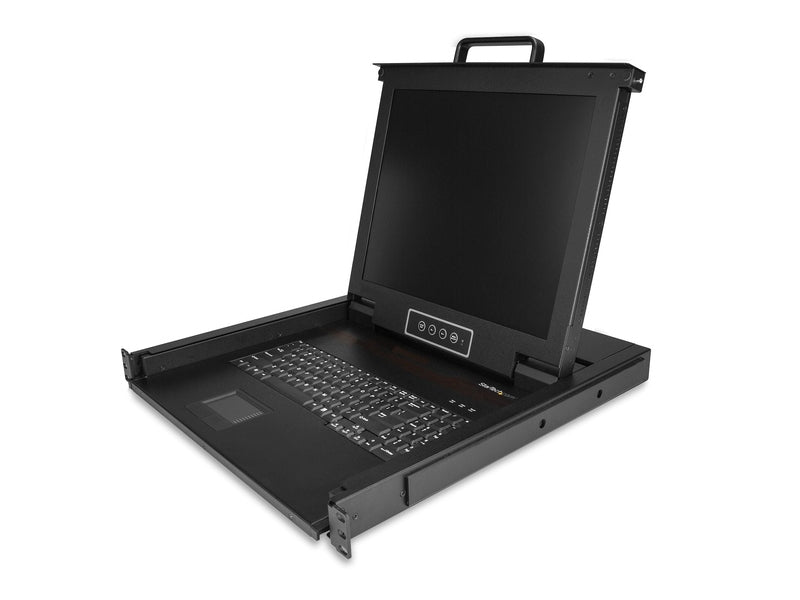

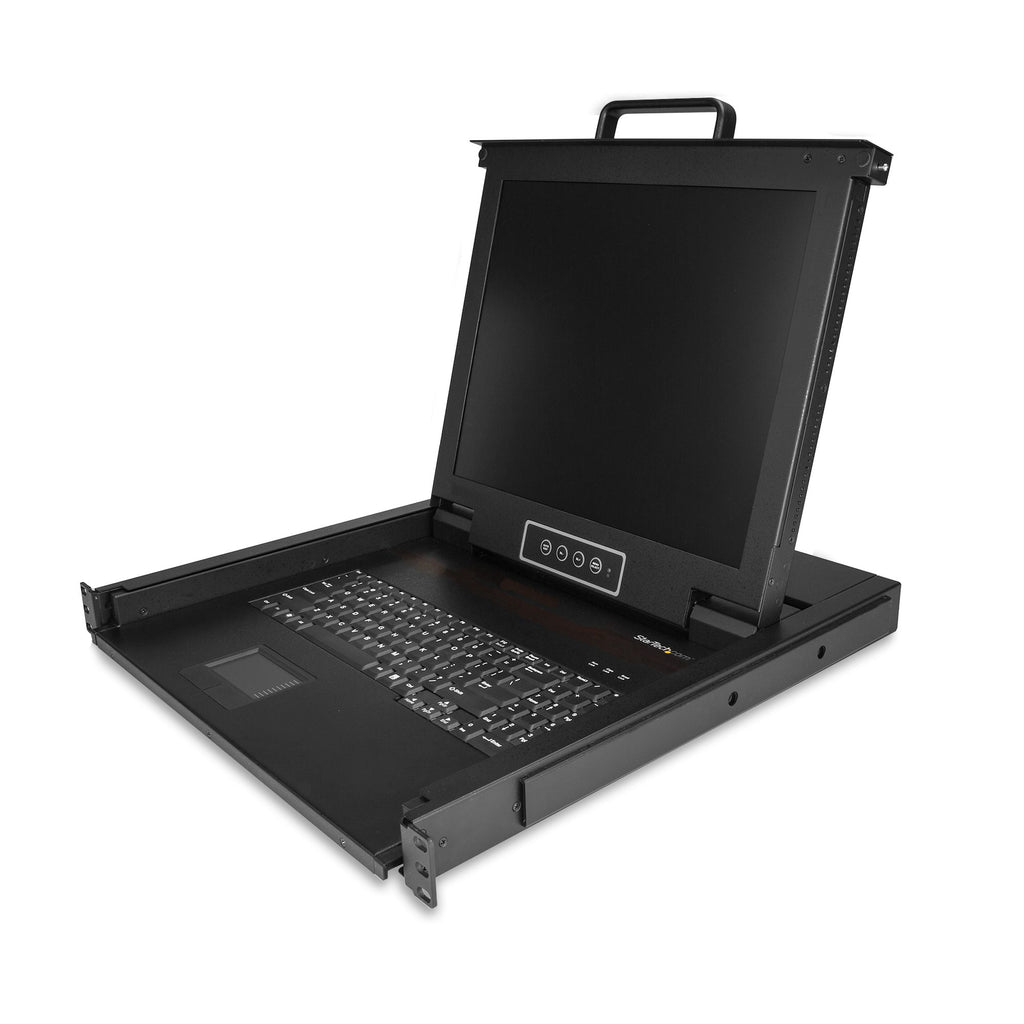

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

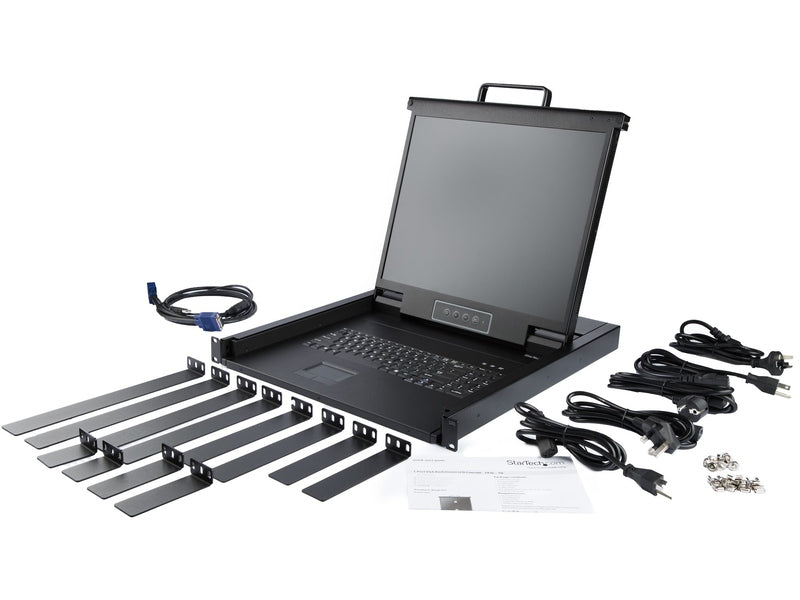

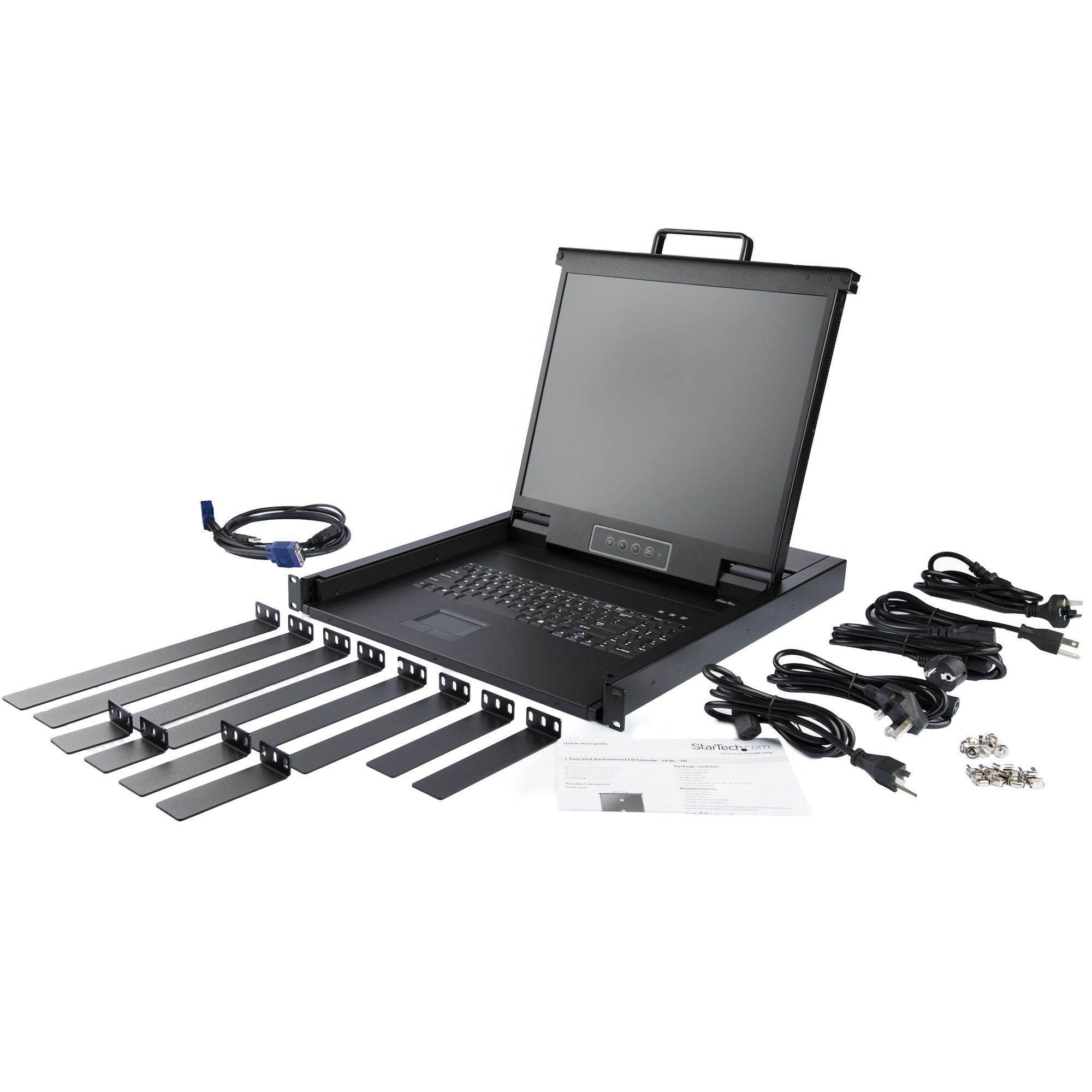

This single-port KVM console includes everything you need to set up right out of the box:
- 1 VGA KVM Cable
- Mounting Rails
- M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This single-port KVM console includes everything you need to set up right out of the box:
- 1 VGA KVM Cable
- Mounting Rails
- M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
| Rackmount KVM Console Specifications | |
|---|---|
| Connector(s) | |

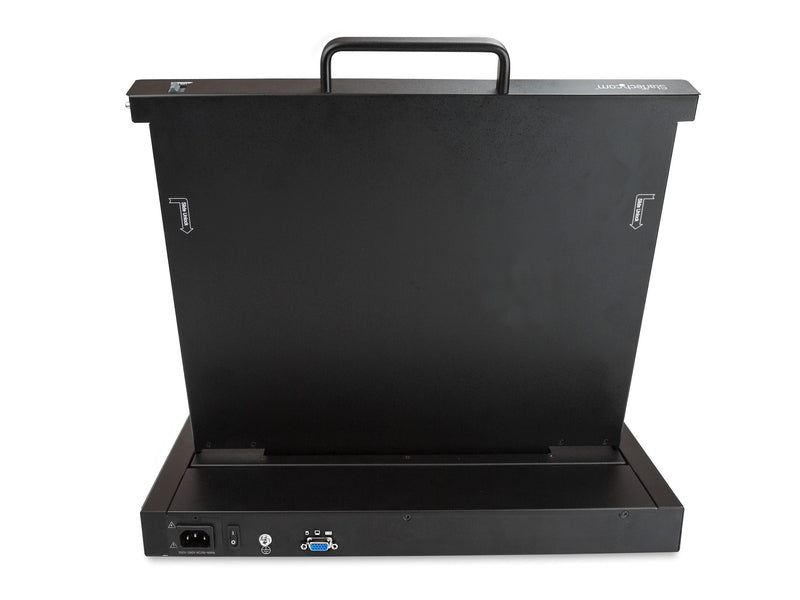

| Host Connectors | 1 - VGA (15 pin, High Density D-Sub) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10 ~ 80% RH (non-condensing) |
| Hardware | |
| U Height | 1U |
| Front Door Key Lock | No |
| Audio | No |
| Display Size | 17" |
| Panel Type | Active Matrix TFT LCD |
| KVM Ports | 1 |
| PC Interface | USB |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Yes |
| Cables Included | Yes |
| LED Indicators | 1 - Power / Status LED |
| Packaging Information | |
| Package Height | 7.5 in [19.0 cm] |
| Package Length | 30.5 in [77.5 cm] |
| Package Width | 24.4 in [62.0 cm] |
| Package Quantity | 1 |
| Shipping (Package) Weight | 38.6 lb [17.5 kg] |
| Performance | |
| IP Control | No |
| Maximum Analog Resolutions | 1280 x 1024 |
| Supported Resolutions | Up to 1280 x 1024 @ 60Hz |
| Aspect Ratio | 5:4 |
| Response Time | 5ms |
| Contrast Ratio | 1000:1 |
| Brightness | 250 cd/m² |
| Color Depth | 8-bit, 16.7M colors |
| Pixel Pitch Support | 0.264 x 0.264 mm |
| Viewing Angle | 170° (H), 160° (V) |
| Maximum Number of Users | 1 |
| MTBF | 50,000 Hrs |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Cable Length | 6ft |
| Product Length | 18.5 in [47.1 cm] |
| Product Width | 17.6 in [44.8 cm] |
| Product Height | 1.7 in [4.2 cm] |
| Weight of Product | 25.6 lb [11.6 kg] |
| Maximum Mounting Depth | 31.1 in [79 cm] |
| Minimum Mounting Depth | 17.7 in [45 cm] |
| Power | |
| Power Source | International Power Cords |
| Input Voltage | 100 - 240 AC |
| Input Current | 1.5A |
| Power Consumption | 13W |
| Special Notes / Requirements | |
| Note | The minimum mounting depth of this rackmount console (17.7in / 45.0cm) is less than the length of the console itself (18.5in / 47.1cm). Please consider the length of the rackmount console when evaluating if it will fit into your rack. |
| What's in the Box | |

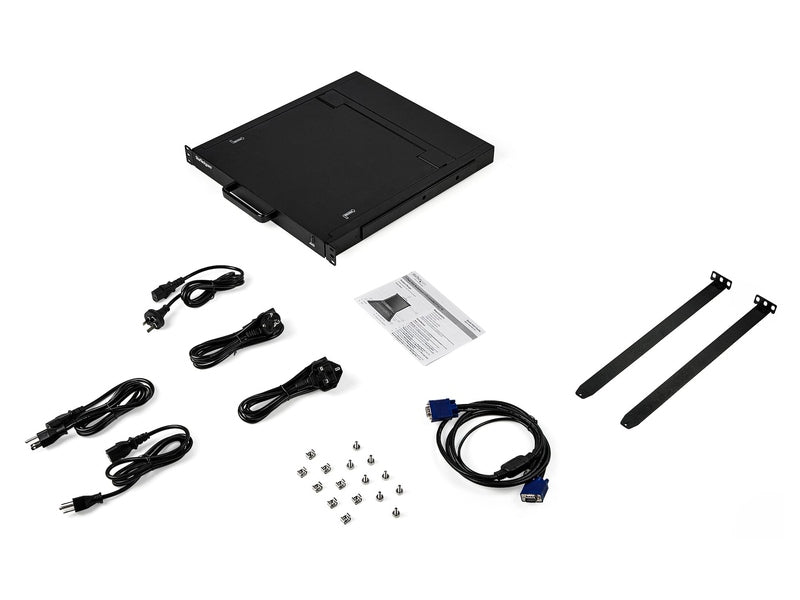

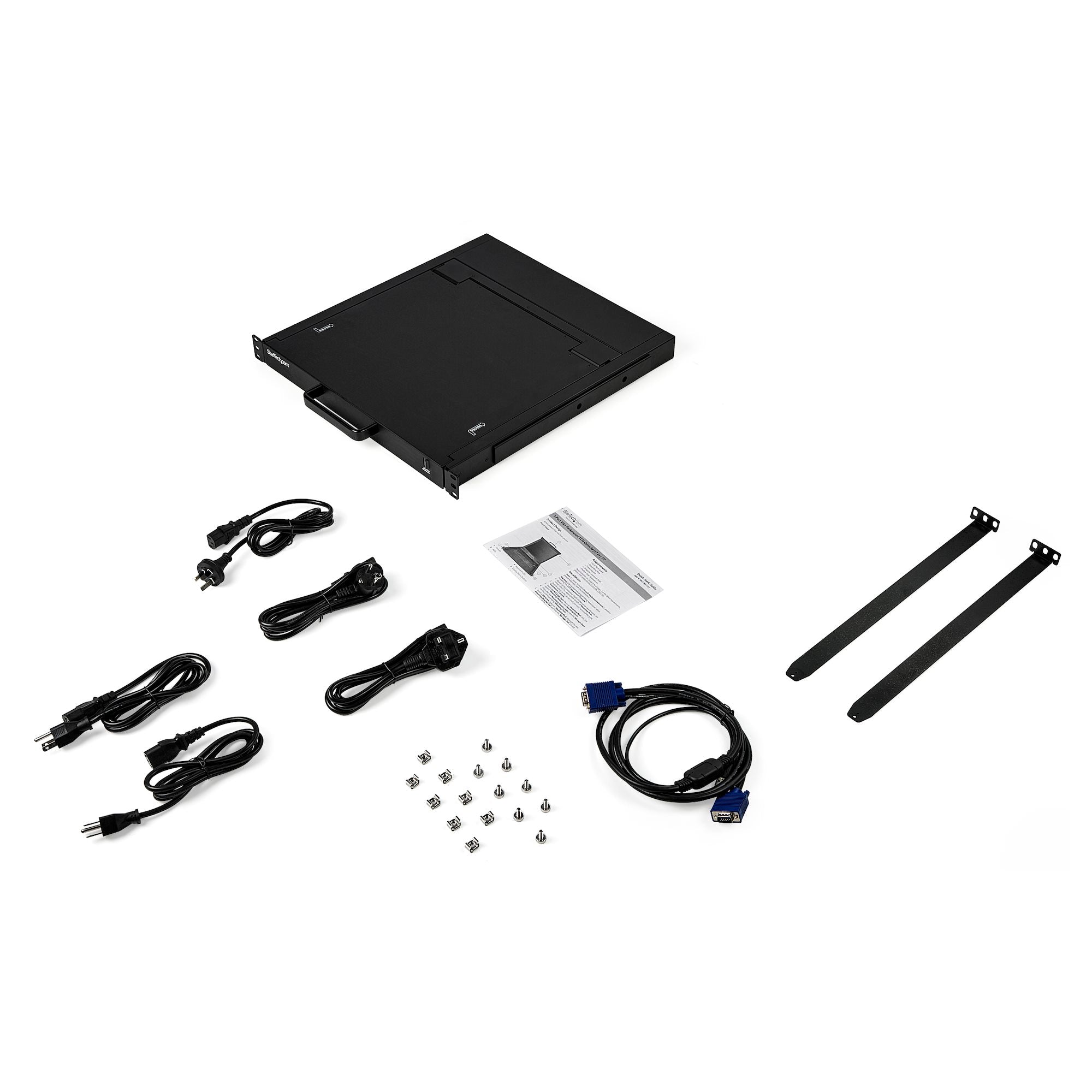

| Included in Package | 1 - KVM console 1 - KVM cable 8 - M5 cage nuts 8 - M5 screws 5 - regional power cords (NA, JP, UK, EU, ANZ) 2 - mounting rails 1 - quick-start guide |
