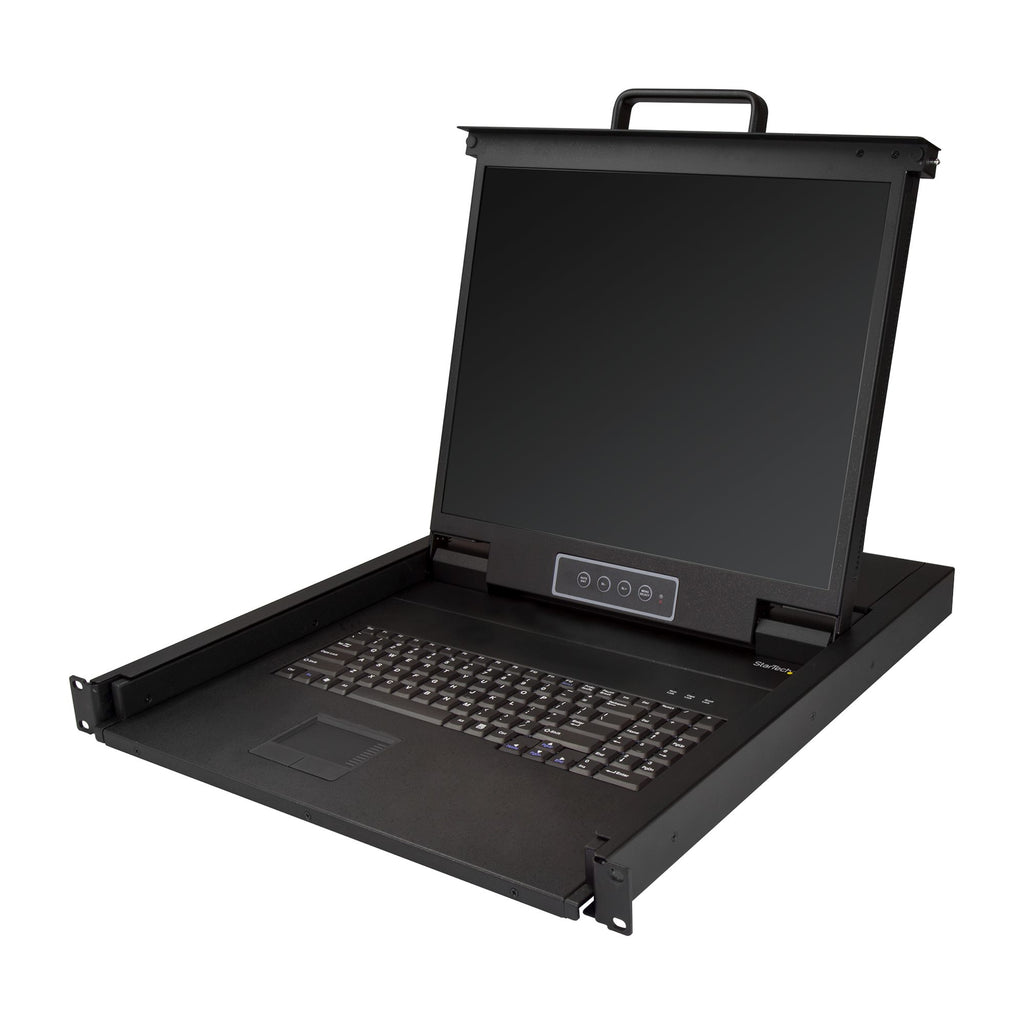

Rackmount KVM Console - Single Port VGA KVM with 19" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
Control your server or KVM switch from a centralized rack console
This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle

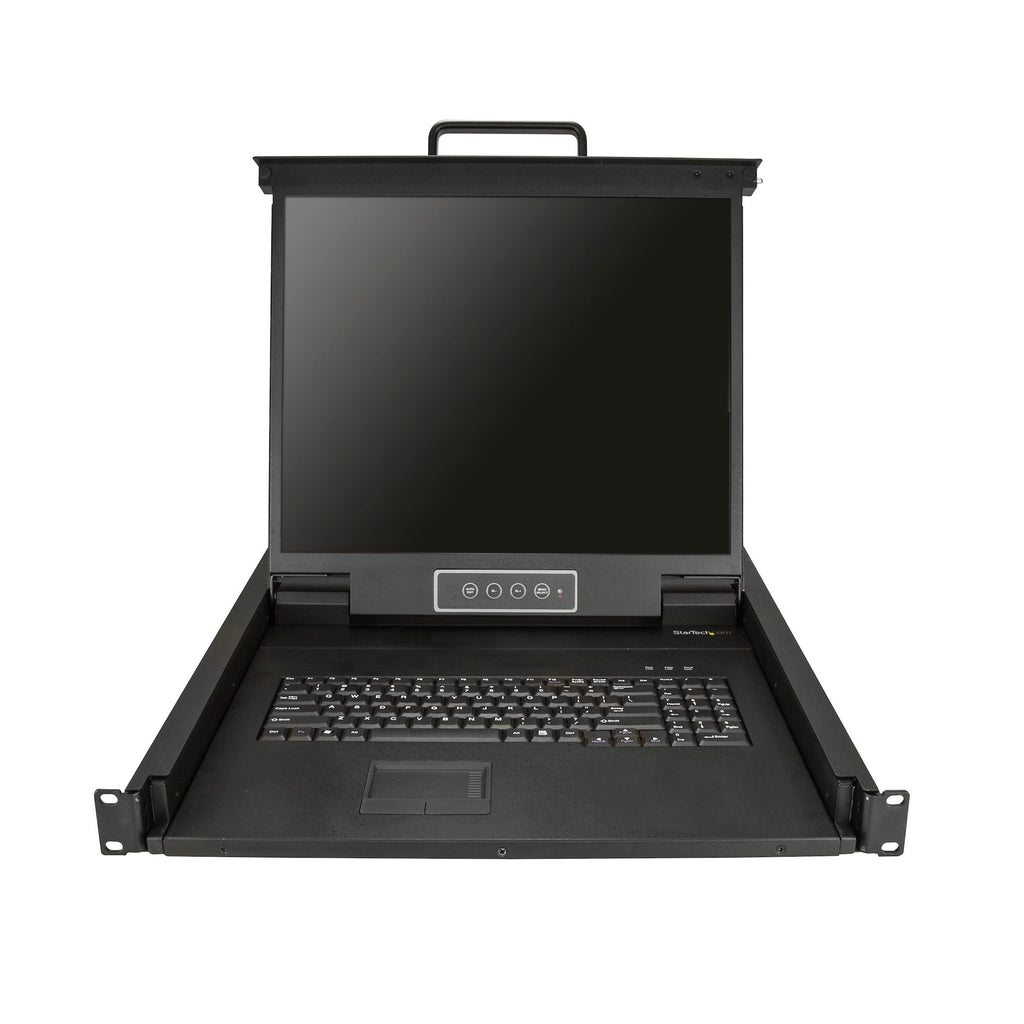

This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard (QWERTY) and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring

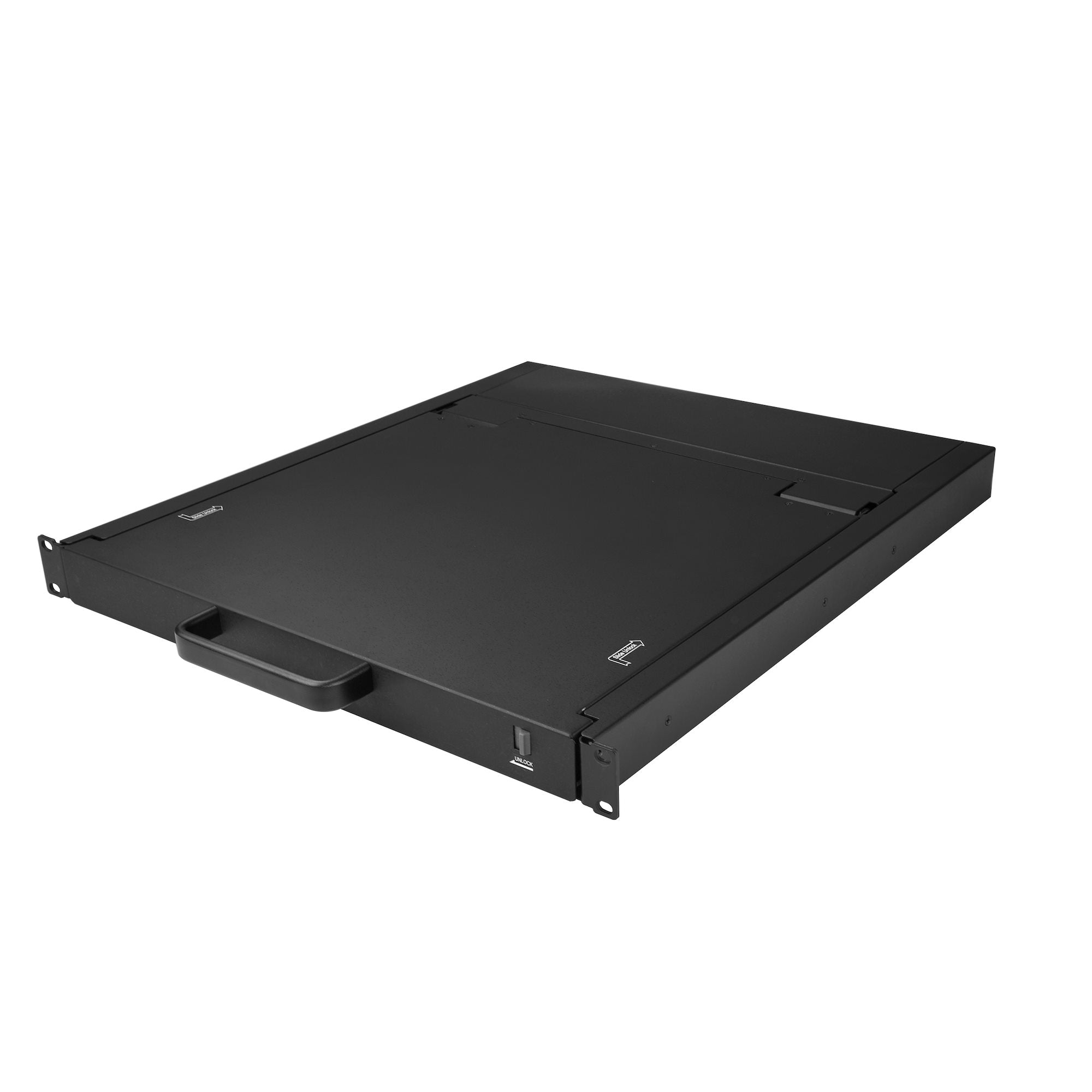

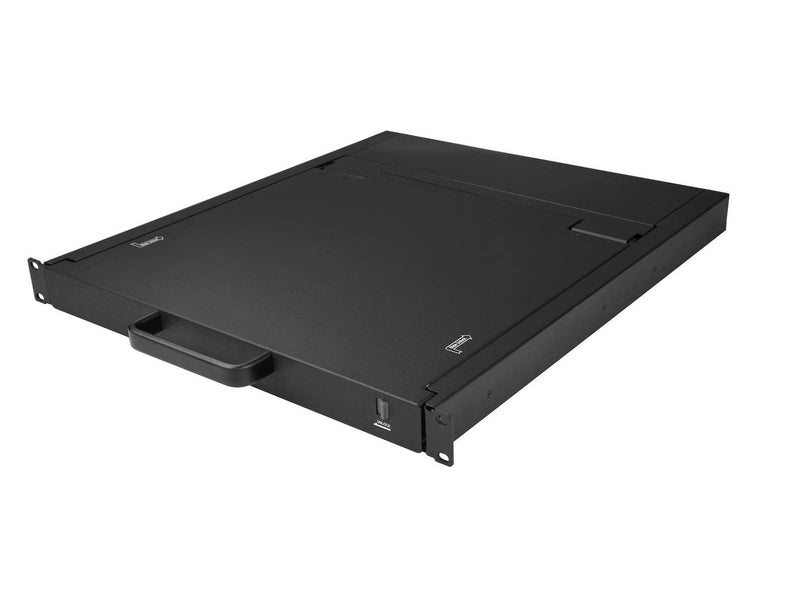

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
Rackmount KVM Console - Single Port VGA KVM with 19" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
Control your server or KVM switch from a centralized rack console
This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard (QWERTY) and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
| Rackmount KVM Console Specifications | |
|---|---|
| Connector(s) | |
| Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10 ~ 80% RH |
| Hardware | |
| U Height | 1U |
| Front Door Key Lock | No |
| Audio | No |
| Display Size | 19" |
| Panel Type | Active Matrix TFT LCD |
| KVM Ports | 1 |
| PC Interface | USB |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Yes |
| Cables Included | Yes |
| LED Indicators | 1 - power / status LED |
| Packaging Information | |
| Package Height | 7.5 in [19.0 cm] |
| Package Length | 24.4 in [61.9 cm] |
| Package Width | 30.7 in [78.1 cm] |
| Package Quantity | 1 |
| Shipping (Package) Weight | 42.5 lb [19.3 kg] |
| Performance | |
| IP Control | No |
| Maximum Analog Resolutions | 1280 x 1024 |
| Supported Resolutions | 1024x768 1280x720 (High-definition 720p) 1280 x 1024 Lower resolutions are also supported |
| Contrast Ratio | 1000:1 |
| Brightness | 250 cd/m² |
| Color Depth | 8-bit, 16.7M colors |
| Pixel Pitch Support | 0.264 x 0.264 mm |
| Maximum Number of Users | 1 |
| MTBF | 50,000 Hrs |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Cable Length | 6.0 ft [1.8 m] |
| Product Length | 21.5 in [54.5 cm] |
| Product Width | 19.0 in [48.3 cm] |
| Product Height | 1.7 in [4.3 cm] |
| Weight of Product | 26.9 lb [12.2 kg] |
| Maximum Mounting Depth | 30.7 in [78 cm] |
| Minimum Mounting Depth | 19.7 in [50 cm] |
| Power | |
| Power Source | International Power Cords |
| Input Voltage | 100 - 240 AC |
| Output Voltage | 100 - 200 AC |
| Power Consumption | 17W |
| What's in the Box | |

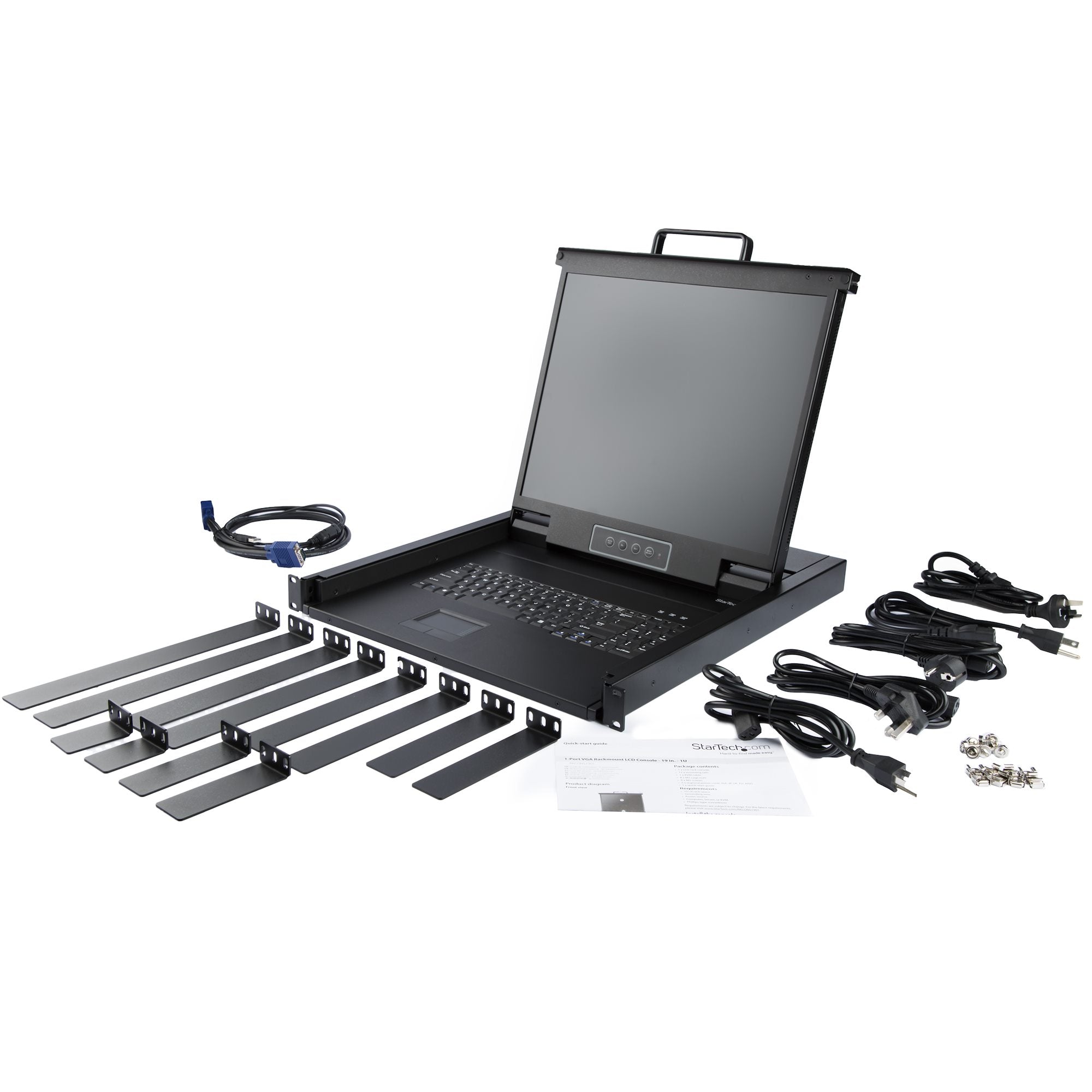

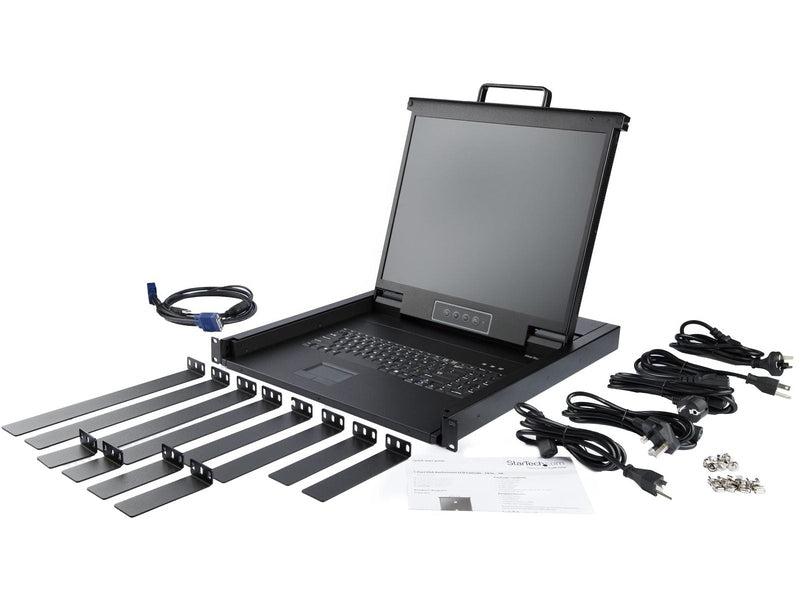

| Included in Package | 1 - KVM console 1 - 6 ft [1.8 m] KVM cable 8 - M5 cage nuts 8 - M5 screws 5 - regional power cords (NA, JP, UK, EU, ANZ) 2 - mounting rails (variable length) 1 - quick-start guide |
