StarTech 1 Port 1U VGA KVM Console Hd - 17" LCD VGA, Rackmount Drawer W/Cables, 2Yr

StarTechSKU: RKCONS17HD

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,956.00

Estimate shipping

Description

Overview

Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
Control your server or KVM switch from a centralized HD KVM console

Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.

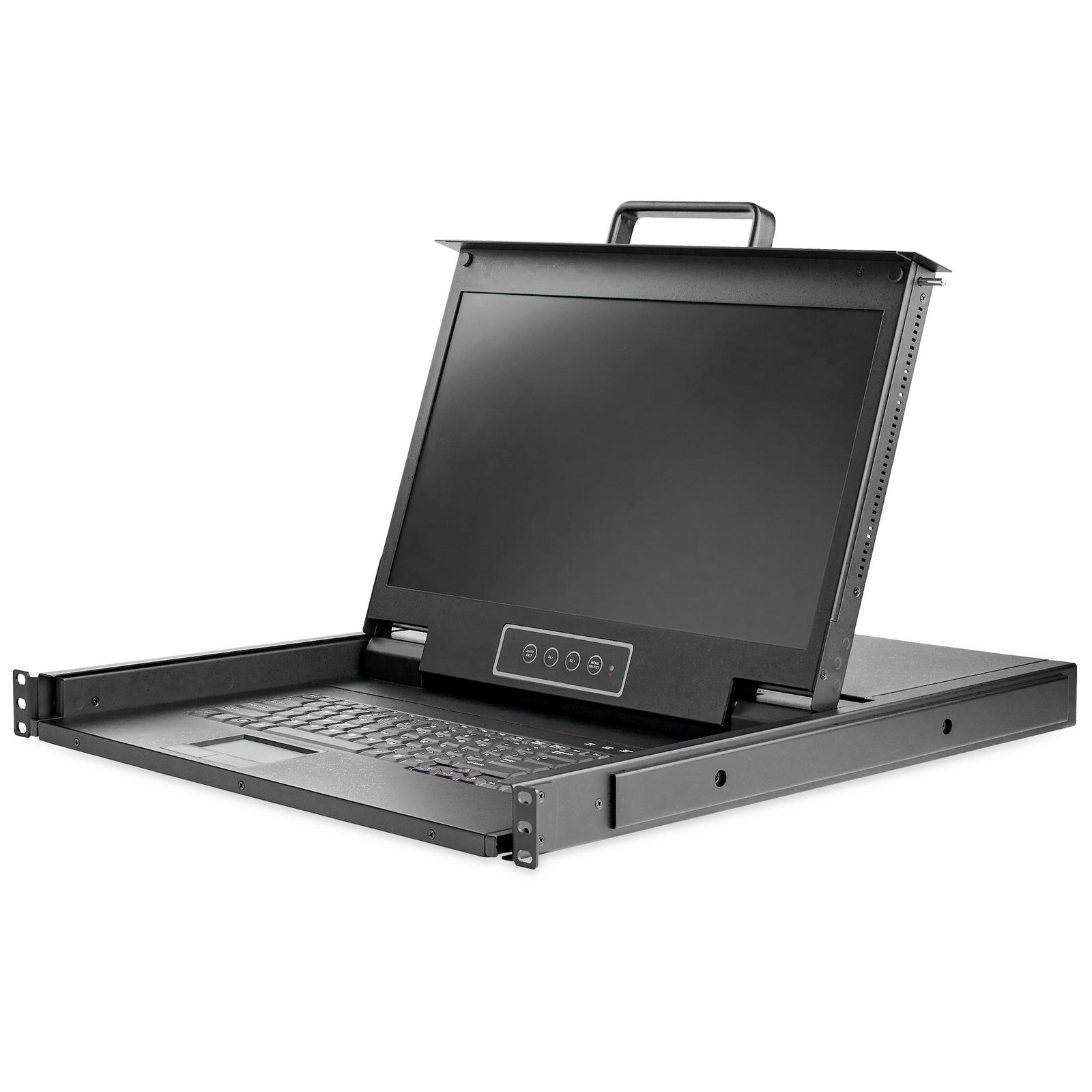

High-Definition LCD Monitor
The 1080p KVM console’s monitor is 17.3" and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.

Clutter-Free Monitoring

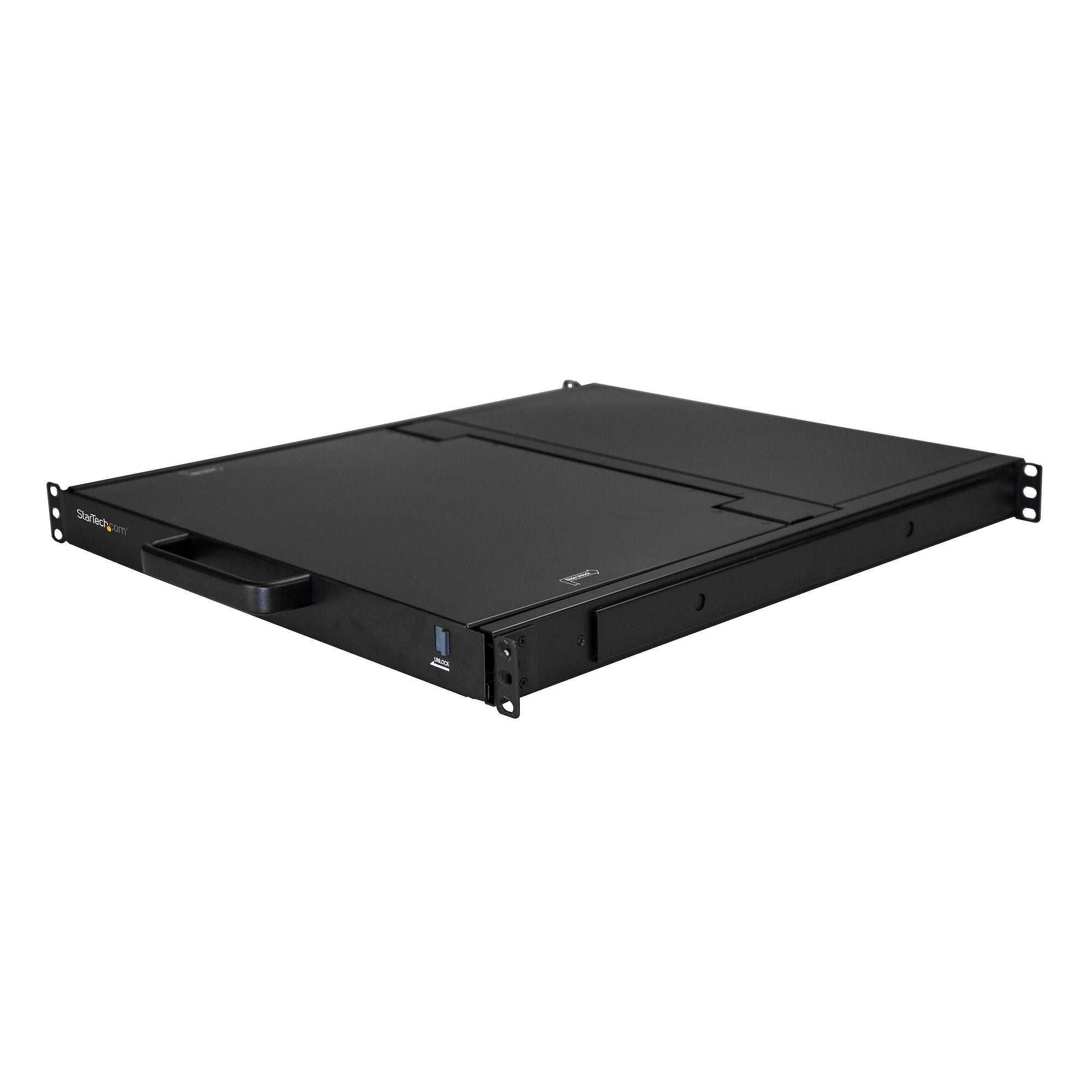

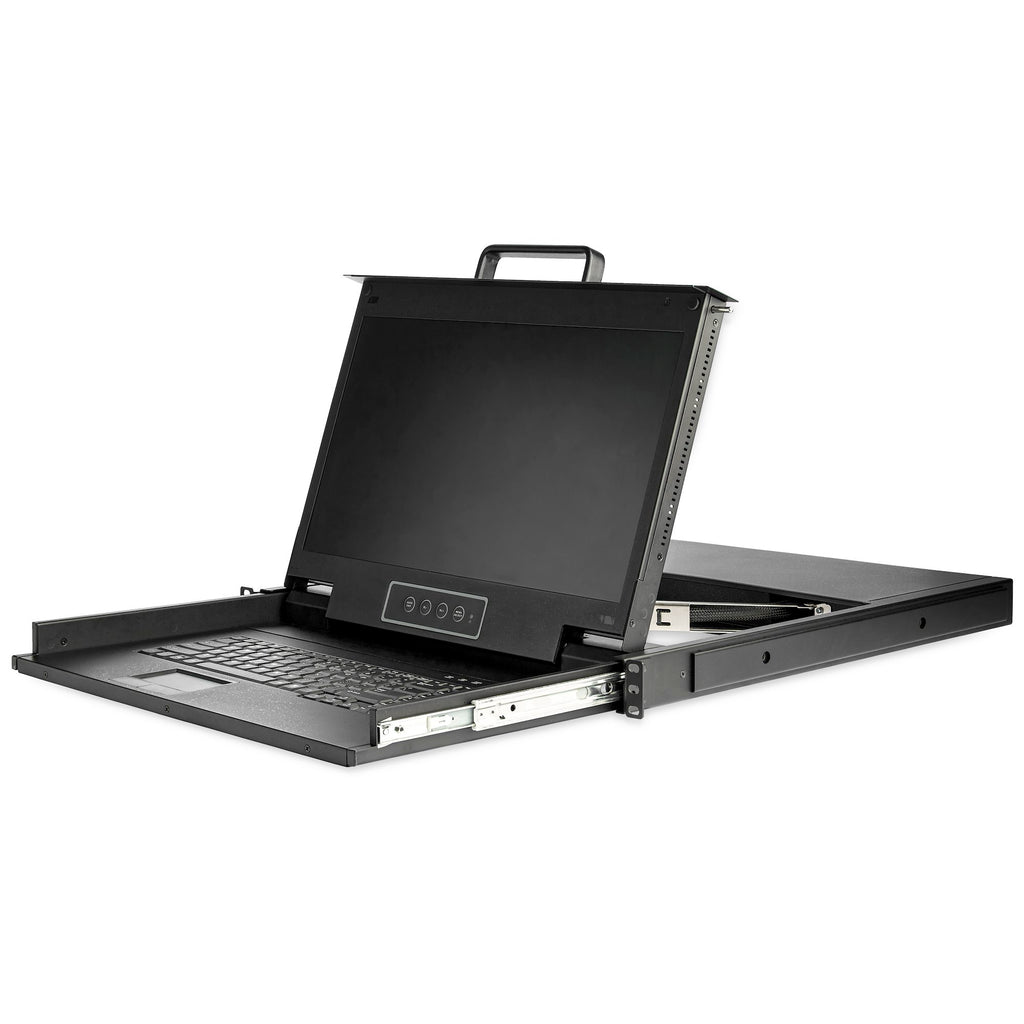

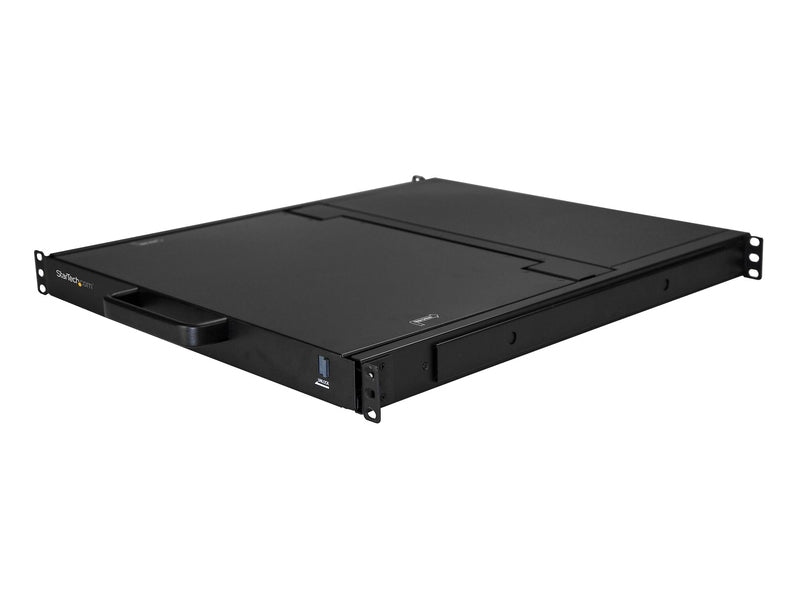

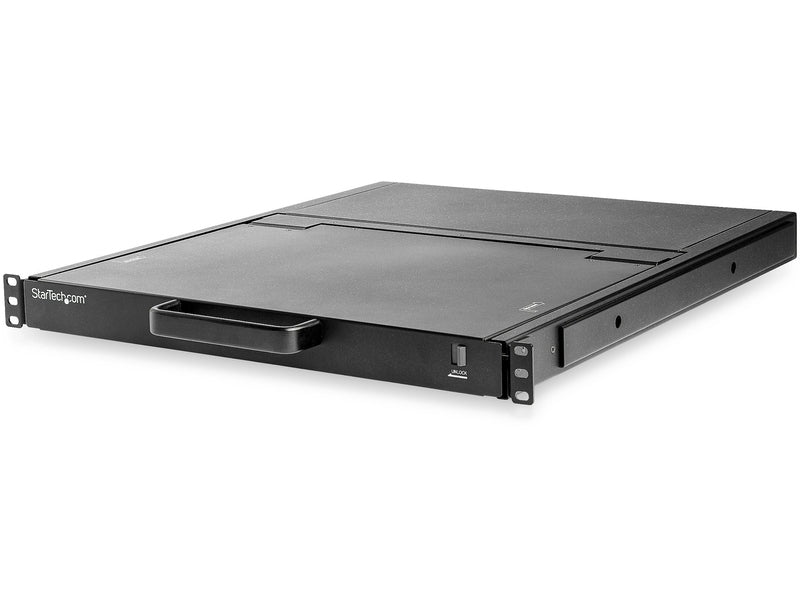

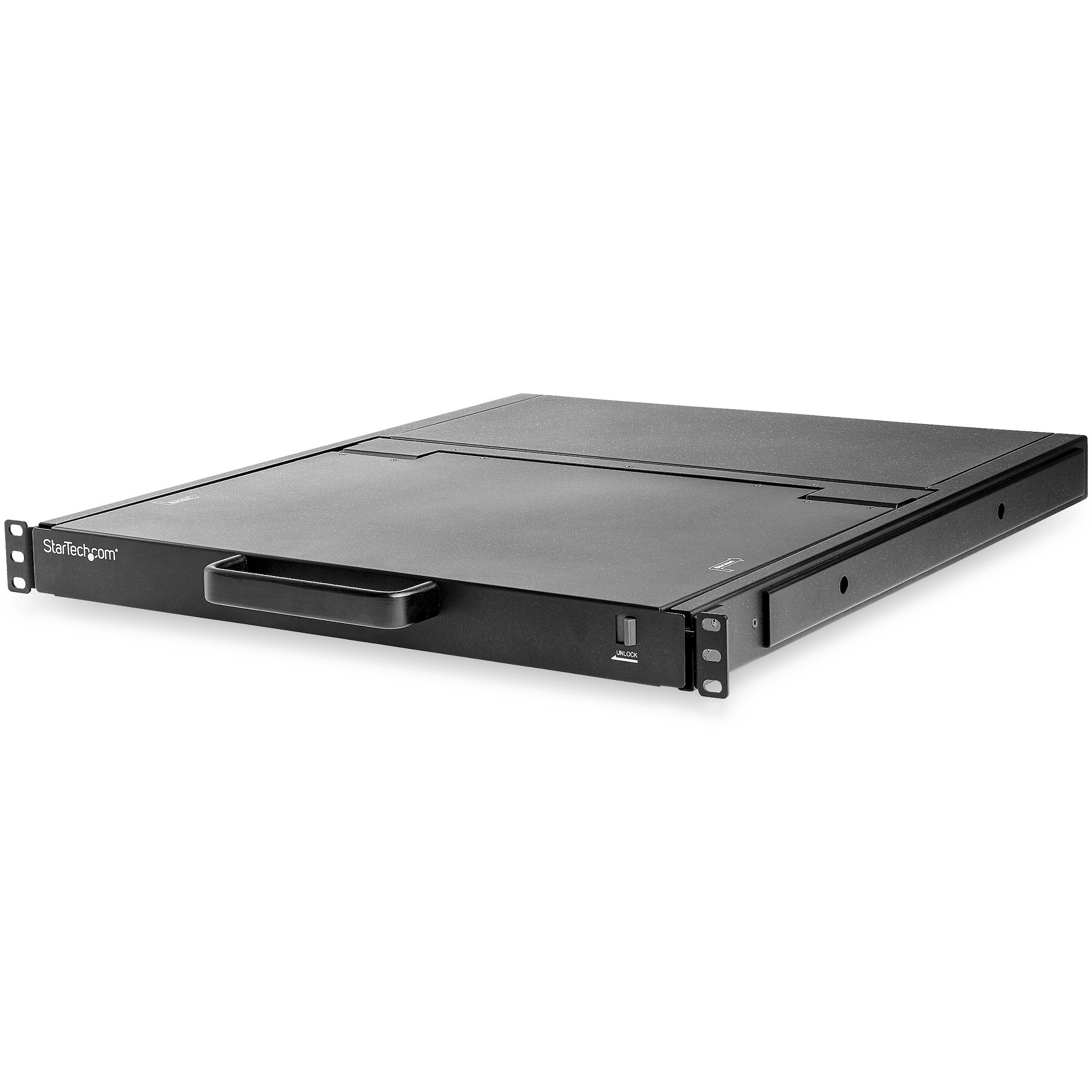

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

Simple Setup
This single-port KVM console comes with everything you need to set up:

- 1 Audio Cable
- 1 Set of KVM Cables (VGA)
- 2 Rear Mounting Brackets
- M5 Cage Nuts and Screws

Cost Effective Solution
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.

Rackmount KVM Console Specifications
Connector(s)

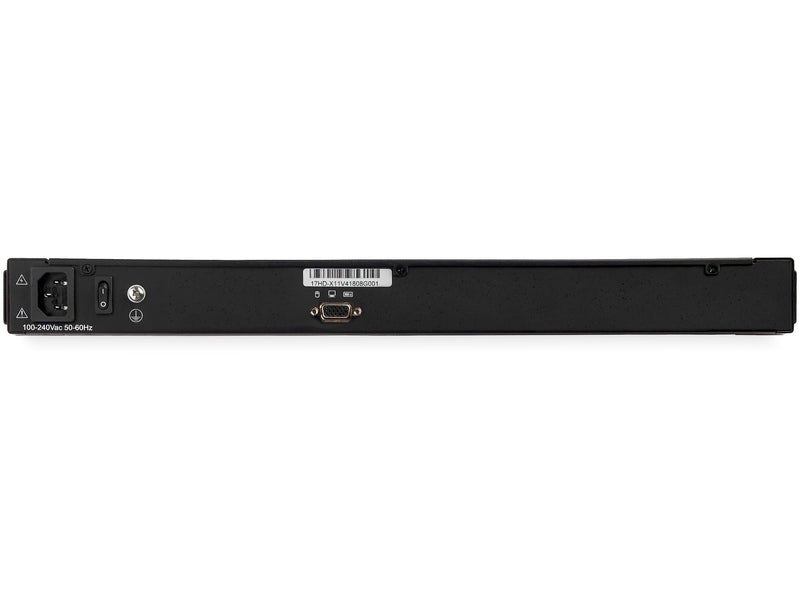

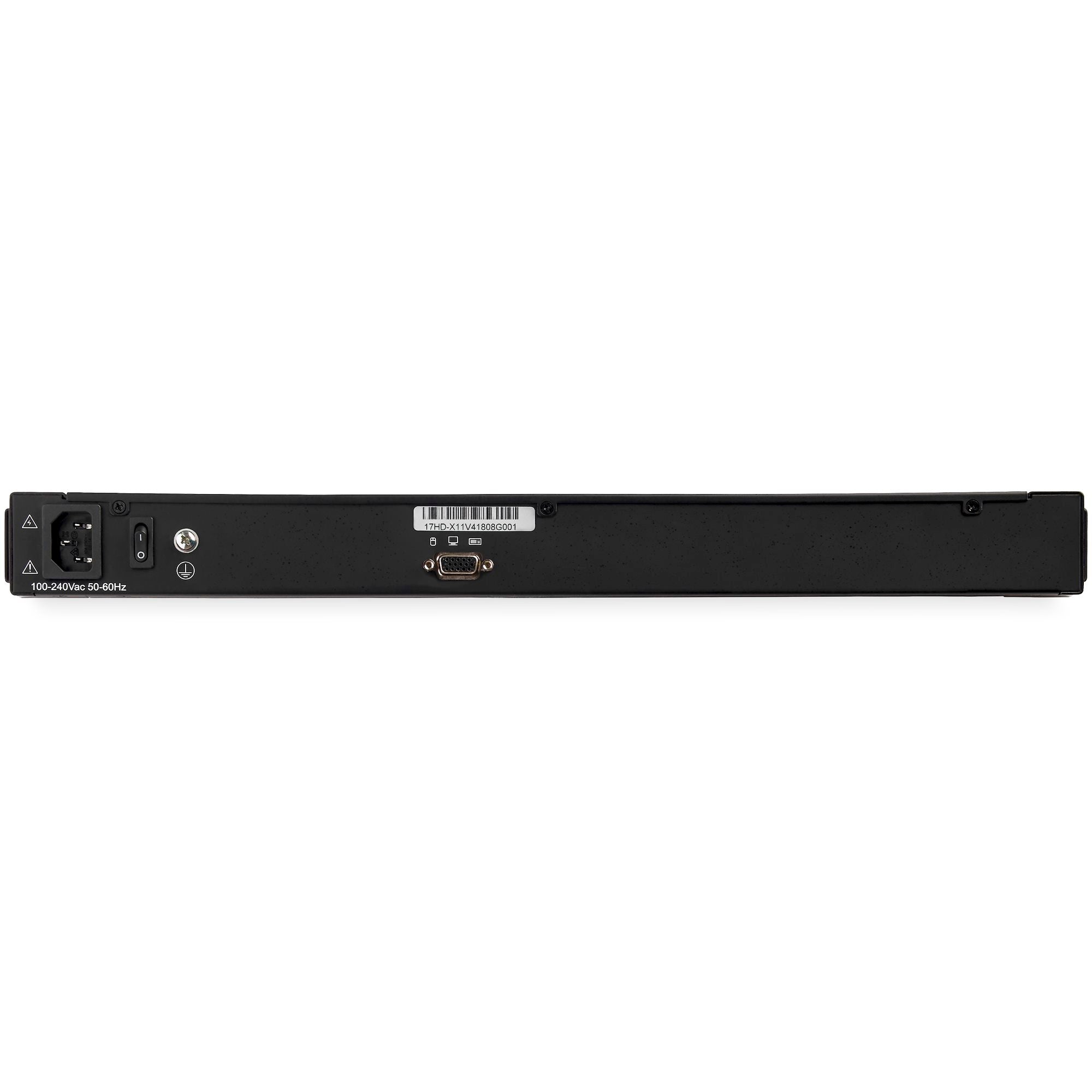

Host Connectors 1 - HD15 (15 pin, High Density D-Sub)
Other Interface(s) 1 - IEC 60320 C14 Power
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 10 ~ 80% RH
Hardware
U Height 1U
Audio No
Display Size 17.3"
Panel Type Active Matrix TFT LCD
KVM Ports 1
PC Interface USB
PC Video Type VGA
Number of Monitors Supported 1
Rack-Mountable Yes
Cables Included Yes
LED Indicators 1 - Power / Status LED
Packaging Information
Package Height 7.3 in [18.5 cm]
Package Length 30.3 in [76.9 cm]
Package Width 24.6 in [62.4 cm]
Package Quantity 1
Shipping (Package) Weight 36.2 lb [16.4 kg]
Performance
IP Control No
Maximum Analog Resolutions 1920x1080
Supported Resolutions Up to 1920x1080 @ 60Hz
Aspect Ratio 16:9
Contrast Ratio 800:1
Brightness 300 cd/m²
Color Depth 6-bit, 262144 colors
Pixel Pitch Support 0.1989 x 0.1989 mm
Viewing Angle 170° (H), 170° (V)
Maximum Number of Users 1
MTBF 44,230 hours
Physical Characteristics
Color Black
Material Steel
Cable Length 1.8 m
Product Length 22.2 in [56.5 cm]
Product Width 19.0 in [48.3 cm]
Product Height 1.7 in [4.3 cm]
Weight of Product 24.7 lb [11.2 kg]
Maximum Mounting Depth 33.5 in [85 cm]
Minimum Mounting Depth 20.1 in [51 cm]
Power
Power Source International Power Cords
Input Voltage 100 - 240 AC
Input Current 1.5A
Power Consumption 13W
Special Notes / Requirements
Note The minimum mounting depth of this rackmount console is less than the length of the console itself.
Please consider the length of the rackmount console when evaluating if it will fit into your rack.

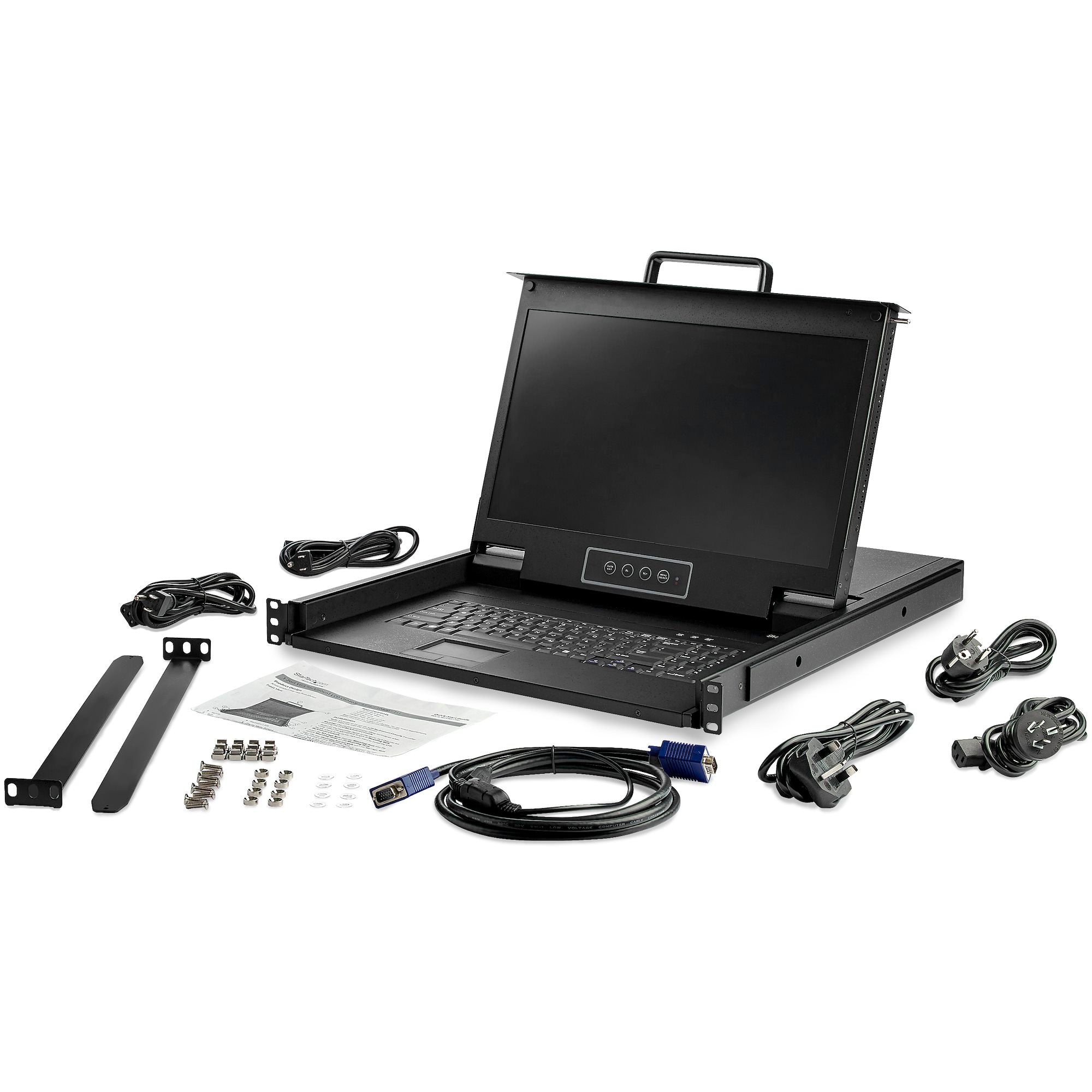

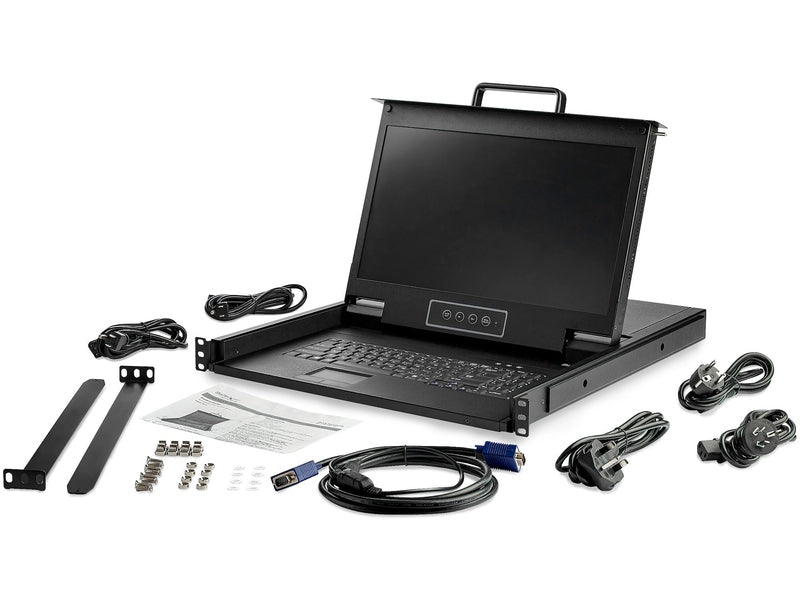

What's in the Box
Included in Package 1 - KVM console
1 - KVM cable
8 - M5 cage nuts
8 - M5 screws
5 - Regional power cords (NA, JP, UK, EU, ANZ)
1 - Quick-start guide
2 - Mounting rails
