Overview

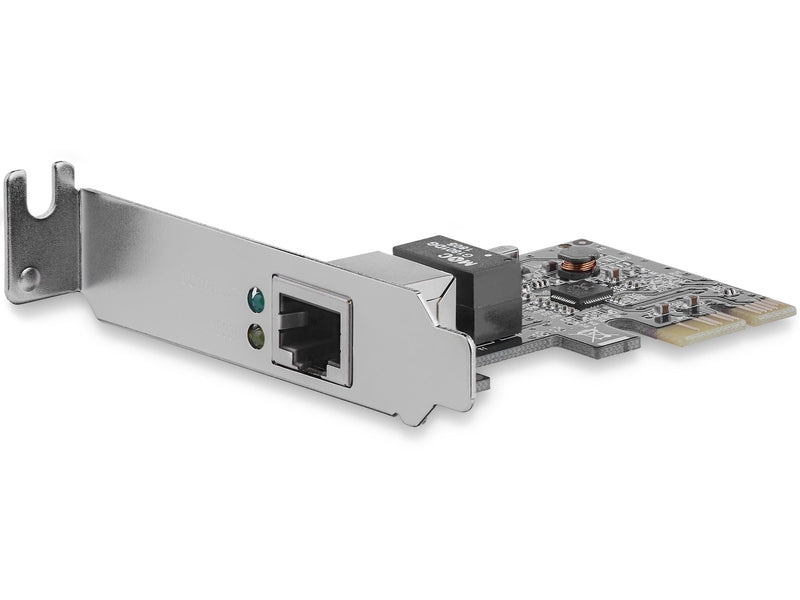

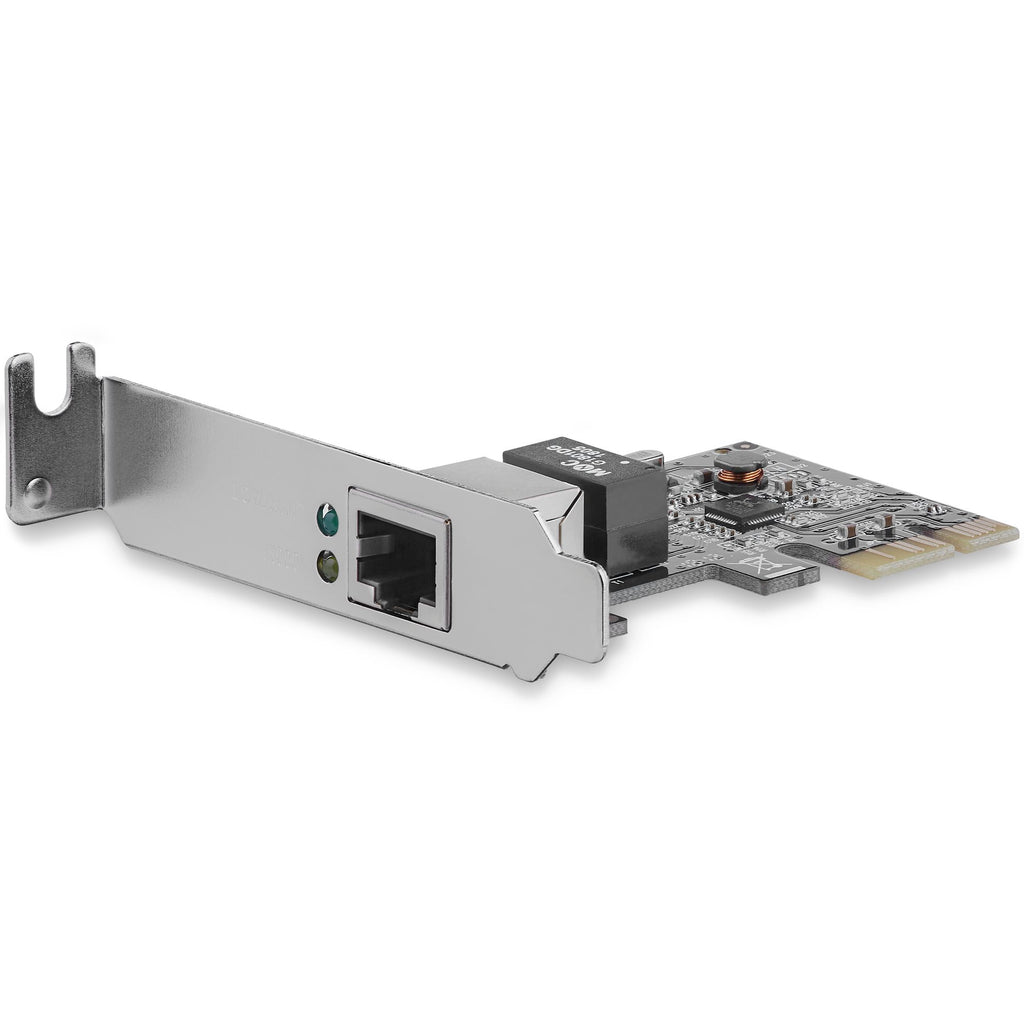

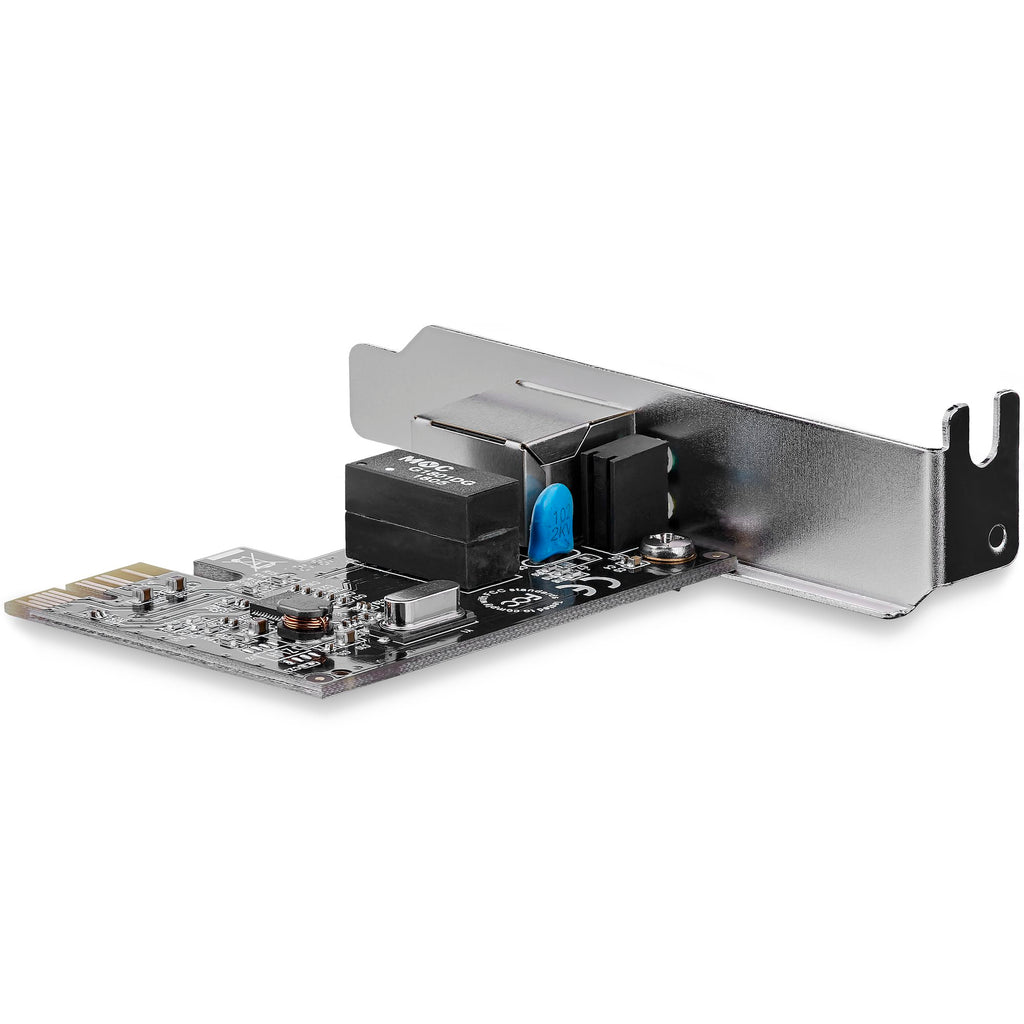

1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
| Gigabit Ethernet PCI Express Card Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 × PCI Express x1 |
| External Ports | 1 × RJ-45 |
| Environmental | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | 0°C to 100°C (32°F to 212°F) |
| Humidity | 10% – 90% RH |
| Hardware | |
| Ports | 1 |
| Interface | RJ-45 (Gigabit Ethernet) |
| Bus Type | PCI Express |
| Card Type | Low Profile (SP bracket included) |
| Industry Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab |

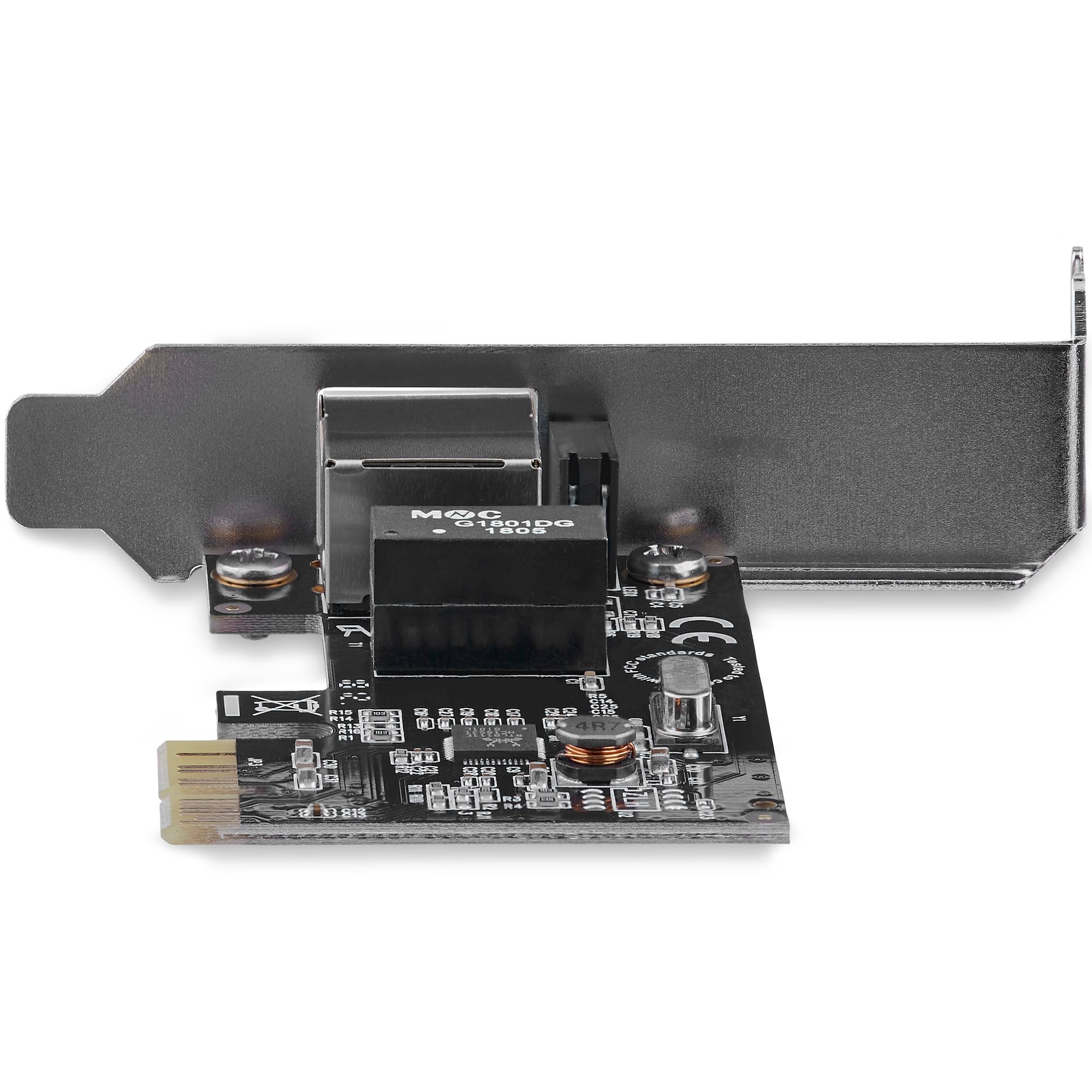

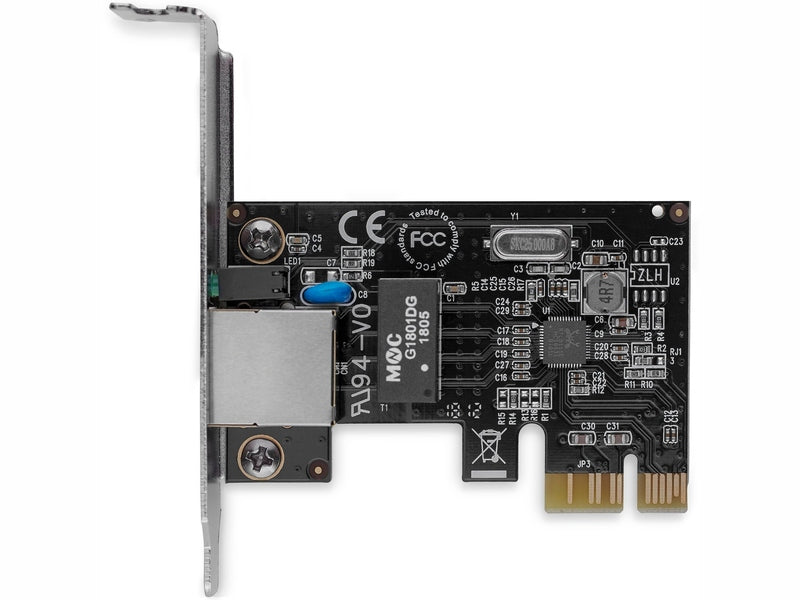

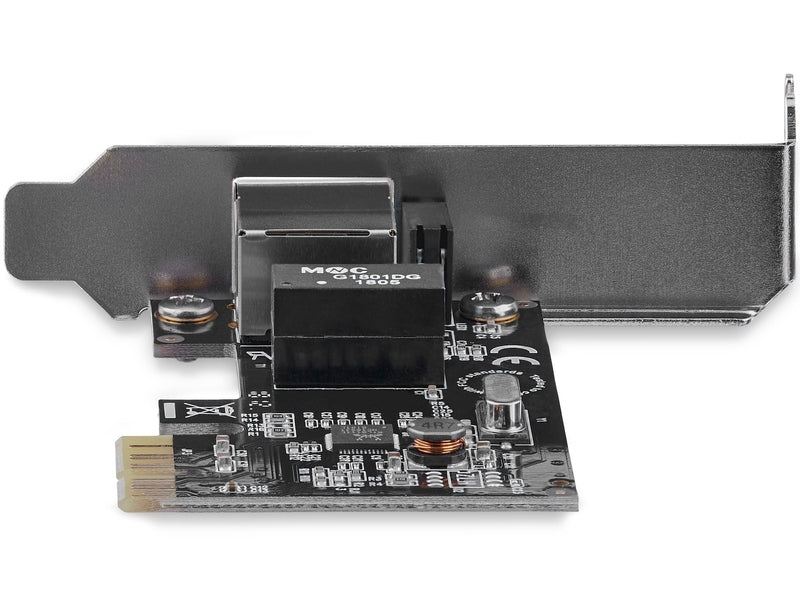

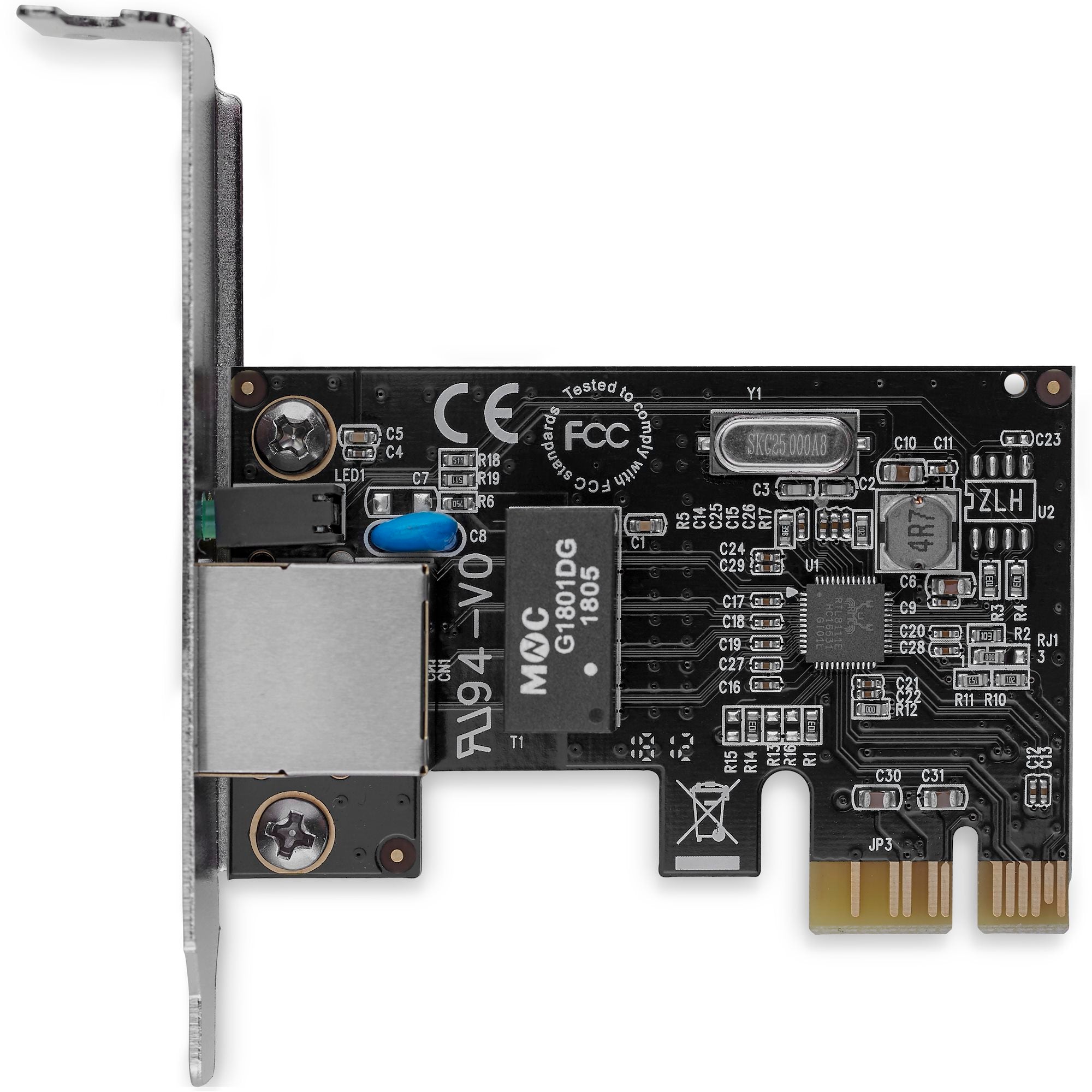

| Chipset ID | Realtek RTL8111 |

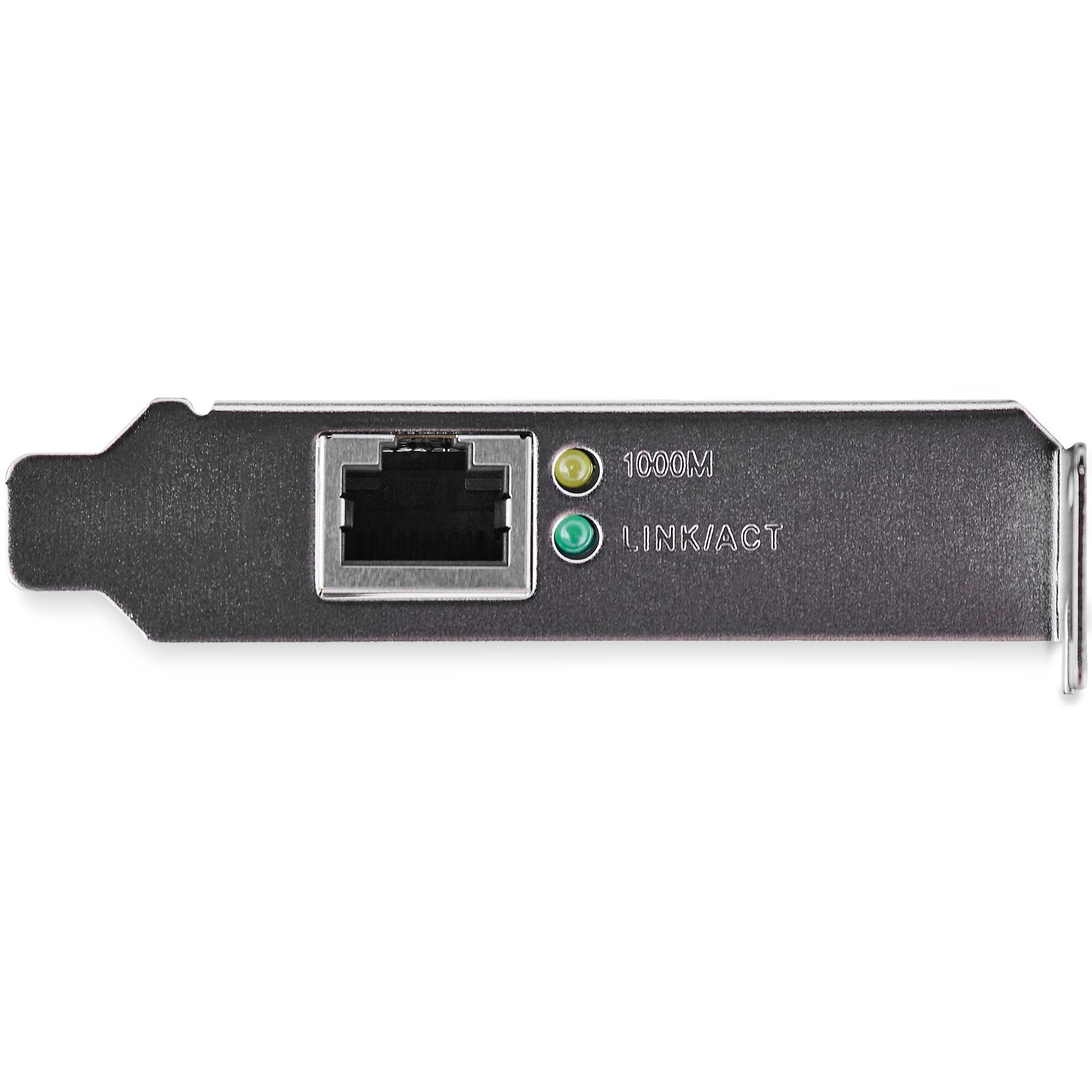

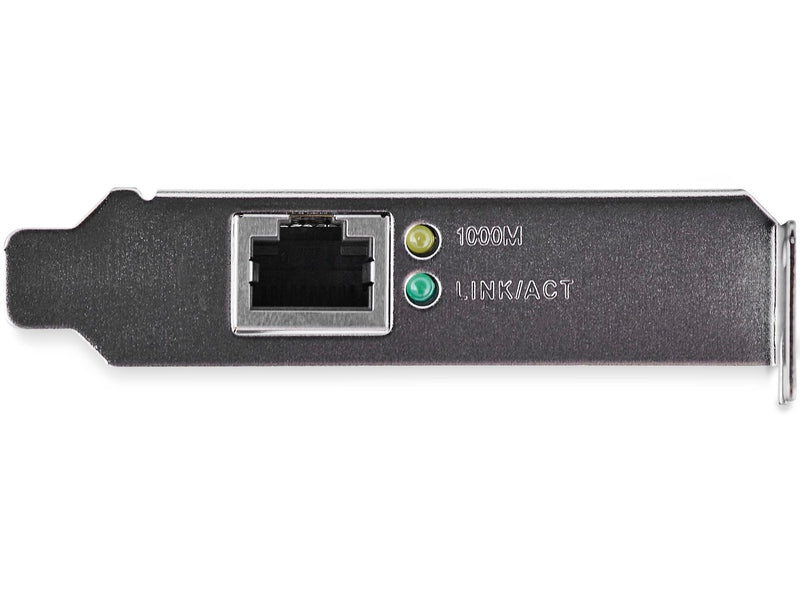

| LED Indicators | 1 × Link/Activity (Green) 1 × Gigabit Detect (Yellow) |
| Packaging Information | |
| Package Height | 1.3 in [3.2 cm] |
| Package Length | 5.6 in [14.3 cm] |
| Package Width | 5.6 in [14.3 cm] |
| Package Weight | 3.2 oz [92.0 g] |
| Package Quantity | 1 |
| Performance | |
| Wake On LAN | Yes |
| Max Data Transfer Rate | 1000 Mbps |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Supported Protocols | CSMA/CD |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Product Length | 2.6 in [6.6 cm] |
| Product Width | 1.7 in [4.2 cm] |
| Product Height | 3.1 in [8.0 cm] |
| Product Weight | 1.1 oz [30.0 g] |
| Power | |
| Input Voltage | 12V DC |
| Output Voltage | 12V DC |
| Software | |
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.6 to 10.9 Linux 2.4.x and up (LTS versions only) |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express expansion card slot |
| What's in the Box | |
| Included Items | 1 × Gigabit Ethernet PCI Express Card 1 × Standard Profile Bracket 1 × Instruction Manual |
