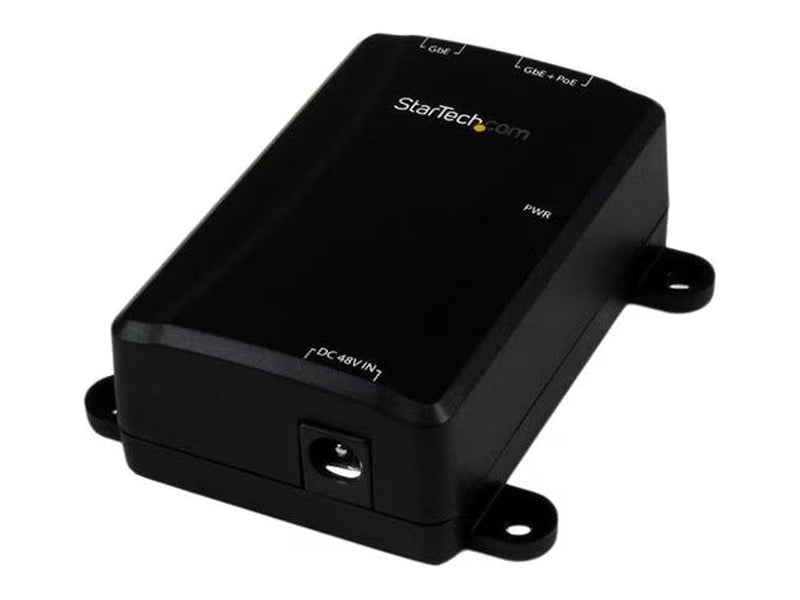

StarTech 1-Port Gigabit Midspan - PoE+ Injector

StarTechSKU: POEINJ1GW

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$173.00
1

Estimate shipping

Description

StarTech.com PoE Injector - Supply power and data connectivity to an individual Gigabit PoE device over standard Ethernet cabling

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).

The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

Convenience and cost savings

This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.

Easy to set up in mixed environments

You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.

Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Intelligent power allocation

Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.

The POEINJ1GW is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specification

Interfaces/Ports
Input Ports 1 x 10/100/1000Base-T
Output Ports 1 x 10/100/1000Base-T
Miscellaneous
Compatibility StarTech NETRS2321POE Terminal & Device Server
Certifications & Standards
  • C-Tick
  • FCC
  • CE
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
  • IEEE 802.3 (10BASE-T)
  • IEEE 802.3u (100BASE-TX)
  • IEEE 802.3ab (1000BASE-T)
Environmentally Friendly Yes
Power Description
Input Voltage 120 V AC
230 V AC
Maximum Input Current 750 mA
Maximum Output Current 640 mA
Maximum Output Power 30 W
Maximum Output Voltage 56 V DC
General Information
Product Type PoE Injector
Manufacturer Part Number POEINJ1GW
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1
Manufacturer StarTech.com
Product Name 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-Mountable
Brand Name StarTech.com
Physical Characteristics
Weight (Approximate) 52 g
Form Factor Desktop
Length 71.1 mm
Mount Type Wall Mountable
Height 25.4 mm
Width 63.5 mm
Product Color Black
