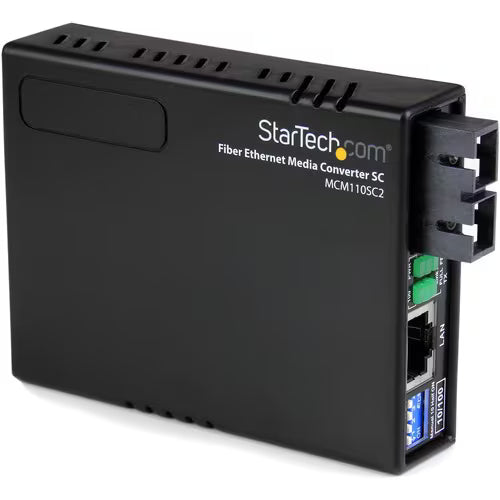

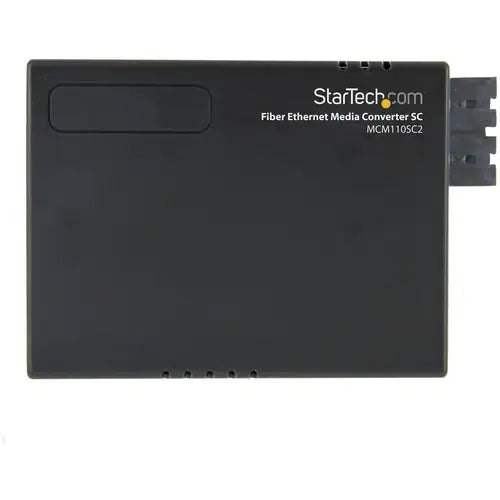

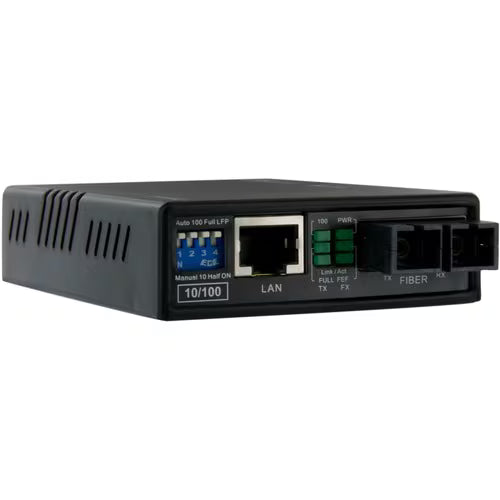

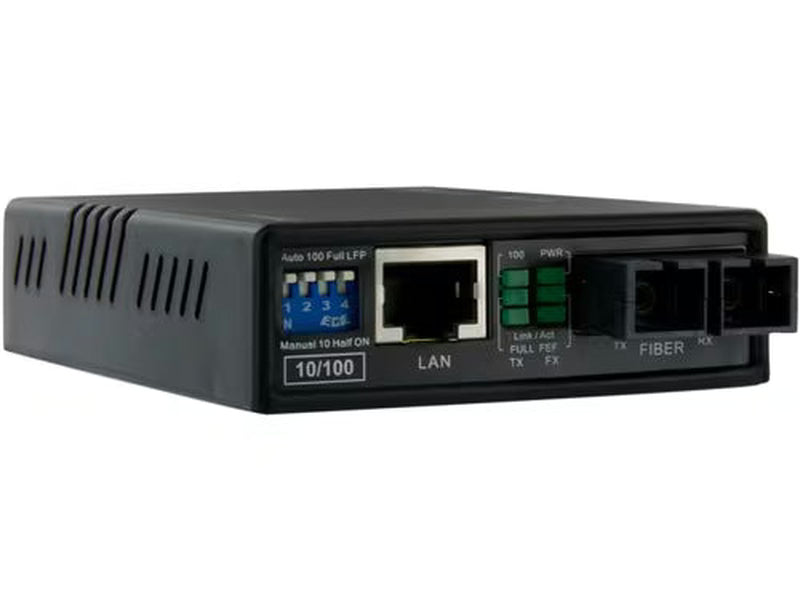

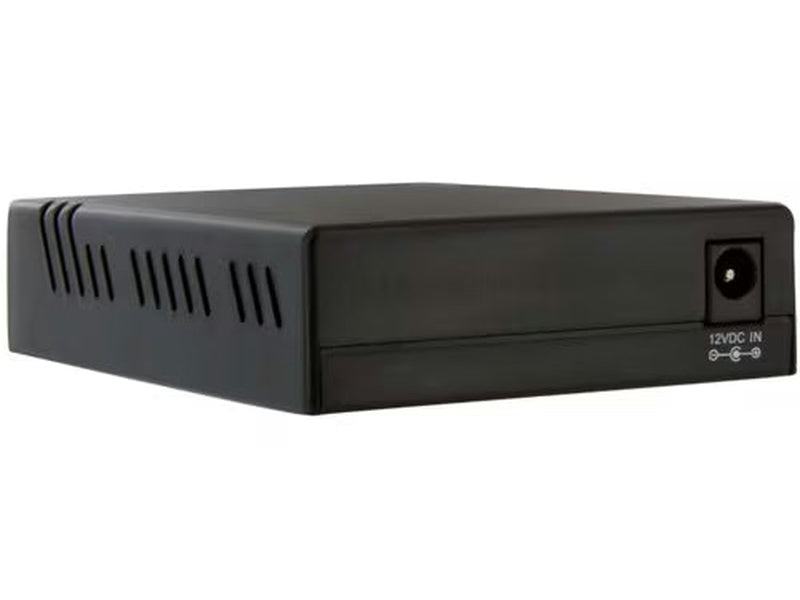

StarTech 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM, Cisco, Lucent and Nortel networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specification
| Power Description |
| Power Source |
AC Adapter |
| Power Consumption |
2.40 W |
| Plug/Connector Type |
Type M |
| Media & Performance |
| Media Type Supported |
Optical Fiber |
|
Twisted Pair |
| Fiber Mode Supported |
Multi-mode |
| Fiber Optic Cable Wavelength |
1310 nm |
| Network & Communication |
| Network Technology |
10Base-T |
|
100Base-TX |
|
100Base-FX |
| Ethernet Technology |
Fast Ethernet |
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
1 |
| Network (RJ-45) |
Yes |
| Number of SC Ports |
1 |
| Total Number of Ports |
2 |
|
| SC Port Type |
Duplex |
| Physical Characteristics |
| Weight (Approximate) |
85 g |
| Form Factor |
External |
| Height |
20.3 mm |
| Width |
76.2 mm |
| Depth |
94 mm |
| General Information |
| Product Type |
Transceiver/Media Converter |
| Manufacturer Part Number |
MCM110SC2 |
| Manufacturer Website Address |
http://www.startech.com/au |
| Packaged Quantity |
1 Each |
| Manufacturer |
StarTech.com |
| Product Name |
10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km |
| Brand Name |
StarTech.com |
| Miscellaneous |
| Additional Information |
- Plug Type: M
- Fiber Operating Mode: Half/Full-Duplex
|
| Environmentally Friendly |
Yes |
| TAA Compliant |
Yes |
| REACH Declaration URL |
https://media.startech.com/cms/pdfs/mcm110sc2_rohs.pdf |
| EU RoHS Declaration URL |
https://media.startech.com/cms/pdfs/mcm110sc2_rohs.pdf |
| End of Life Manual Availability |
Yes |
| REACH free of SVHC |
Yes |
| WEEE Statement |
https://media.startech.com/cms/pdfs/mcm110sc2_weee.pdf |
|
