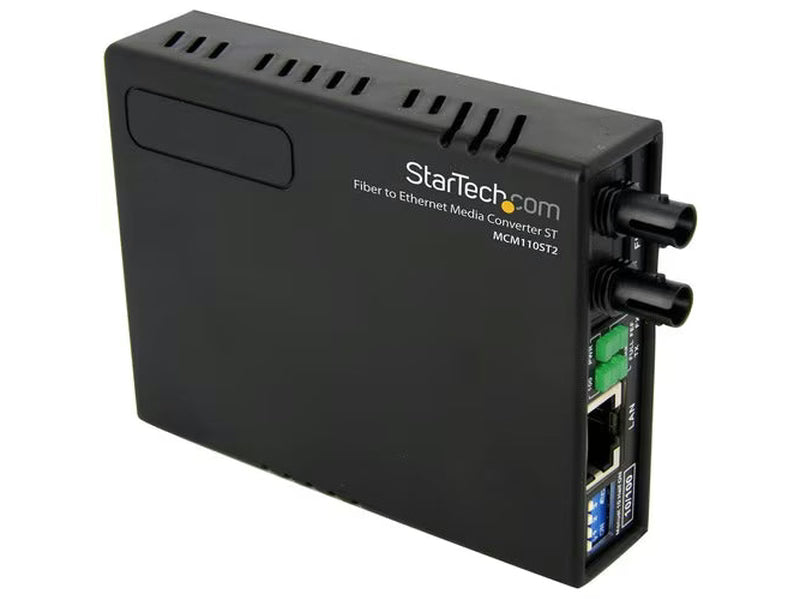

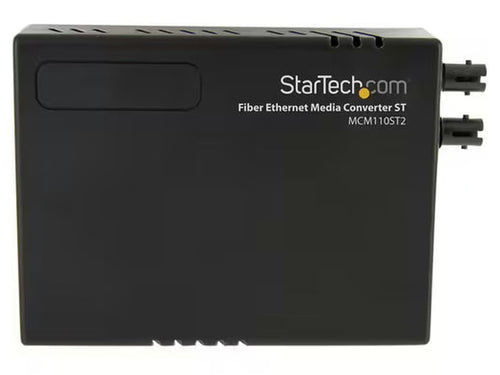

StarTech 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

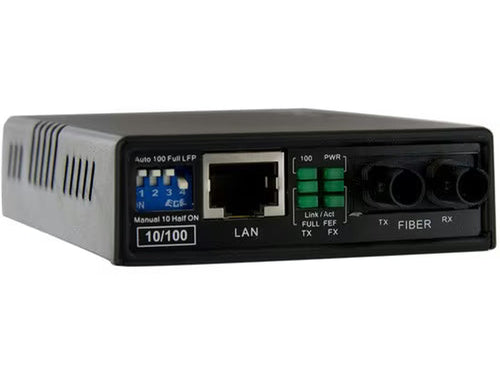

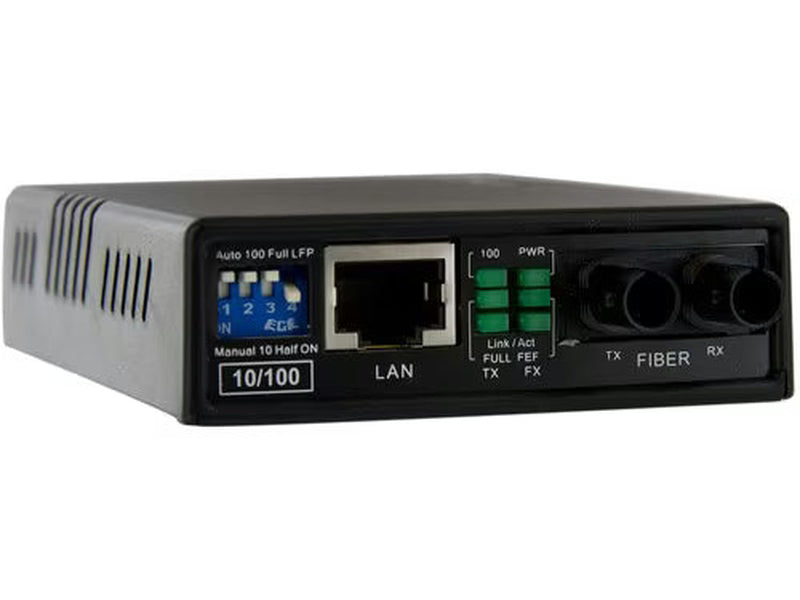

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specification
| Network & Communication |
| Network Technology |
10Base-T |
|
100Base-FX |
| Ethernet Technology |
Fast Ethernet |
| Power Description |
| Power Source |

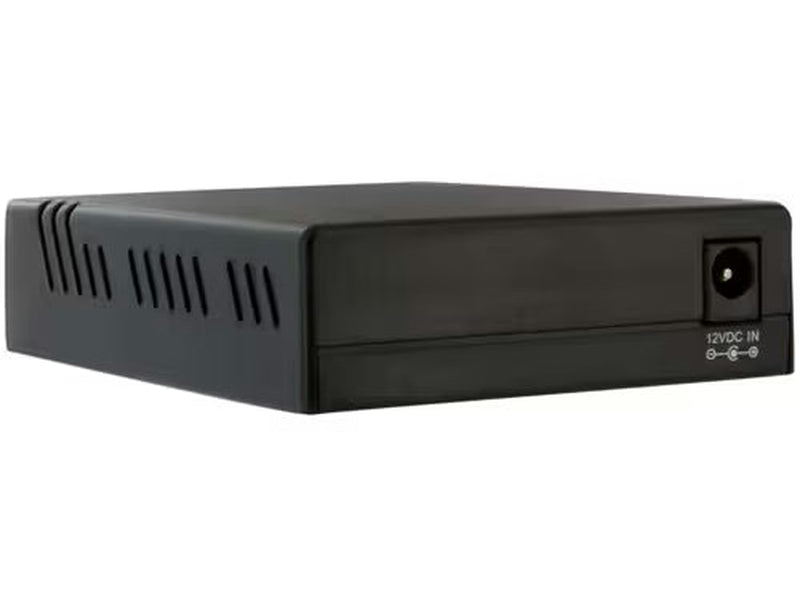

AC Adapter |
| Power Consumption |
2.40 W |
| Plug/Connector Type |
Type M |
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
1 |
| Network (RJ-45) |
Yes |
| Number of ST Ports |
1 |
| Total Number of Ports |
2 |
| ST Port Type |
Duplex |
| Media & Performance |
| Maximum Distance Supported |
2 km |
| Media Type Supported |
Optical Fiber |
|
Twisted Pair |
| Fiber Mode Supported |
Multi-mode |
|
| Fiber Optic Cable Wavelength |
1310 nm |
| Physical Characteristics |
| Weight (Approximate) |
82.2 g |
| Form Factor |
External |
| Height |
20.3 mm |
| Width |
76.2 mm |
| Depth |
94 mm |
| General Information |
| Product Type |
Transceiver/Media Converter |
| Manufacturer Part Number |
MCM110ST2 |
| Manufacturer Website Address |
http://www.startech.com/au |
| Packaged Quantity |
1 Each |
| Manufacturer |
StarTech.com |
| Product Name |
10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km |
| Brand Name |
StarTech.com |
| Miscellaneous |
| Additional Information |
- Plug Type: M
- Fiber Operating Mode: Half/Full-Duplex
|
| Environmentally Friendly |
Yes |
| TAA Compliant |
Yes |
| REACH Declaration URL |
https://media.startech.com/cms/pdfs/mcm110st2_rohs.pdf |
| EU RoHS Declaration URL |
https://media.startech.com/cms/pdfs/mcm110st2_rohs.pdf |
| End of Life Manual Availability |
Yes |
| REACH free of SVHC |
Yes |
| WEEE Statement |
https://media.startech.com/cms/pdfs/mcm110st2_weee.pdf |
|
