Description
Overview
Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA I/II/III

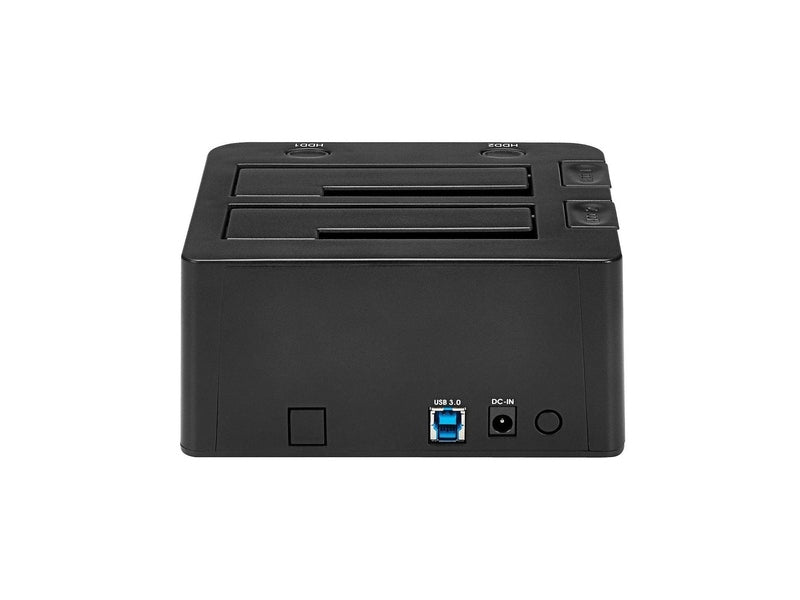

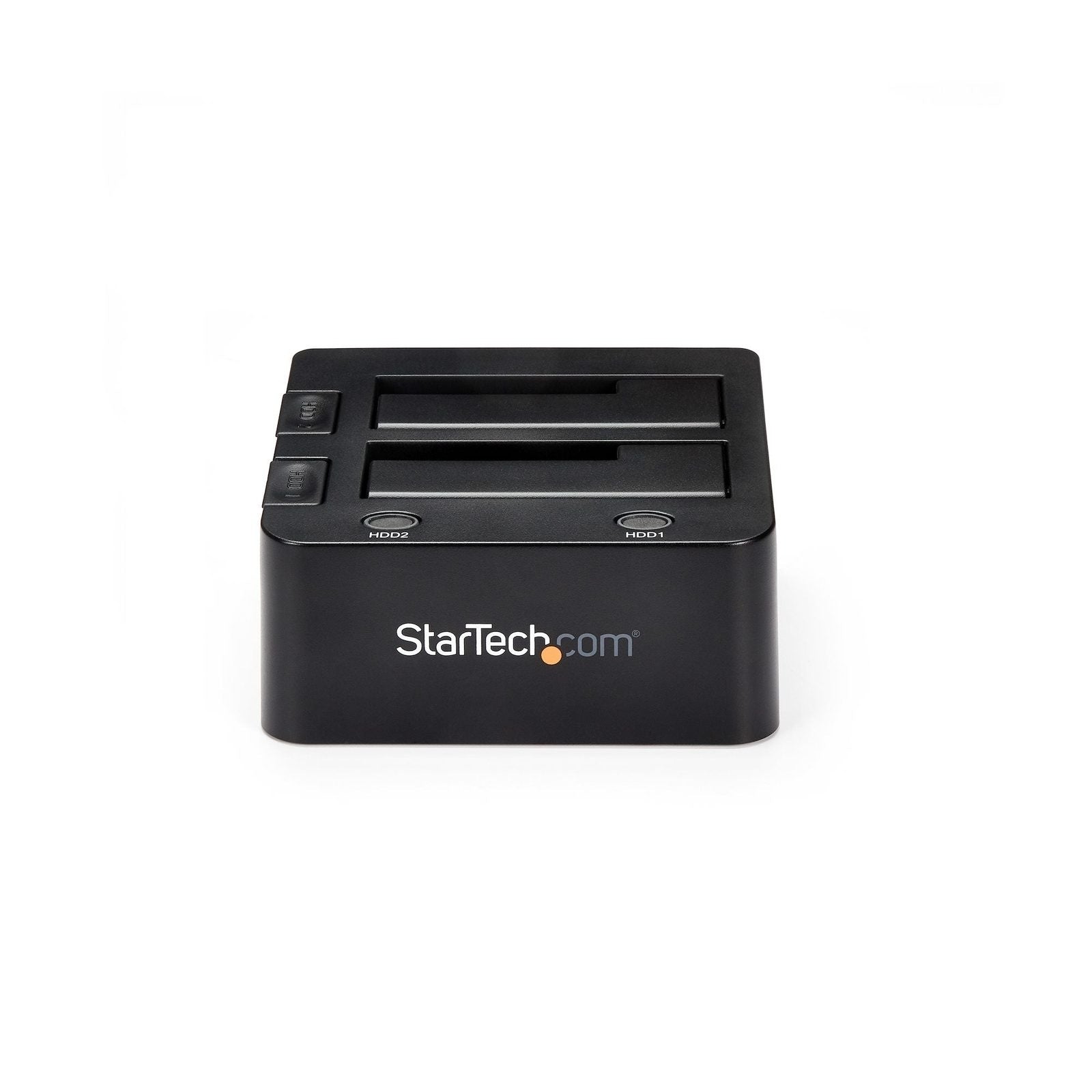

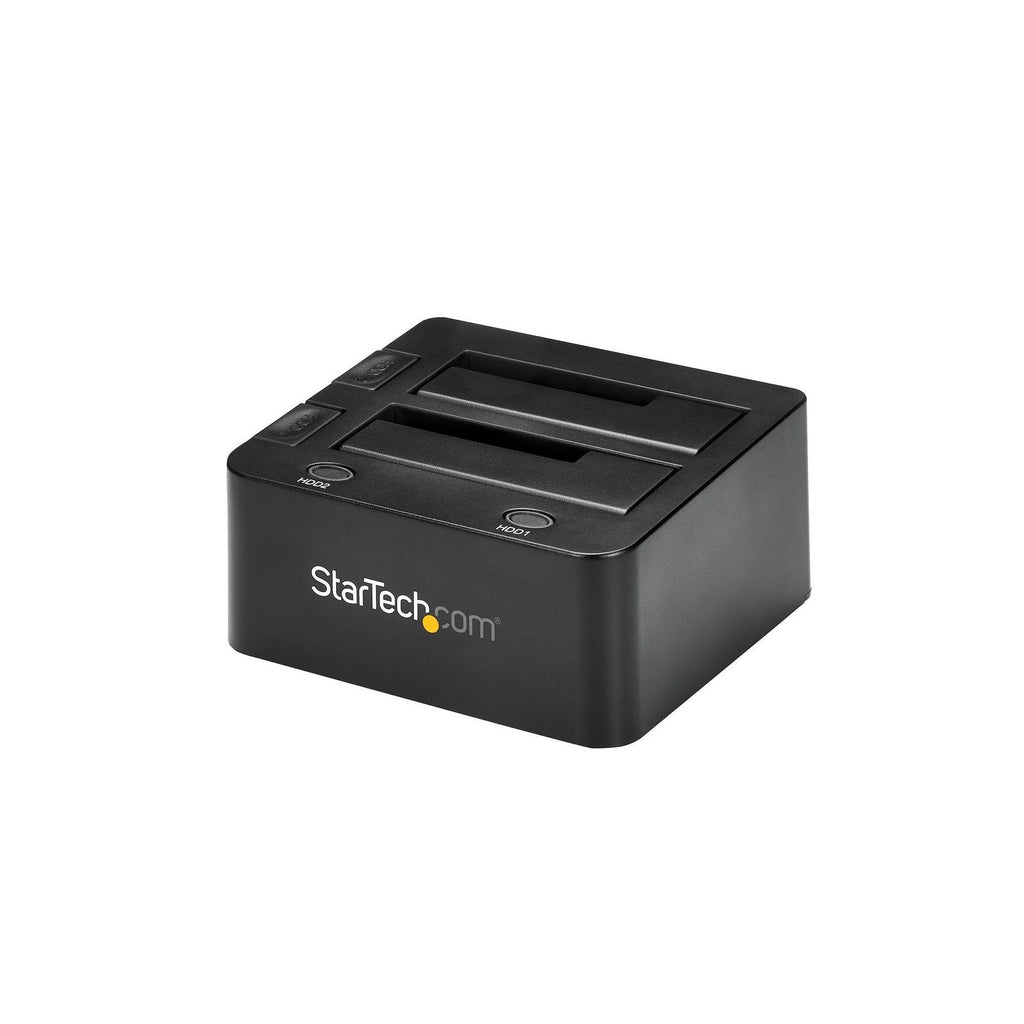

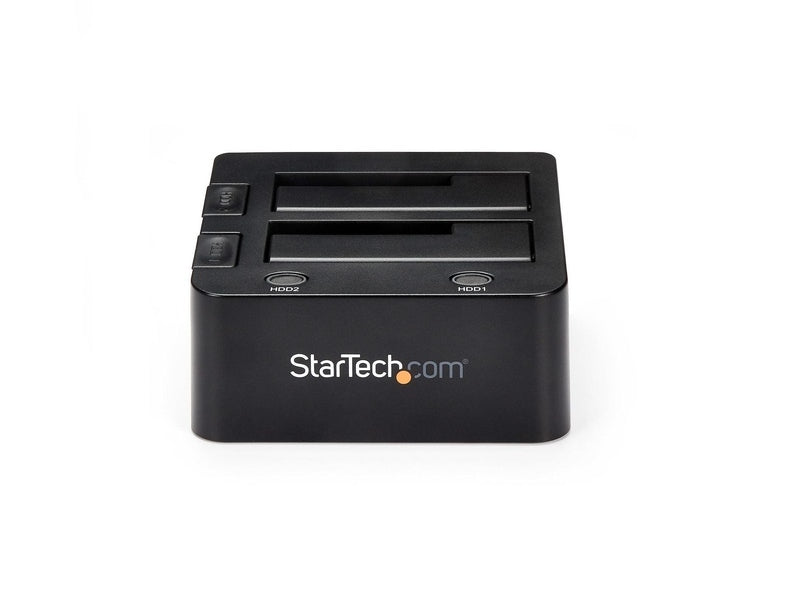

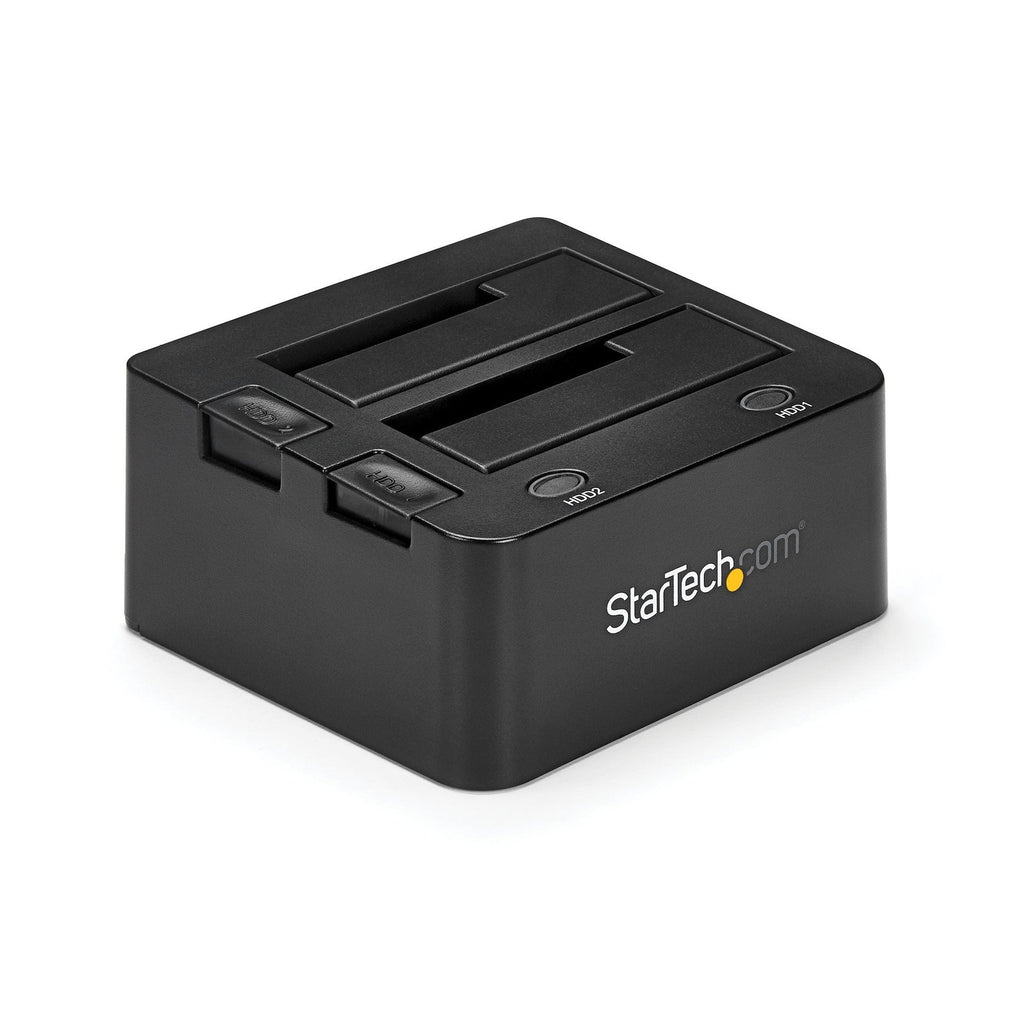

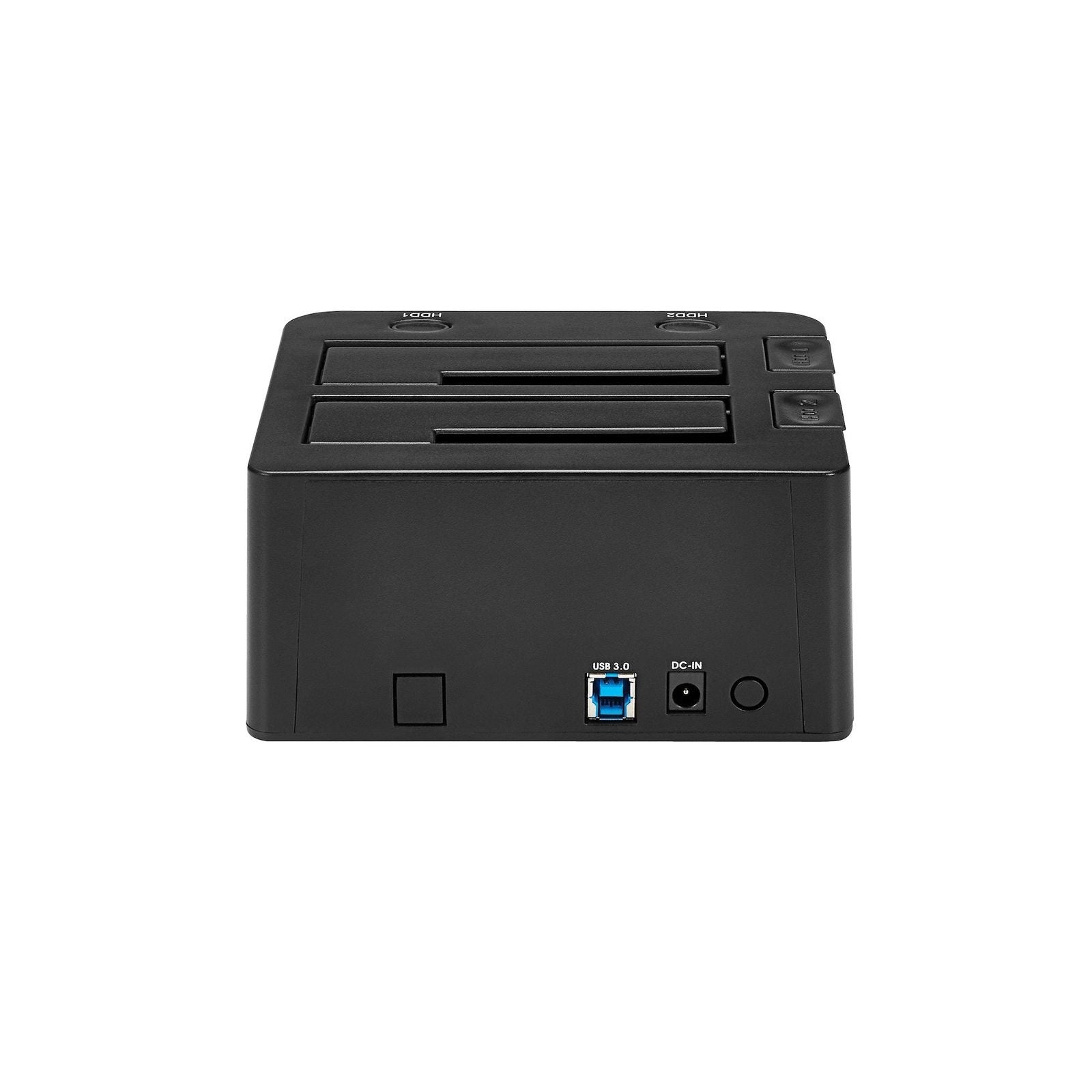

Our SDOCK2U33 Dual-Bay USB 3.0 to SATA Hard Drive Docking Station enables access to two 2.5/3.5" SATA drives from your desktop or laptop computer over USB 3.2 Gen 1 (5 Gbps).
The hard drive dock features power buttons for each individual drive, ensuring you can operate each hard drive separately. This gives you the freedom to hot-swap an idle drive while transferring data to another, saving you time.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
Compatible with Any Capacity or File Format
Compatible with 2.5" and/or 3.5" SATA HDDs and SSDs of any capacity and file format recognized by your host system. This dock works with any Operating System. Drivers and software are not required.
Dual-Bay USB 3.0 to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA I/II/III
Our SDOCK2U33 Dual-Bay USB 3.0 to SATA Hard Drive Docking Station enables access to two 2.5/3.5" SATA drives from your desktop or laptop computer over USB 3.2 Gen 1 (5 Gbps).
The hard drive dock features power buttons for each individual drive, ensuring you can operate each hard drive separately. This gives you the freedom to hot-swap an idle drive while transferring data to another, saving you time.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.
Compatible with Any Capacity or File Format
Compatible with 2.5" and/or 3.5" SATA HDDs and SSDs of any capacity and file format recognized by your host system. This dock works with any Operating System. Drivers and software are not required.
| USB 3.0 to Dual SATA Docking Station Specifications | |
|---|---|
| Connector(s) | |
| Drive Connectors | 2 × SATA Data & Power Combo (7+15 pin) |
| Host Connectors | 1 × USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) |
| Environmental | |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) |
| Humidity | 20% RH to 80% RH |
| Hardware | |
| Interface | USB 3.2 Gen 1 (5Gbps) |
| Number of Drives | 2 |
| Drive Size | 2.5in & 3.5in |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Fan(s) | No |
| Chipset ID | VIA/VLI VL817, ASMedia ASM225CM |
| LED Indicators | 2 – Drive Power / Activity |
| Packaging Information | |
| Package Height | 4.8 in [12.2 cm] |
| Package Length | 7.4 in [18.9 cm] |
| Package Width | 8.3 in [21.2 cm] |
| Package Weight | 2.1 lb [0.9 kg] |
| Package Quantity | 1 |
| Performance | |
| UASP Support | Yes |
| Insertion Rating | 15,000 Cycles |
| MTBF | 30,000 Hours |
| Physical Characteristics | |
| Color | Black |
| Material | Plastic |
| Product Length | 5.8 in [14.8 cm] |
| Product Width | 5.2 in [13.2 cm] |
| Product Height | 2.8 in [7.0 cm] |
| Product Weight | 1.1 lb [0.5 kg] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100–240V AC |
| Input Current | 1.3 A |
| Output Voltage | 12V DC |
| Output Current | 3 A |
| Plug Type | M |
| Power Consumption | 36 Watts |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included Items | 1 × USB 3.0 to Dual 2.5/3.5in SATA Hard Drive Docking Station 1 × 3ft (1m) USB 3.0 Cable 1 × Universal Power Adapter (region-specific) 1 × Instruction Manual |
